Home >> Mercedes Benz >> 2012 >> SLK 250 (172.477) L4-1.8L Turbo (271.861) >> Repair and Diagnosis >> Maintenance >> Fluids >> Power Steering Fluid >> Service and Repair >> AP46.00-P-4611V Check and Correct Power Steering Oil Level

AP46.00-P-4611V Check and Correct Power Steering Oil Level



AP46.00-P-4611V Check and correct power steering oil level

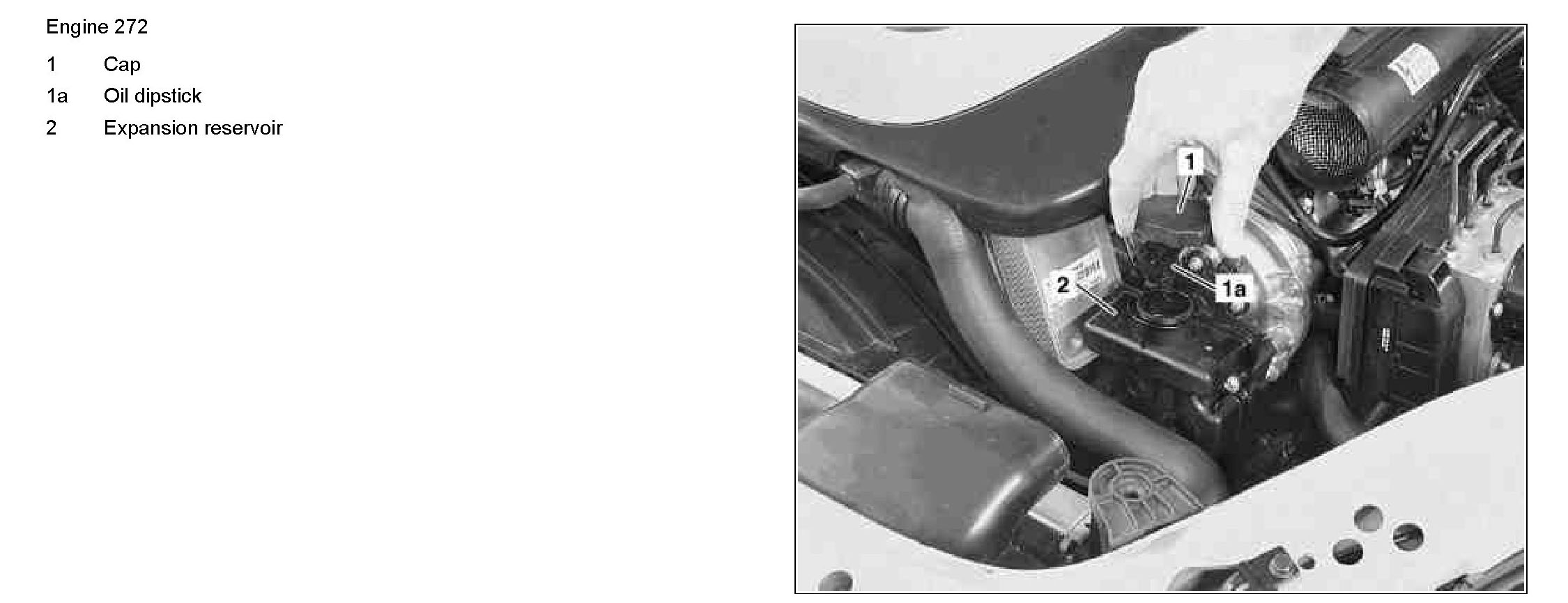

Component Identification:

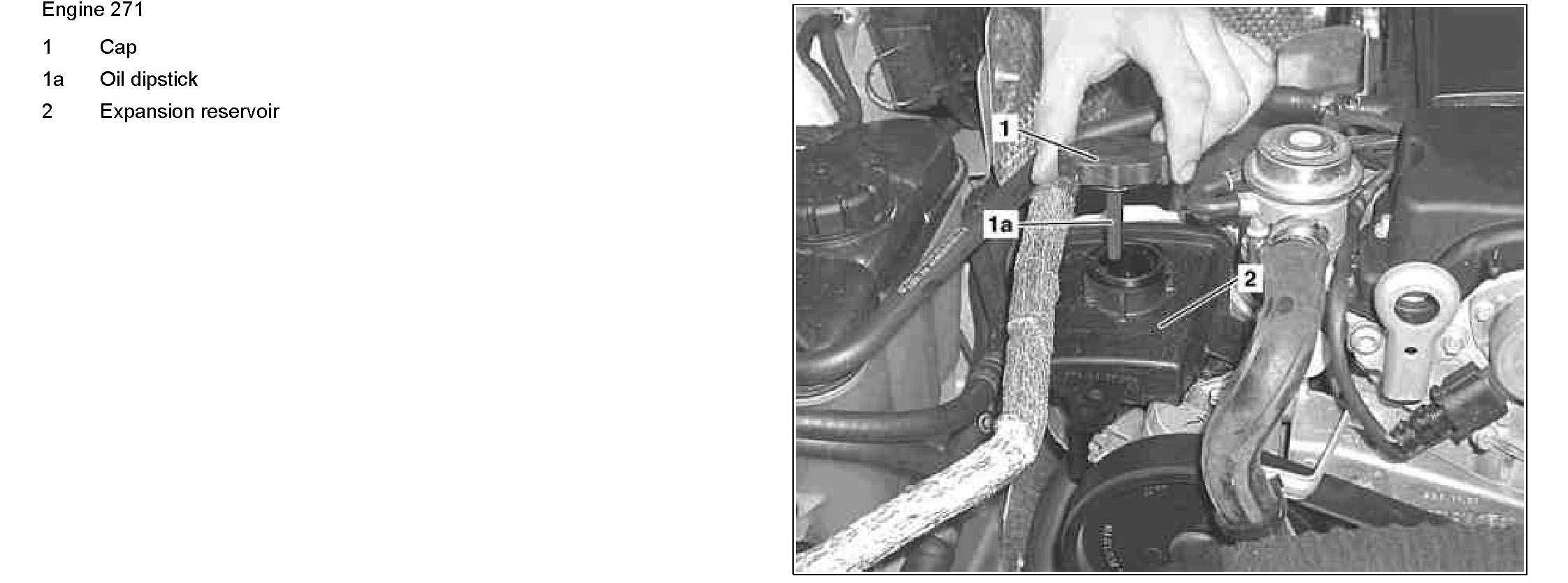

Component Identification:

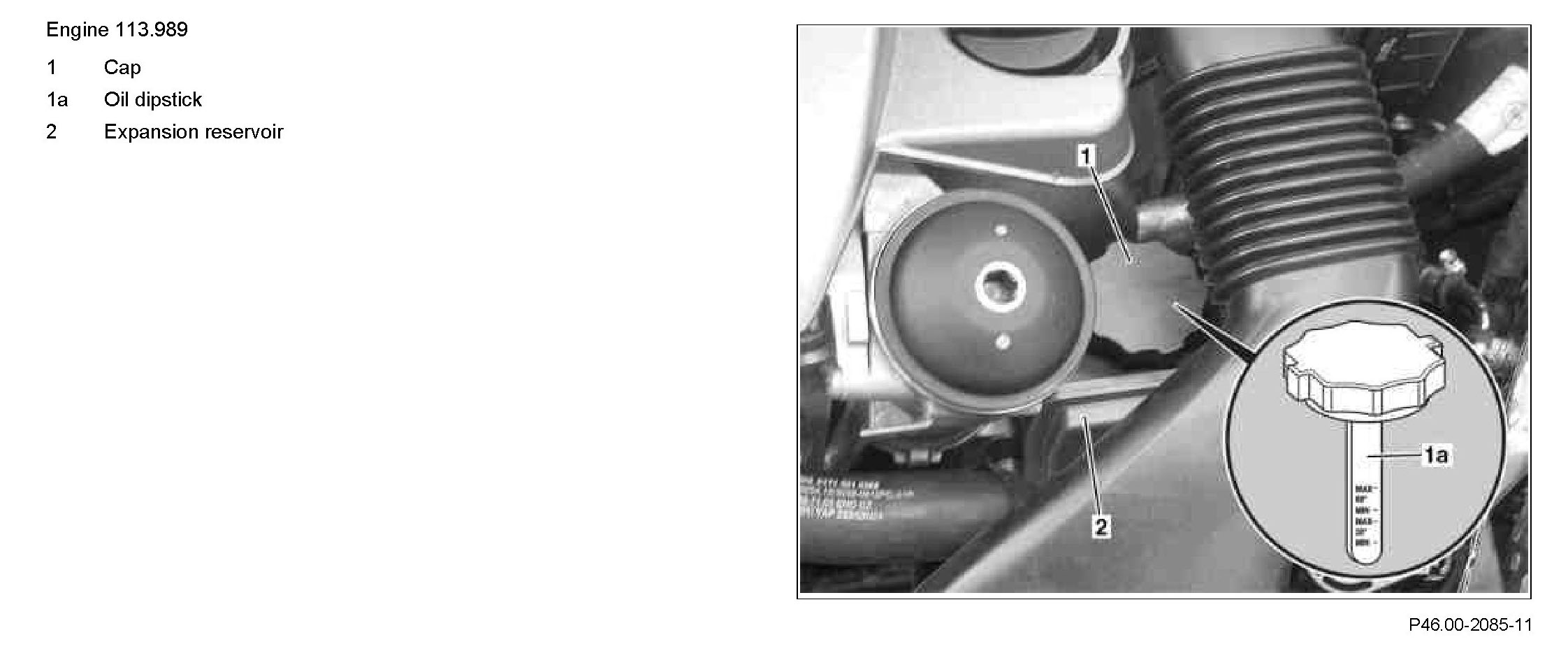

Component Identification:




Steps 1 - 9:

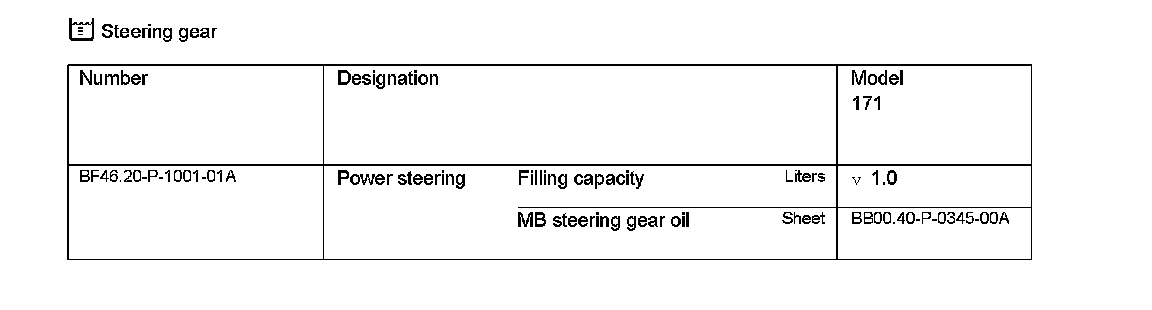

Steering Gear:
