AP46.00-P-4611V Check and Correct Power Steering Fluid Level

AP46.00-P-4611V Check And Correct Power Steering Fluid Level
MODEL 171 with ENGINE 113, 271, 272
MODEL 172 with ENGINE 152, 271, 276, 651

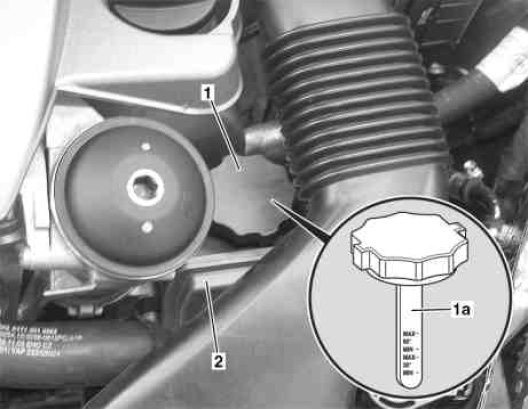

Engine 113

1 Cap
1a Dipstick
2 Oil reservoir

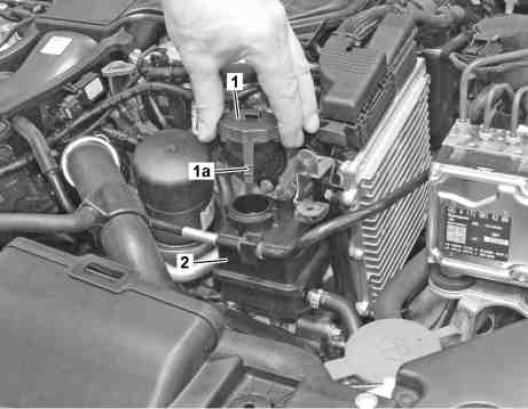

Engine 152

1 Cap
1a Dipstick
2 Oil reservoir





Engine 271

1 Cap
1a Dipstick
2 Oil reservoir





Engine 272

1 Cap
1a Dipstick
2 Oil reservoir





Engine 276

1 Cap
1a Dipstick
2 Oil reservoir





Engine 651

1 Cap
1a Dipstick
2 Oil reservoir
