Fuel Filter: Service and Repair

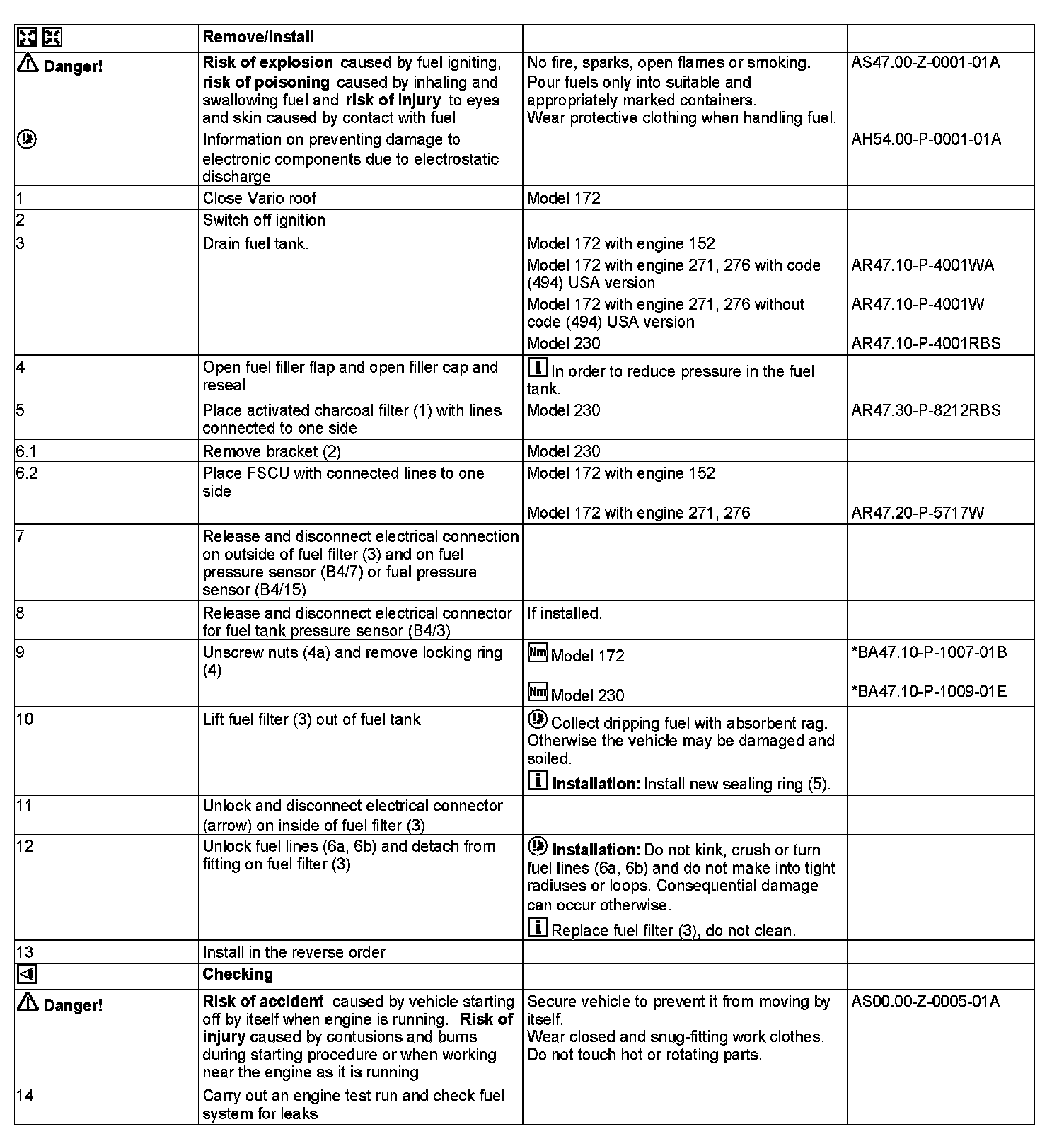

AP47.20-P-0780RBS Replace Fuel Filter
ENGINE 275.983 in MODEL 230.479
- with CODE (P99) "AMG Black Series" special model
ENGINE 152, 271, 276 in MODEL 172

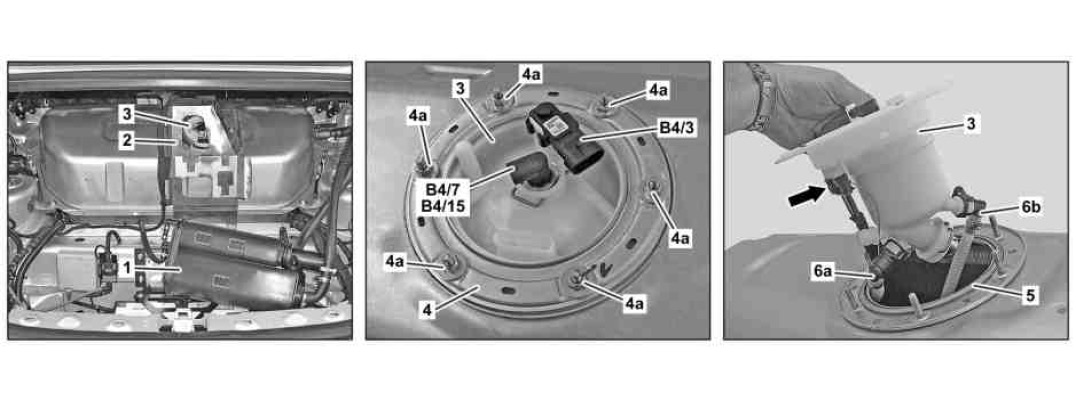

Show on model 230

1 Activated charcoal canister (model 230)
2 Bracket (model 230)
3 Fuel filter
4 Locking ring
4a Nut
5 Sealing ring
6a Fuel line
6b Fuel line
B4/3 Fuel tank pressure sensor
B4/7 Fuel pressure sensor (model 172)
B4/15 Fuel pressure sensor (model 230)
