Horn: Service and Repair

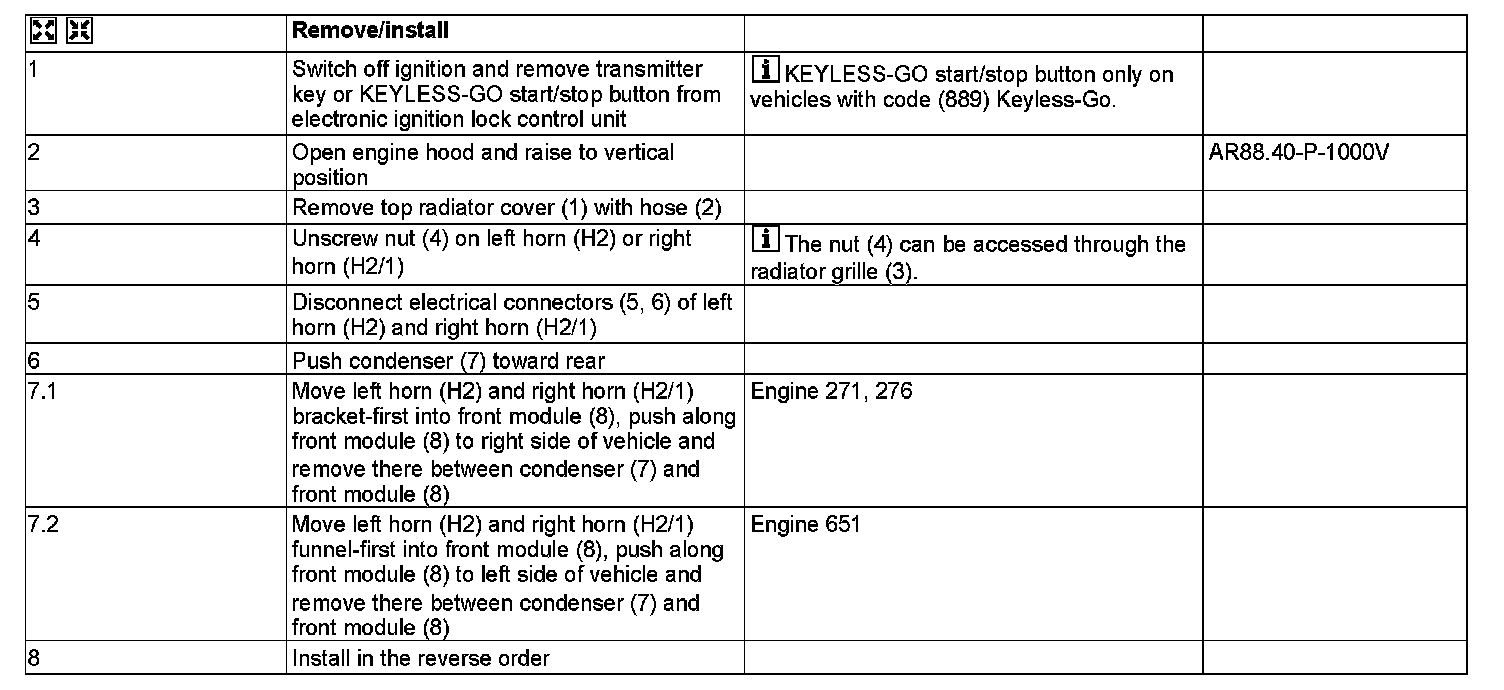

AR54.35-P-1555W Remove/Install Fanfare Horns
MODEL 172.4

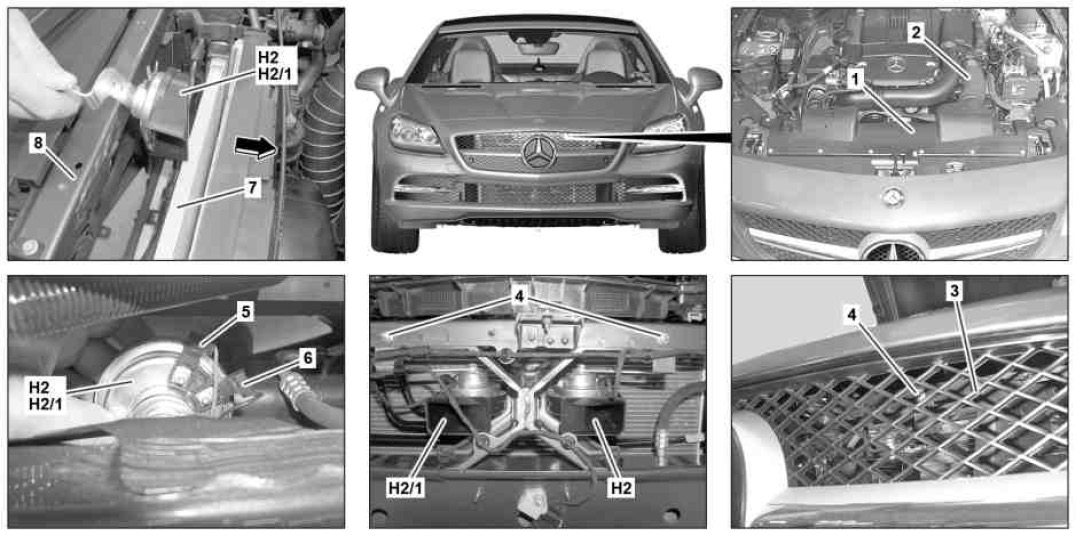

Shown on engine 271.861
1 Top radiator cover
2 Hose
3 Radiator grille
4 Nut
5 Electrical connector
6 Electrical connector
7 Capacitor
8 Front Module
H2 Left fanfare horn
H2/1 Right fanfare horn
