AR82.10-P-4730W Remove/Install Lamp Unit

AR82.10-P-4730W Remove/Install Lamp Unit
MODEL 172.4





1 Retaining rail
2 Nuts
3 Screw
4 Screw

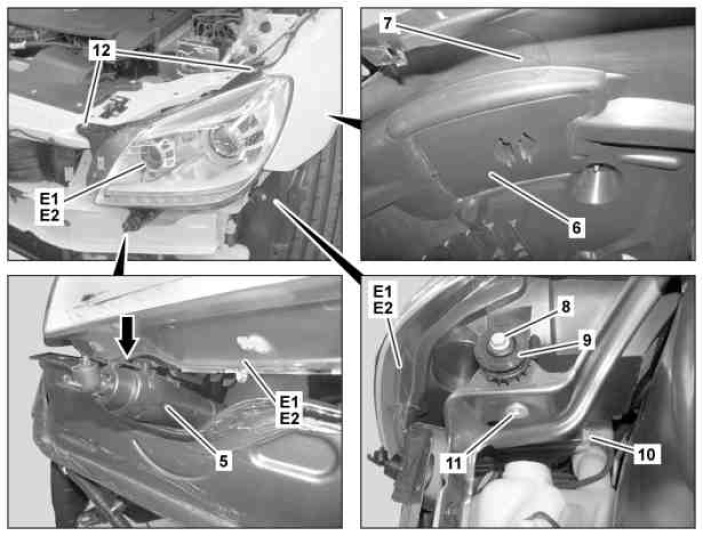

Shown on left front lamp unit (E1) with code (621) Intelligent Light System (lefthand traffic)
5 Telescopic nozzle (with code (600) Headlamp cleaning system)
6 Service flap
7 Fender liner, front fender
8 Screw
9 Support
10 Electrical connector
11 Screw
12 Bolts
E1 Left front headlamp unit
E2 Right front headlamp unit

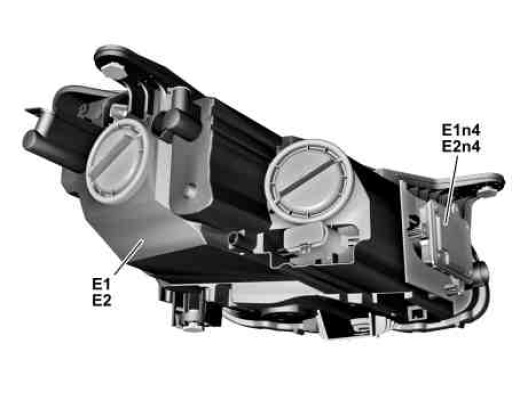

With code (615) Bi-xenon headlamp unit with code (621) Intelligent Light System (left-hand traffic), with code (622) Intelligent Light System (right-hand traffic)
E1 Left front headlamp unit
E1n4 Left xenon light power supply module
E2 Right front headlamp unit
E2n4 Right xenon light power supply module














129 589 03 21 00
Feeler gauge
