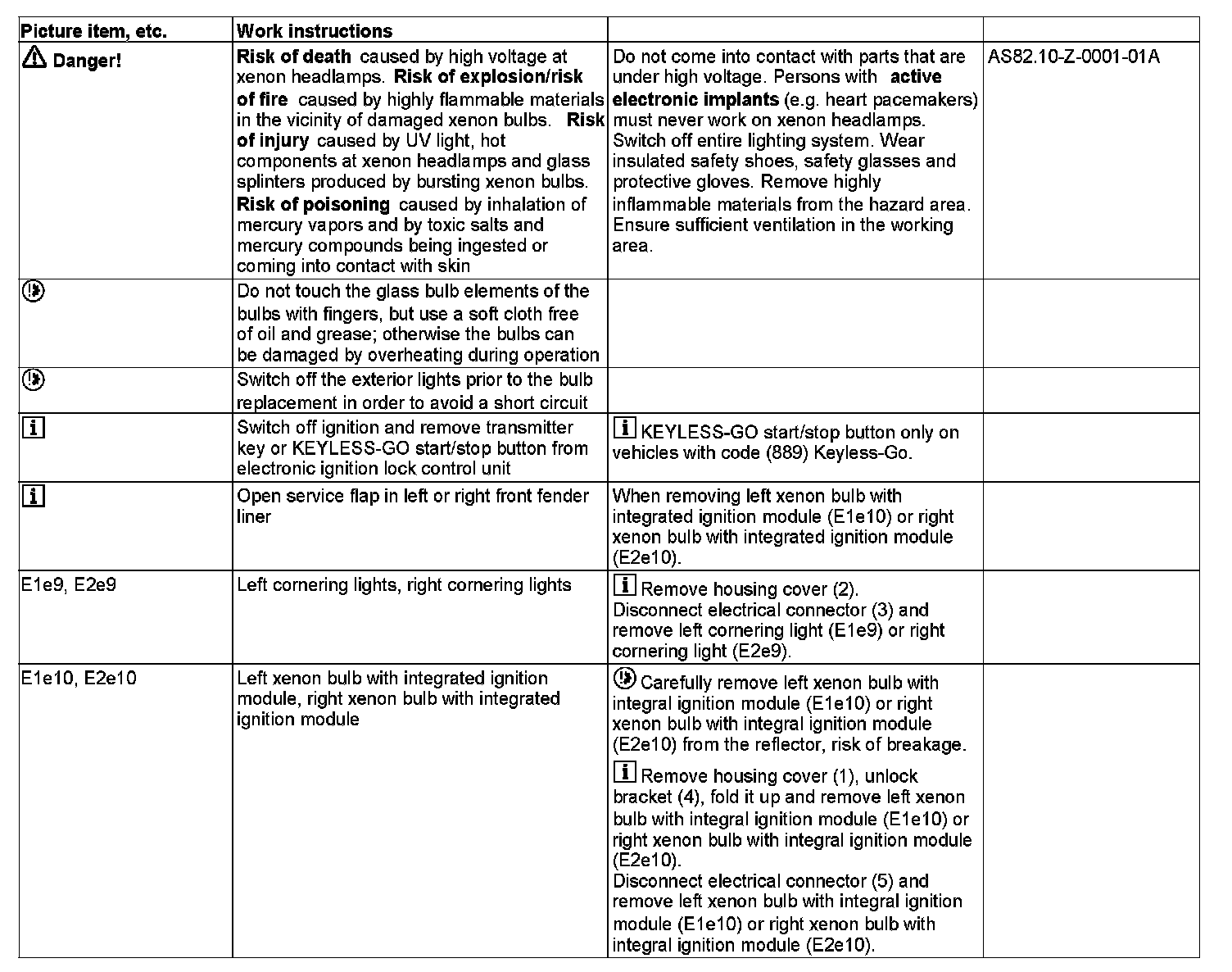

AR82.10-P-1201WA Remove/Install Bulbs of Headlamp Unit

AR82.10-P-1201WA Remove/Install Bulbs of Headlamp Unit
MODEL 172.4
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
- with CODE (621) Intelligent Light System (left-hand traffic)
- with CODE (622) Intelligent Light System (right-hand traffic)

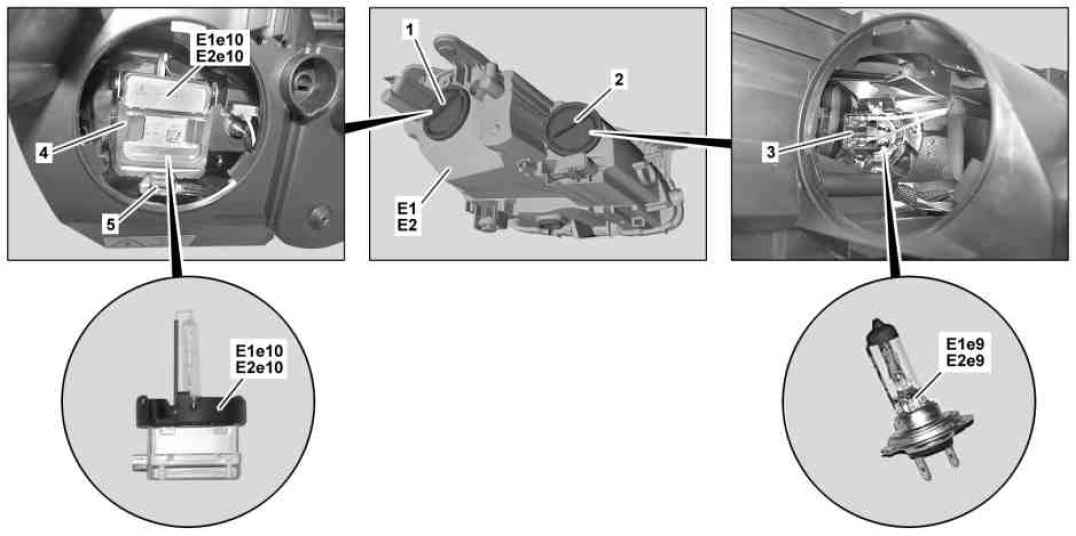

Shown on the left front lamp unit (E1)
1 Housing cover
2 Housing cover
3 Electrical connector
4 Bow
5 Electrical connector
E1 Left front headlamp unit
E1e9 Left cornering illumination
E1e10 Left xenon bulb with integrated ignition module
E2 Right front headlamp unit
E2e9 Cornering illumination, right
E2e10 Right xenon bulb with integrated ignition module
