AR82.10-P-4730-01W Create Service Opening At Lamp Unit

AR82.10-P-4730-01W Create Service Opening At Lamp Unit





124 589 12 63 00
Cutting blade

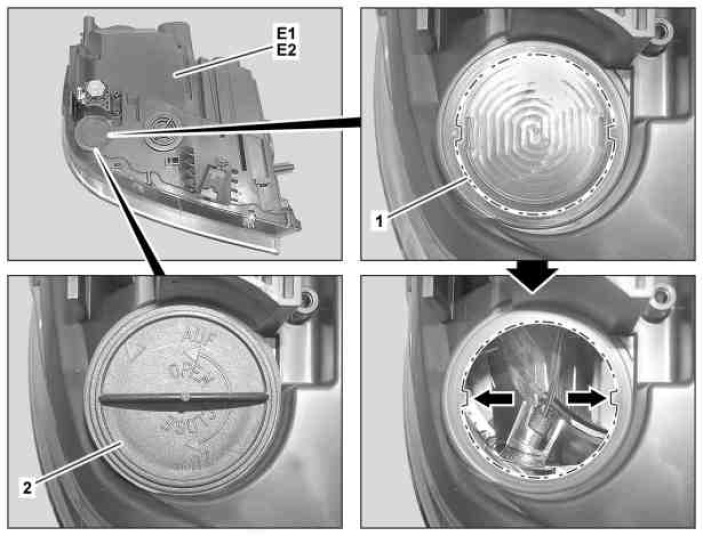

1 Service opening
2 Housing cover
E1 Left front headlamp unit
E2 Right front headlamp unit

1 Set down left front lamp unit (E1) or right front lamp unit (E2) on the top side.
When setting down, use a suitable protective padding, as otherwise the left front lamp unit (E1) or right front lamp unit (E2) may be damaged.
2 Carefully cut out service opening (1) along imprinted contour using cutting blade and FSC 1.6 window removal tool out of left front lamp unit (E1) or right front lamp unit (E2).
FSC 1.6 window removal tool gotis://K_67.0_01.0
When cutting out the service opening (1), make sure that the cutting blade is not inserted too deep as otherwise the reflector may be damaged.
The catch hooks (arrows) must not be damaged, as otherwise the housing cover (2) cannot be locked.
3 Rework service opening (1) with file or cutting blade.
4 Remove shavings with a wet/dry vacuum cleaner from the left front lamp unit (E1) or right front lamp unit (E2).
Wet/dry vacuum cleaner gotis://P_00.12_06.0
5 Close service opening (1) with housing cover (2).

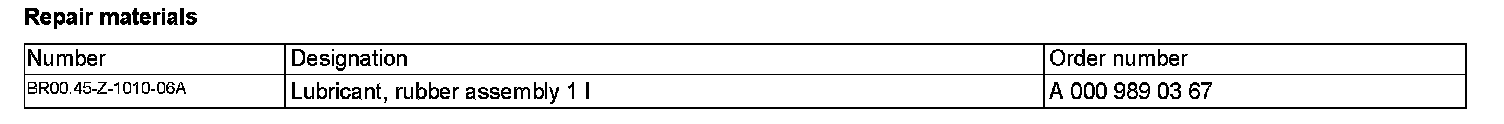

Moisten seal of housing cover (1) with lubricant. The housing cover (2) is available as a replacement part.
