Headlamp Control Module: Service and Repair

AR82.10-P-4632W Remove/Install xenon Headlamp Control Unit
MODEL 172.4
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
- with CODE (621) Intelligent Light System (left-hand traffic)
- with CODE (622) Intelligent Light System (right-hand traffic)

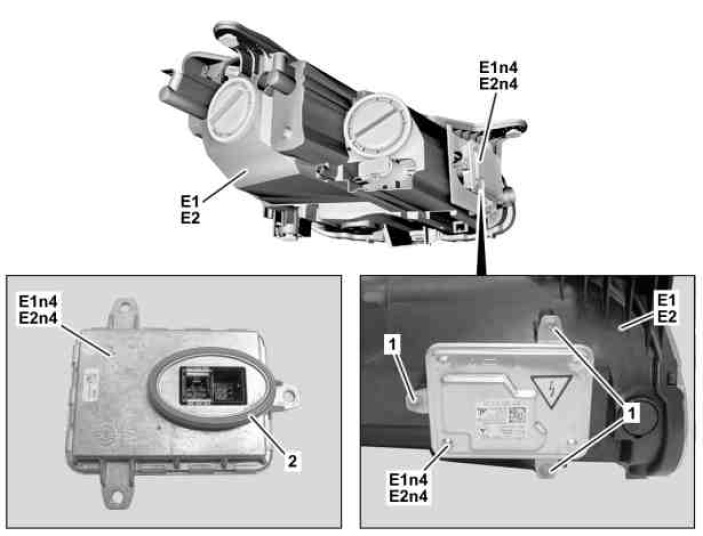

Shown on the left front lamp unit (E1)
1 Bolts
2 Gasket
E1 Left front headlamp unit
E1n4 Left xenon light power supply module
E2 Right front headlamp unit
E2n4 Right xenon light power supply module
