Home >> Mercedes Benz >> 2012 >> SLK 250 (172.477) L4-1.8L Turbo (271.861) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Adjustments >> AP82.10-P-8260V Check and Correct the Adjustment of the Headlamps

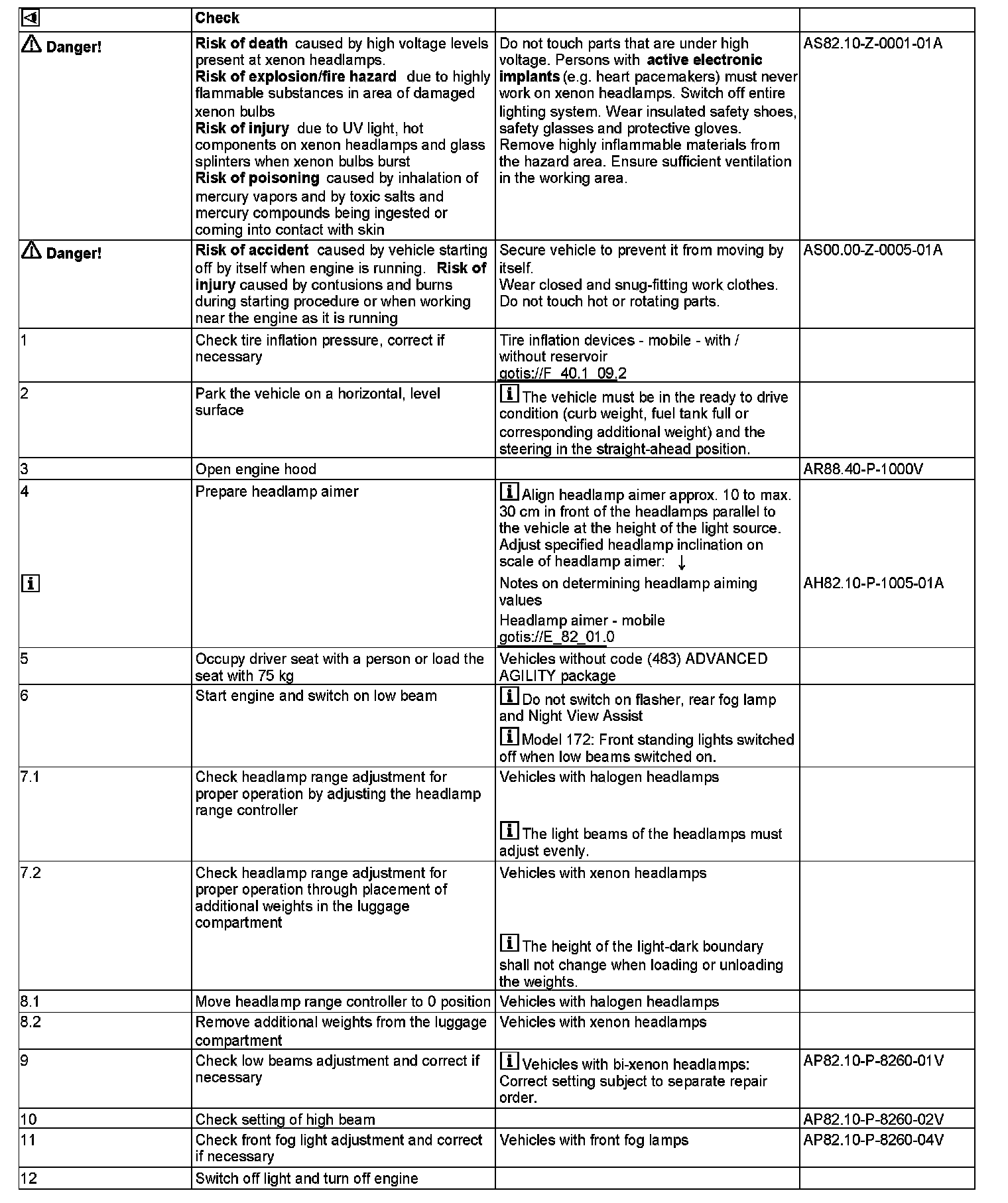

AP82.10-P-8260V Check and Correct the Adjustment of the Headlamps




AP82.10-P-8260V Check and Correct the Adjustment of the Headlamps
MODEL 171, 172

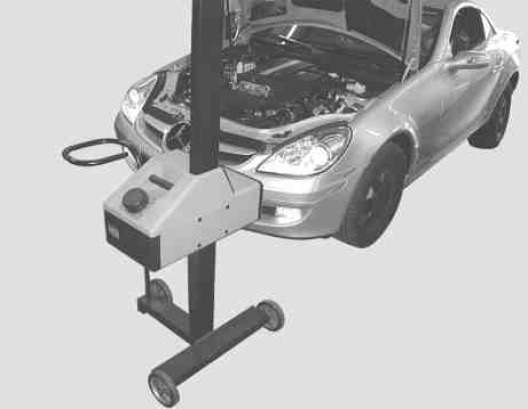

Shows model 171
