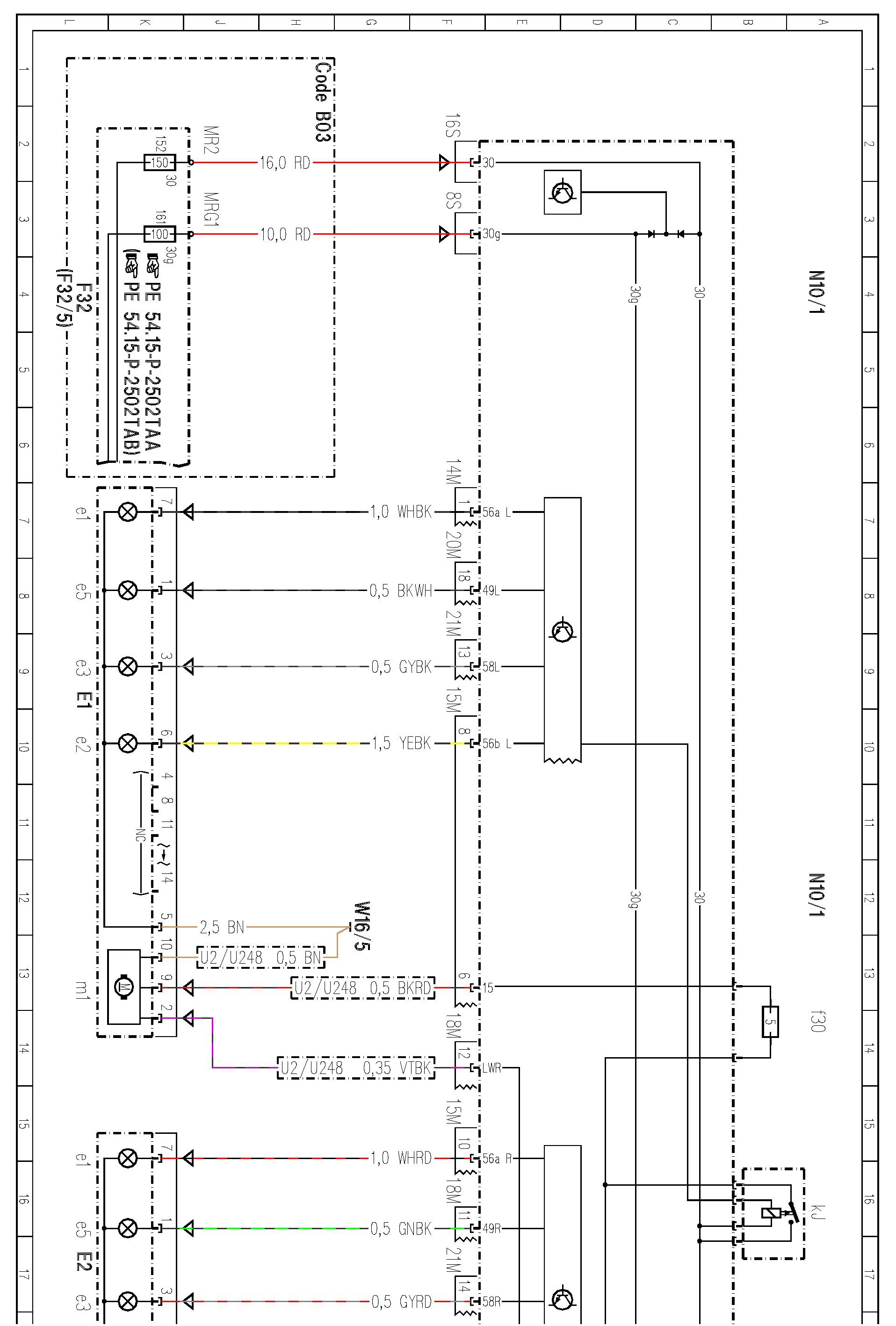

PE82.10-P-2000TAB Exterior Lights Wiring Diagram

PE82.10-P-2000TAB Exterior Lights Wiring Diagram

MODEL 172.4
- except CODE (614) Bi-xenon headlamp unit

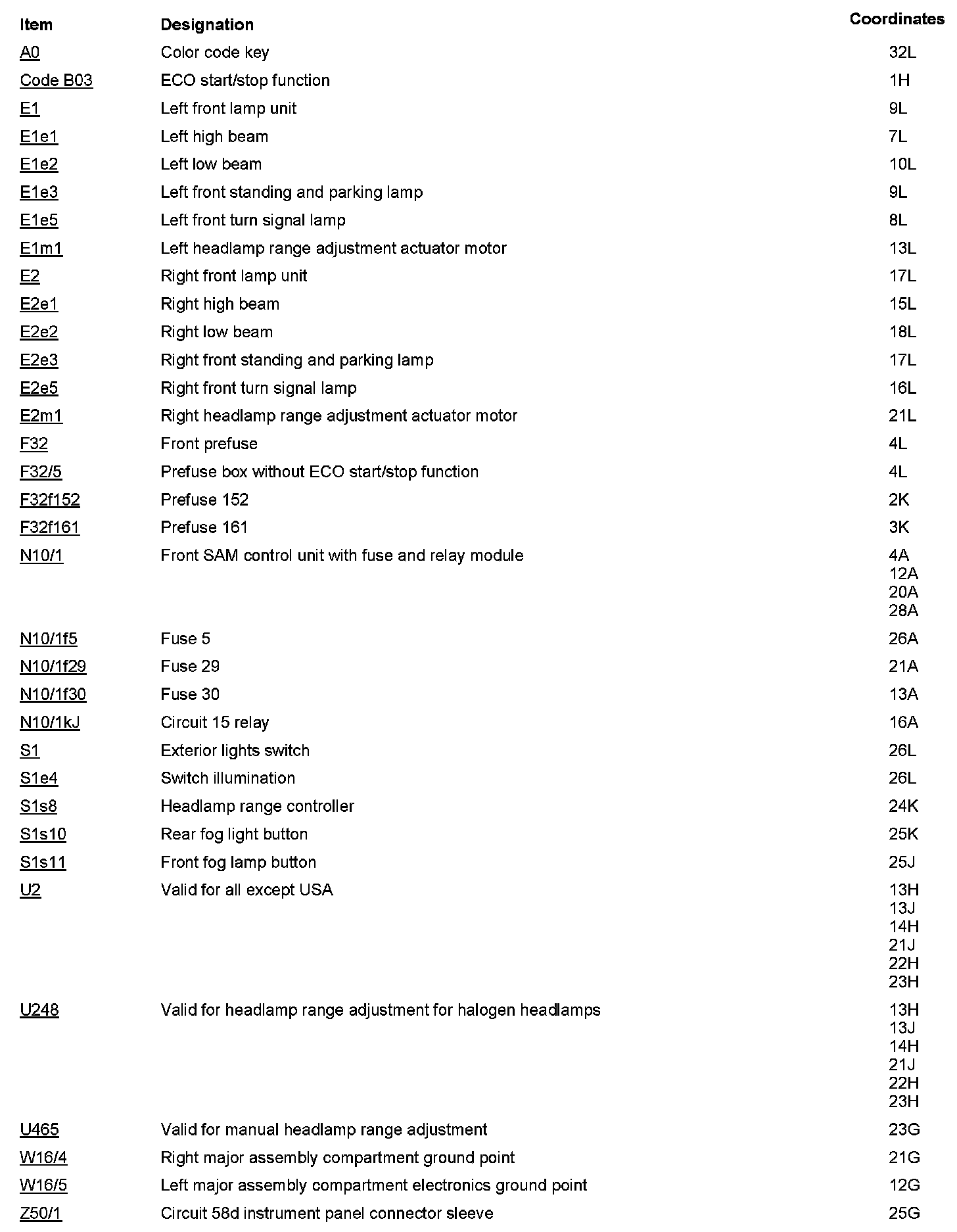

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
