Daytime Running Lamp: Service and Repair

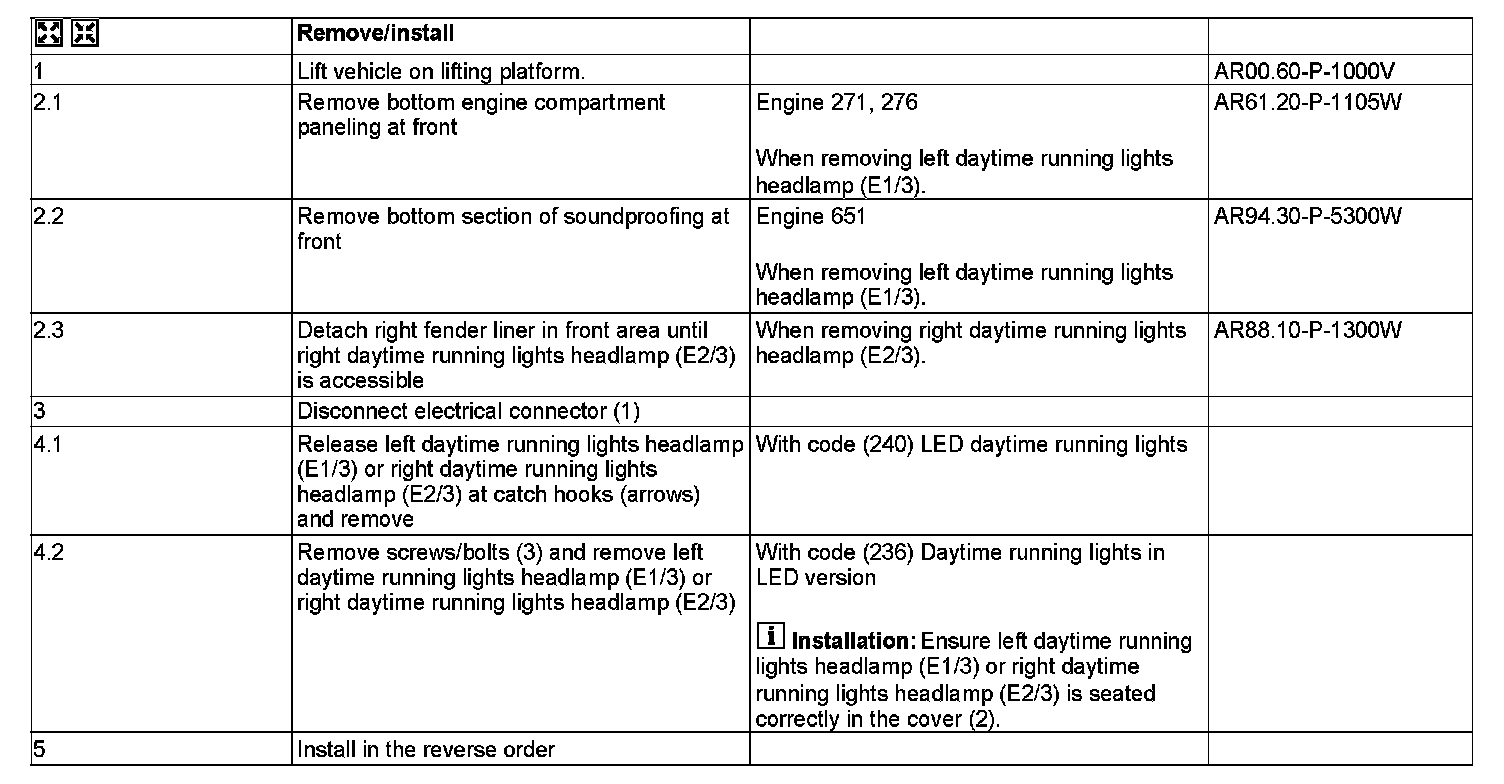

AR82.10-P-2300W Removing and Installing Headlamp For Daytime Running Light
MODEL 172.4
- with CODE (240) LED daytime running lights
- with CODE (236) Daytime running lights in LED design

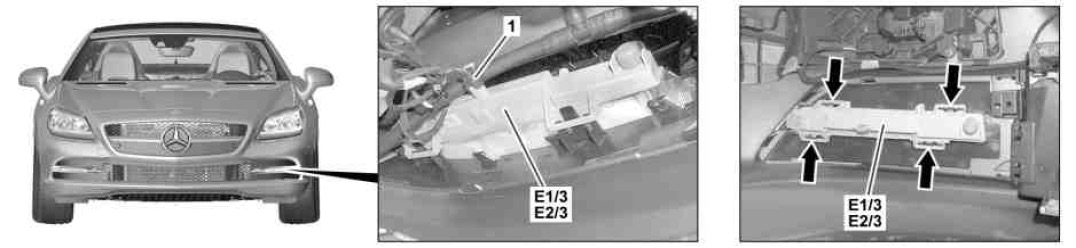

With code (240) LED daytime running lights, shown on the left side of vehicle
1 Electrical connector
E1/3 Left daytime running lamps headlamp
E2/3 Right daytime running lamps headlamp

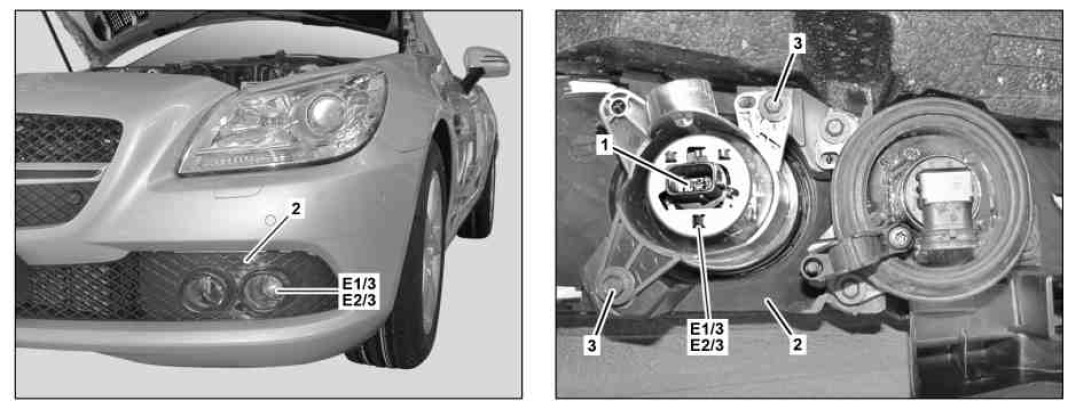

With code (236) Daytime running lights in LED design, shown on the left side of vehicle
1 Electrical connector
2 Cover
3 Screw
E1/3 Left daytime running lamps headlamp
E2/3 Right daytime running lamps headlamp
