Removal and Replacement

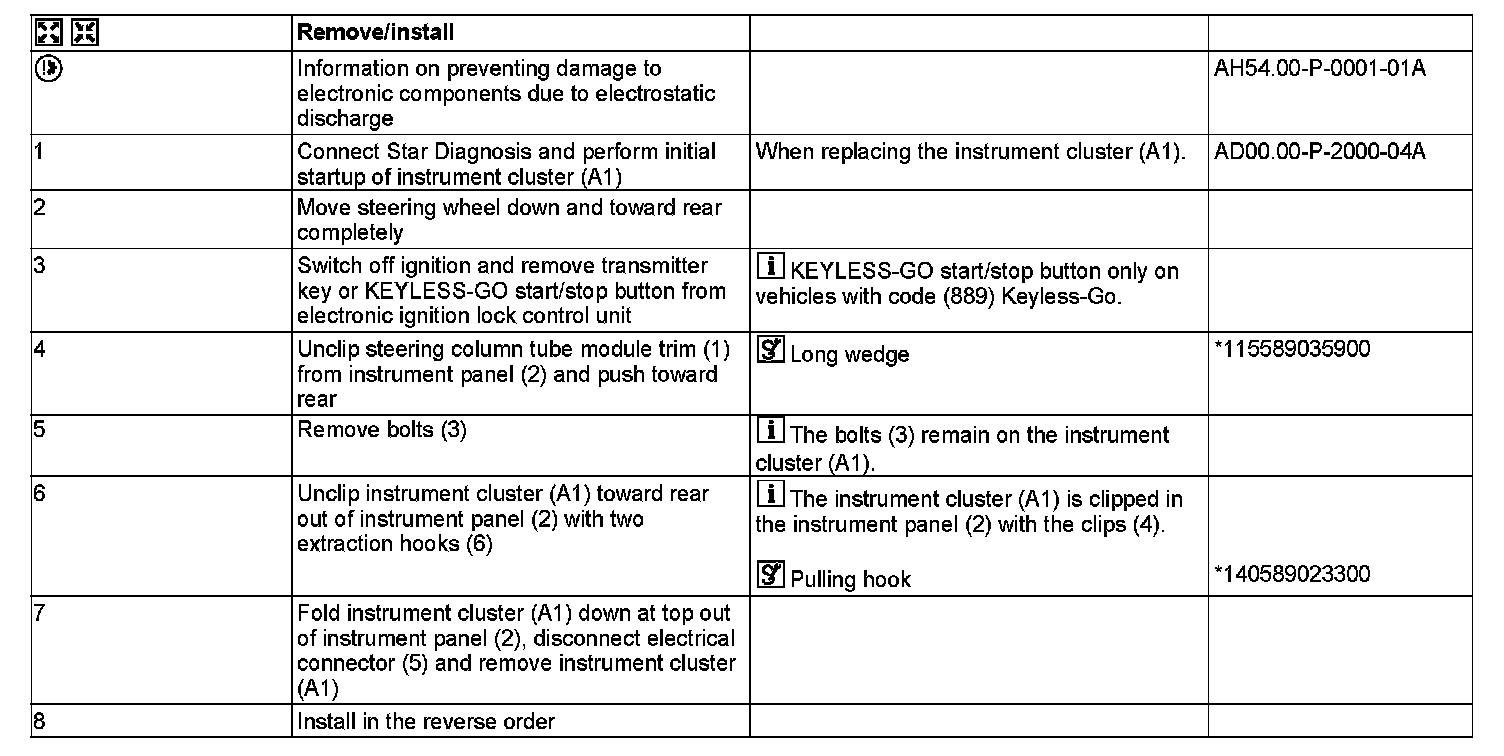

AR54.30-P-6015W Remove/Install Instrument Cluster
MODEL 172.4

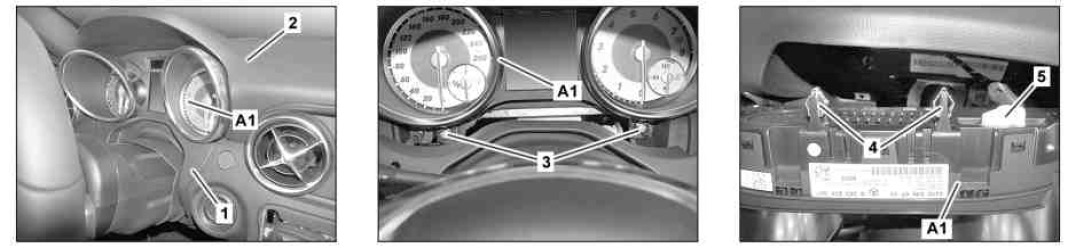

1 Steering column tube module trim
2 Instrument panel
3 Bolts
4 Clips
5 Electrical connector
A1 Instrument cluster

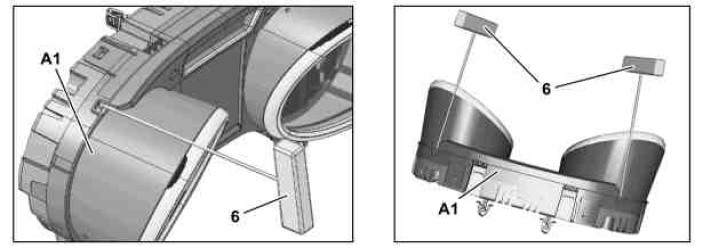

6 Puller hook
A1 Instrument cluster











115 589 03 59 00
Long wedge





140 589 02 33 00
Pulling hook
