Clock: Service and Repair

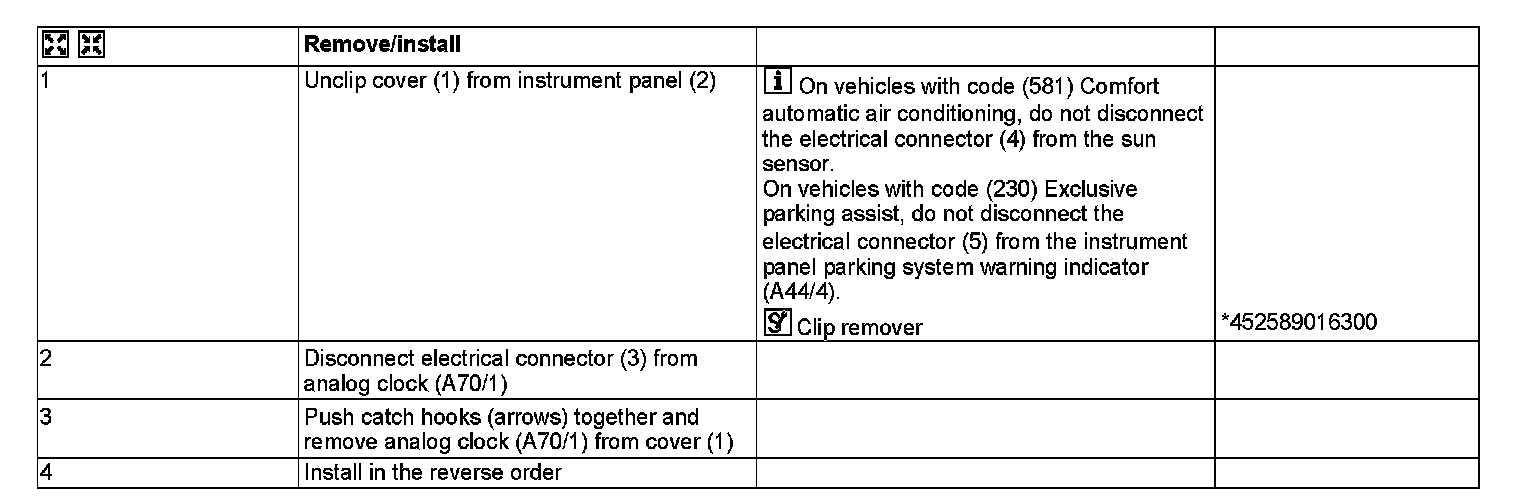

AR54.30-P-1000W Remove/Install Cockpit Clock
MODEL 172.4
- with CODE (246) Analog clock





Shown with code (230) Exclusive parking assist and code (581) Comfort automatic air conditioning

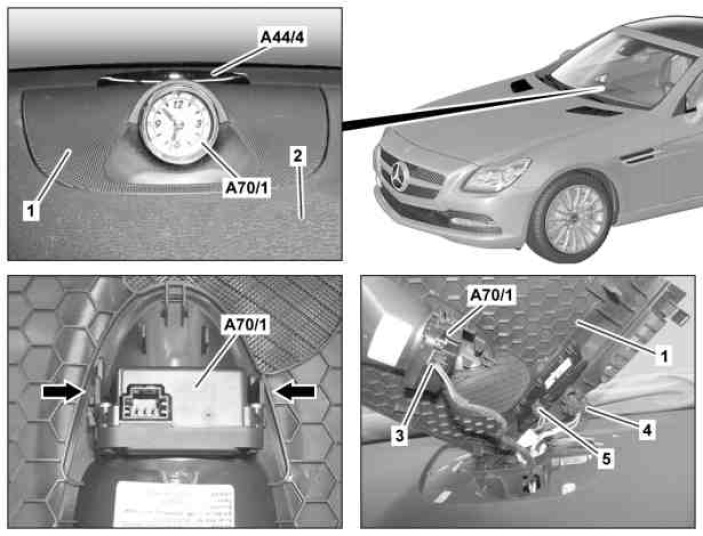

1 Cover
2 Instrument panel
3 Electrical connector
4 Electrical connector (with code (581) Comfort automatic air
5 Electrical connector (with code (230) Exclusive parking assist)
A44/4 Instrument panel parking system warning indicator (with code (230) Exclusive parking assist)
A70/1 Analog clock








452 589 01 63 00
Snap-release tool
