Service Port HVAC: Service and Repair

AR83.30-P-6523V Remove/install Valve Insert On Service Valve
- with CODE (580) Automatic air conditioning
- with CODE (581) Convenience automatic air conditioning

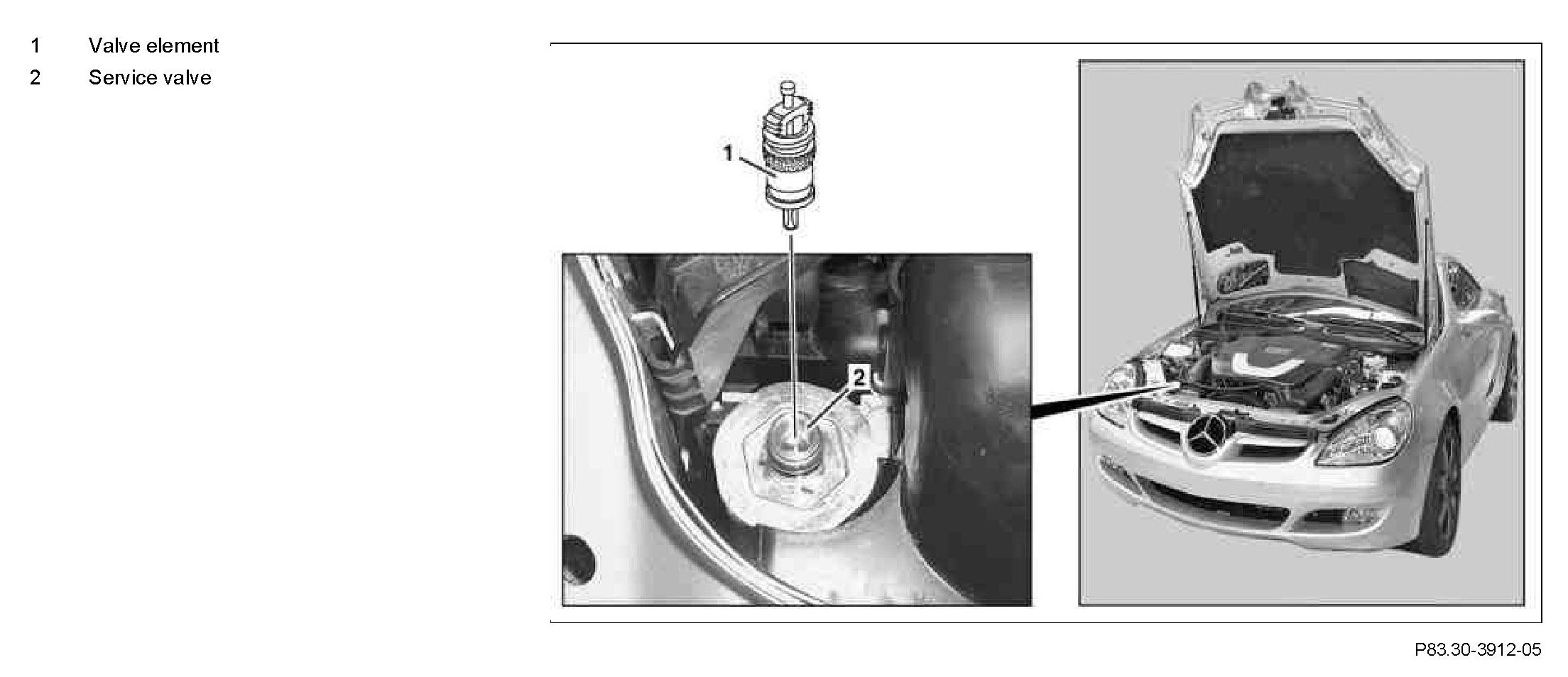

Component Identification:

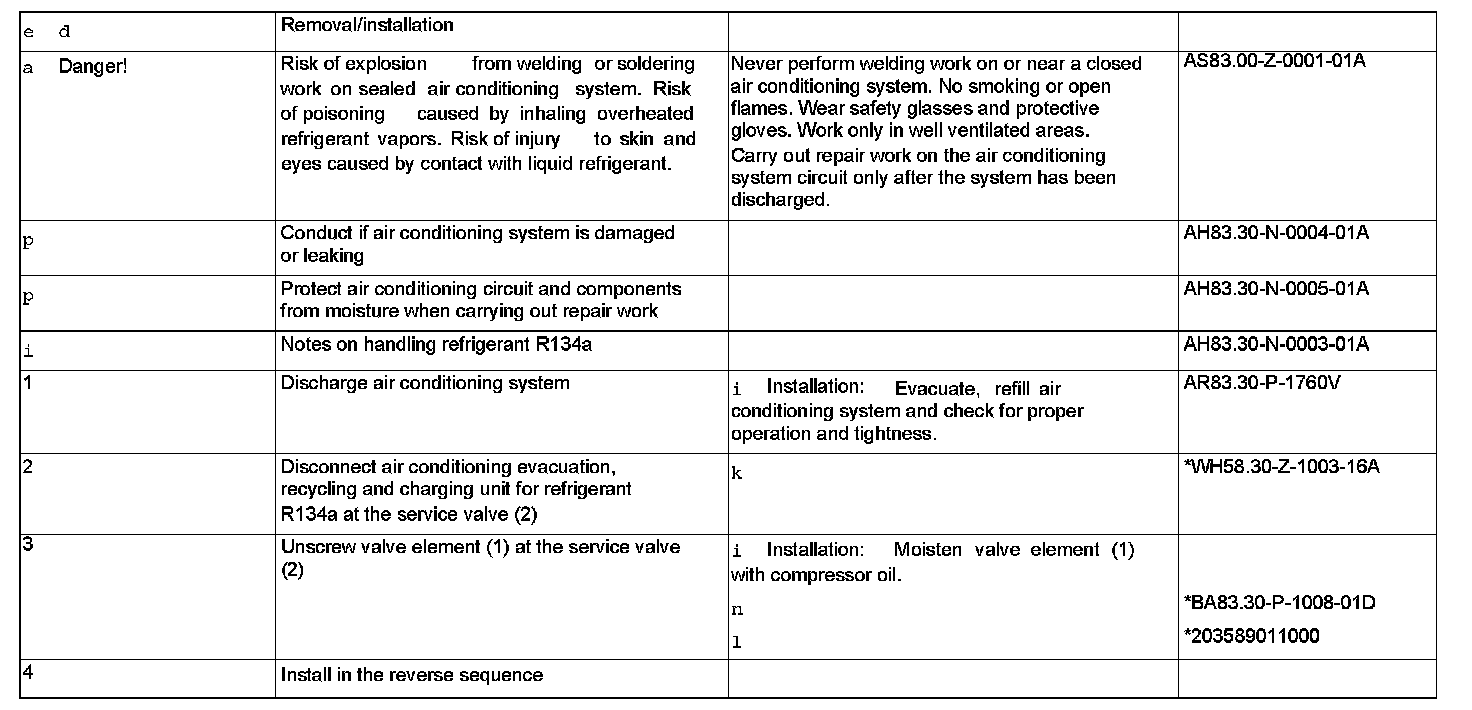

Steps 1 - 4:

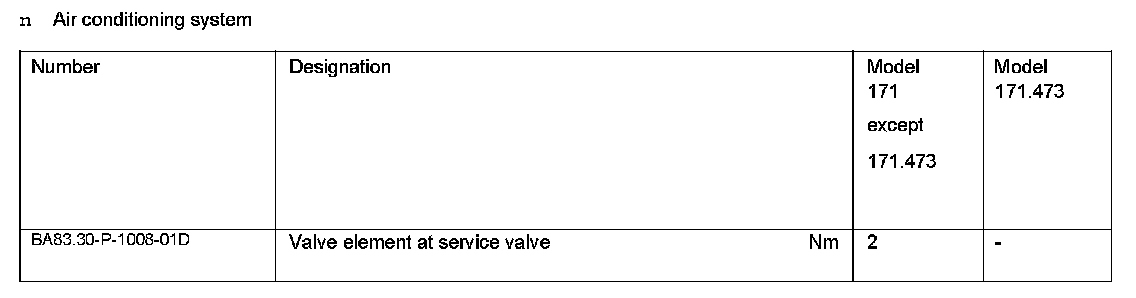

Air Conditioning System:

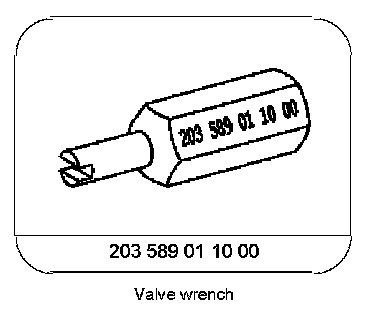

Special Tools:

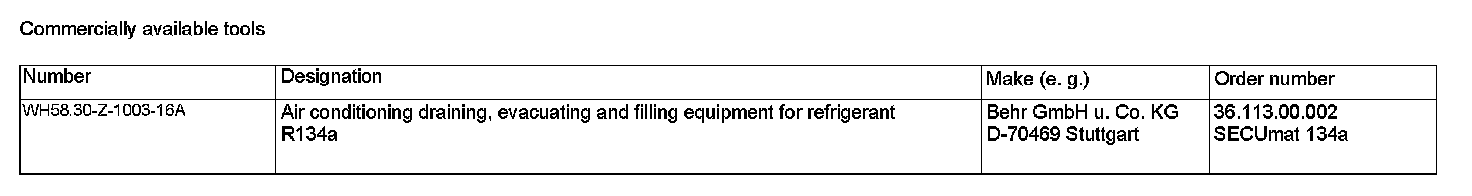

Commercially Available Tools:
