Climate Control Exhaust Gas Sensor: Service and Repair

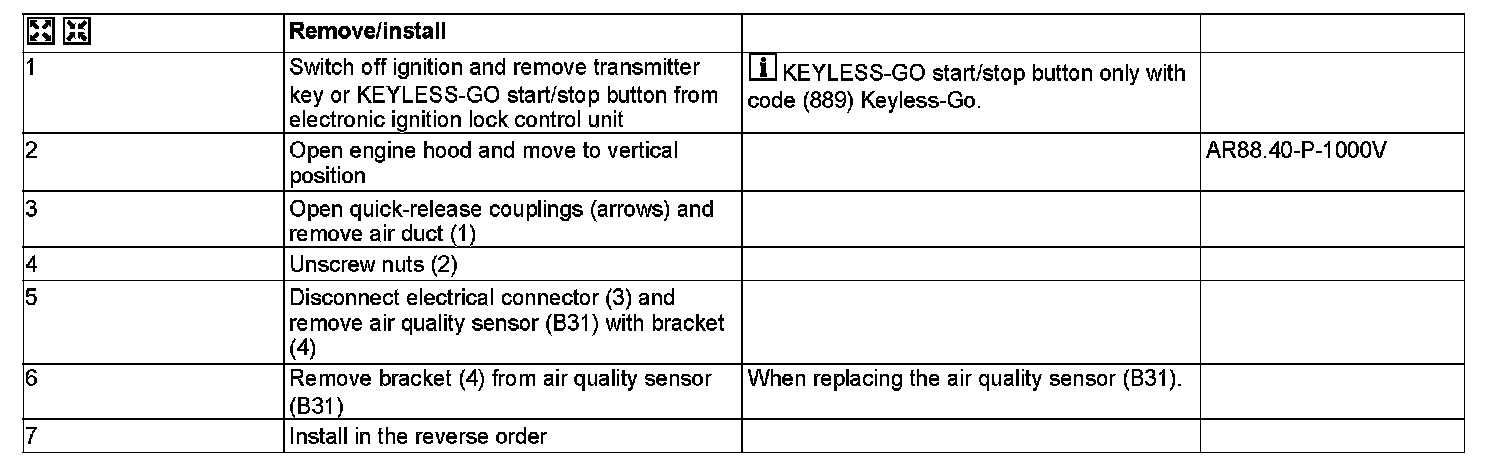

AR83.40-P-6730W Remove and Install Multifunction Sensor
MODEL 172.4
- with CODE (581) Comfort automatic air conditioning





1 Air duct
2 Nuts
3 Electrical connector
4 Bracket
B31 Air quality sensor
