Evaporator Core: Testing and Inspection

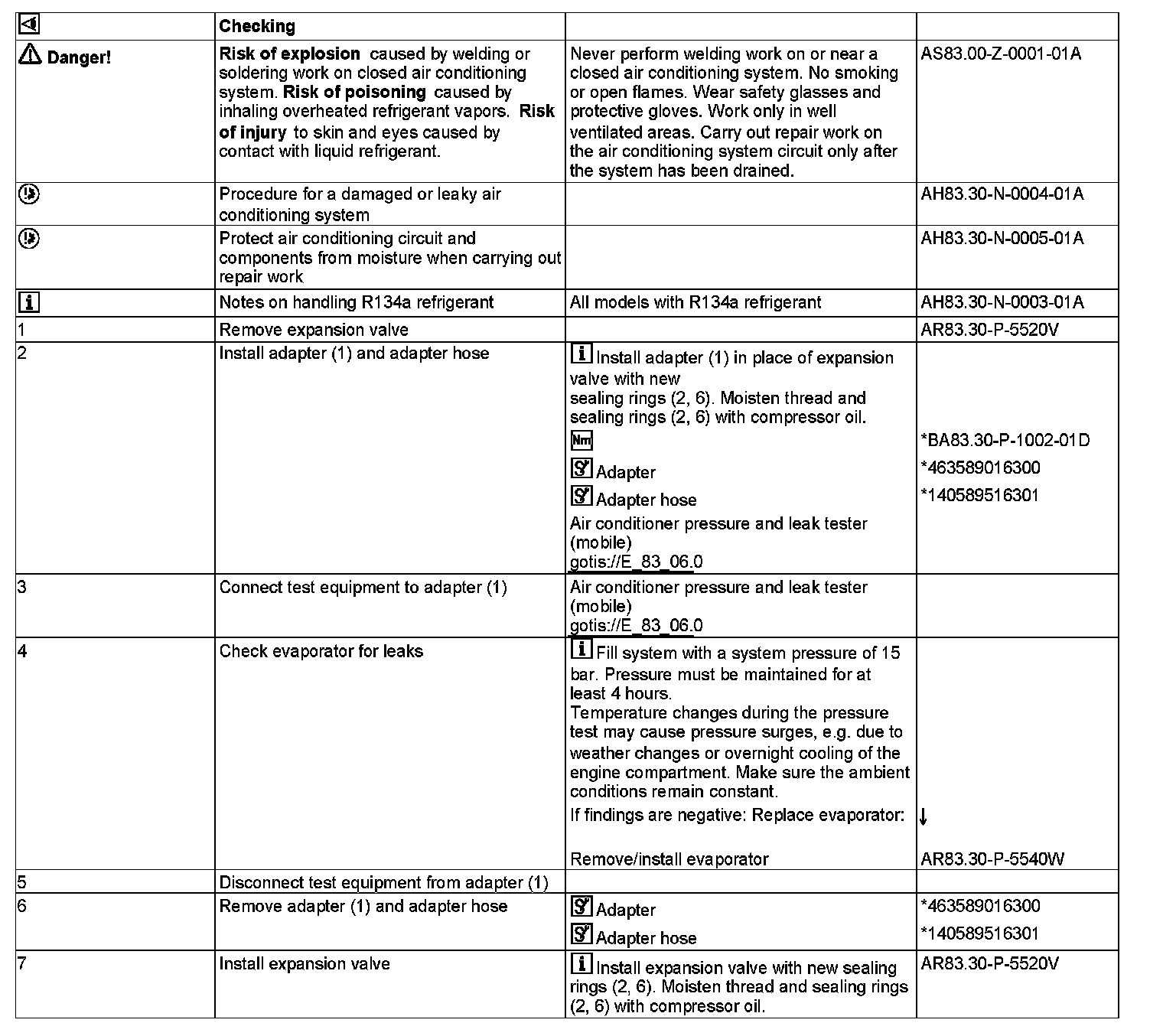

AR83.30-P-5550W Check Evaporator For Leaks
MODEL 172.4
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning

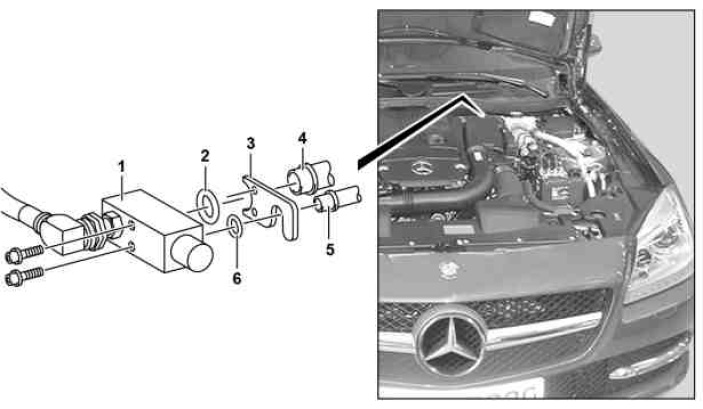

1 Adapter
2 Sealing ring
3 Retaining plate
4 Evaporator low pressure connection
5 Evaporator pressure fitting
6 Sealing ring











140 589 51 63 01
Adapter hose





463 589 01 63 00
Adapter
