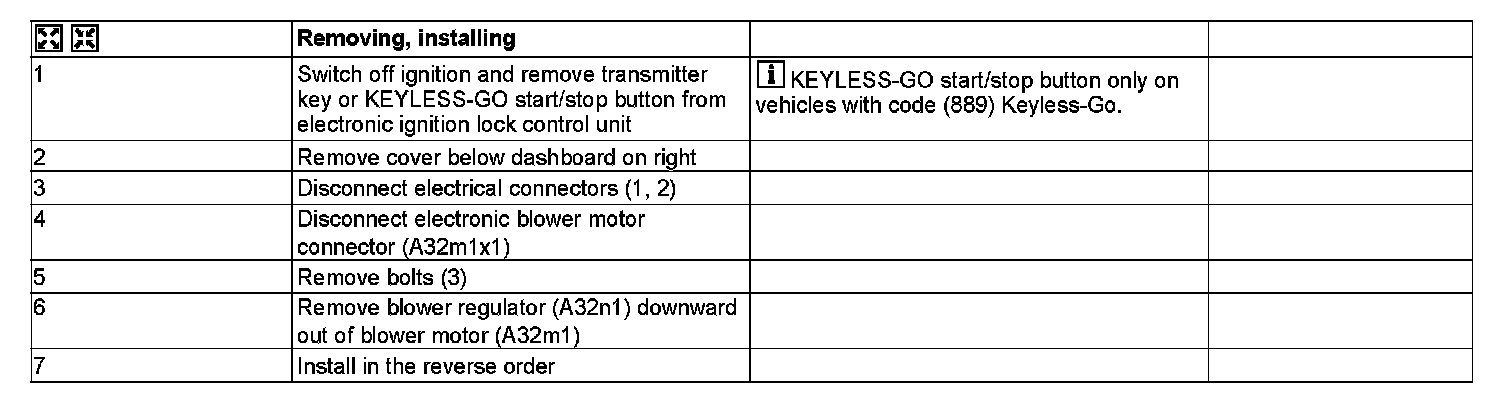

AR83.25-P-1220W Remove and Install Electronic Blower Control Unit




AR83.25-P-1220W Remove and Install Electronic Blower Control Unit
MODEL 172.4

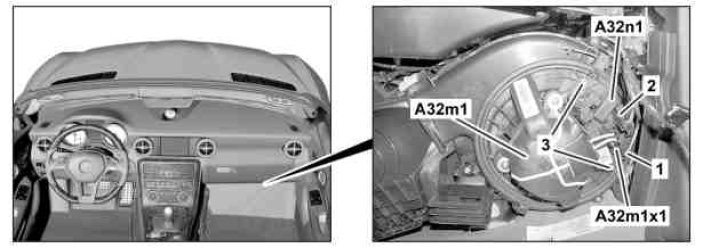

1 Electrical connector
2 Electrical connector
3 Bolts
A32m1 Blower motor
A32m1x1 Electronic blower motor connector
A32n1 Blower regulator
