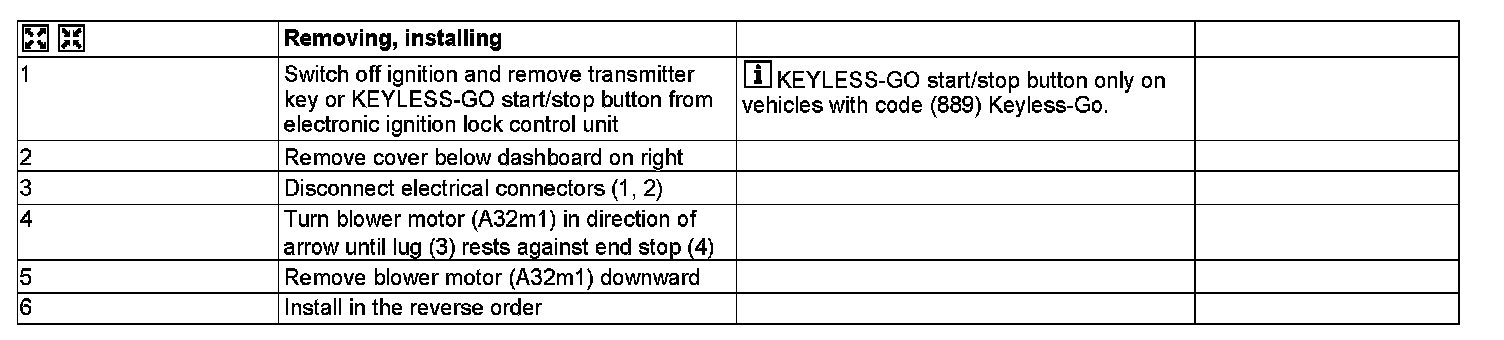

AR83.25-P-1200W Remove and Install Blower Motor




AR83.25-P-1200W Remove and Install Blower Motor

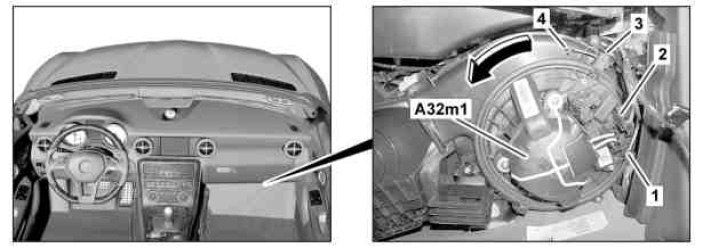

MODEL 172.4





1 Electrical connector
2 Electrical connector
3 Lug
4 Stop
A32m1 Blower motor
