AR03.20-P-1200-01Q Separate Timing Chain of Lanchester Balancer

Separate timing chain of Lanchester balancer

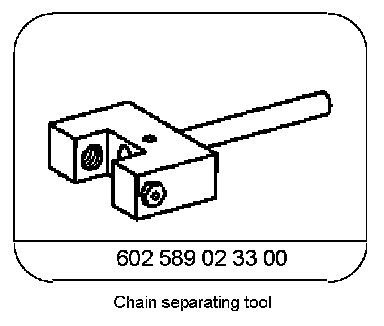

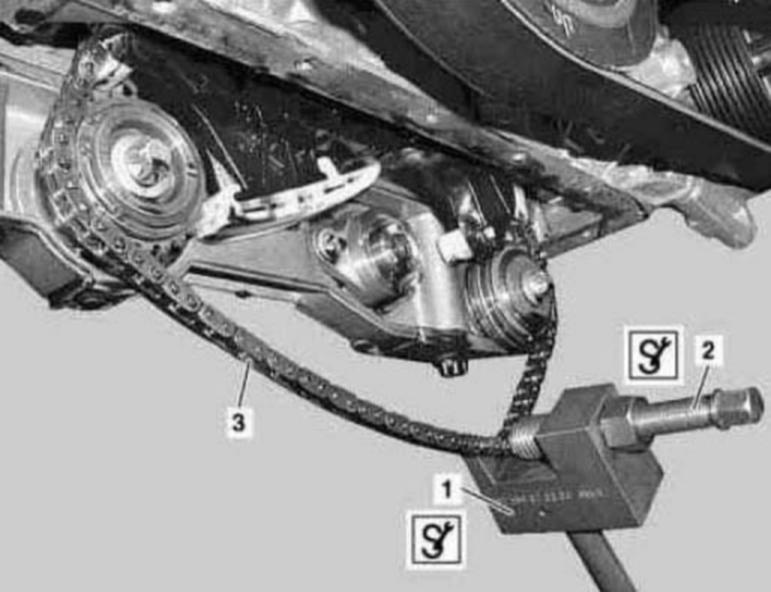

2 Position chain separation tool (1 ) Andrew pressure screw (2) at a chain link of the timing chain (3) and separate timing chain m Ensure when putting on the pressure screw, that the pressure pin fits closely at pin of chain link.

3 Screw in pressure screw (2) and separate timing chain (3).

4 Unscrew pressure screw (3) and remove chain separating tool (2).
