AR01.10-P-2401CW Remove/Install Engine With Transmission

AR01.10-P-2401CW Remove/Install Engine With Transmission
ENGINES 271 in MODEL 172, 204, 207, 212

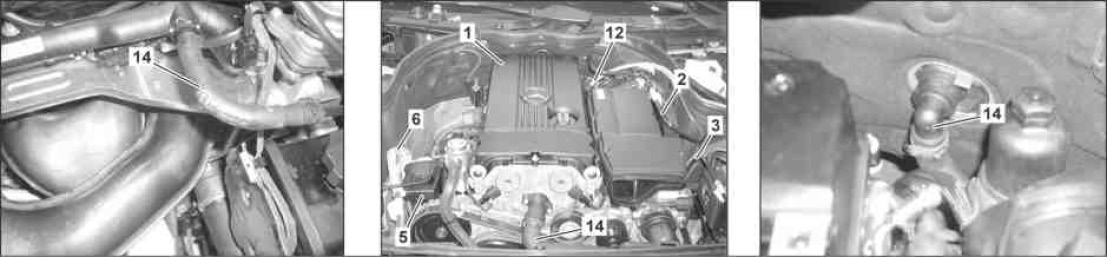

Shown on engine 271.9 in model 204

1 Engine cover
2 Brake booster vacuum line
3 Regeneration vacuum line
5 Power steering expansion reservoir
6 Return flow pipe
12 Fuel line
14 Coolant lines

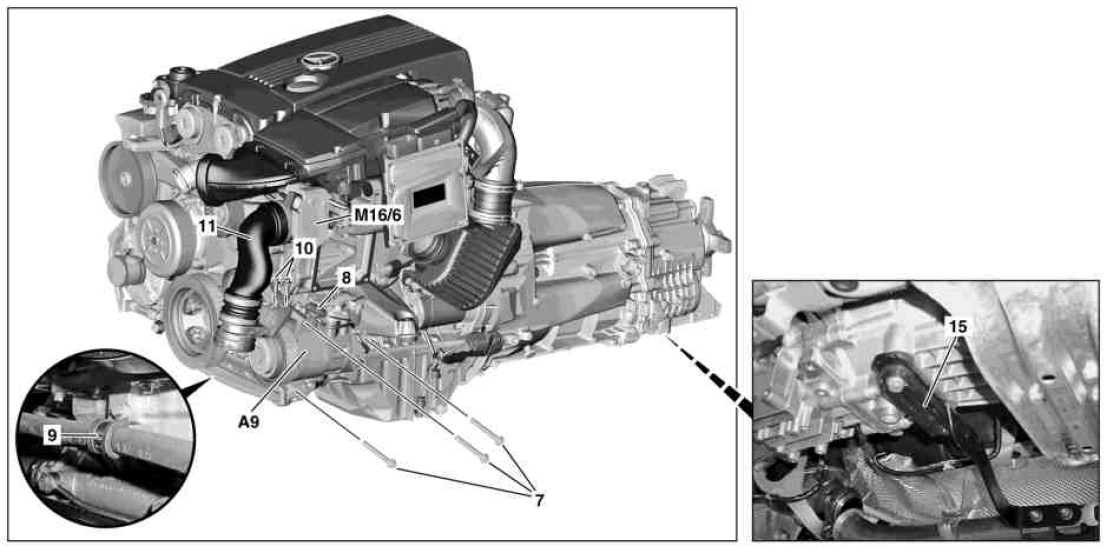

Shown on engine 271.9 with transmission 716.6

7 Screw/bolts
8 Electrical connector
9 Bracket
10 Screw/bolts
11 Inlet and pressure connection
15 Bracket
A9 AC compressor
M16/6 Throttle valve actuator






































129 589 00 91 00
Set of stop plugs





210 589 00 71 00
Hand pump





119 589 04 63 00
Pressure hose
