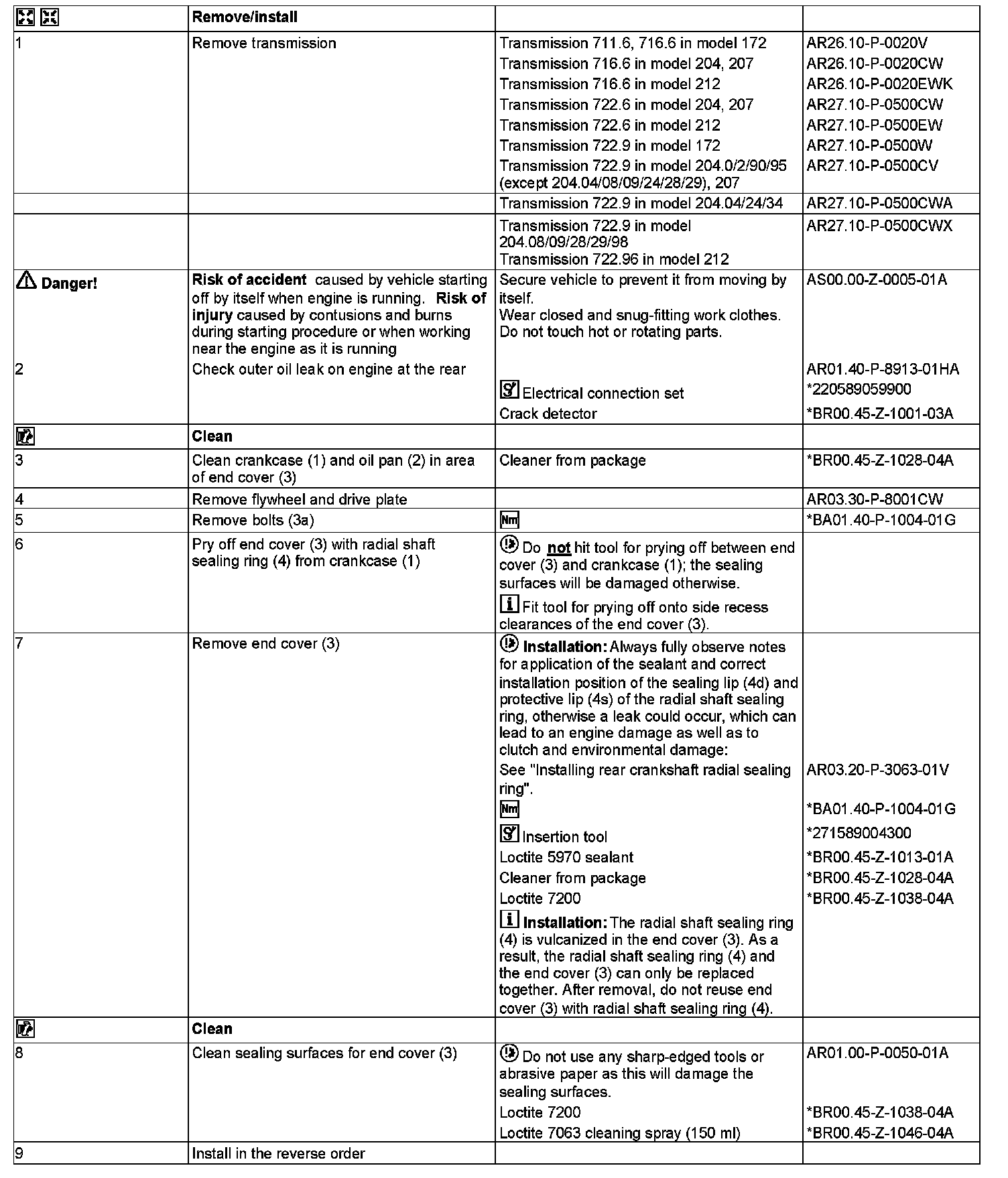

Removal and Replacement

AR03.20-P-3063CW Replace Rear Crankshaft Radial Sealing Ring
ENGINES 271 in MODEL 172, 204, 207, 212

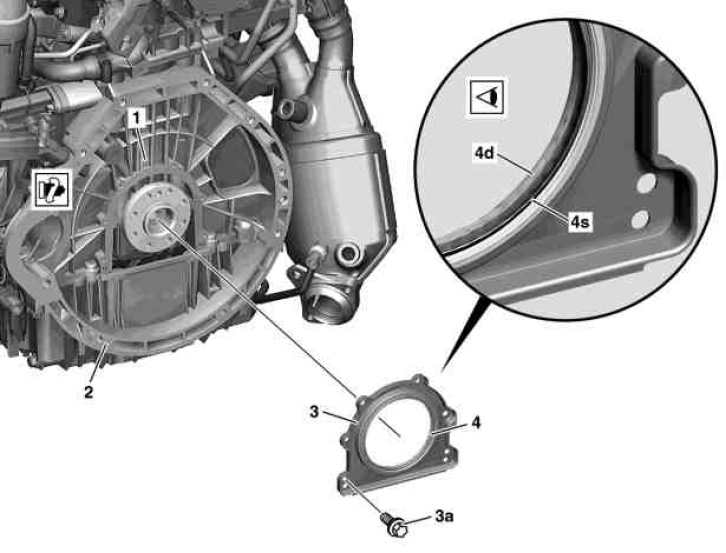

1 Cylinder crankcase
2 Oil pan
3 End cover
3a Screw
4 Radial shaft seal
4d Lip
4s Protective lip














220 589 05 99 00
Electrical connection set





271 589 00 43 00
Insertion tool
