FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2012
>>
SLK 250 (172.477) L4-1.8L Turbo (271.861)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Engine Lubrication
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement

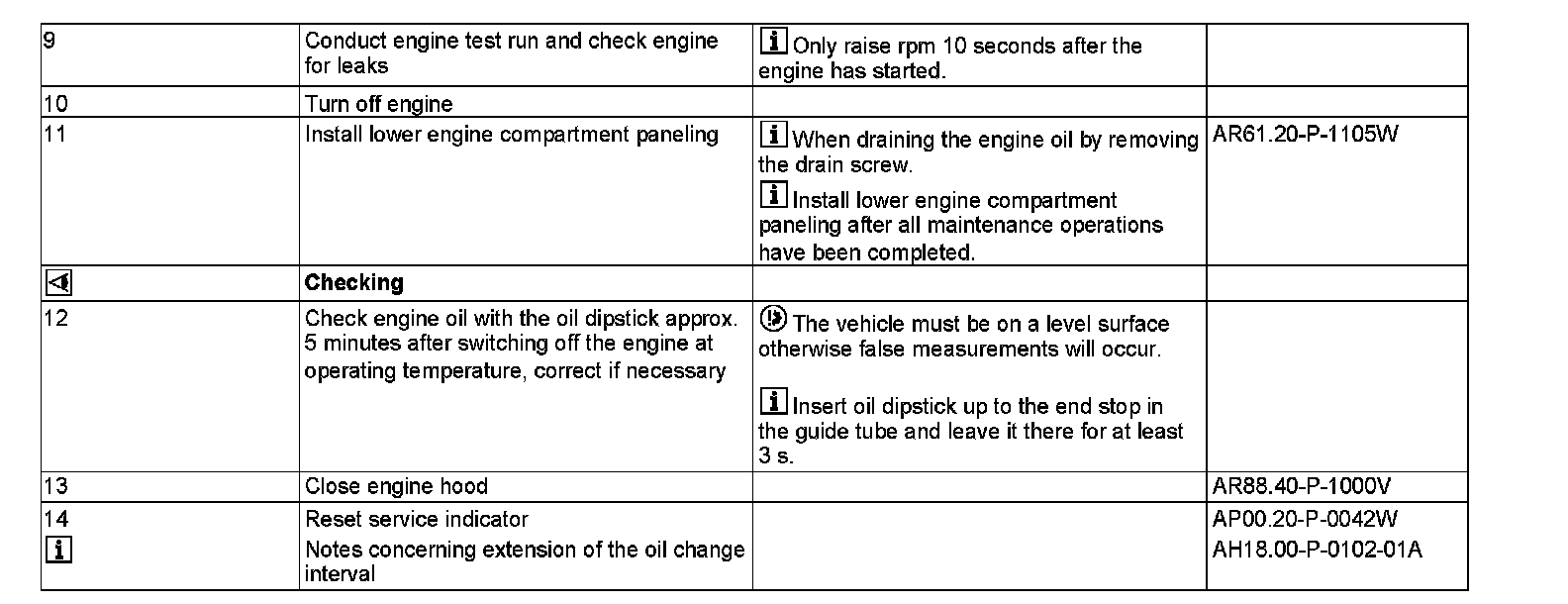

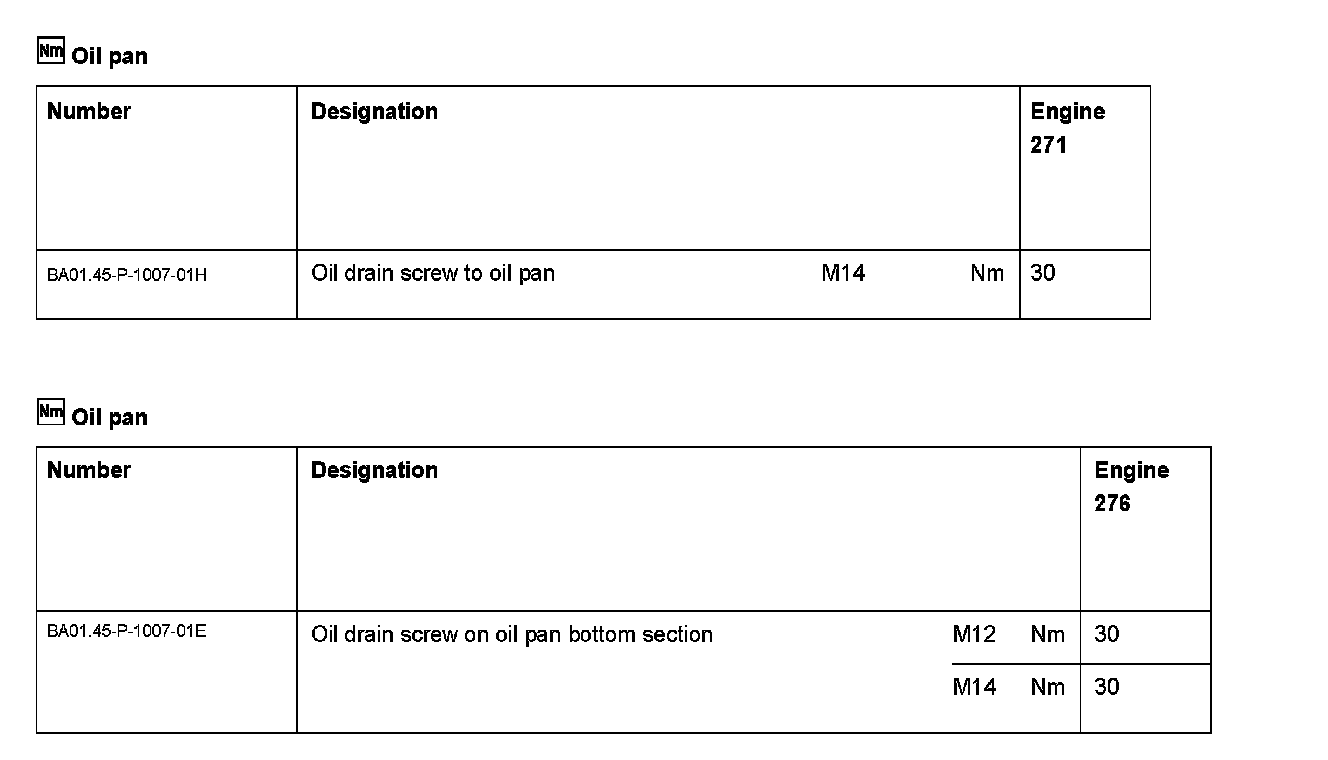

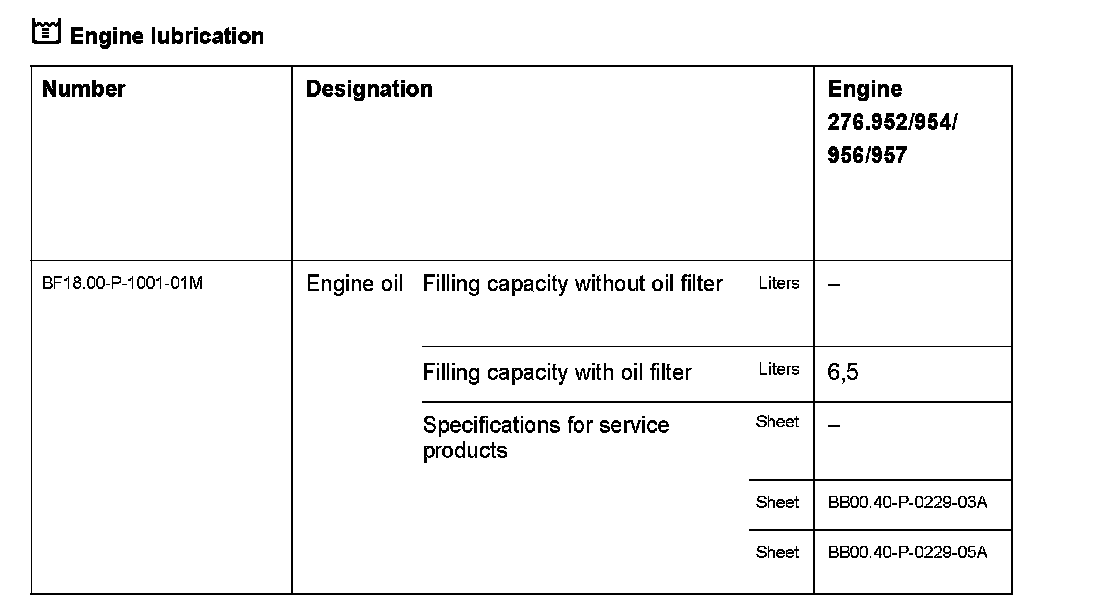

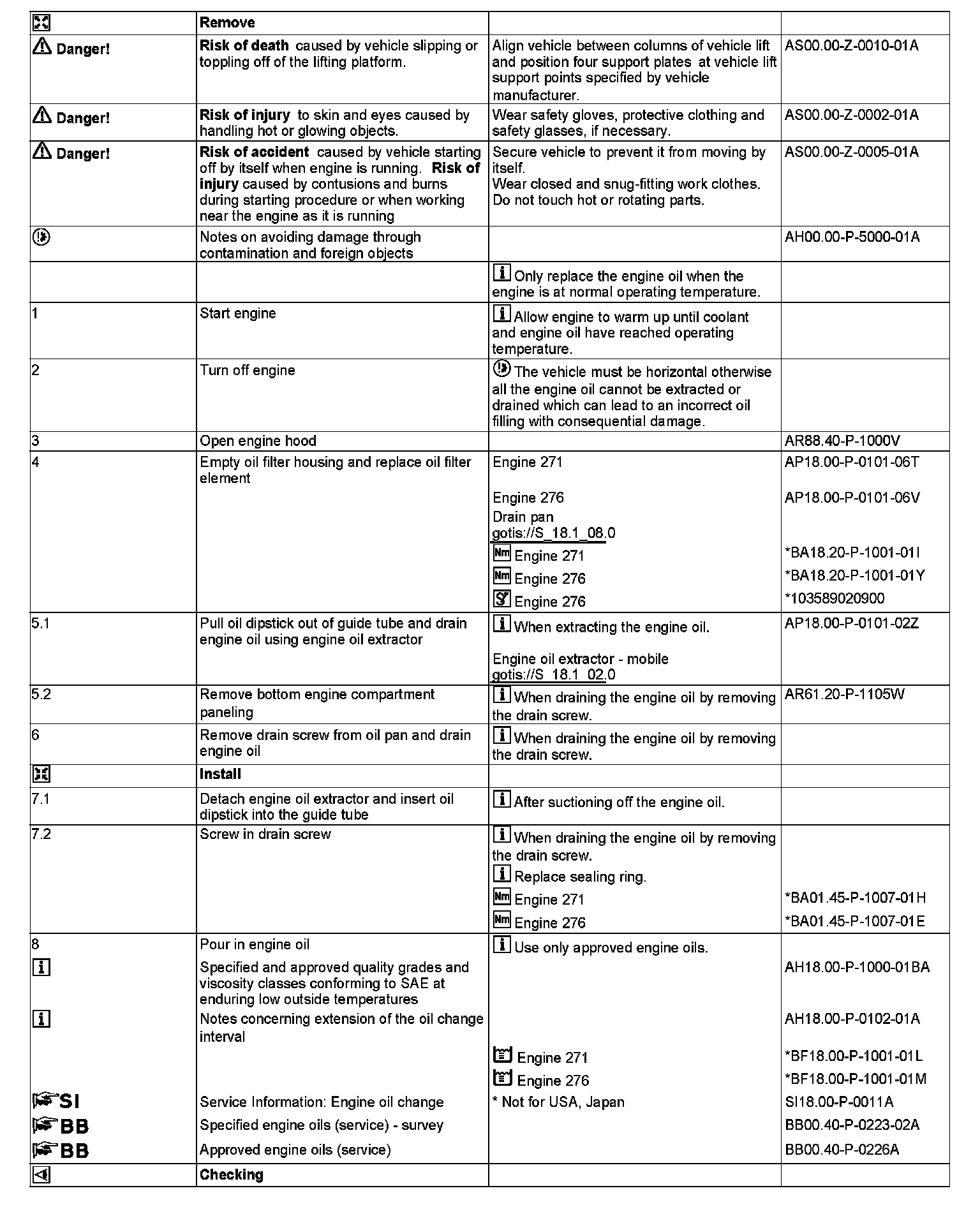

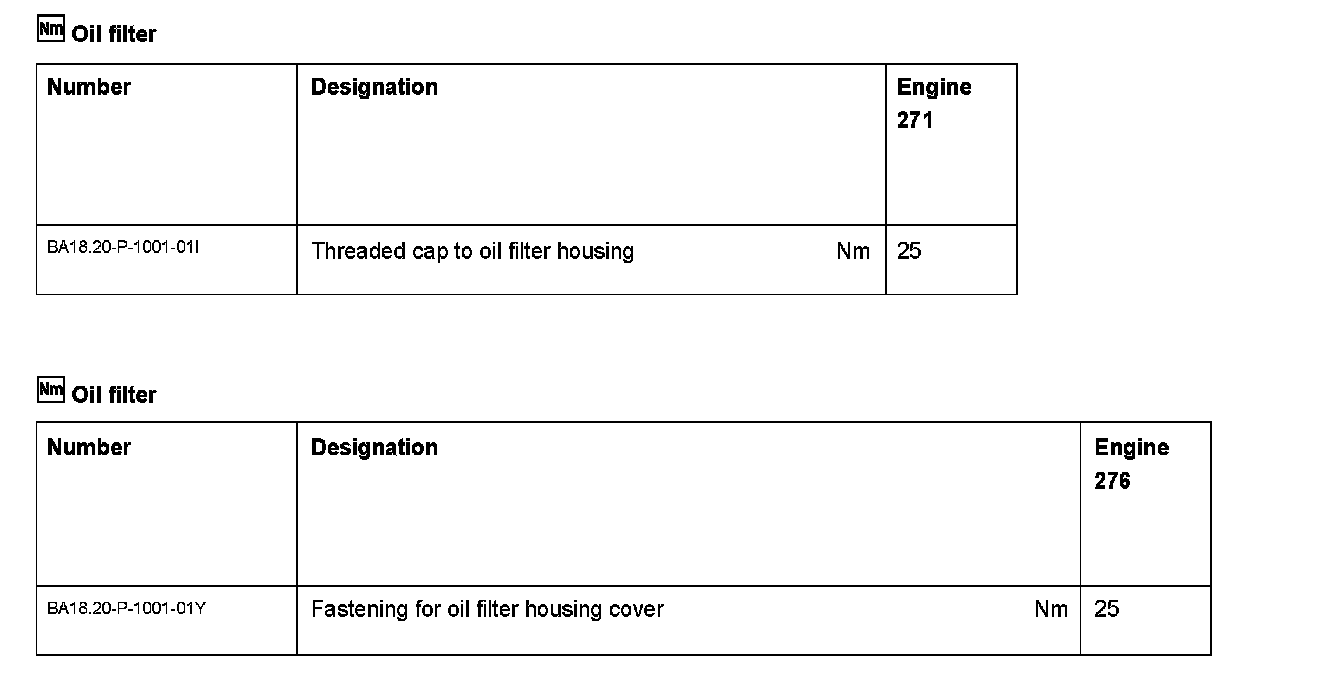

AP18.00-P-0101W Engine Oil And Filter Change
ENGINE 271, 276 in MODEL 172
103 589 02 09 00
Wrench socket
