Harmonic Balancer - Crankshaft Pulley: Service and Repair

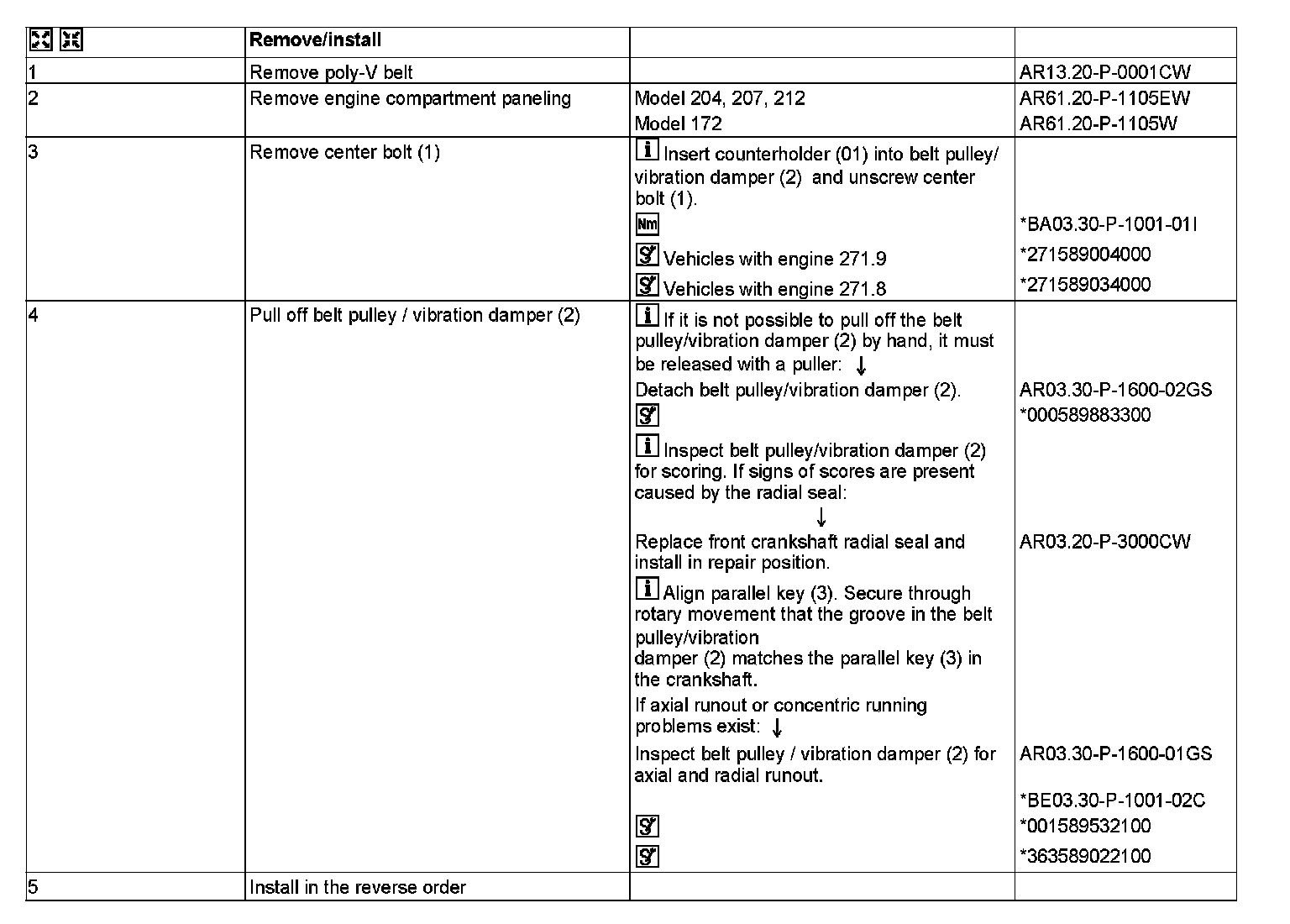

AR03.30-P-1600CW Remove/Install Belt Pulley/Vibration Damper
ENGINES 271 in MODEL 172, 204, 207, 212





Shown on engine 271.9

01 Counterholder

1 Center bolt
2 Belt pulley/vibration damper
3 Woodruff key

















271 589 00 40 00
Counterholder





000 589 88 33 00
Two-armed puller





001 589 53 21 00
Dial indicator





363 589 02 21 00
Dial indicator holder





271 589 03 40 00
Counterholder
