Crankshaft Main Bearing: Service and Repair

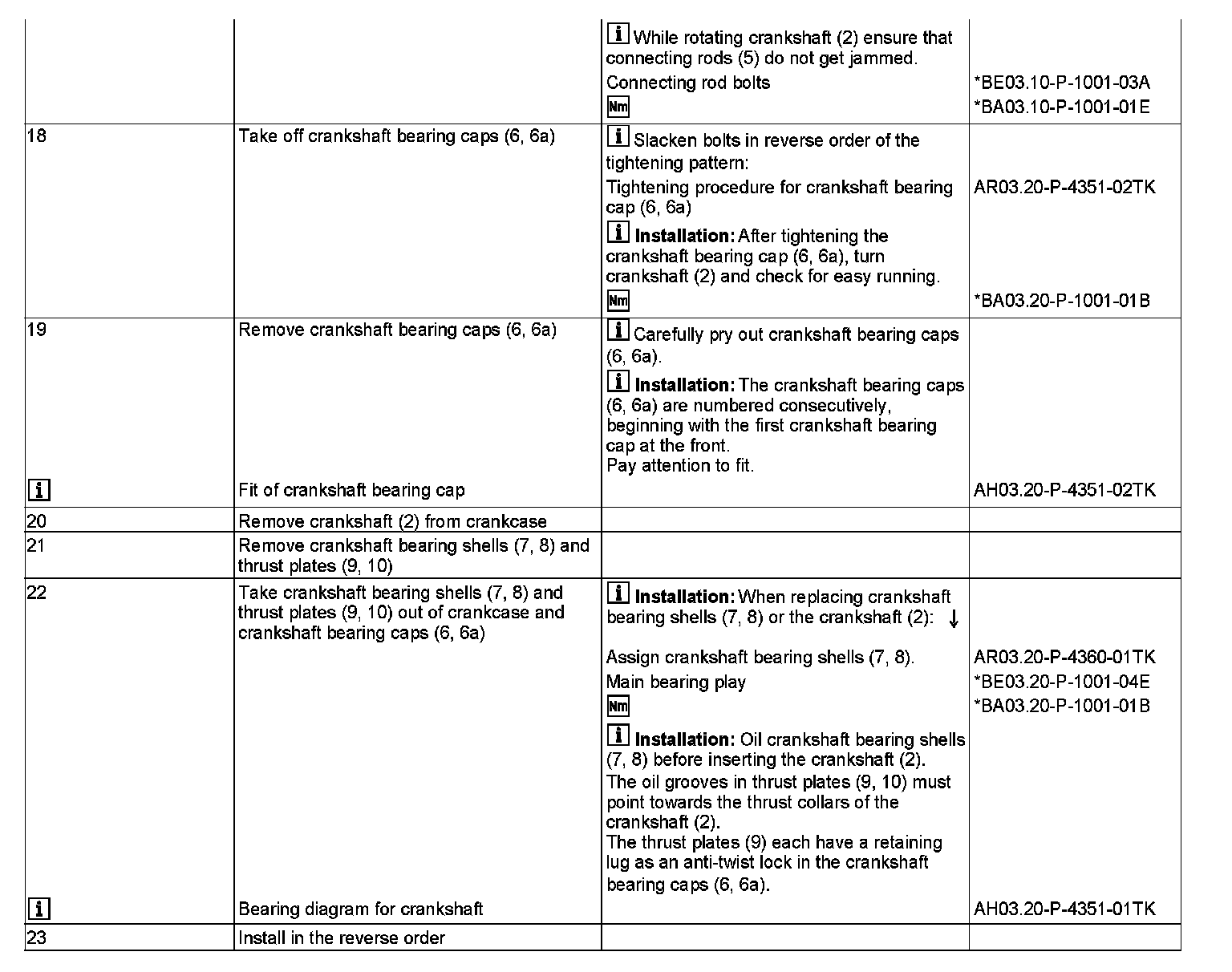

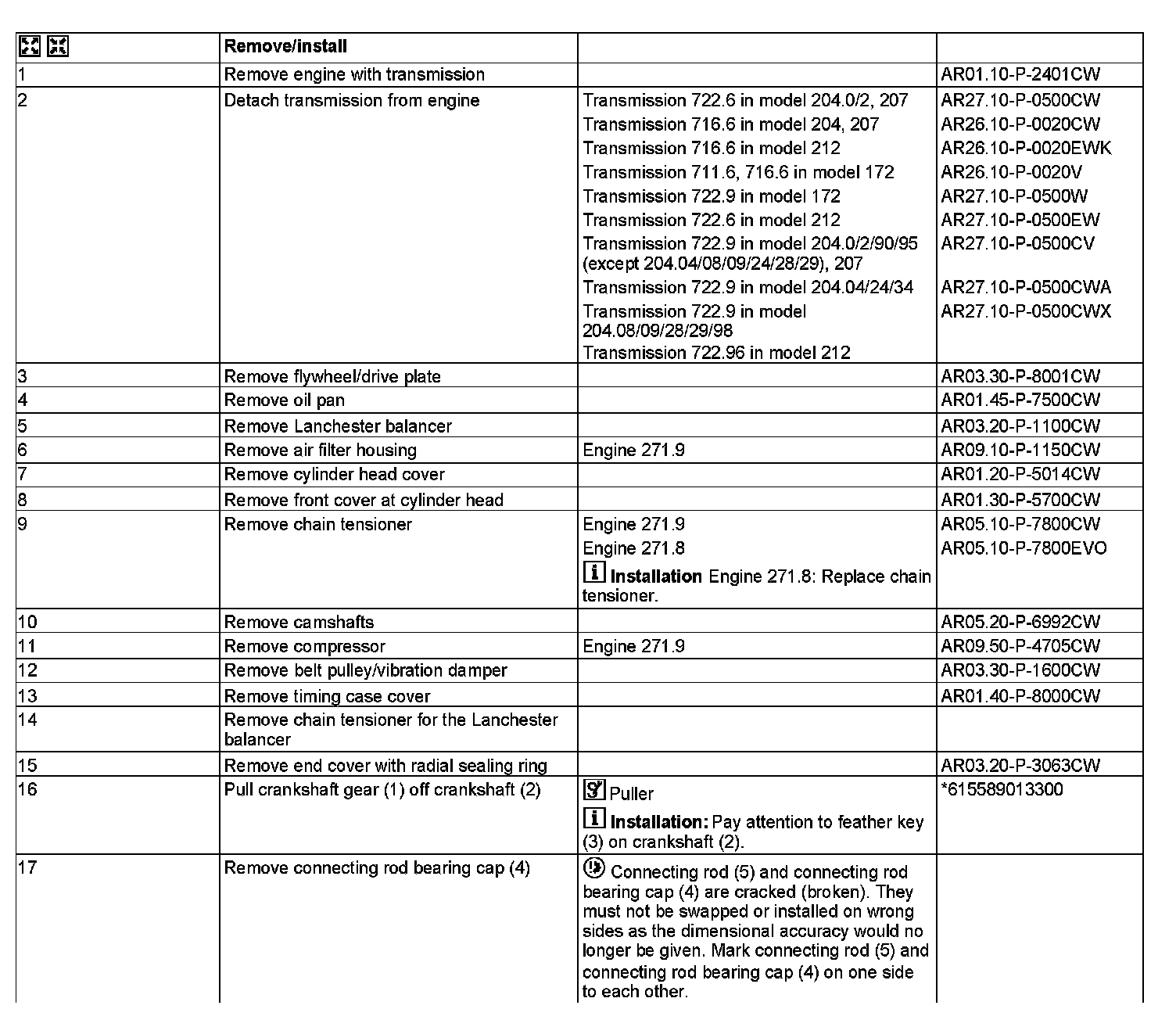

AR03.20-P-4351CW Remove/Install Crankshaft
ENGINES 271 in MODEL 172, 204, 207, 212

615 589 01 33 00
Puller
