Radiator Cooling Fan: Service and Repair

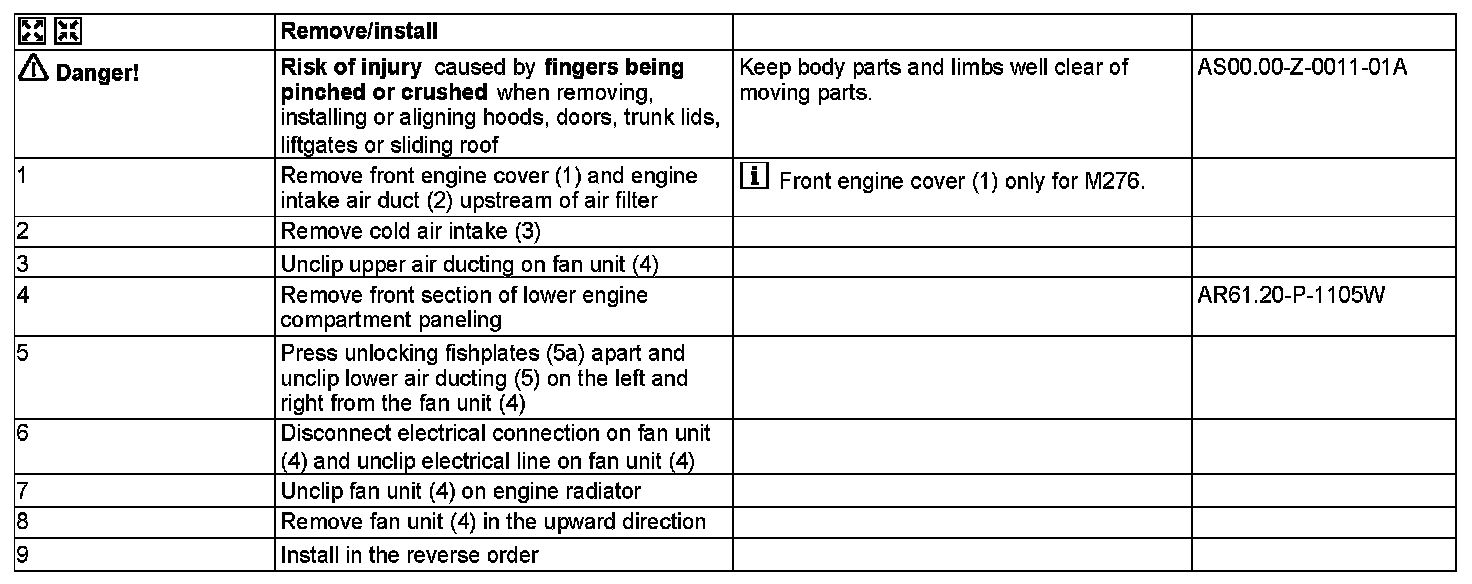

AR20.40-P-5050W Remove/Install Fan Unit
ENGINES 271, 276 in MODEL 172





Shown on engine 276

1 Engine cover
2 Engine air intake duct
3 Cold air intake
4 Fan unit





4 Fan unit
5 Air ducting
5a Unlocking lugs
