Auxiliary Water Pump: Service and Repair

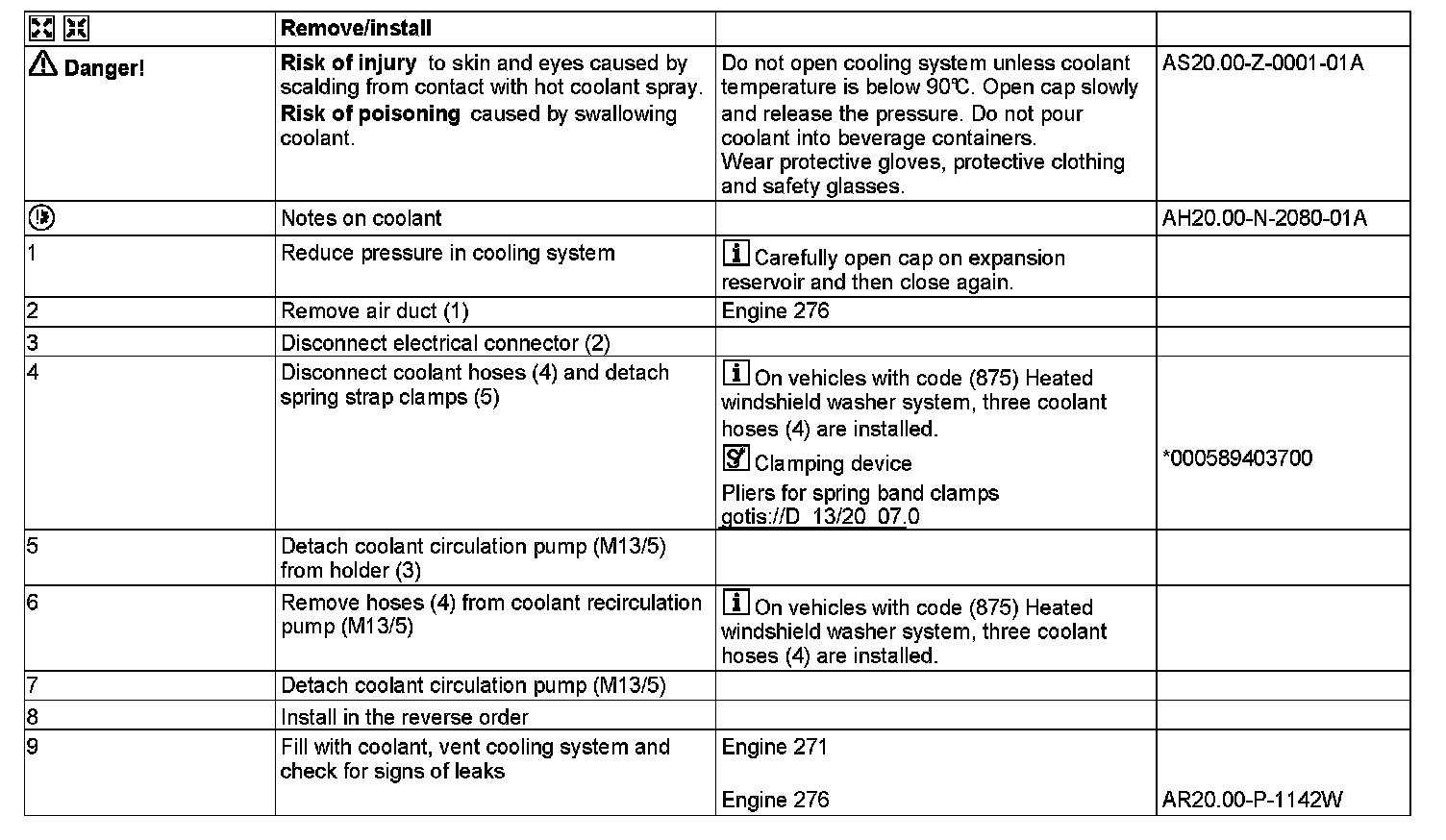

AR83.25-P-1170W Remove/Install/Replace Heater Circulation Pump
MODEL 172.4
- with ENGINE 271, 276

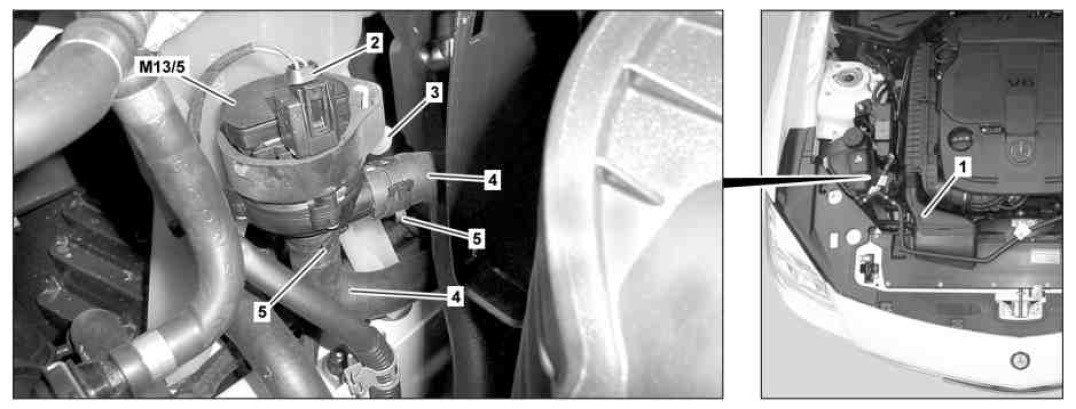

Shown on engine 276
1 Air duct (engine 276)
2 Electrical connector
3 Bracket
4 Coolant hose
5 Spring-loaded band-type clamp
M13/5 Coolant circulation pump








000 589 40 37 00
Clamping device
