System Diagram

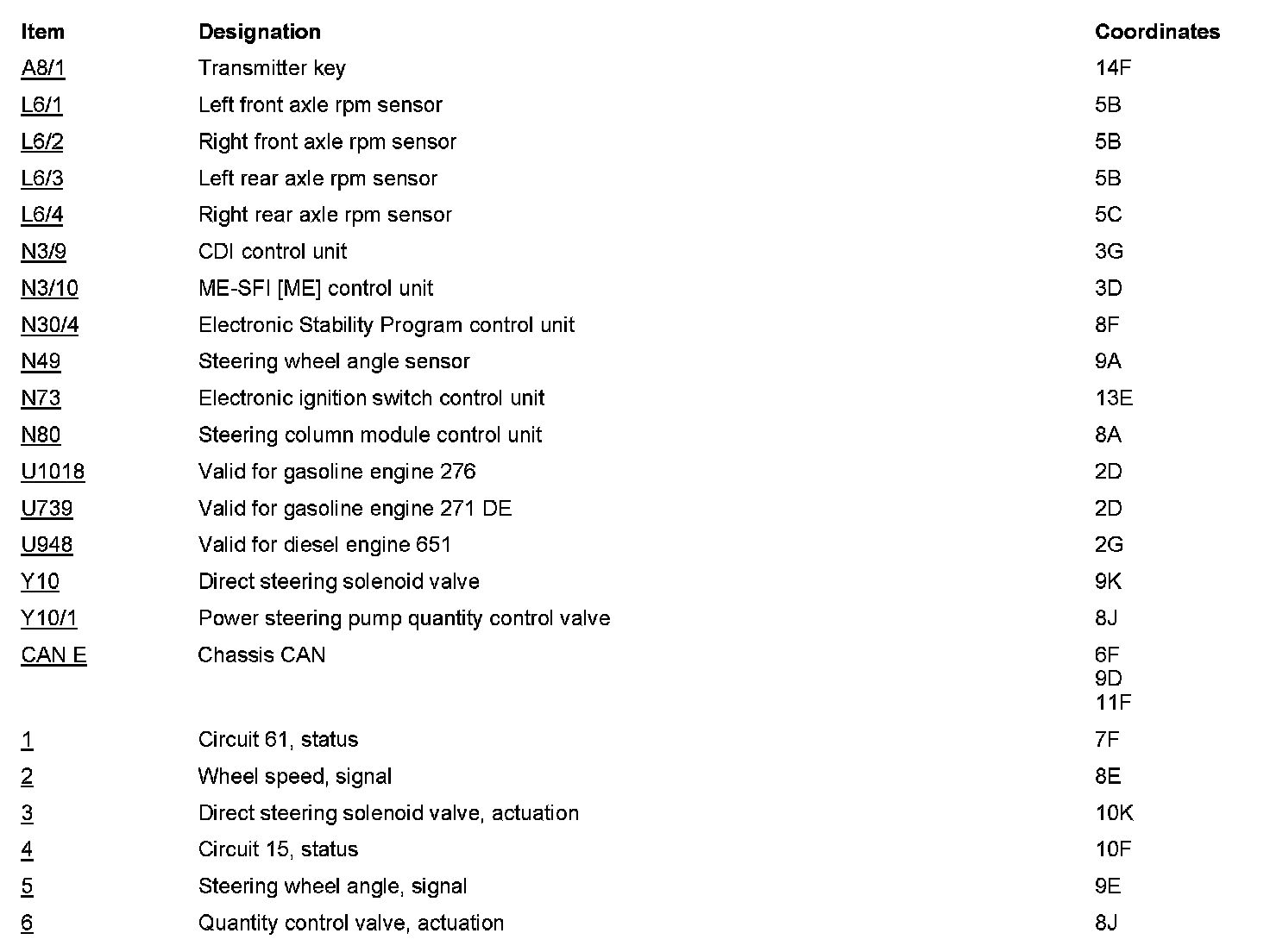

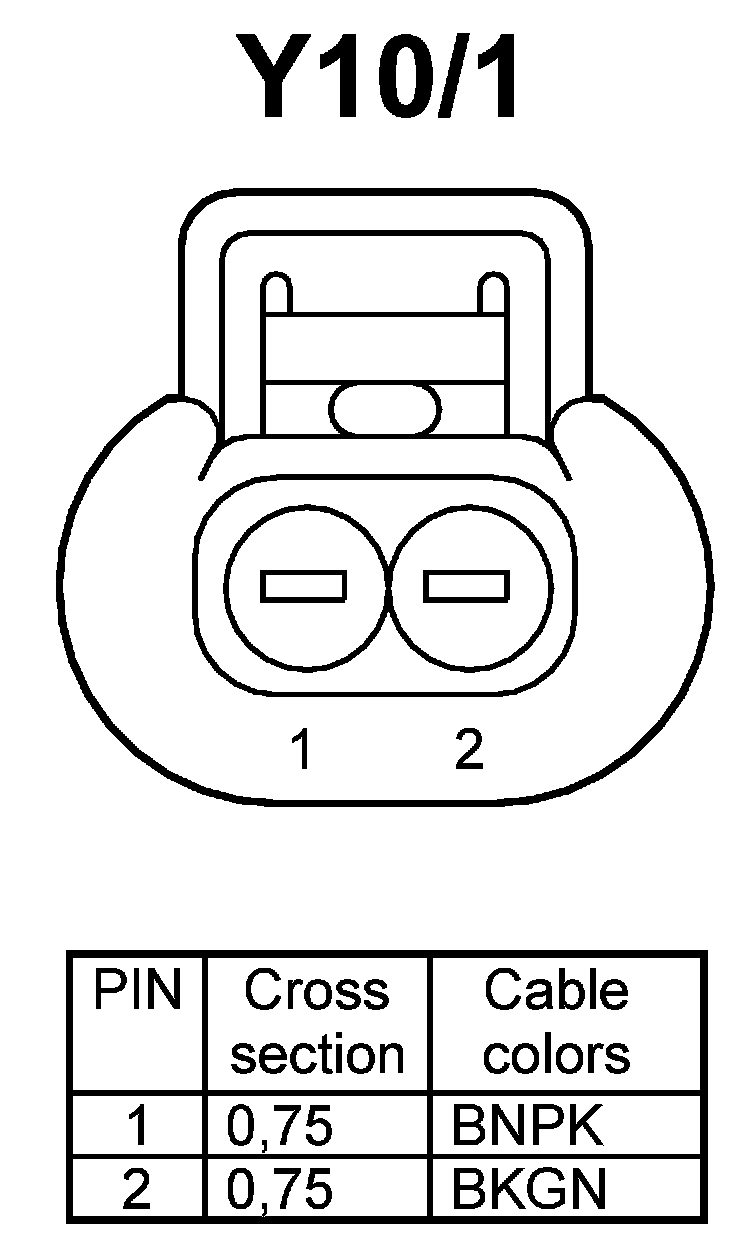

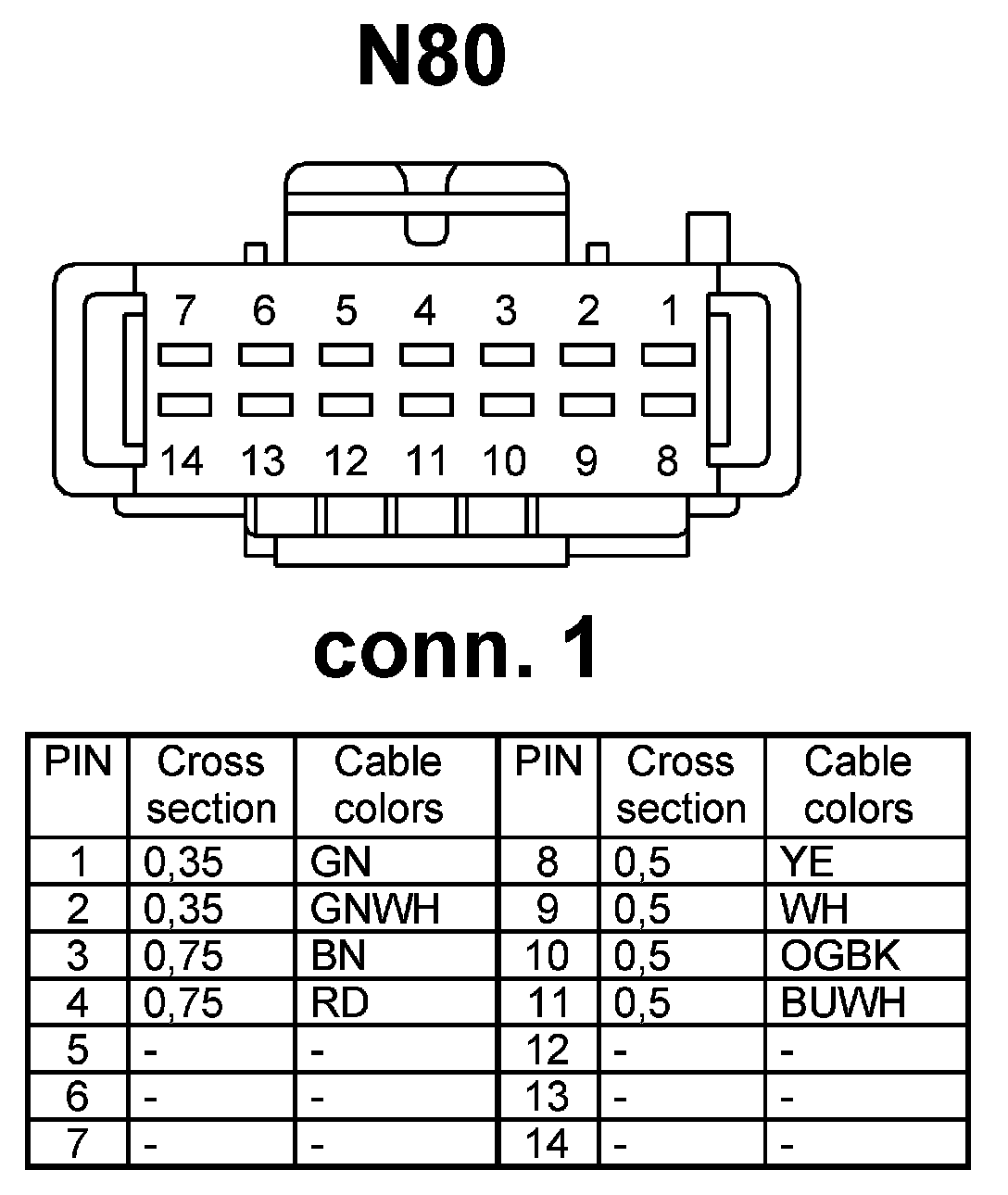

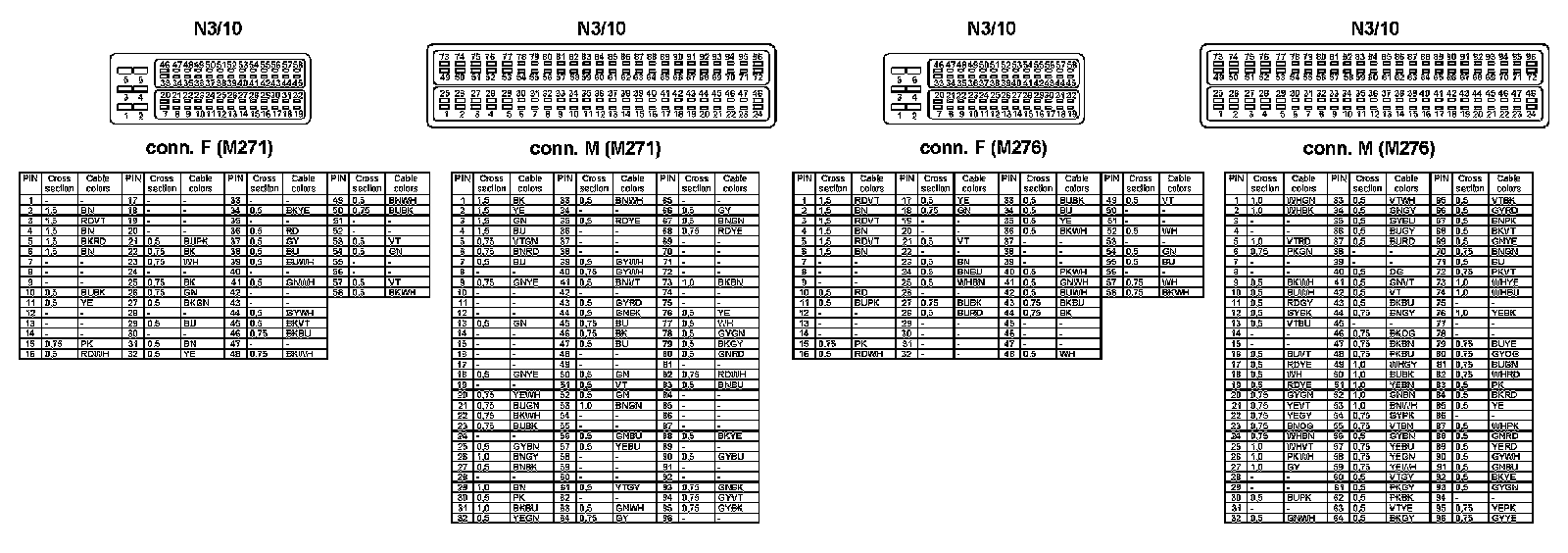

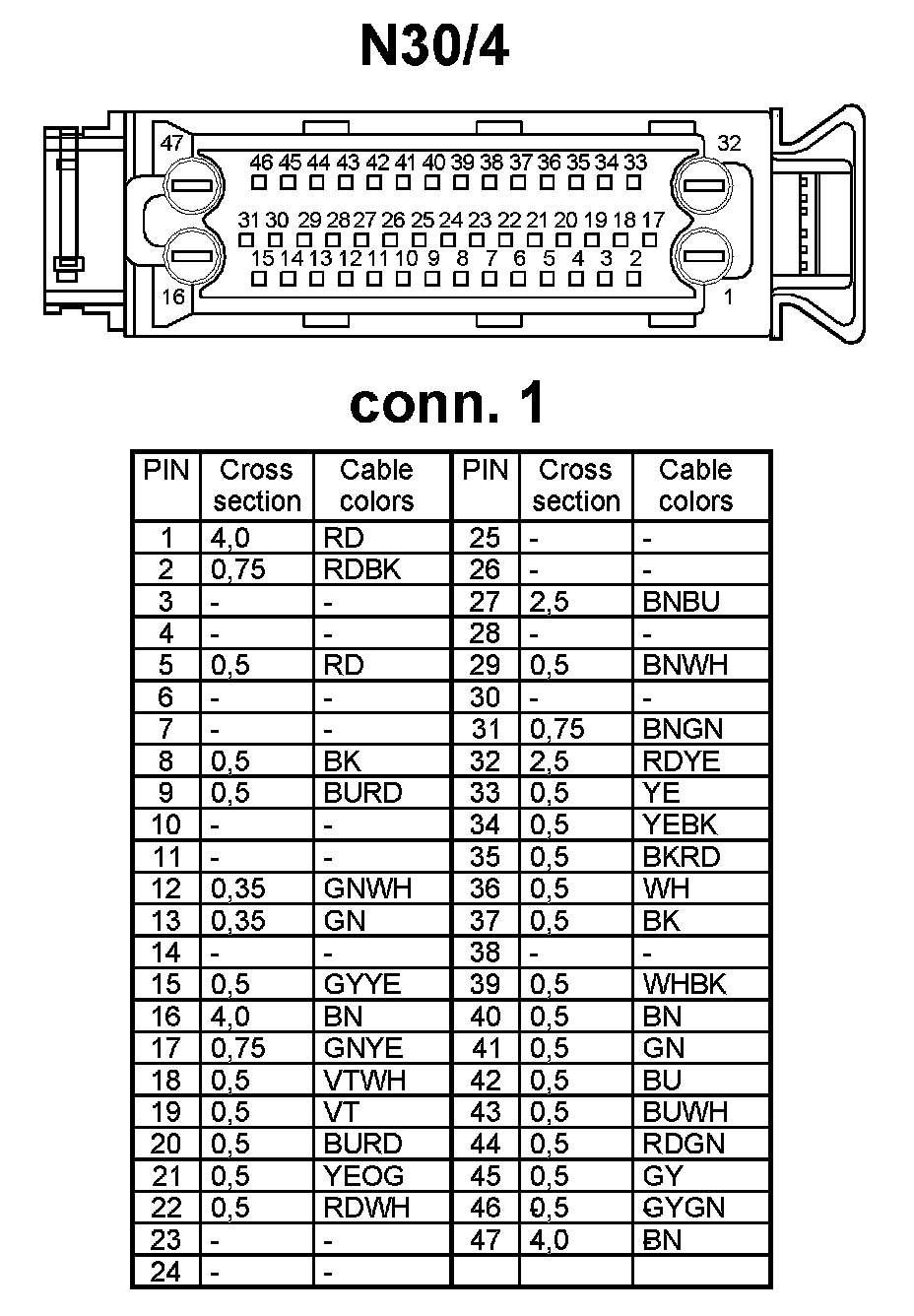

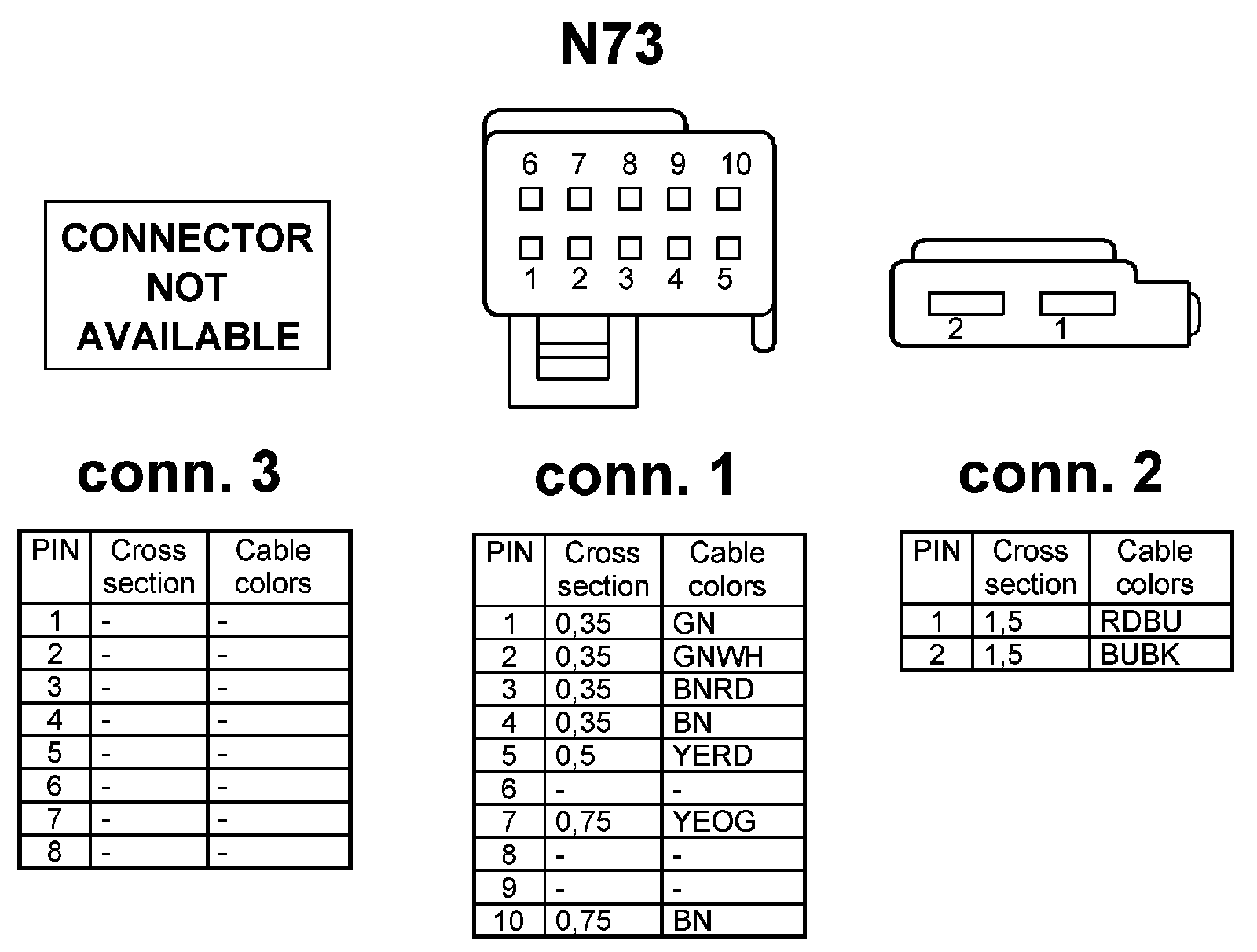

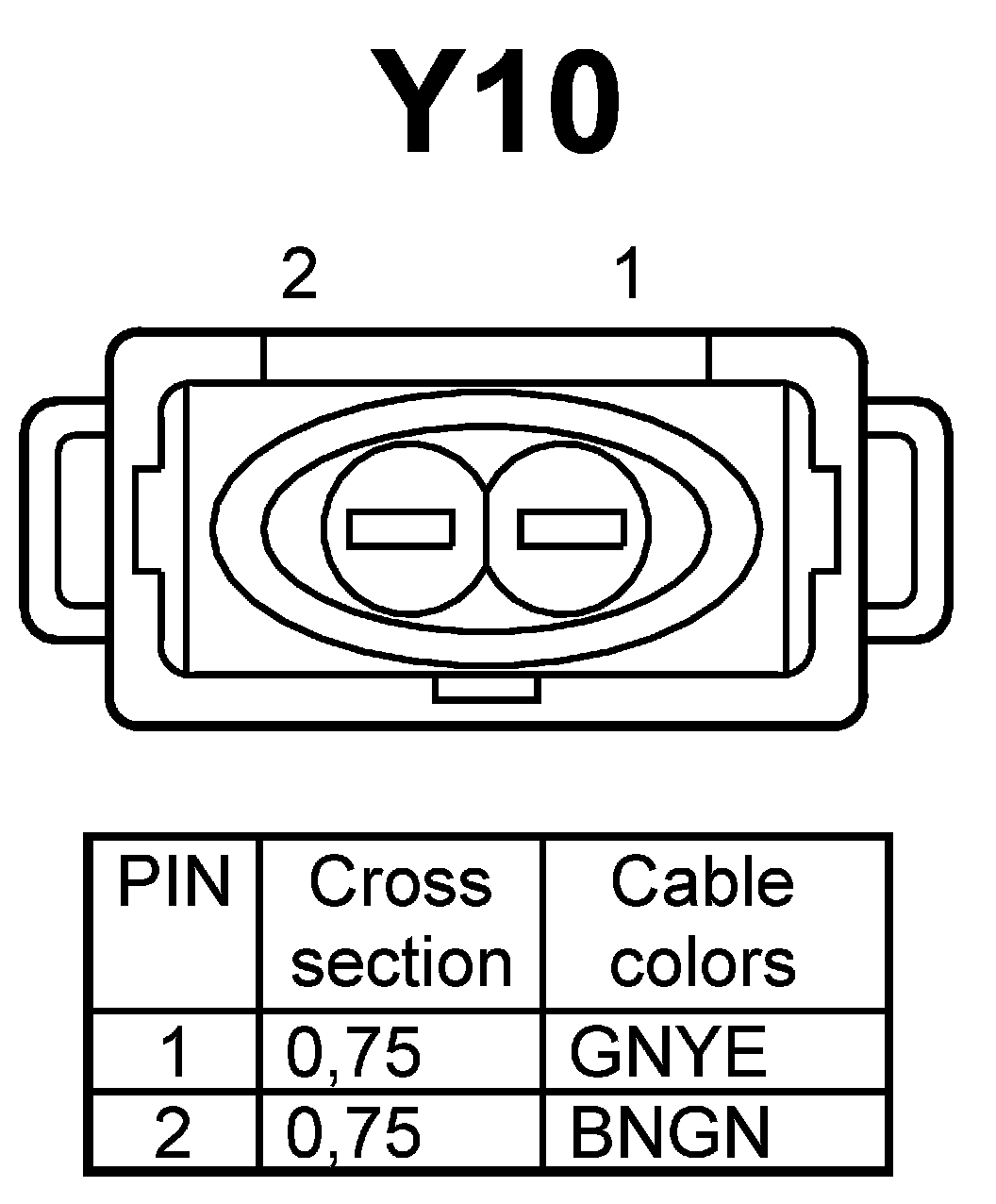

PE46.50-Q-2049TAA Electrical Function Schematic For Direct Steering

MODEL 172
- with CODE (213) Direct steering


































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
