Steering Column Control Module

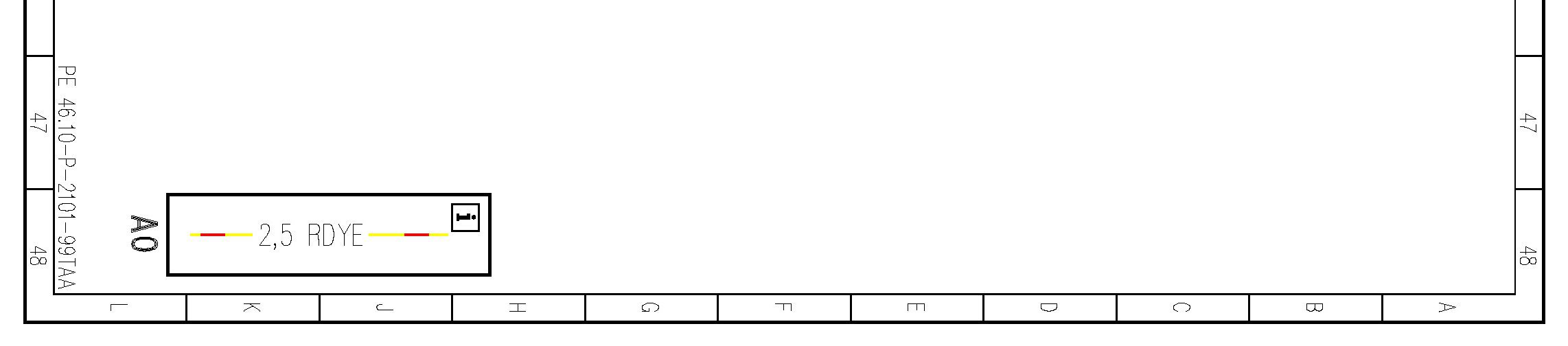

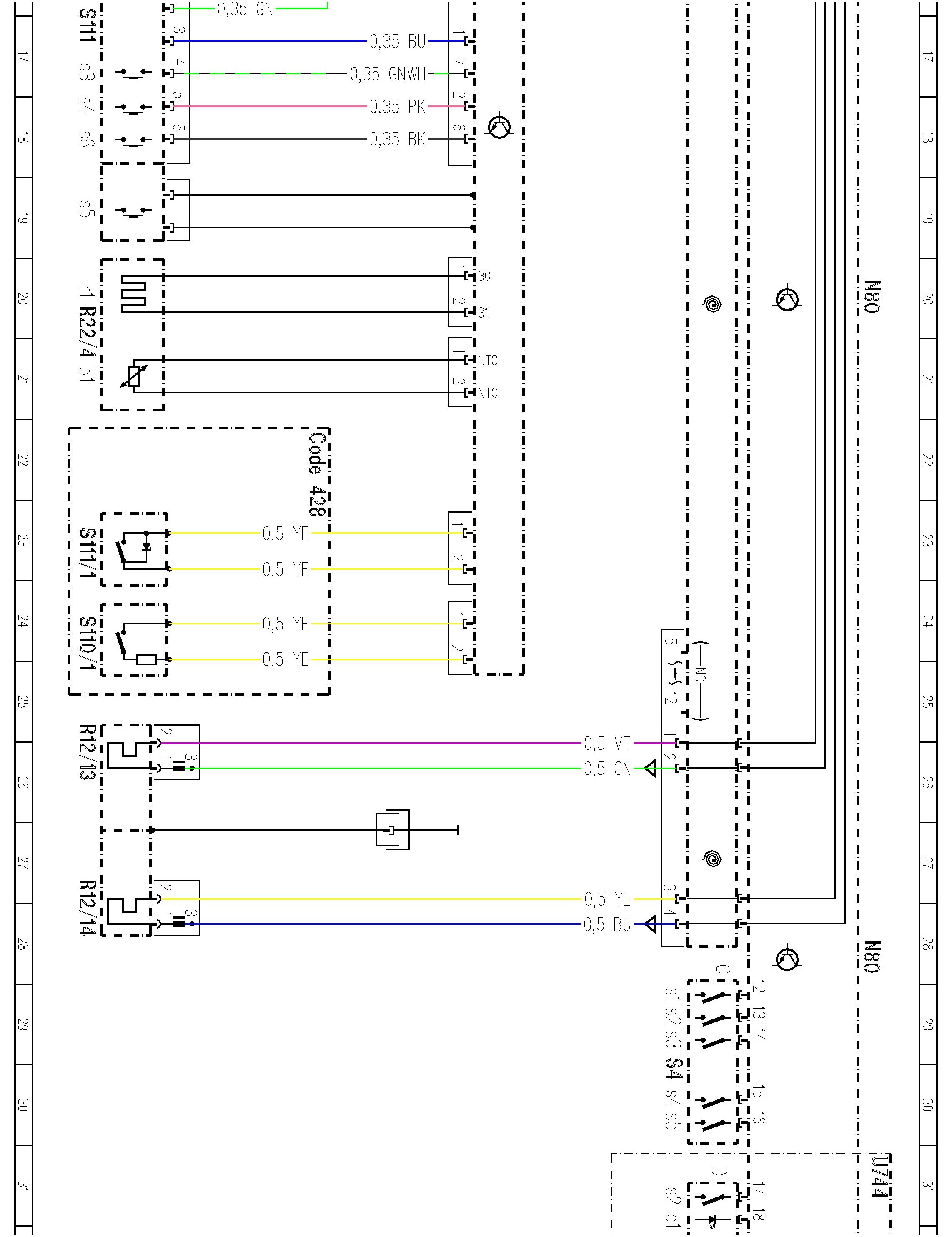

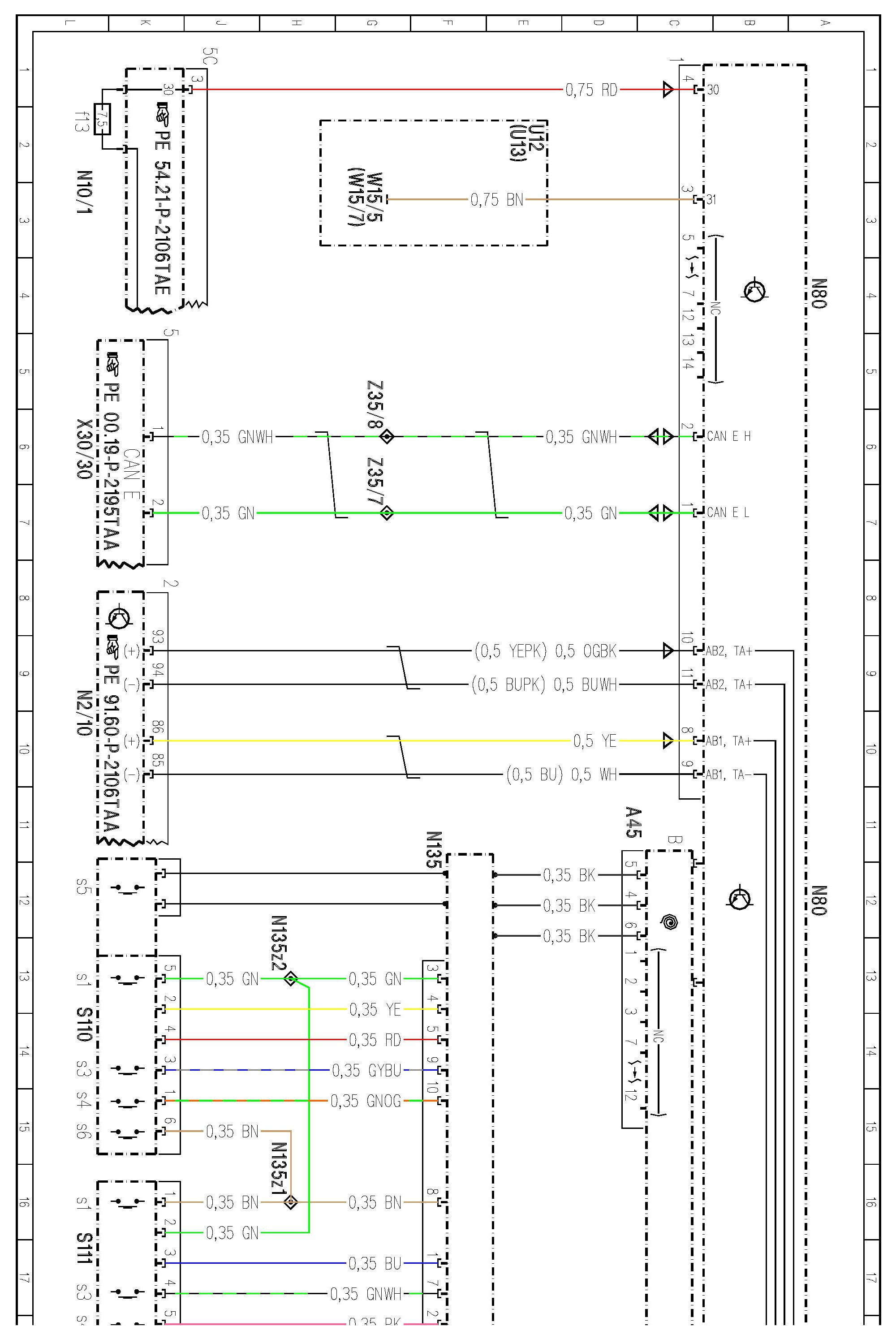

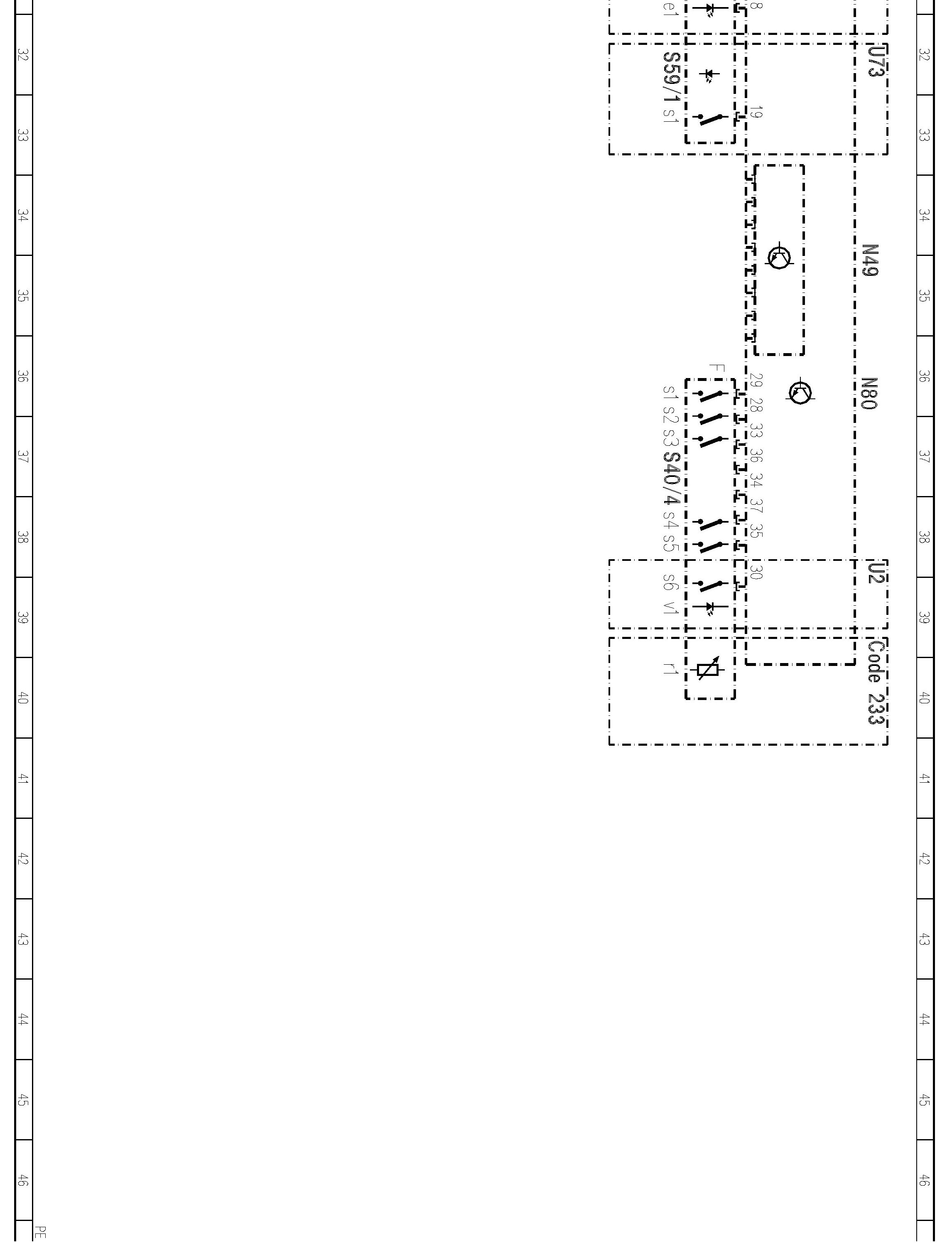

PE46.10-P-2101TAA Steering Column Module Control Unit

MODEL 172.4


























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
