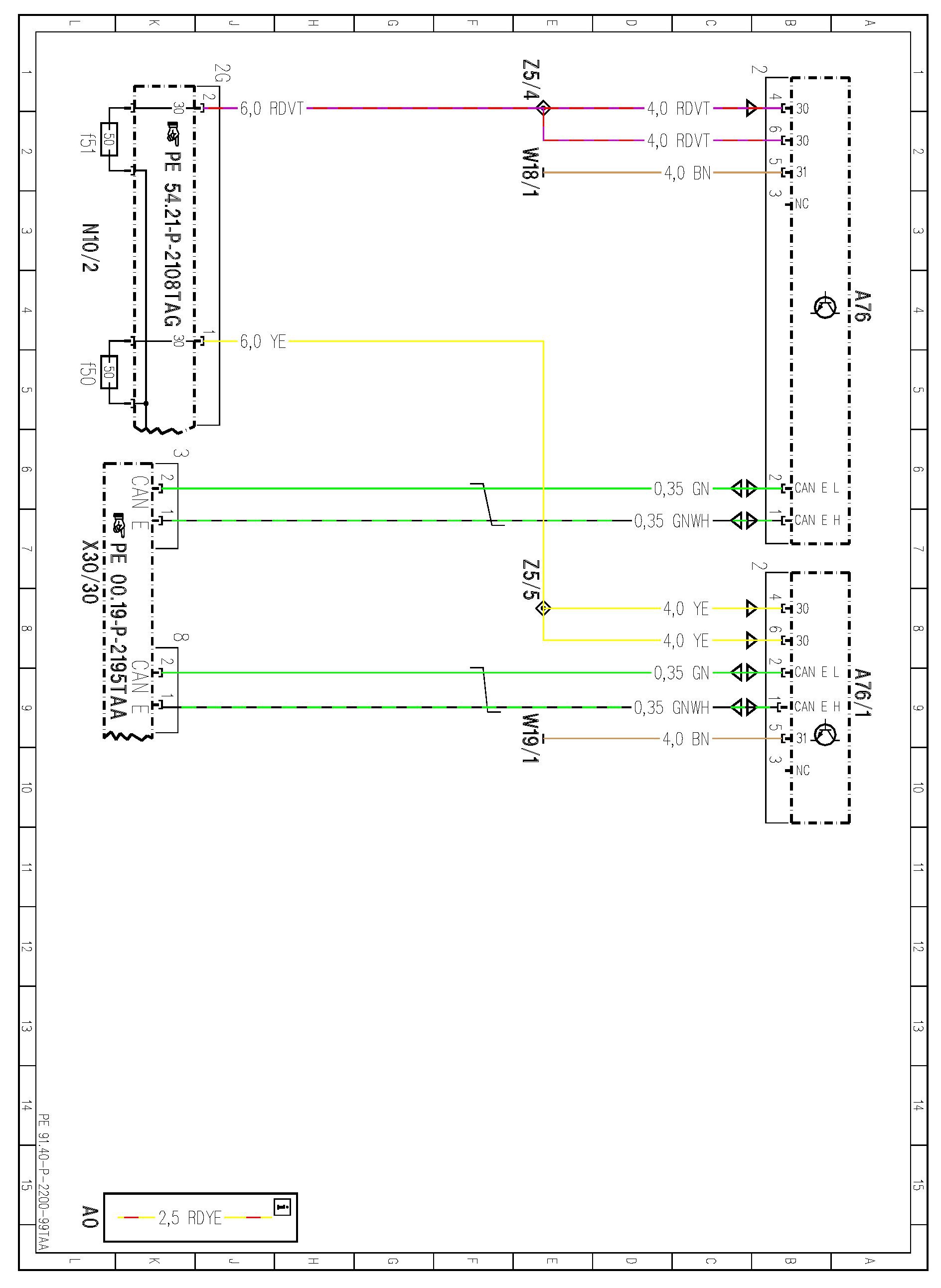

PE91.40-P-2200TAA Reversible Emergency Tensioning Retractor



PE91.40-P-2200TAA Reversible Emergency Tensioning Retractor

MODEL 172.4
- with CODE (299) PRE-SAFE
- Control unit A76, A76/1


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
