Home >> Mercedes Benz >> 2012 >> SLK 250 (172.477) L4-1.8L Turbo (271.861) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Function Diagram >> PE82.60-P-2058TAA Electrical Function Diagram For Audio Mode, Function

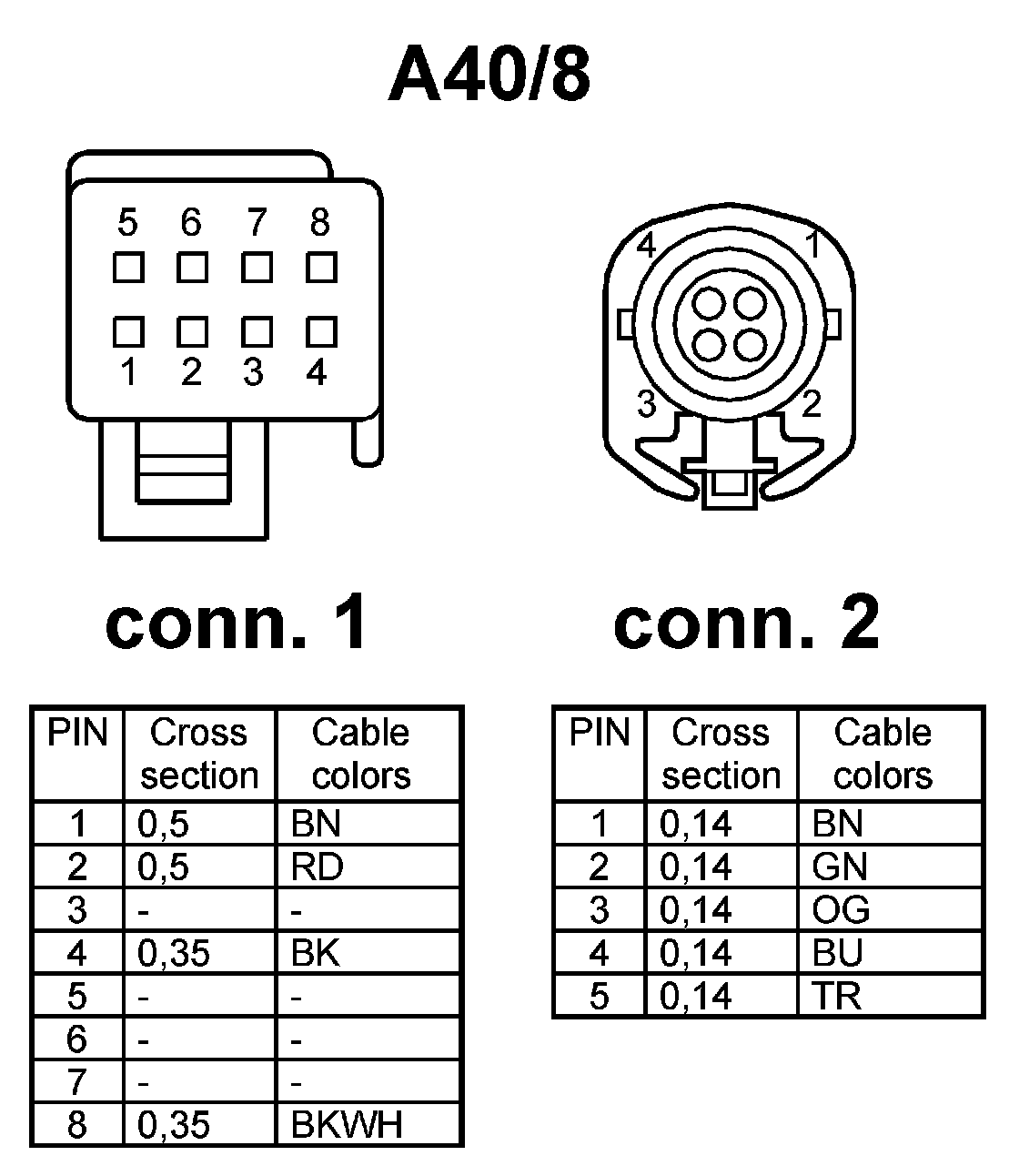

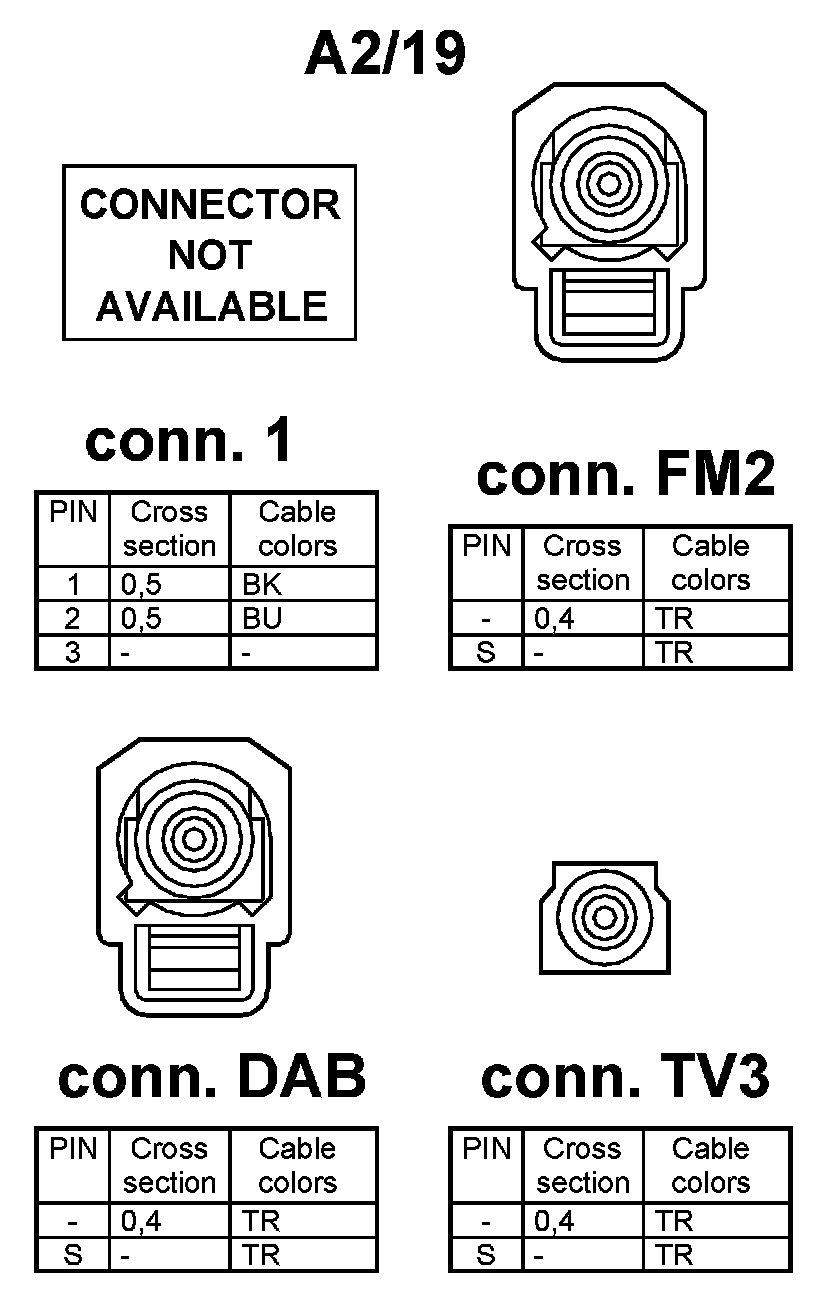

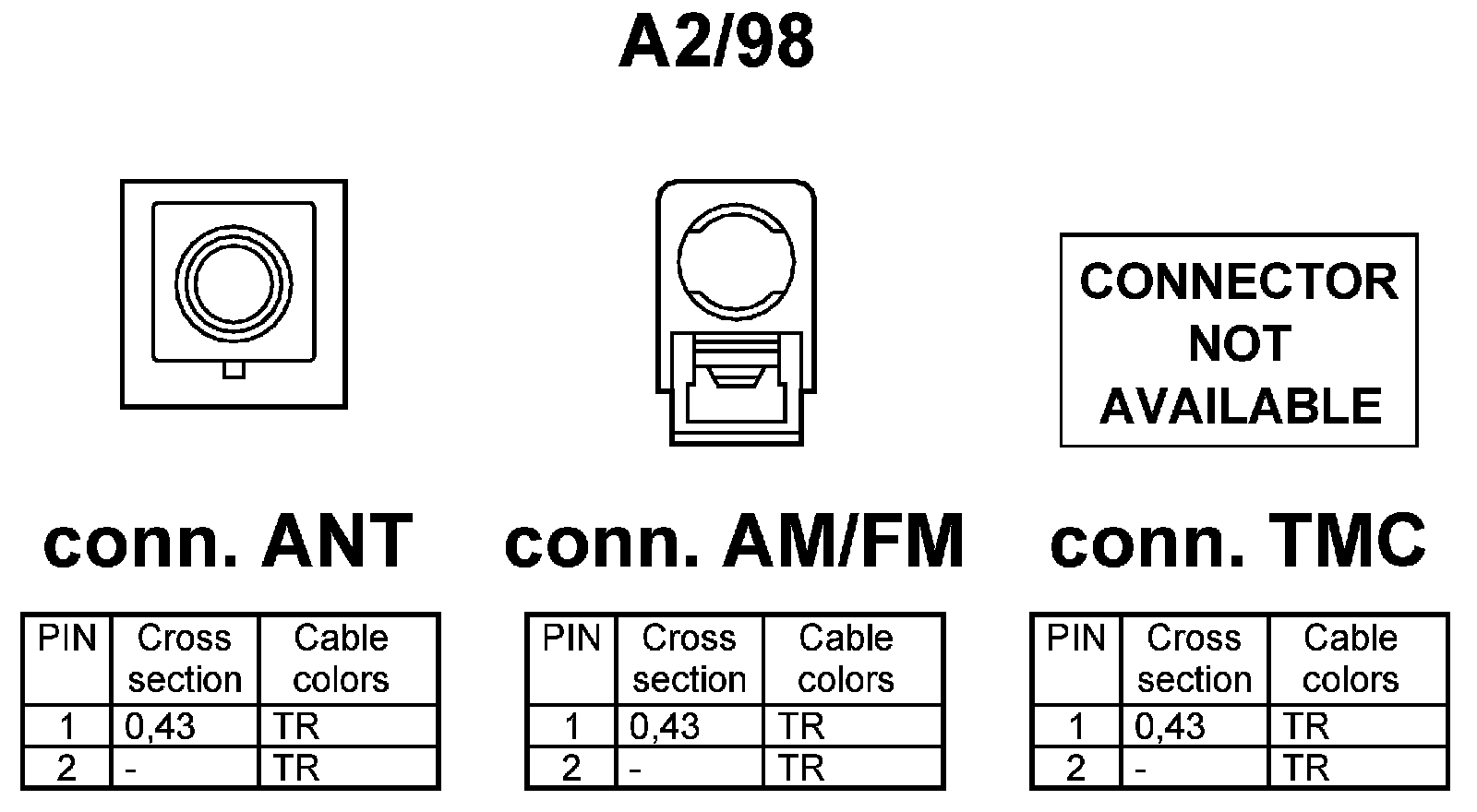

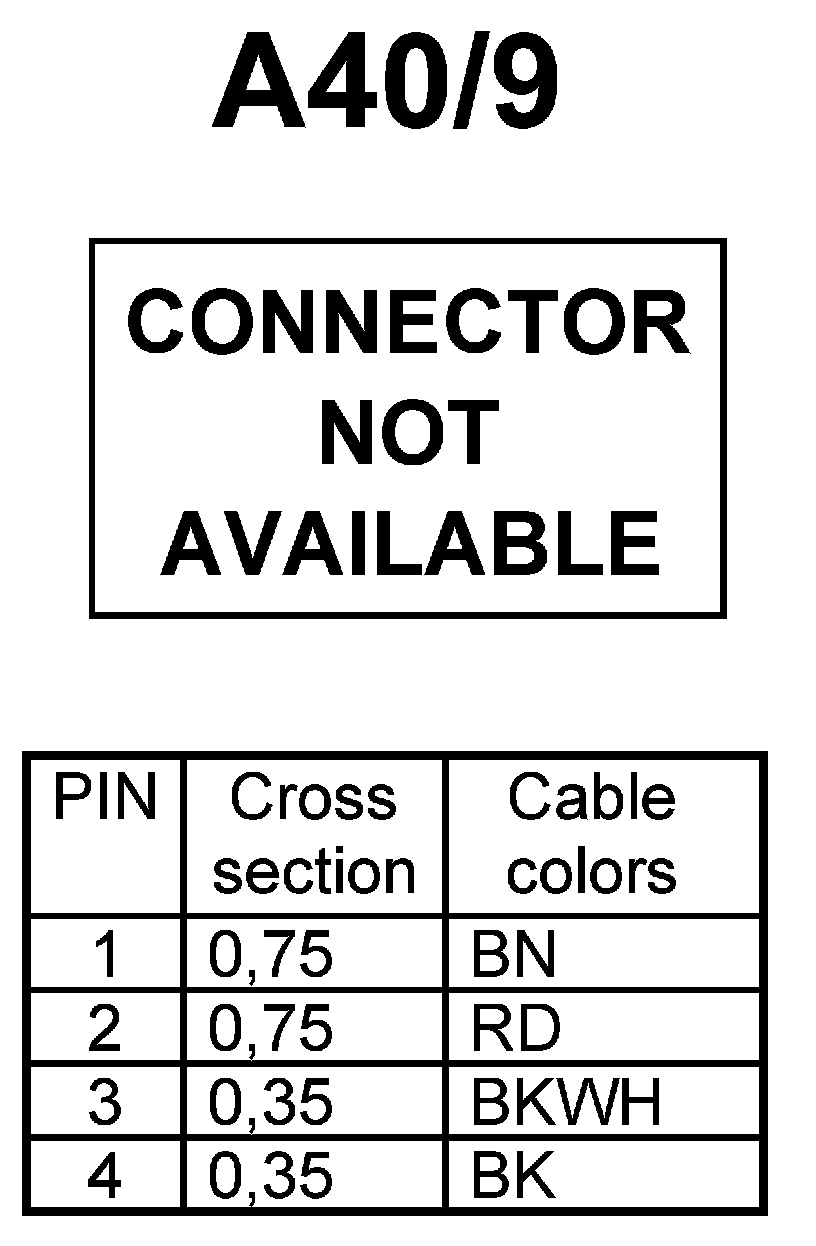

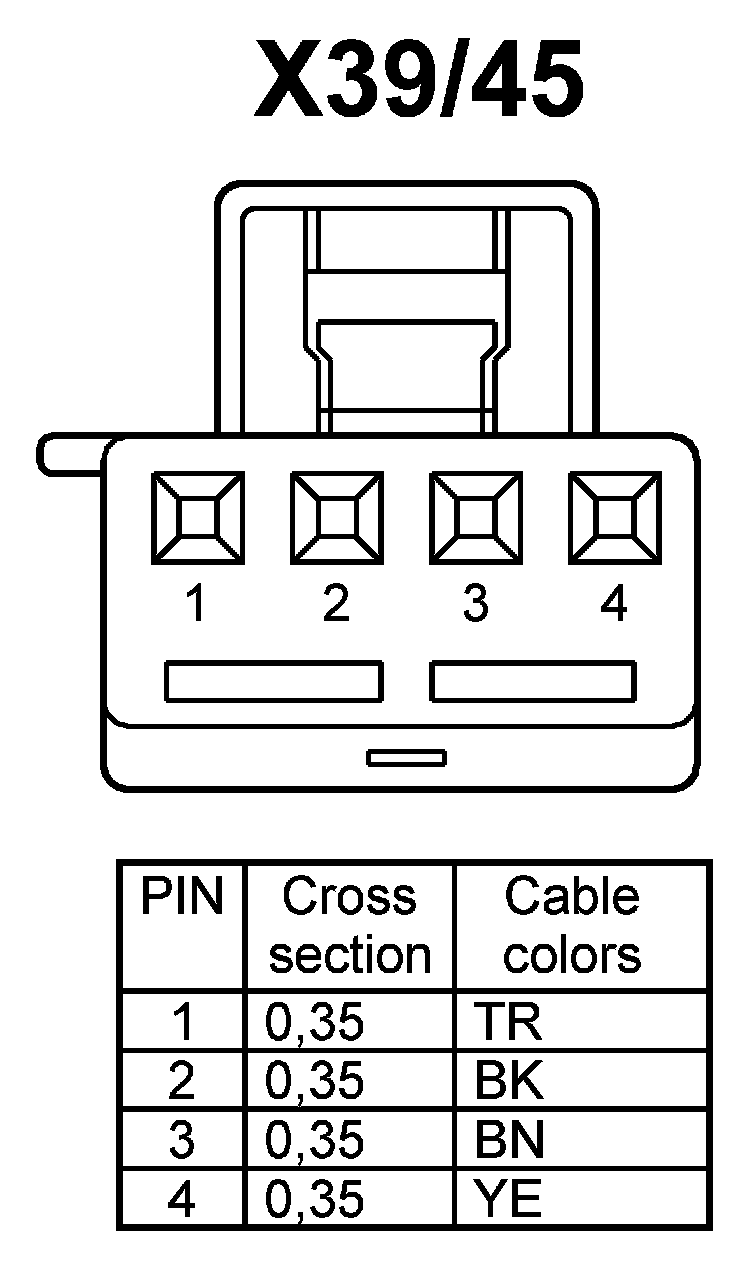

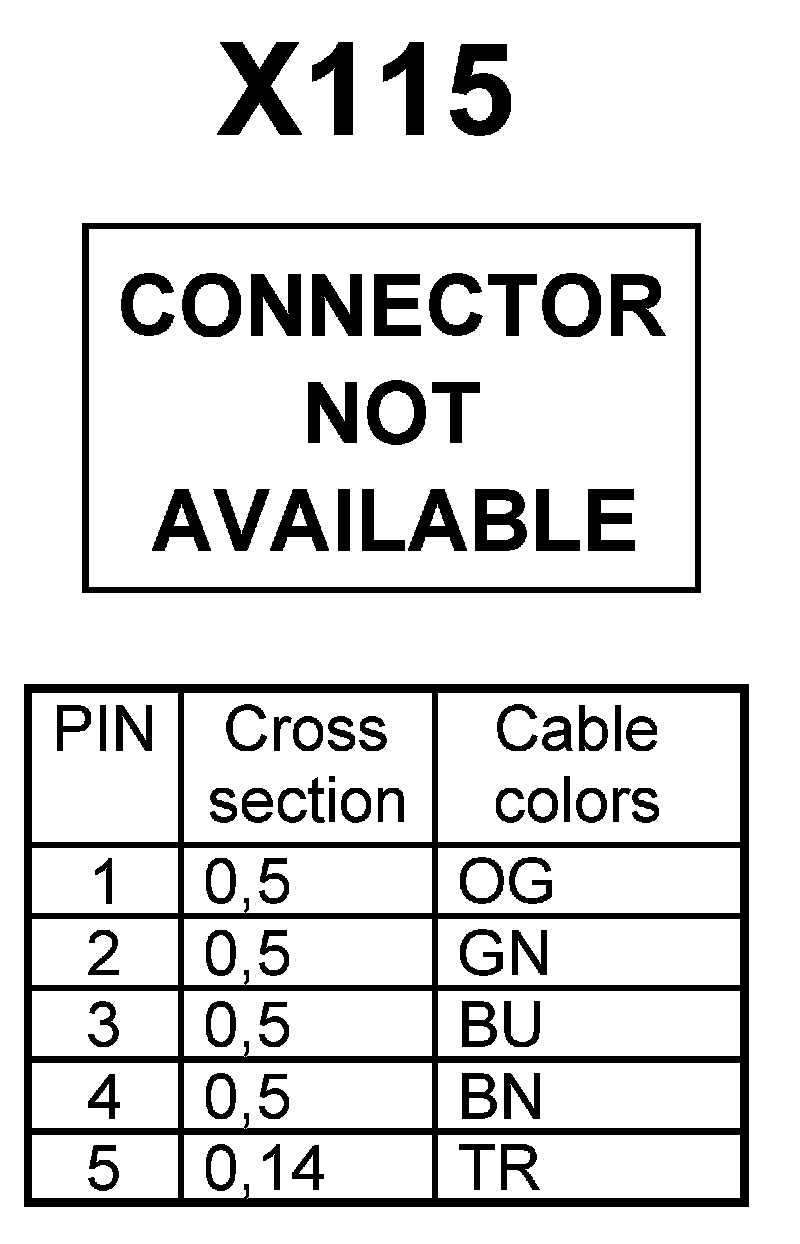

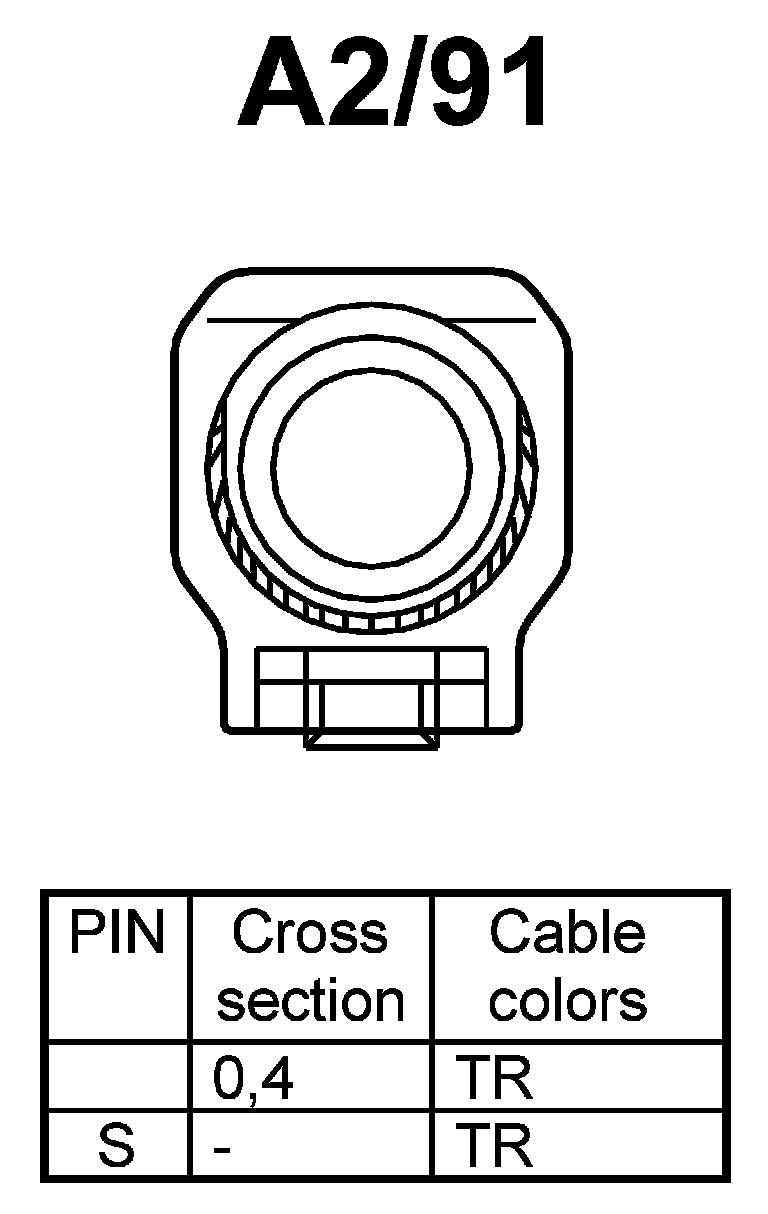

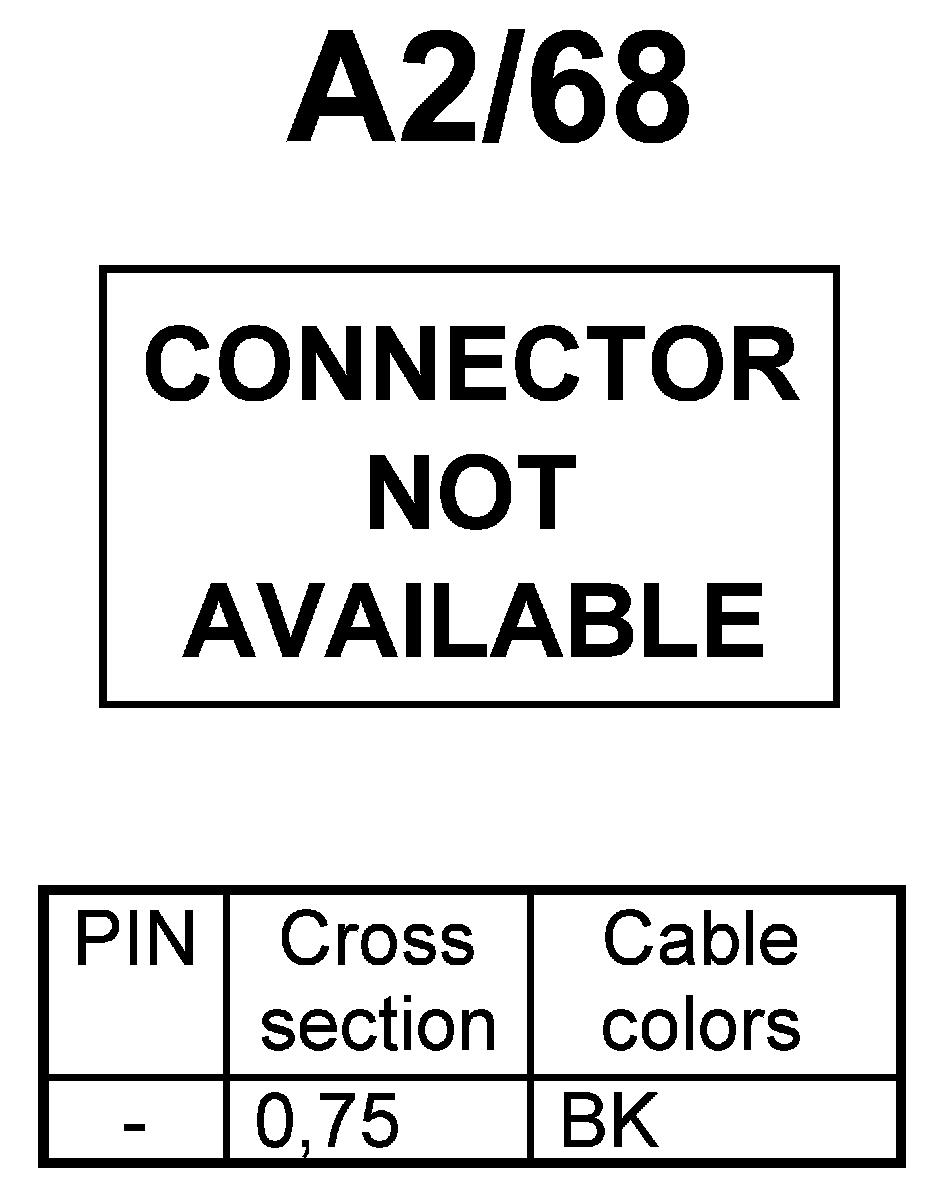

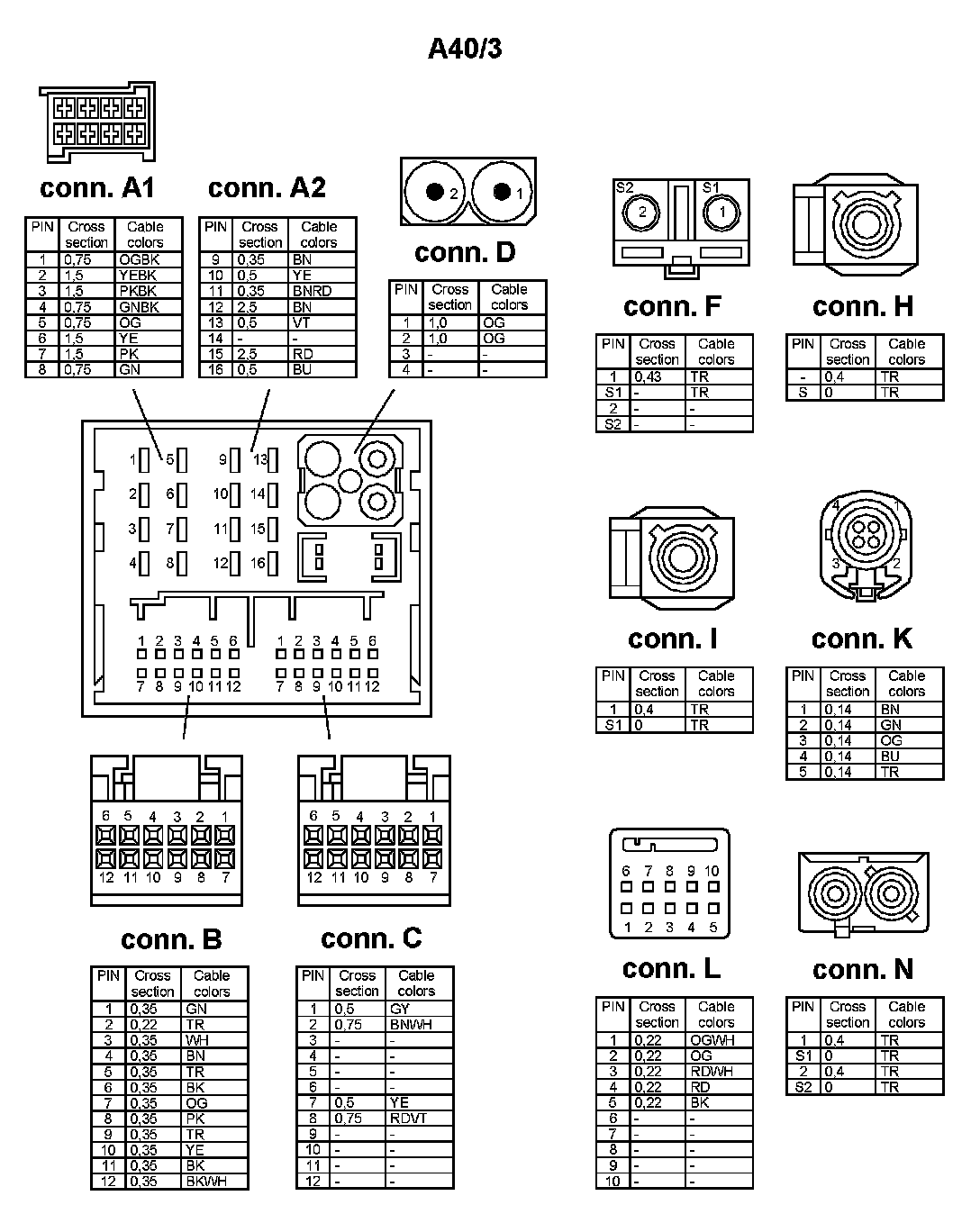

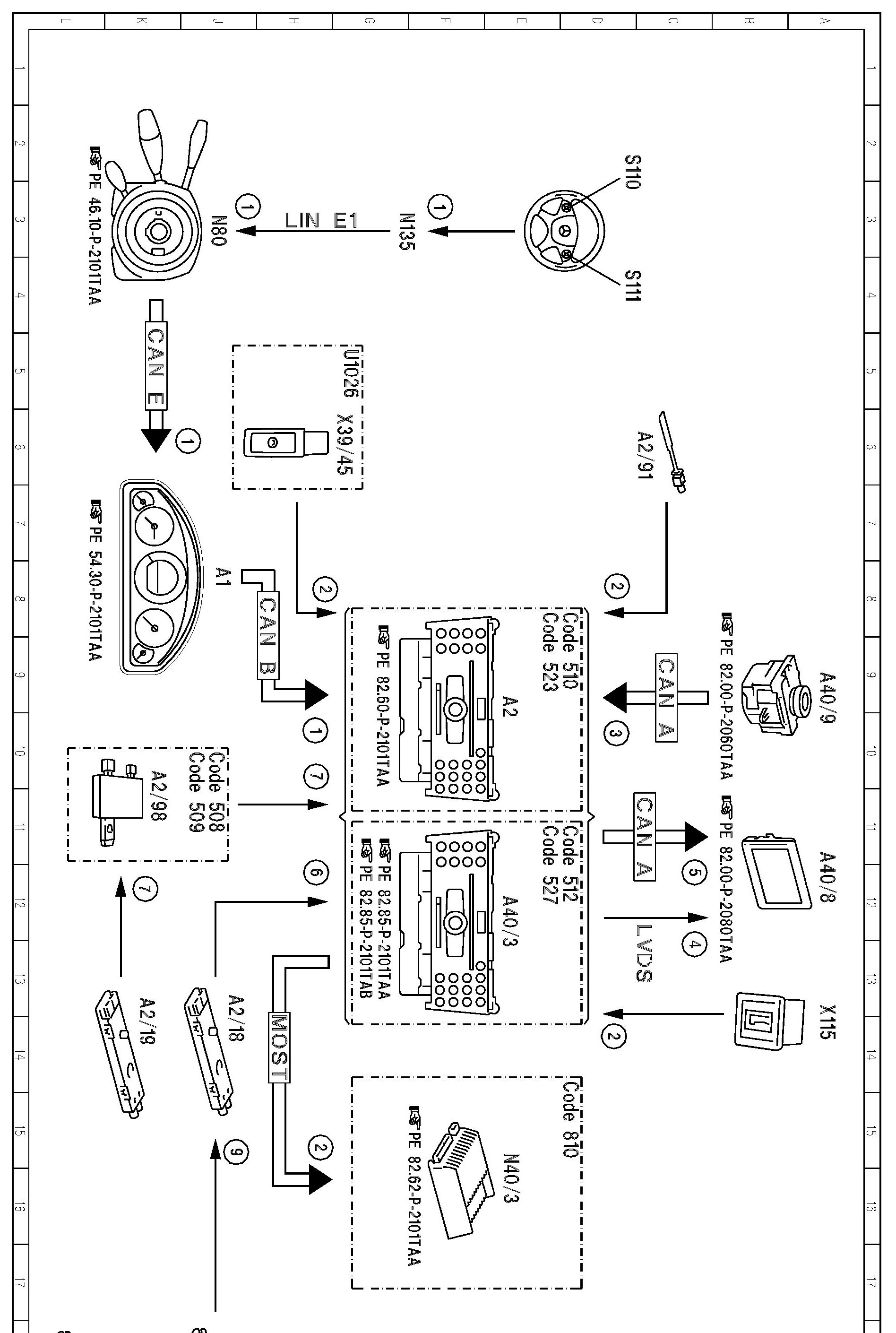

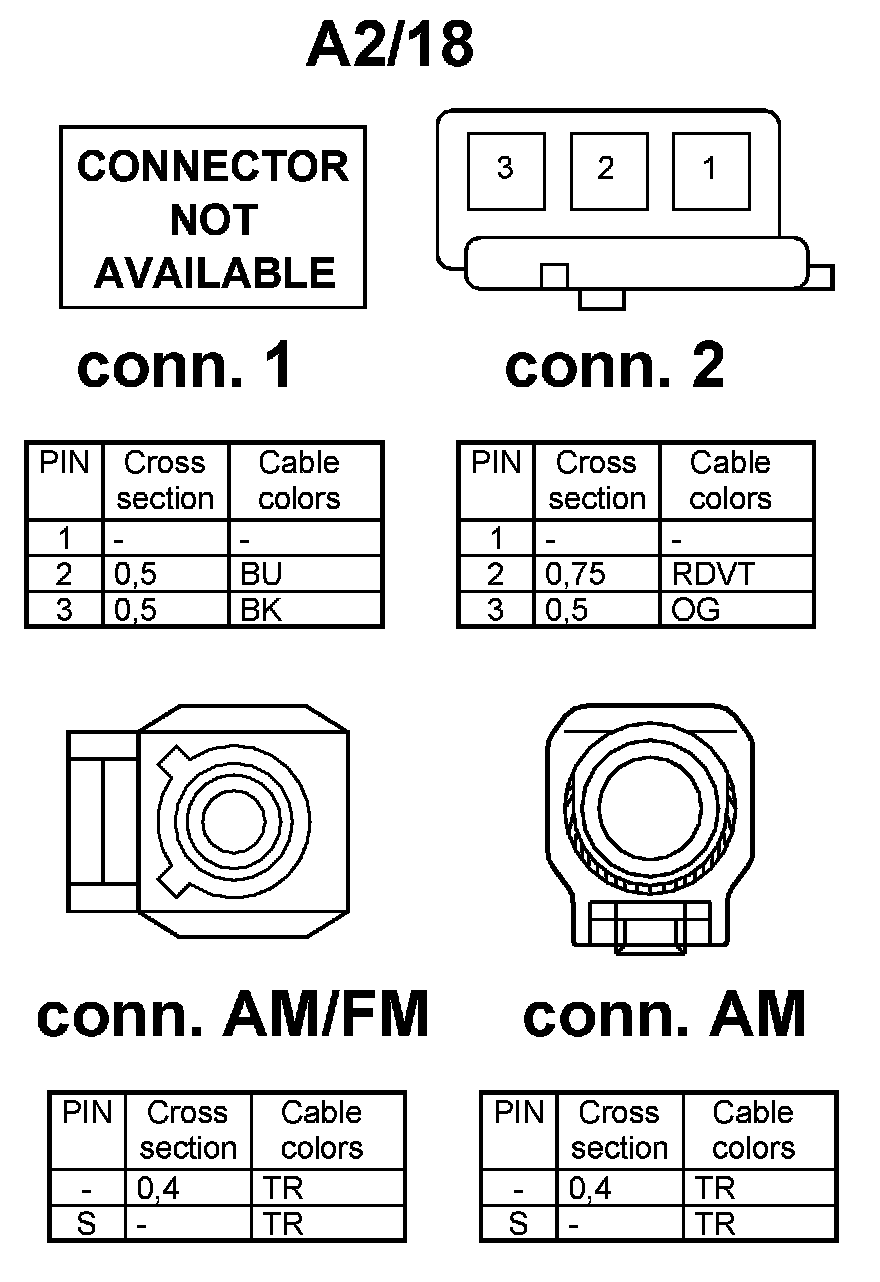

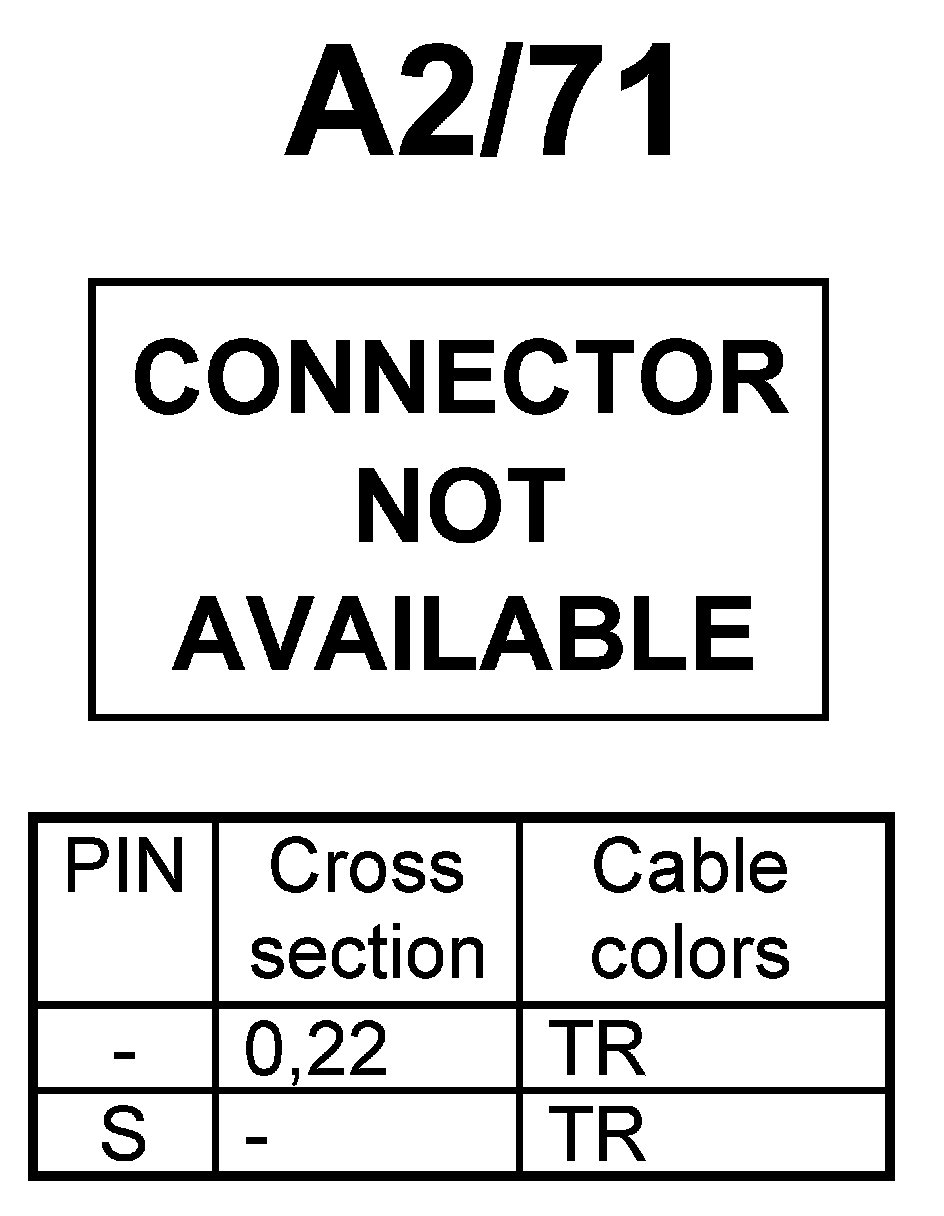

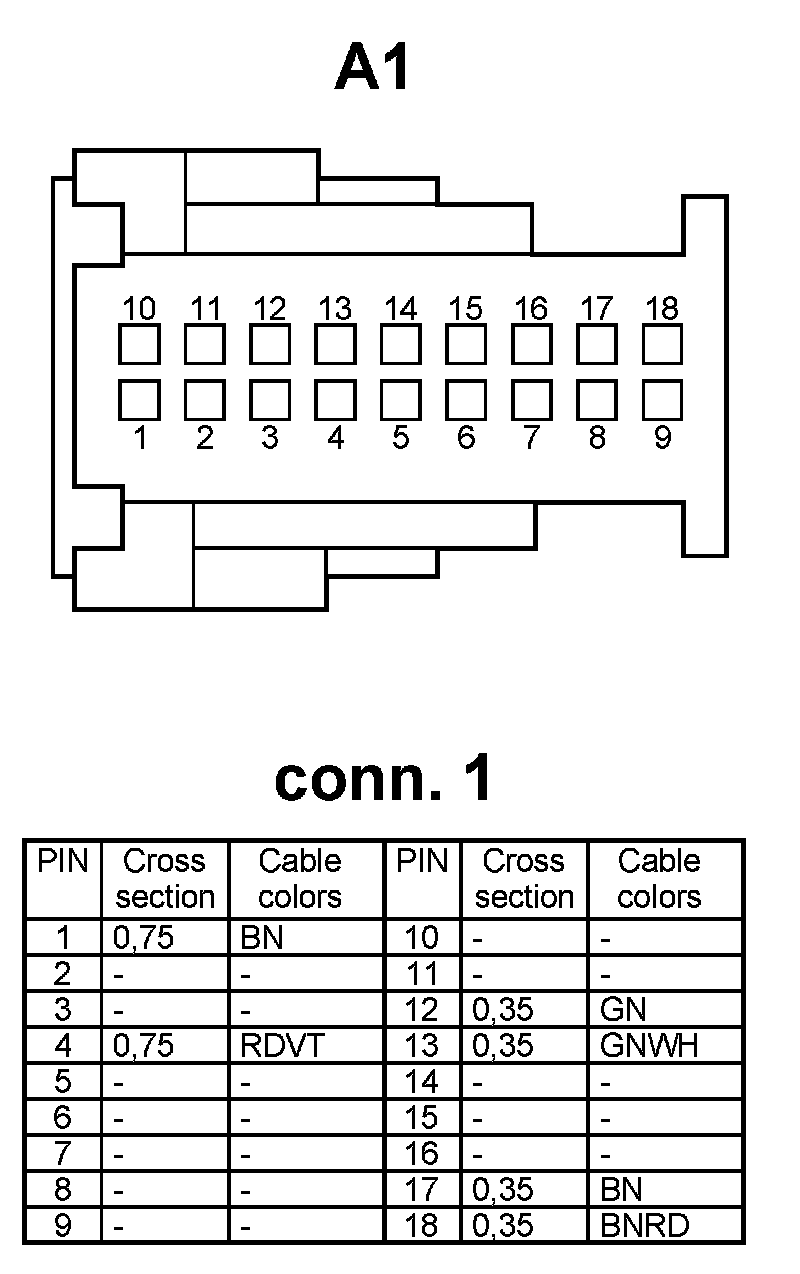

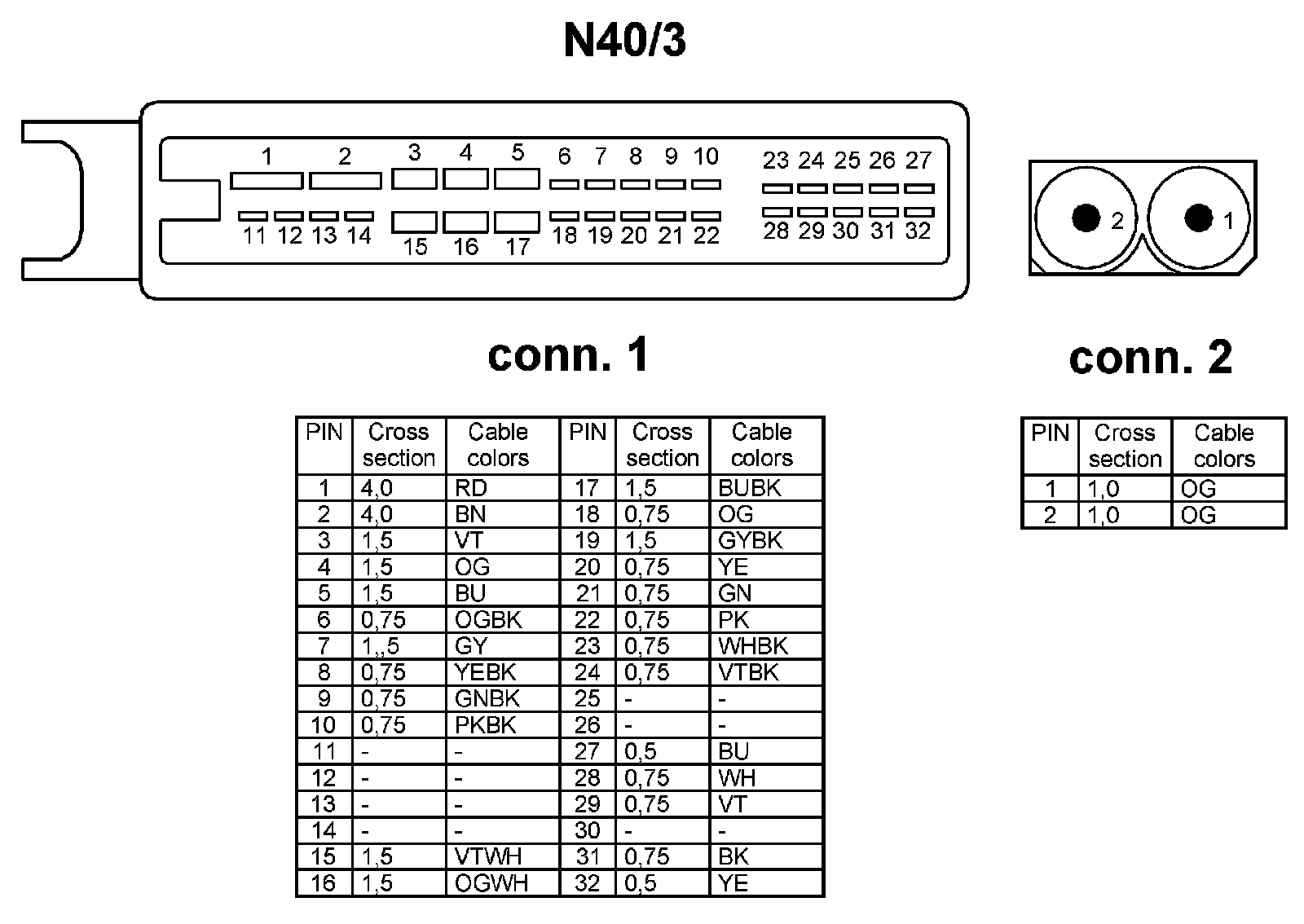

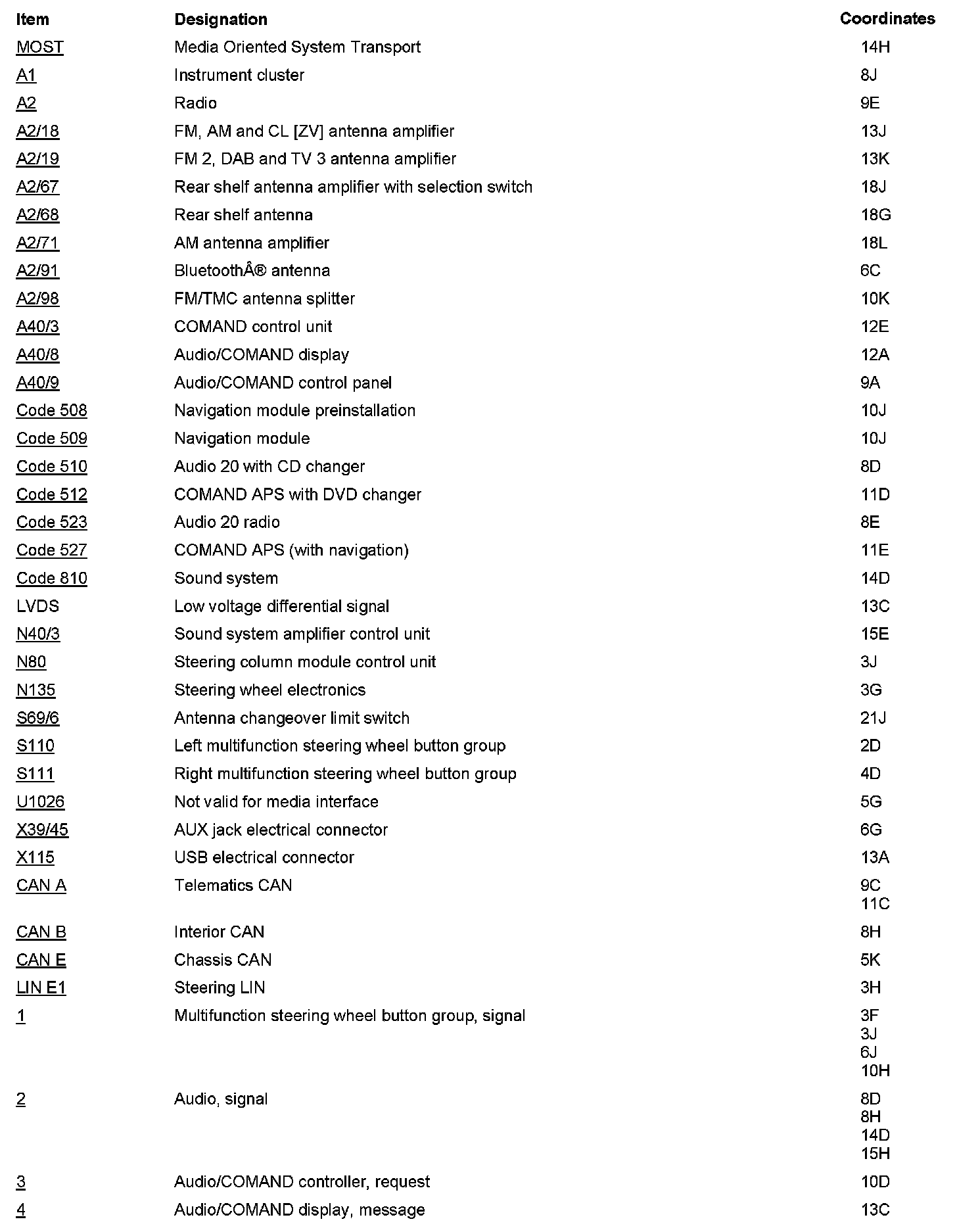

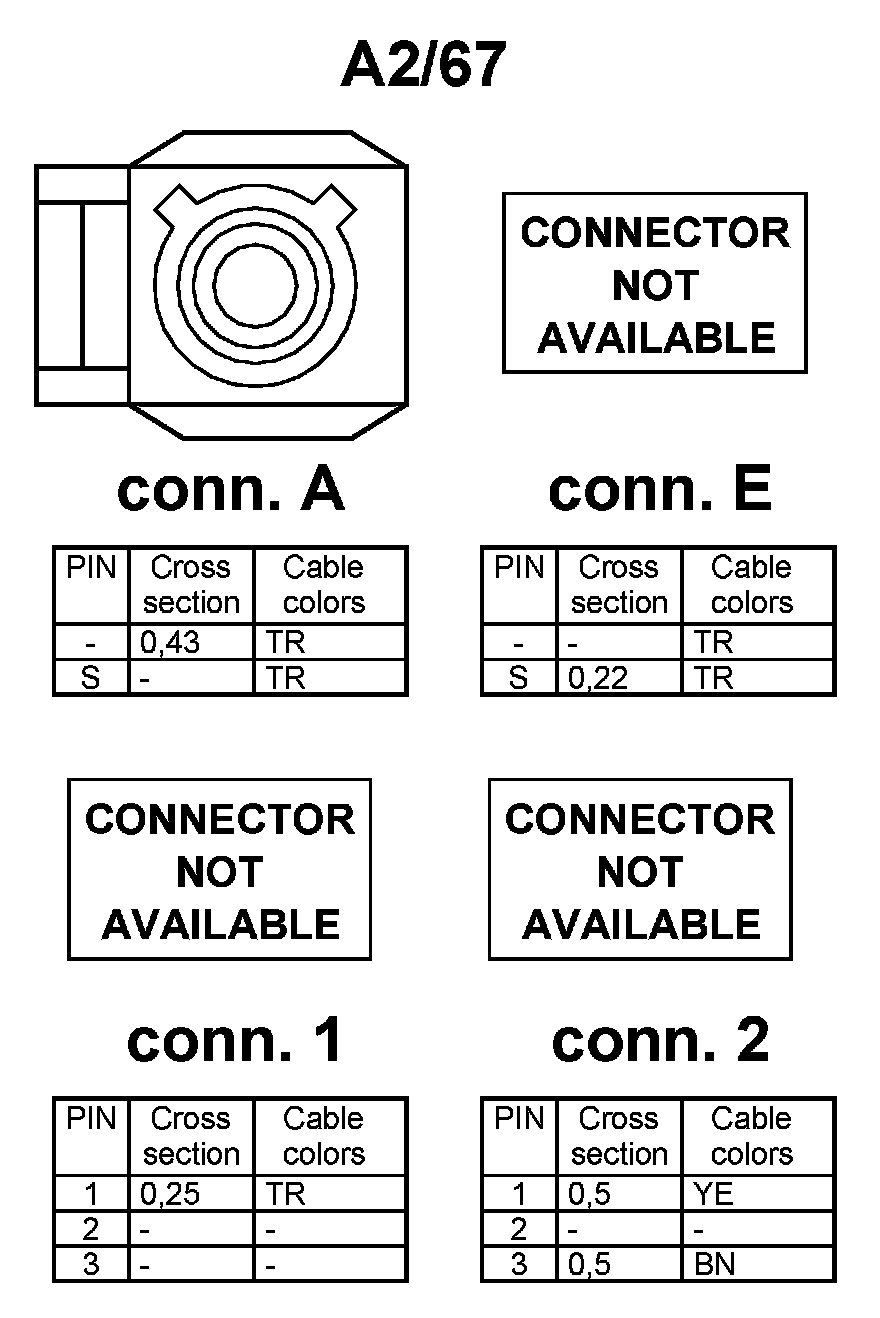

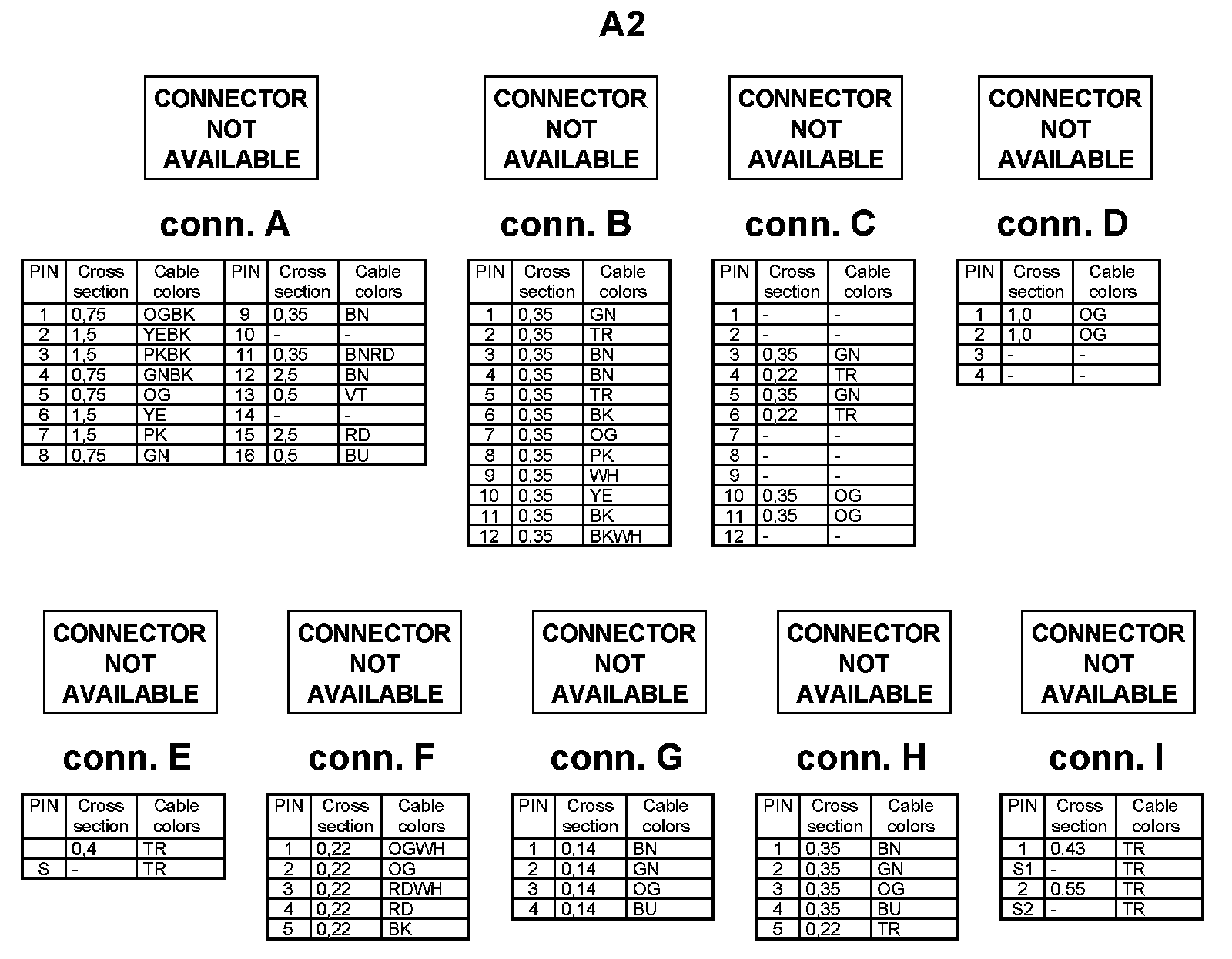

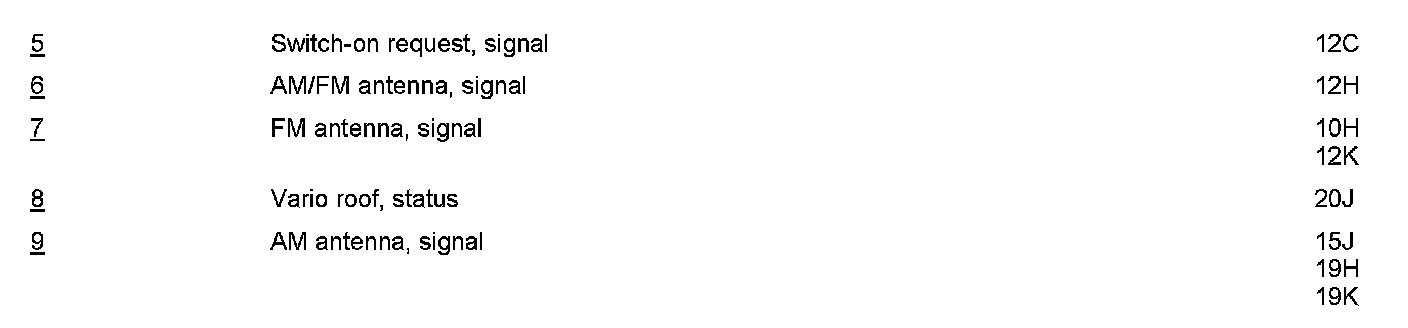

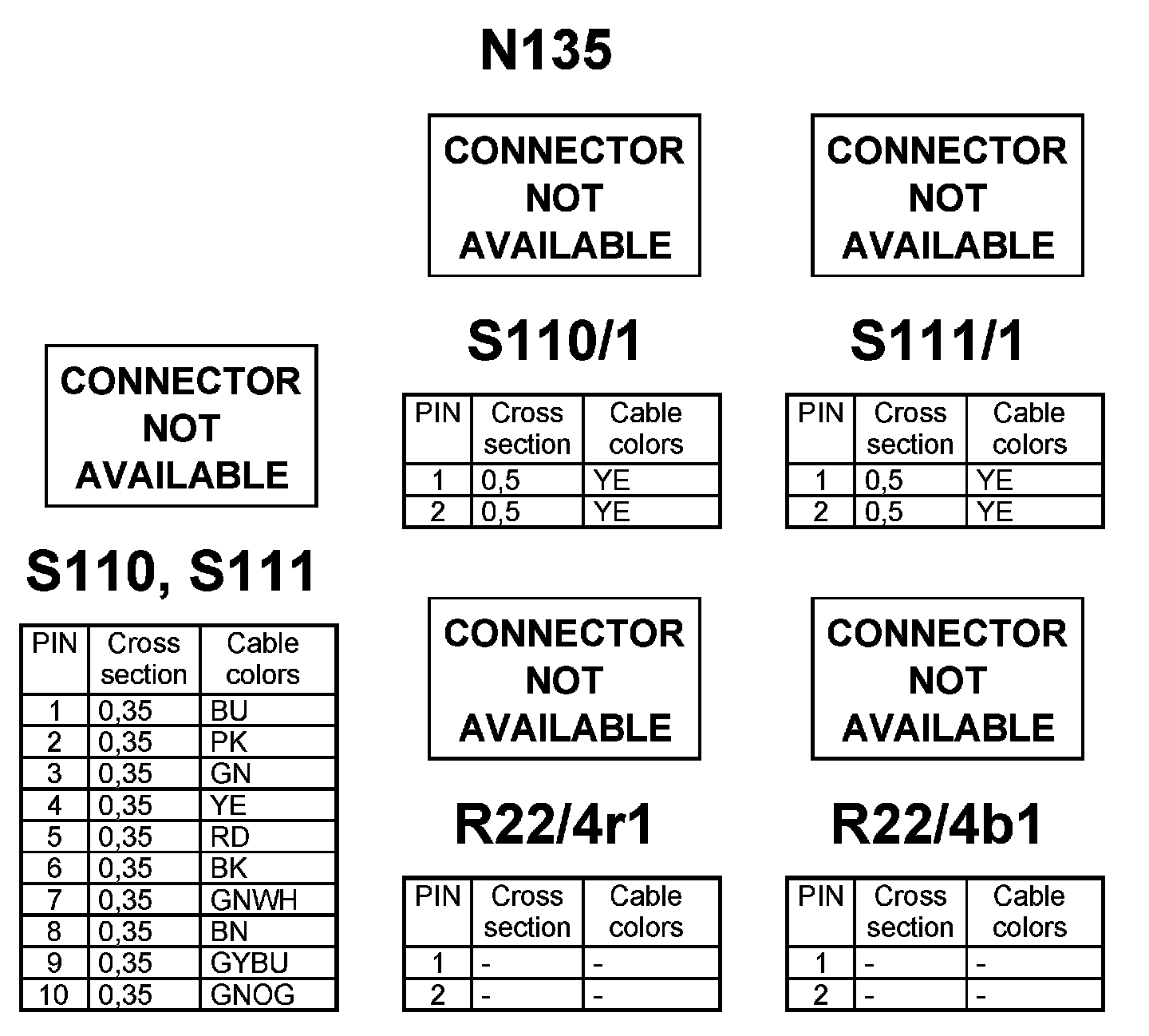

PE82.60-P-2058TAA Electrical Function Diagram For Audio Mode, Function



PE82.60-P-2058TAA Electrical Function Diagram For Audio Mode, Function

MODEL 172.4






















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
