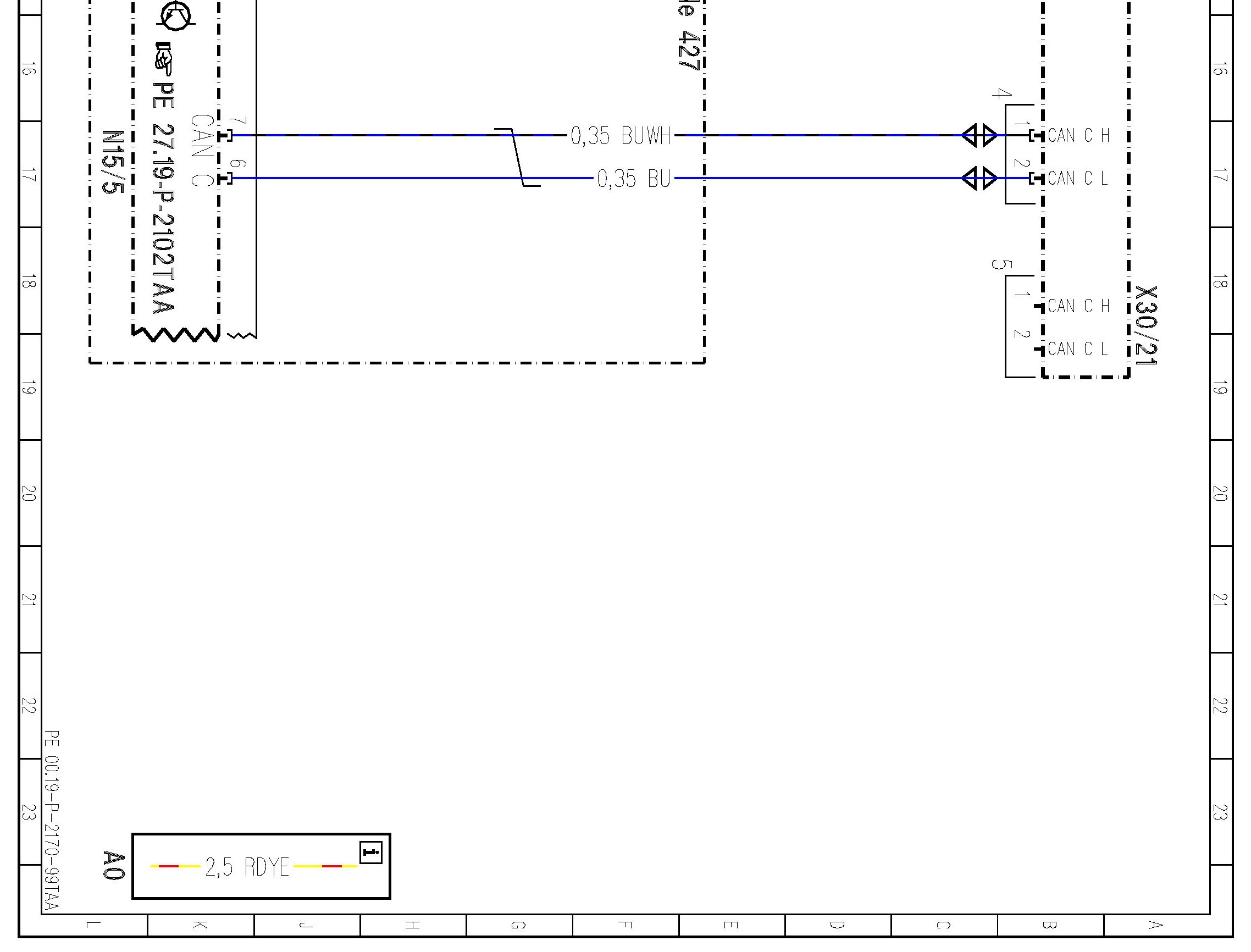

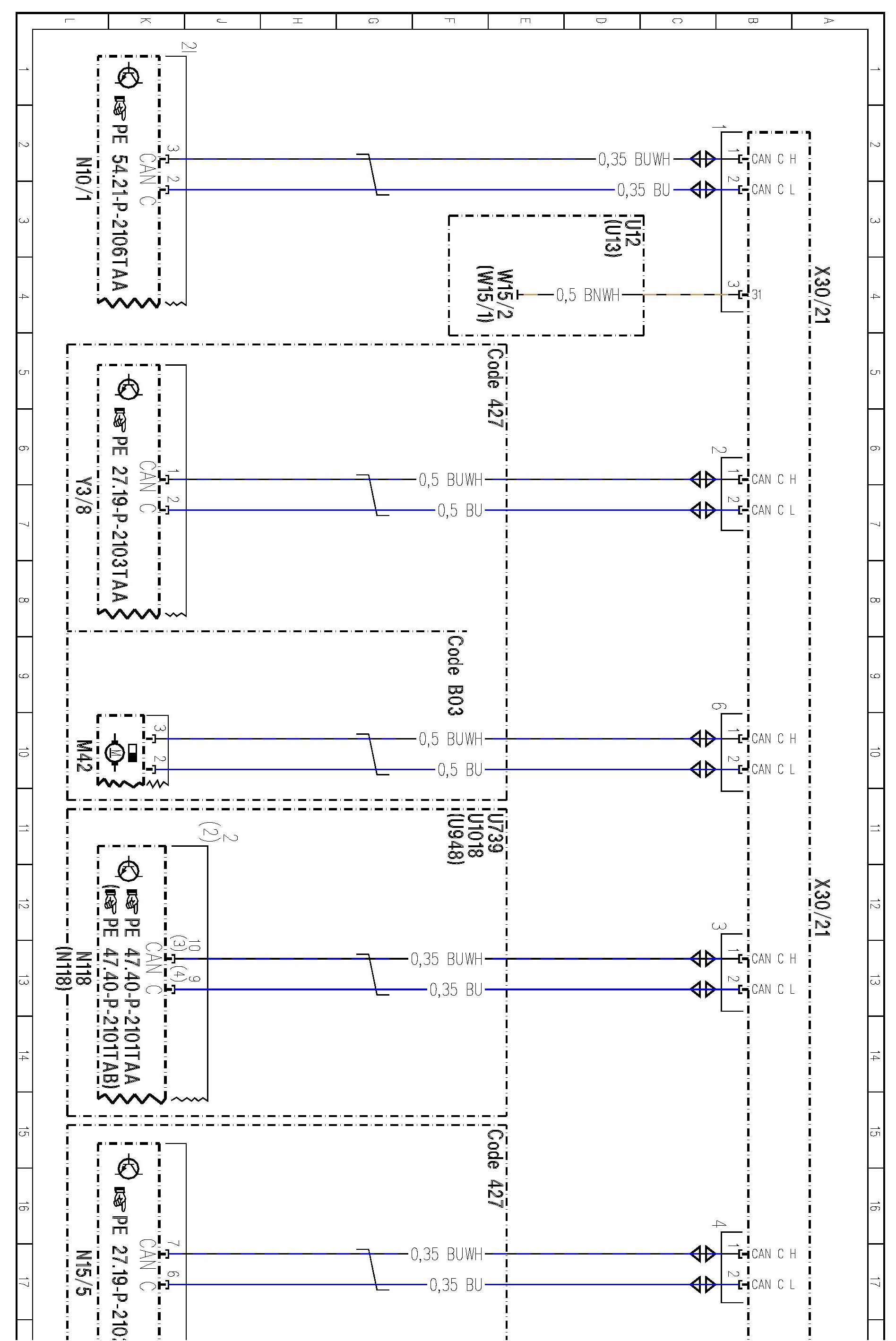

PE00.19-P-2170TAA Drive Train CAN



PE00.19-P-2170TAA Drive Train CAN

MODEL 172.4

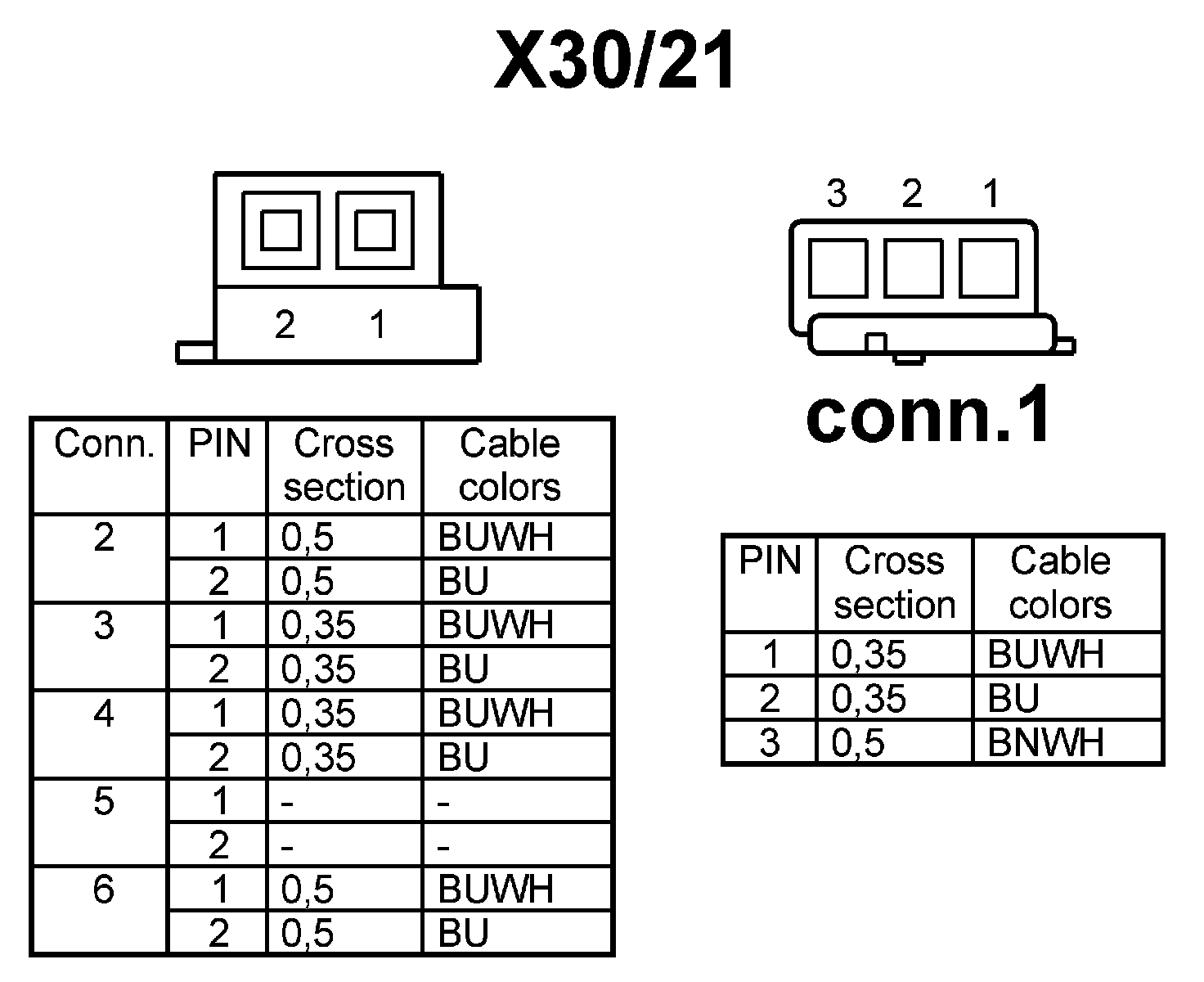

- Potential distributor X30/21






































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
