Data Link Connector

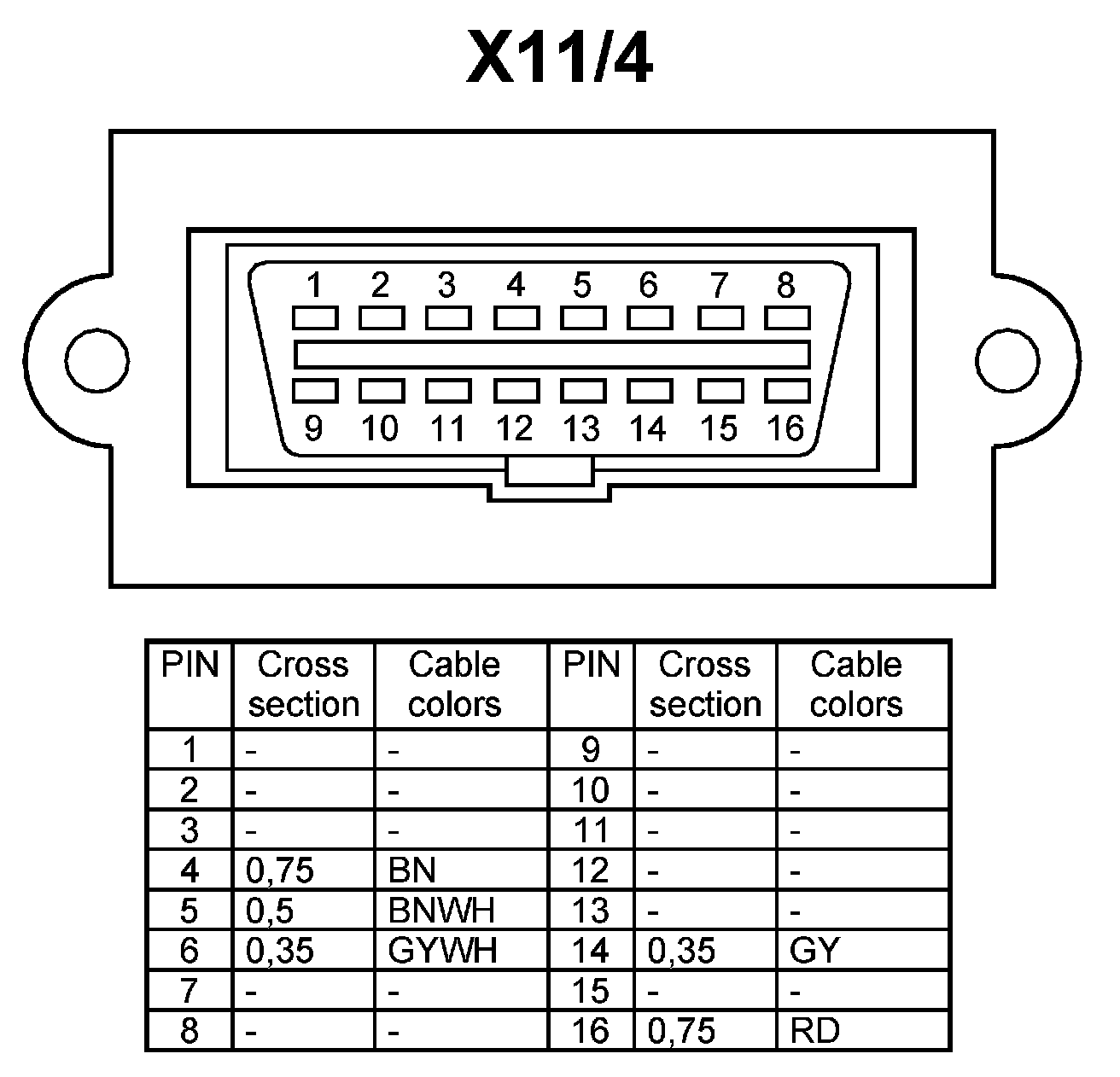

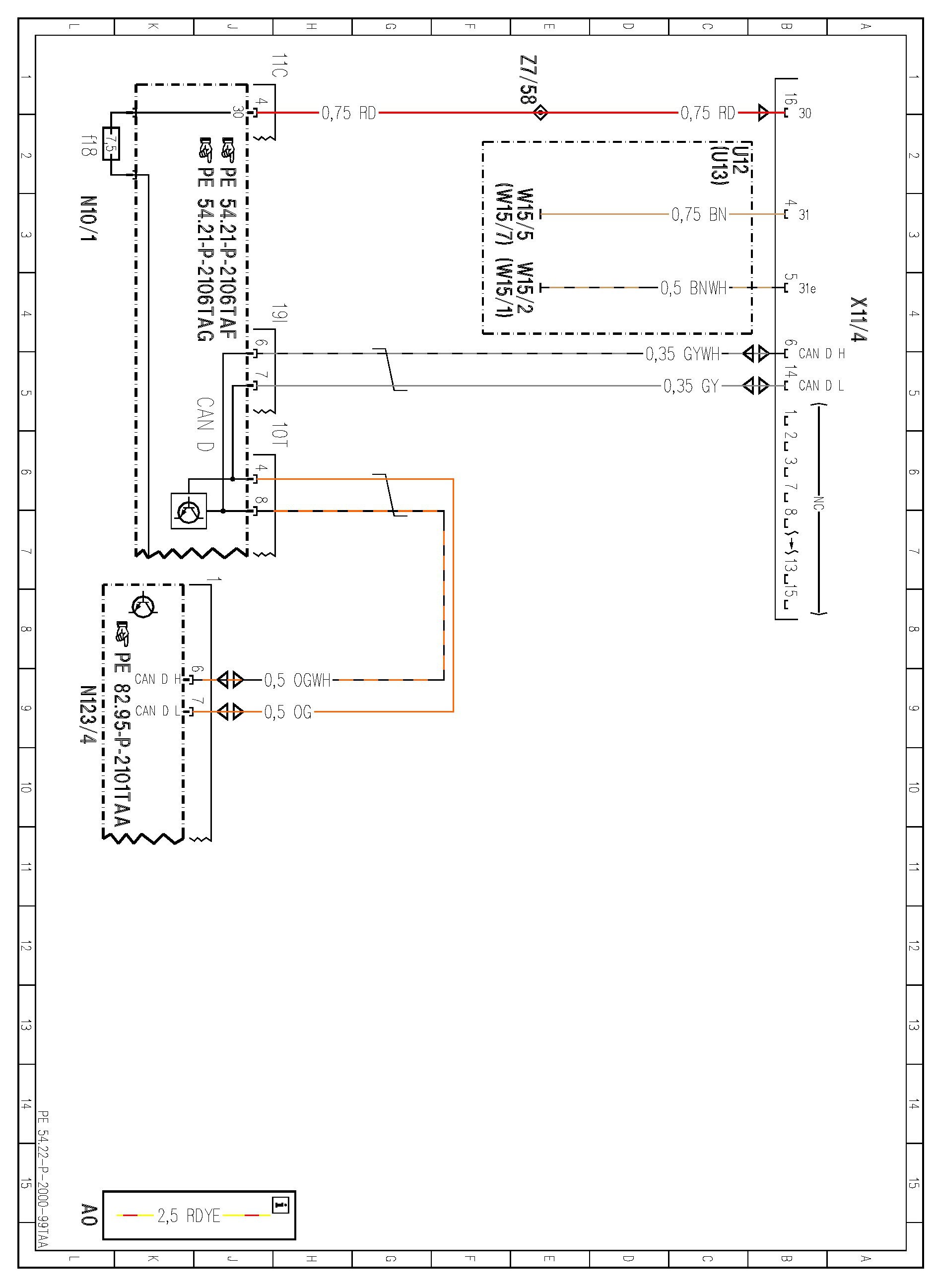

PE54.22-P-2000TAA Data Link Connector/Diagnostic Socket

MODEL 172.4






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
