PE82.10-P-2063TAA Electrical Function Schematic, Additional Functions, Driving Lights Actuation

PE82.10-P-2063TAA Electrical Function Schematic, Additional Functions, Driving Lights Actuation

MODEL 172.4
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination

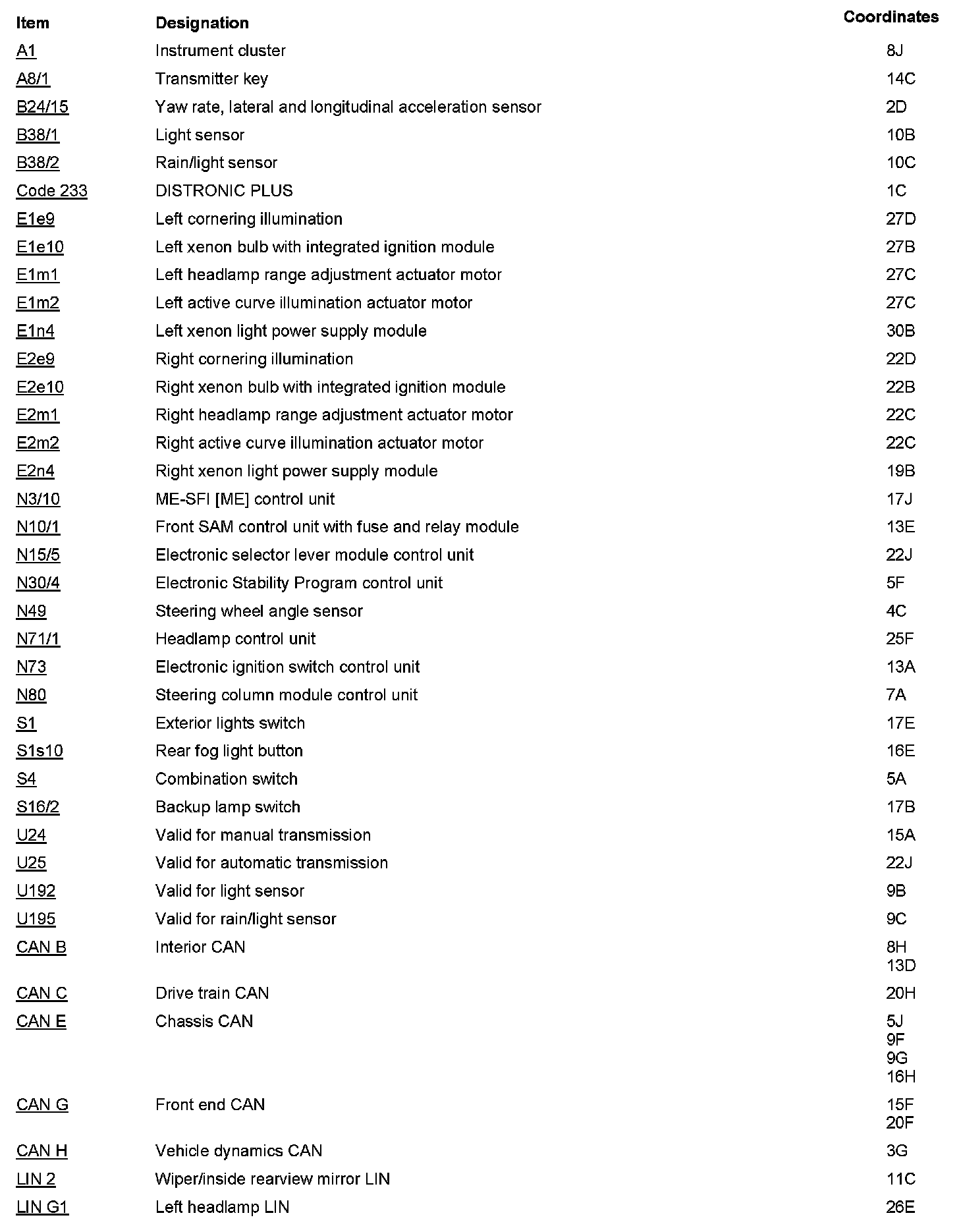

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
