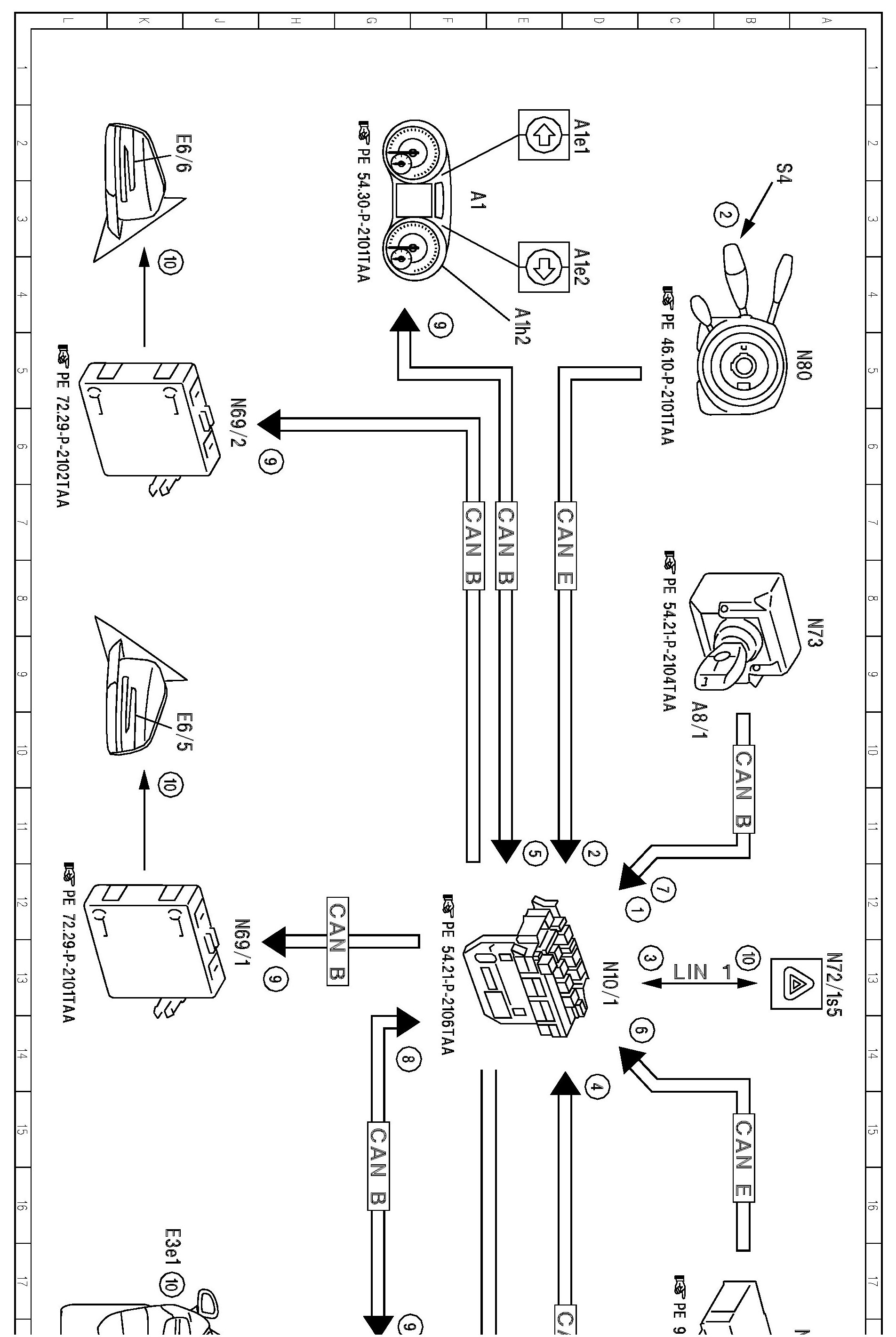

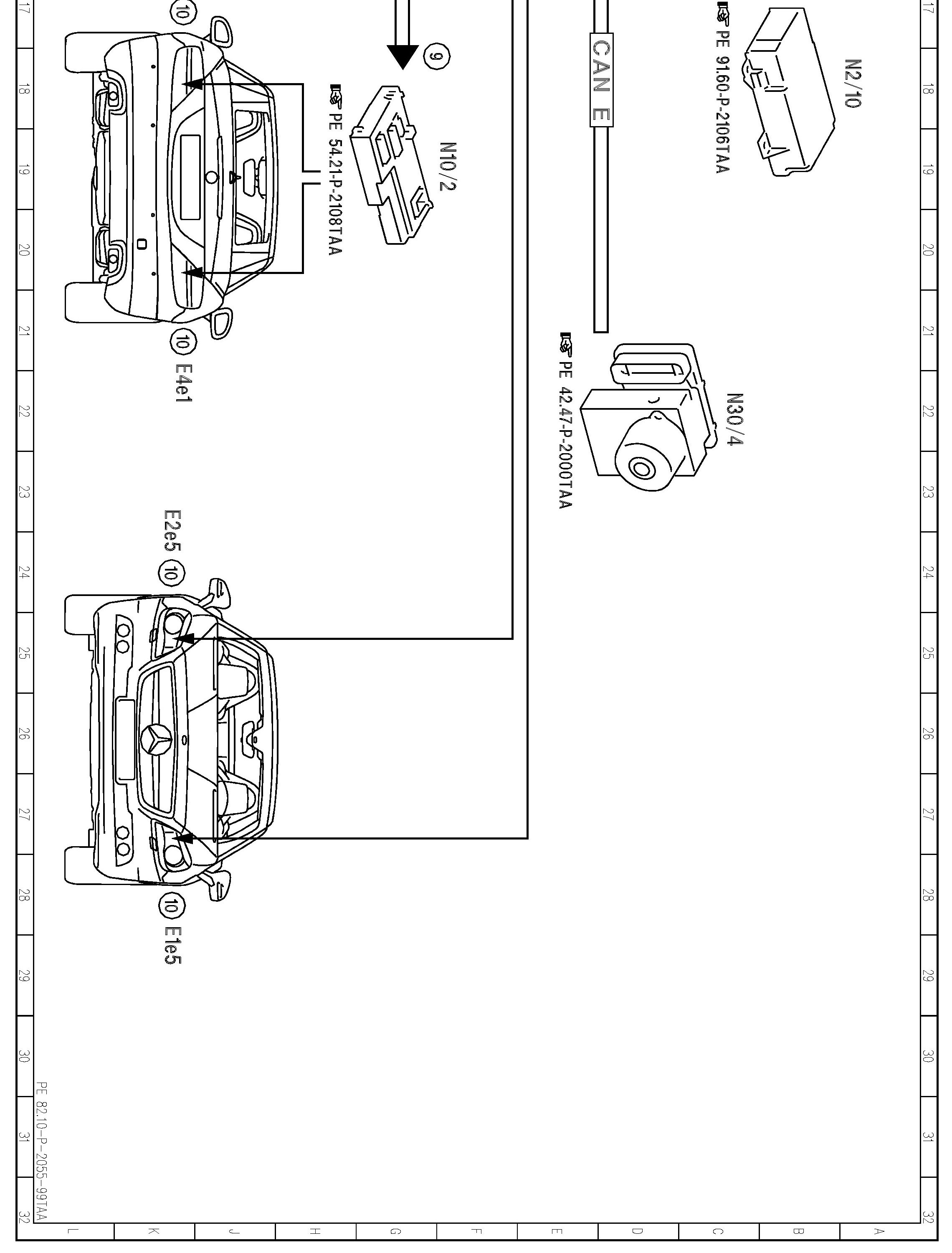

PE82.10-P-2055TAA Electrical Function Schematic, Turn Signal Light Actuation

PE82.10-P-2055TAA Electrical Function Schematic, Turn Signal Light Actuation

MODEL 172.4

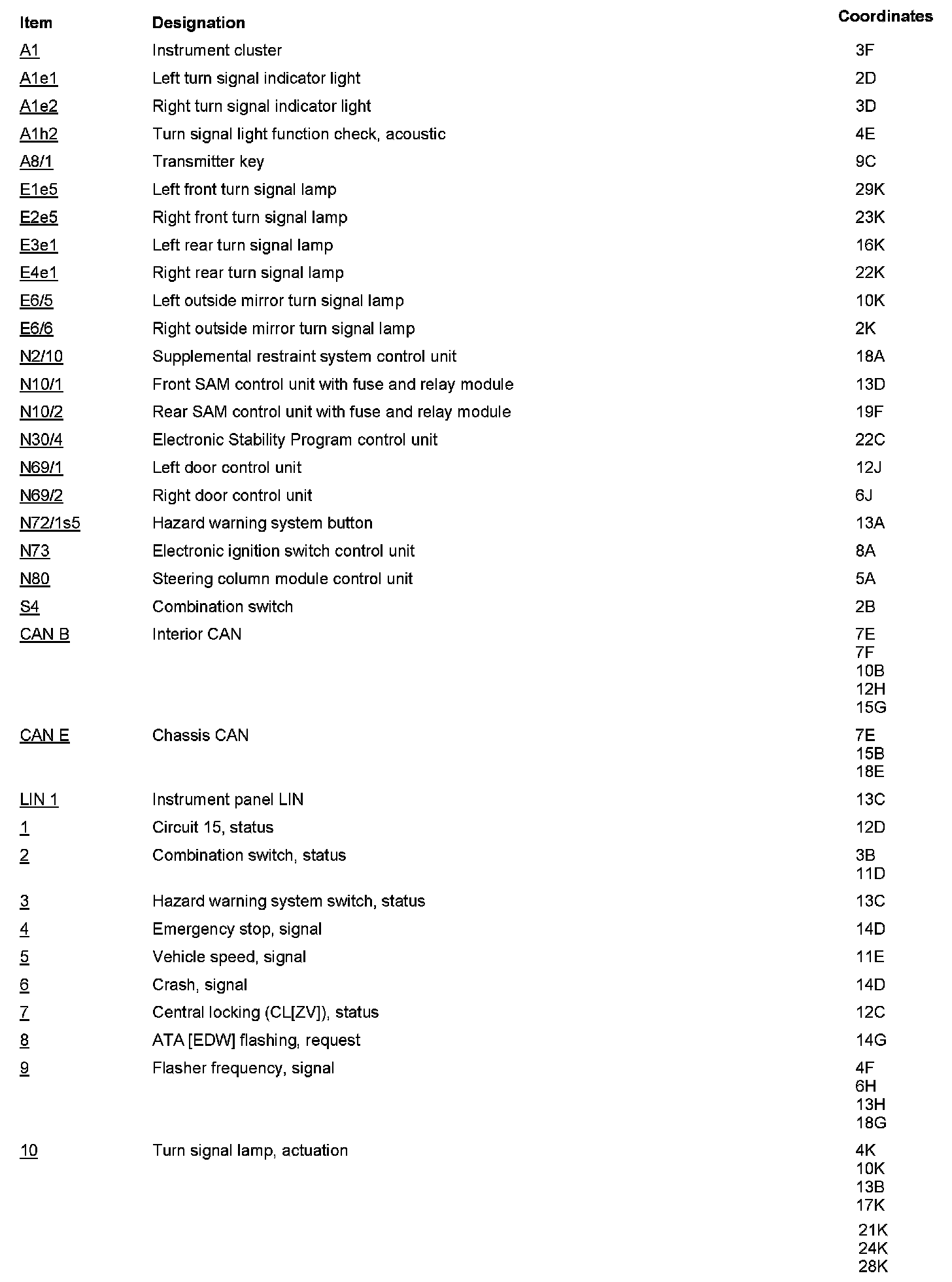

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
