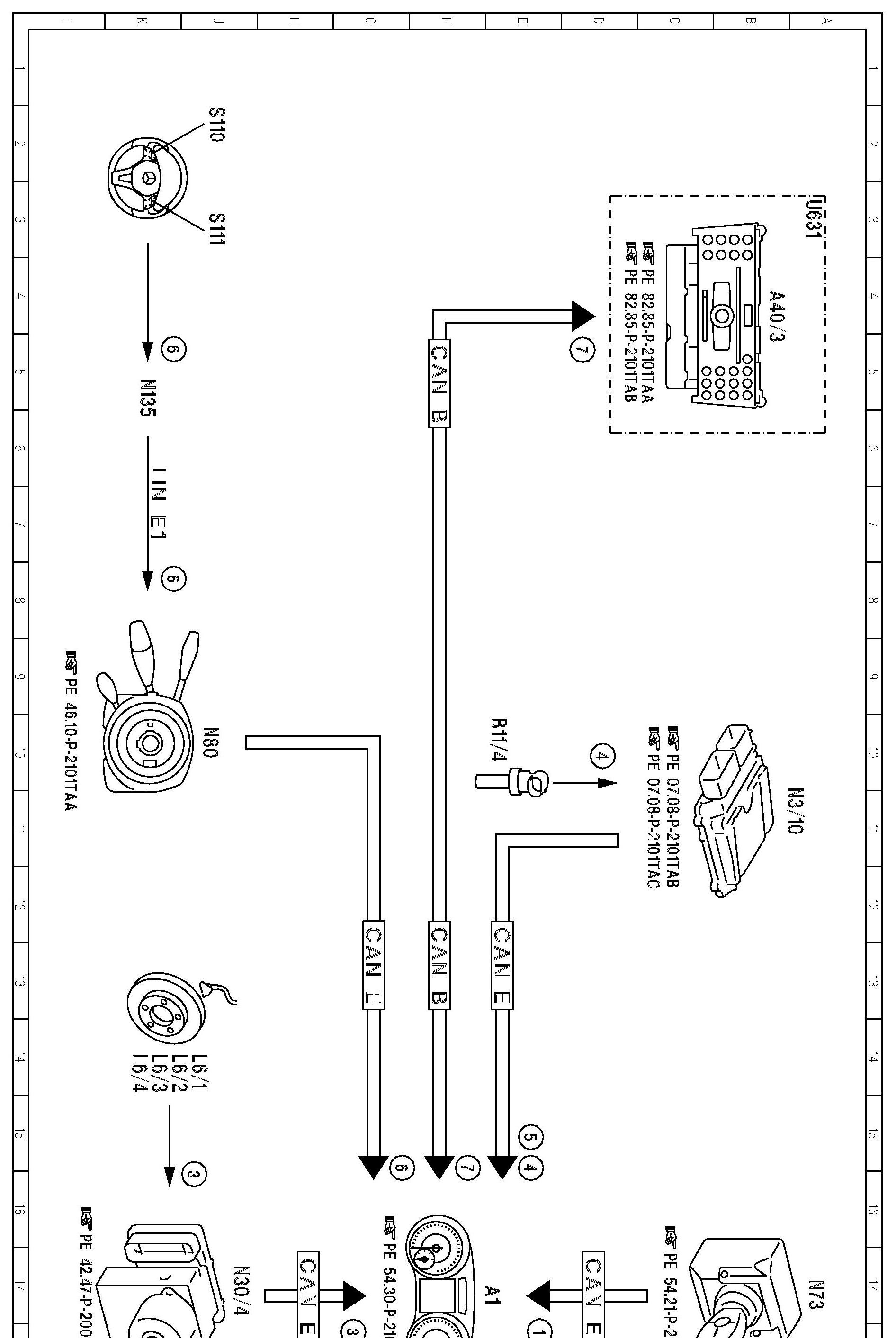

PE54.30-P-2056TAA Electrical Function Schematic of Instrument Cluster, Comfort Display

PE54.30-P-2056TAA Electrical Function Schematic of Instrument Cluster, Comfort Display

MODEL 172.4

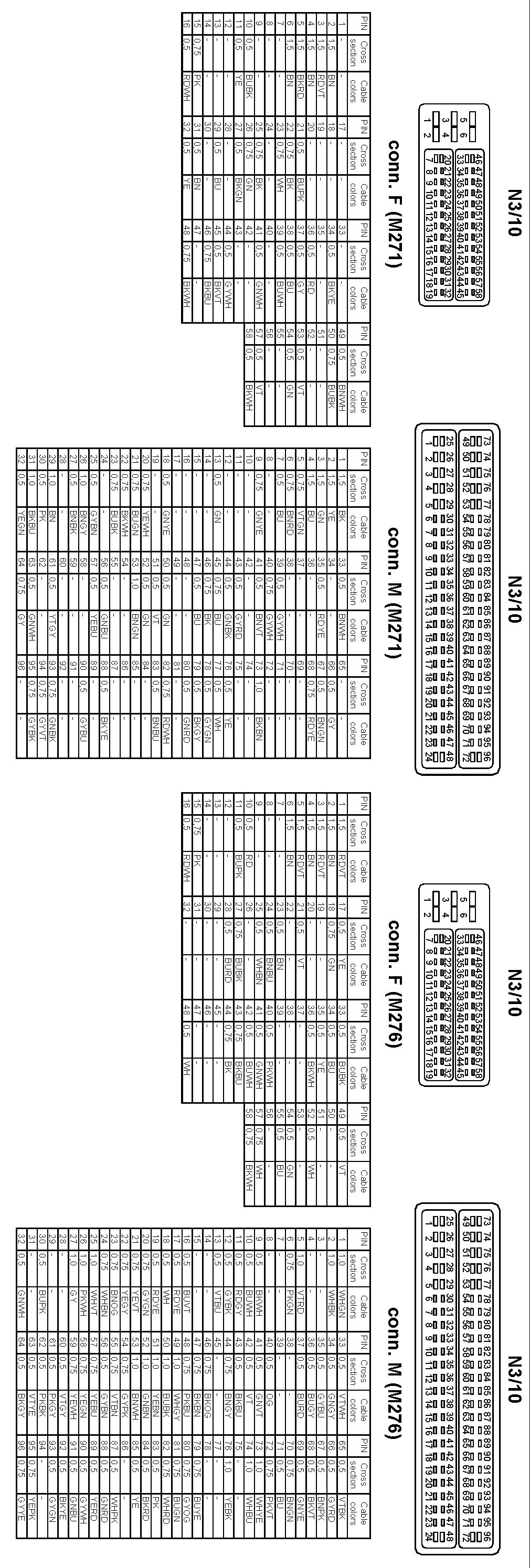

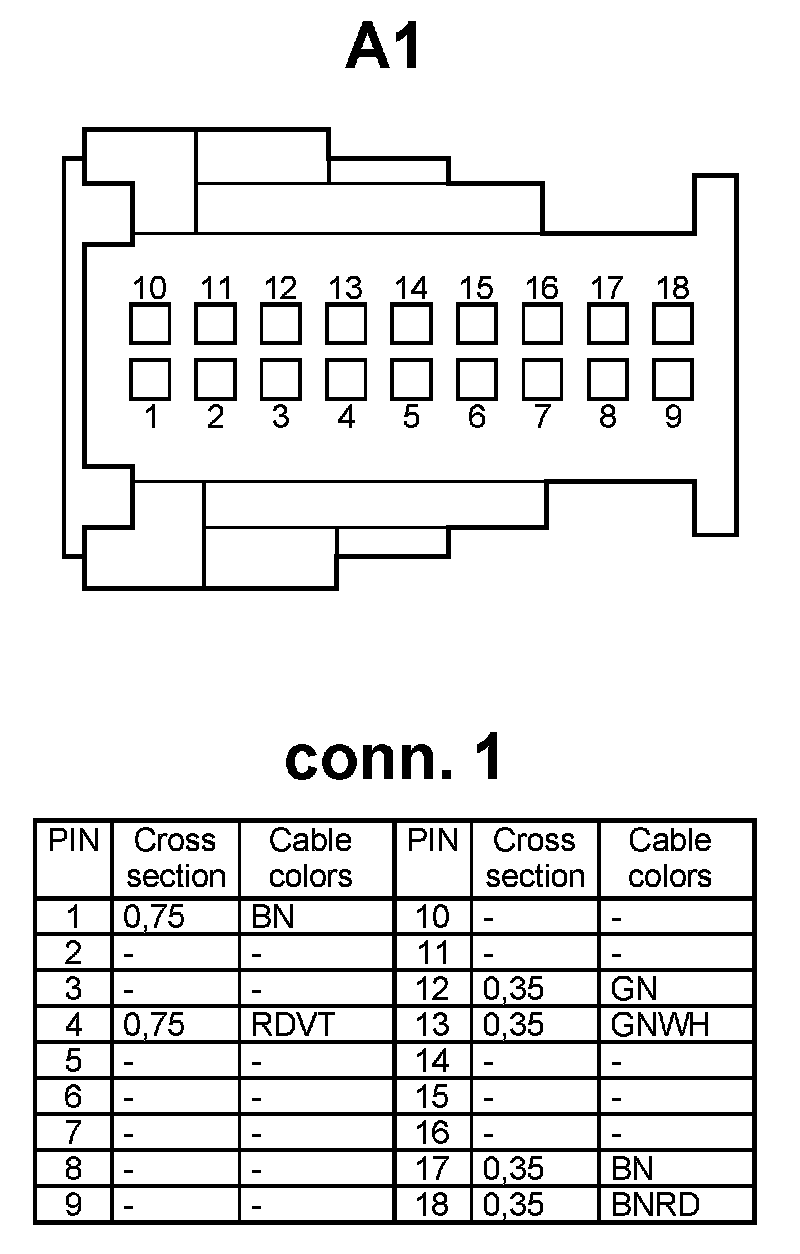

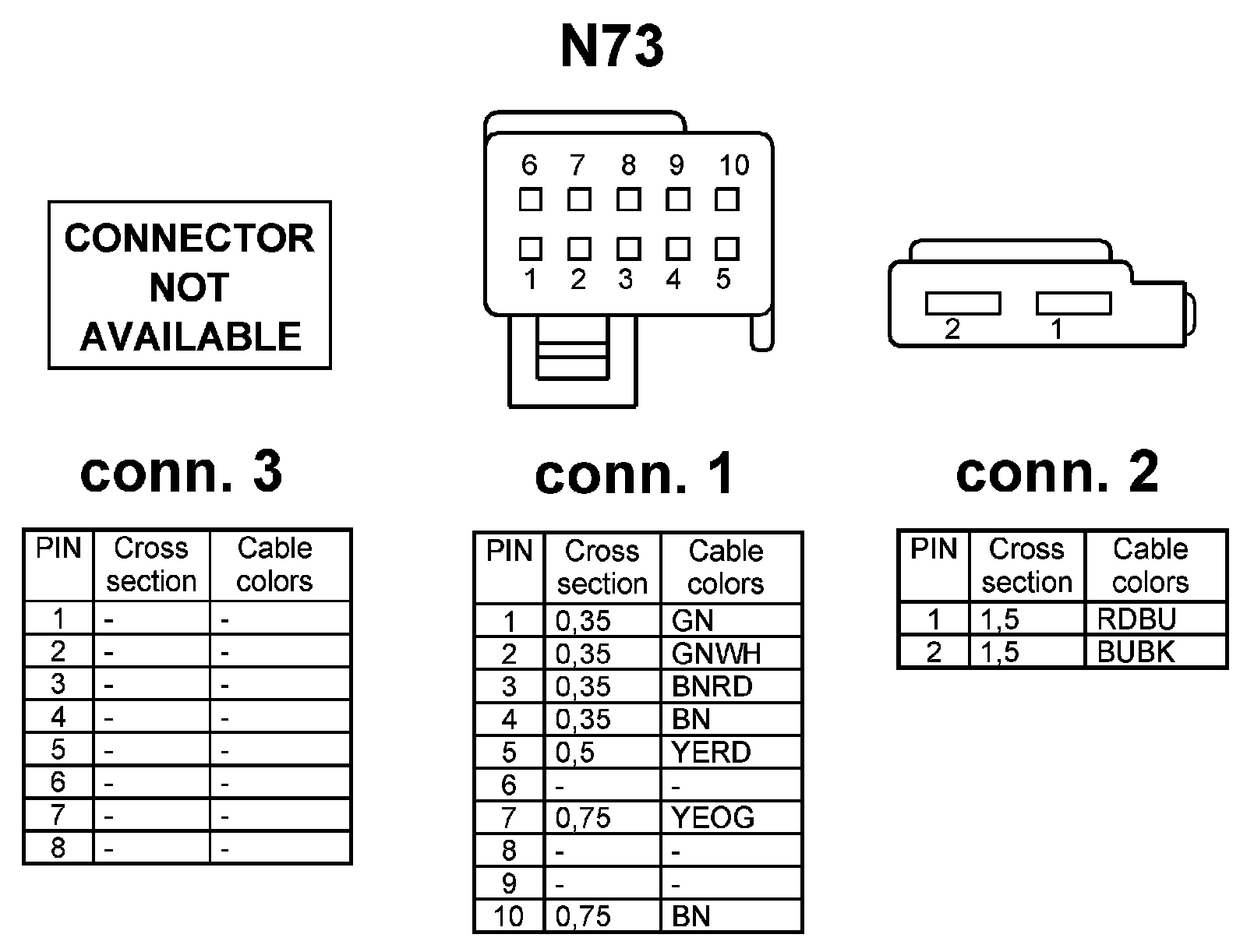

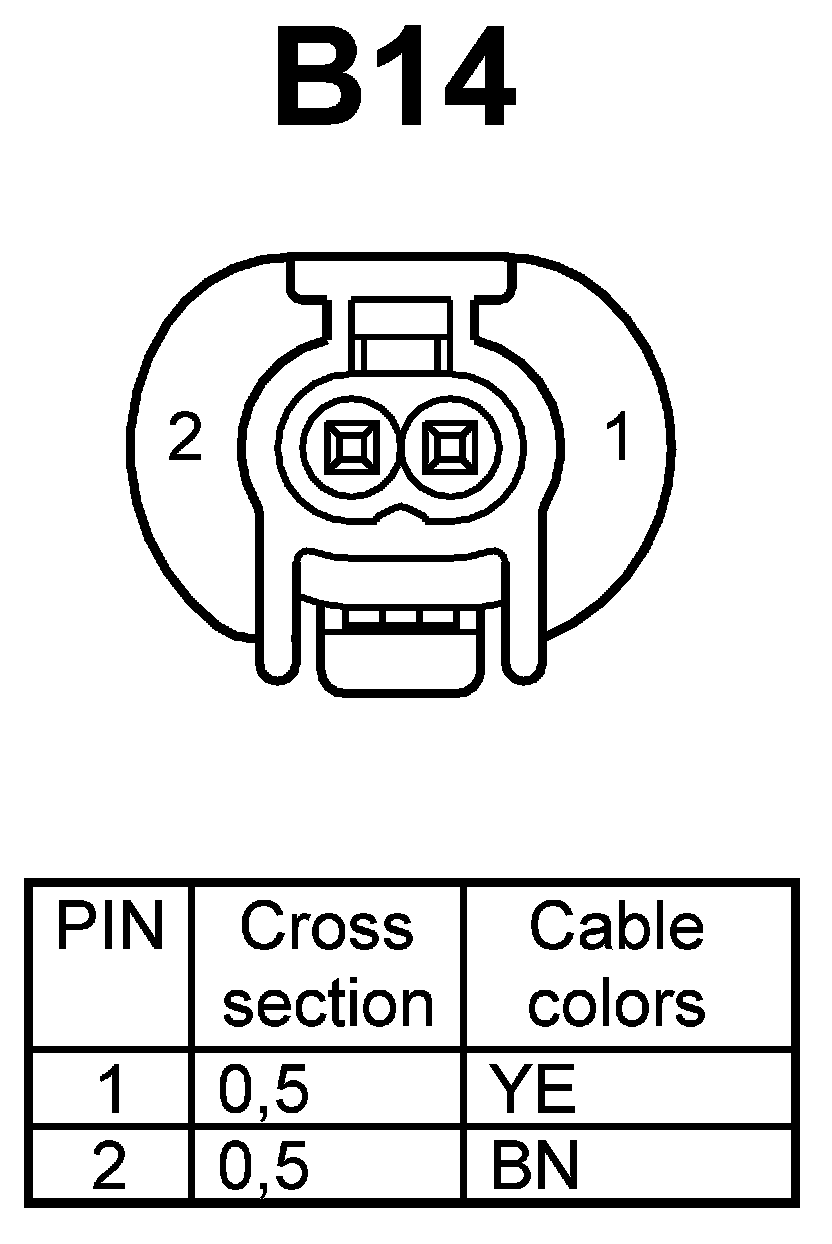

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
