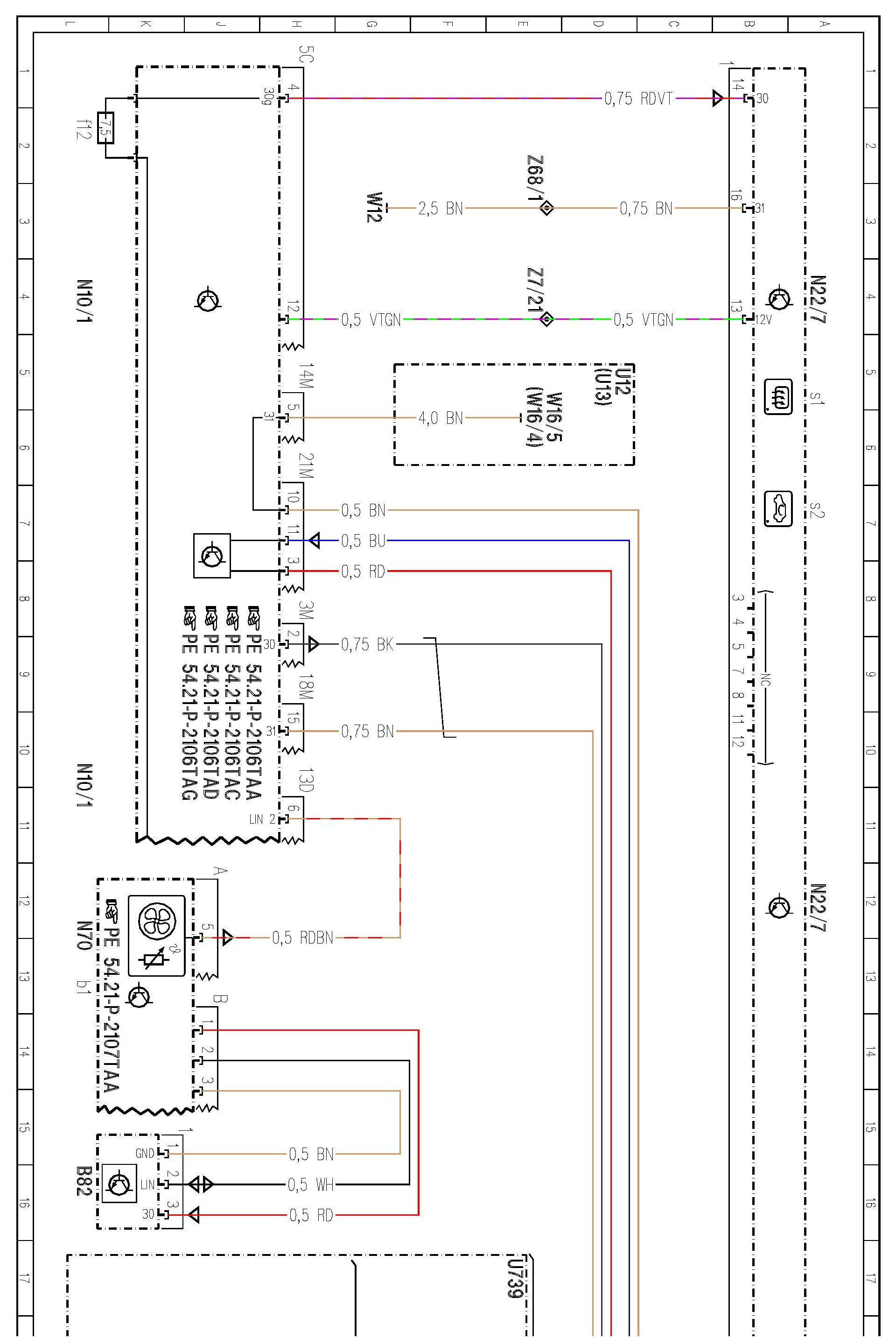

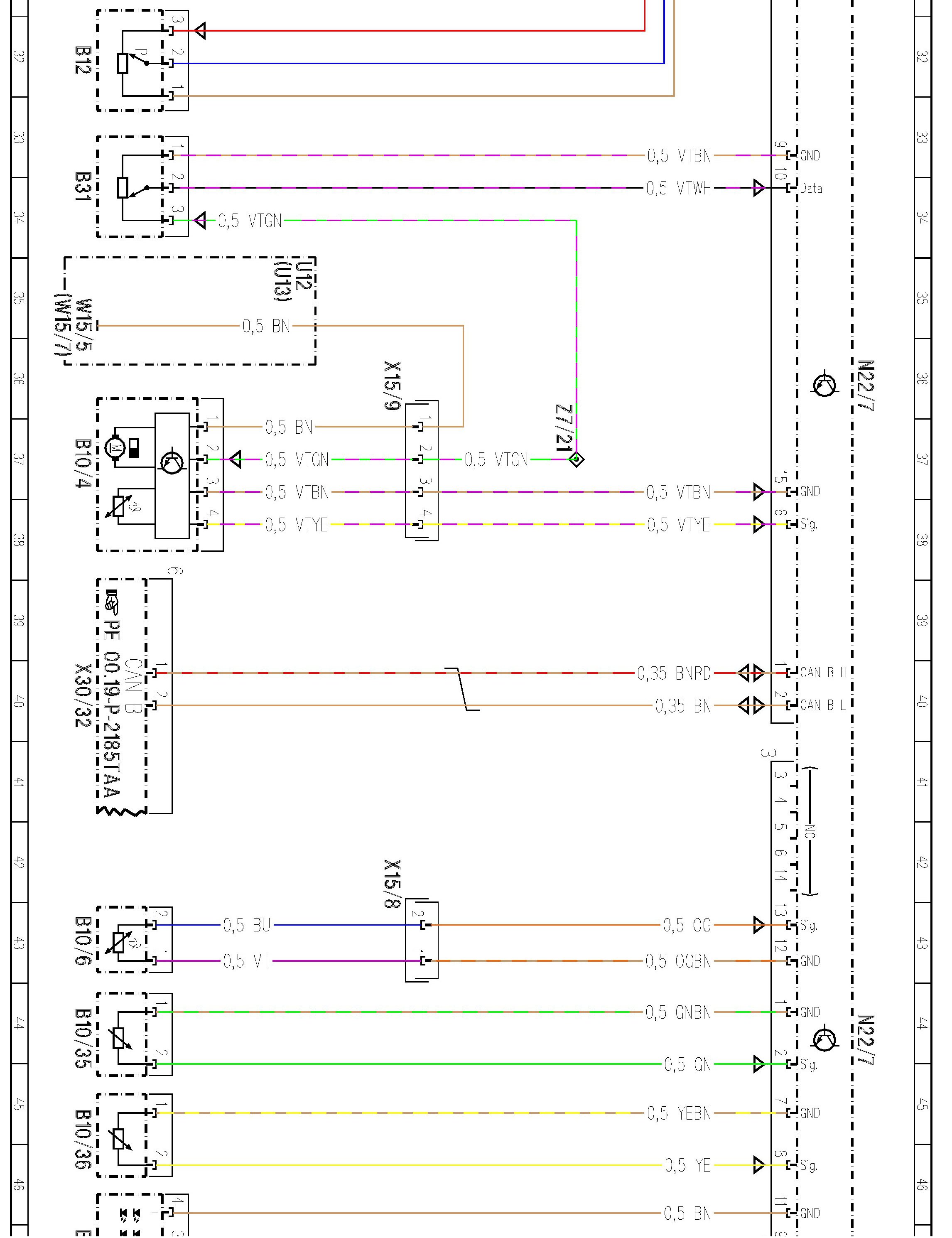

Wiring Diagrams

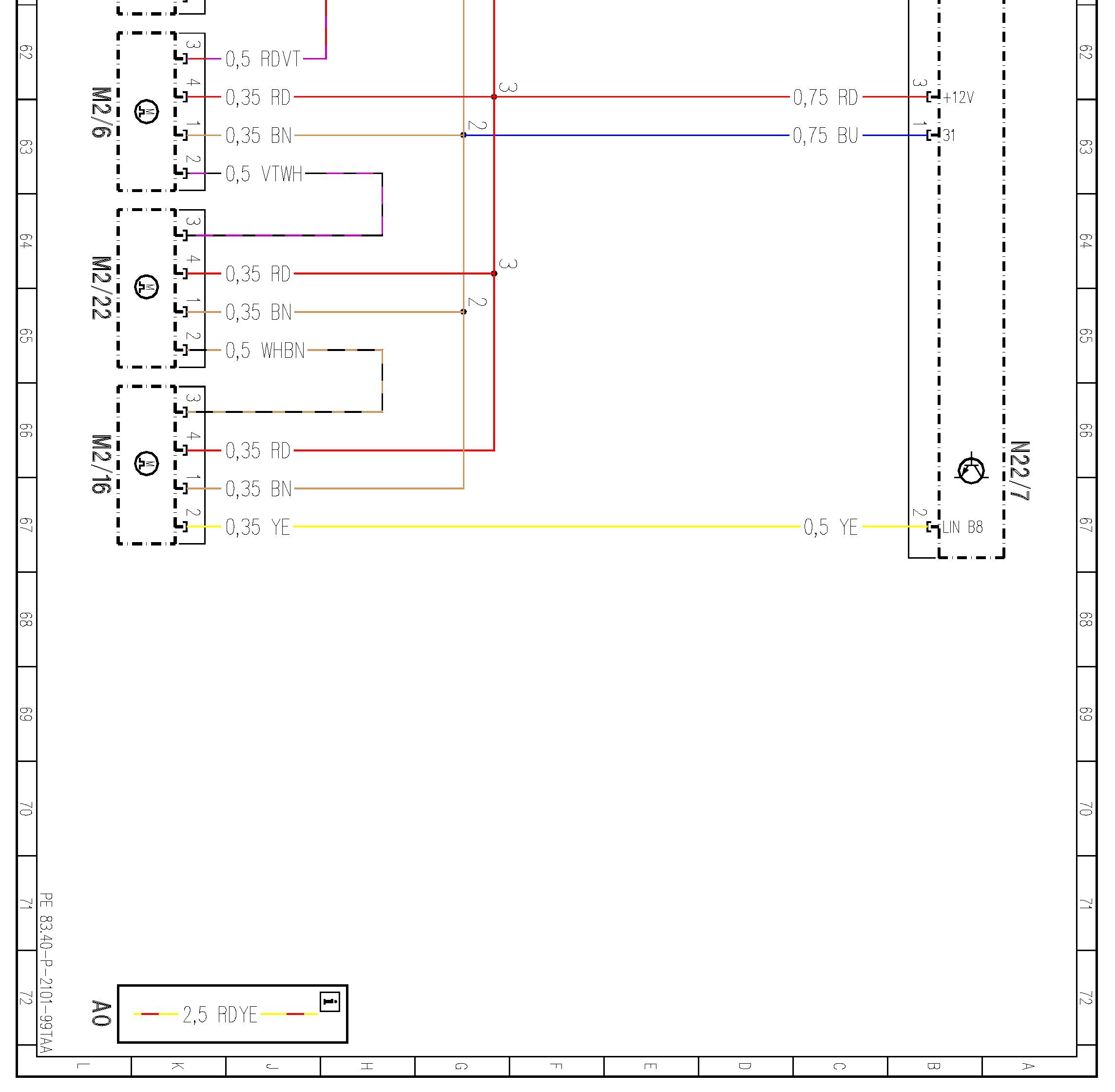

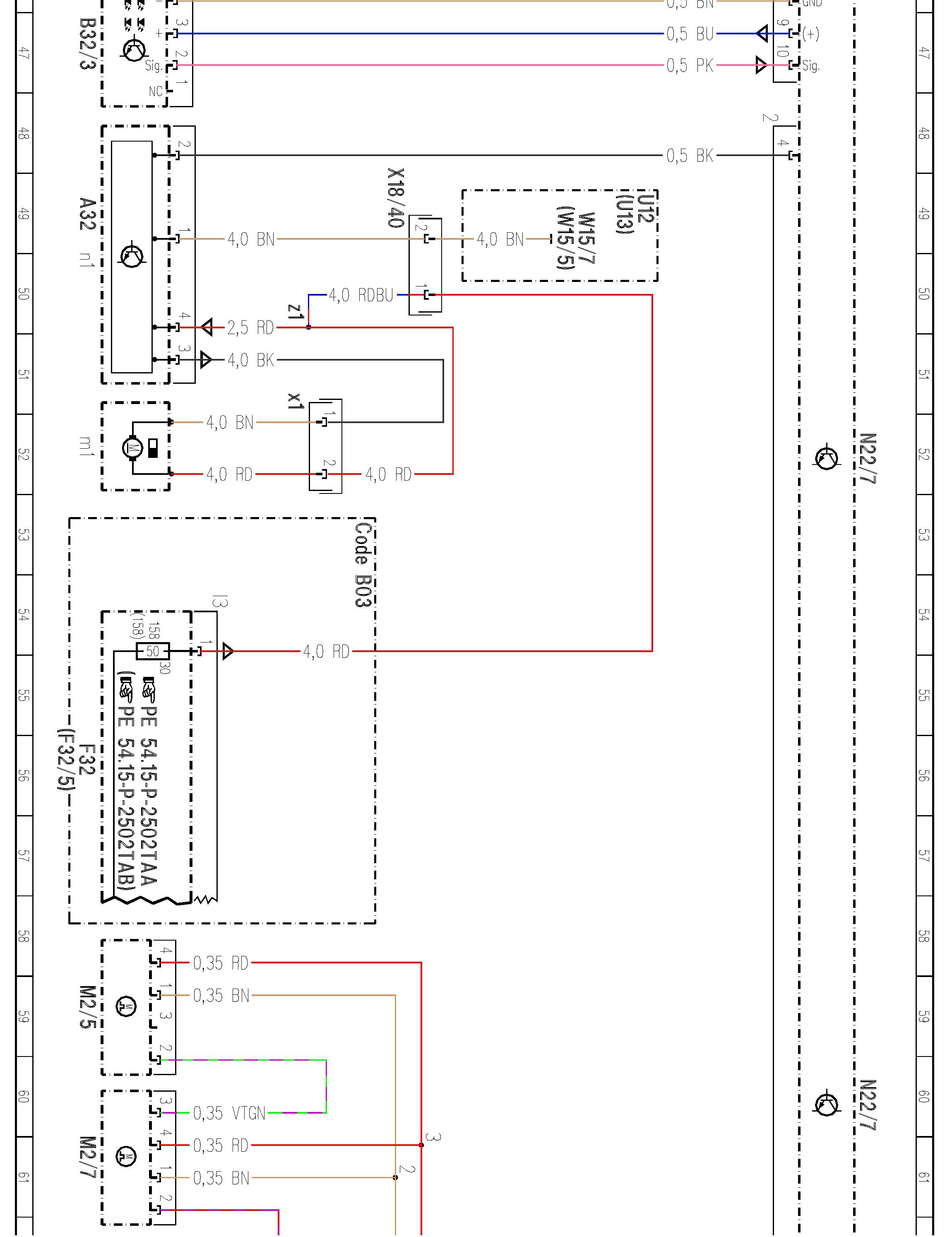

PE83.40-P-2101TAA Automatic Air Conditioning (AAC) Control Unit

MODEL 172.4






































































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
