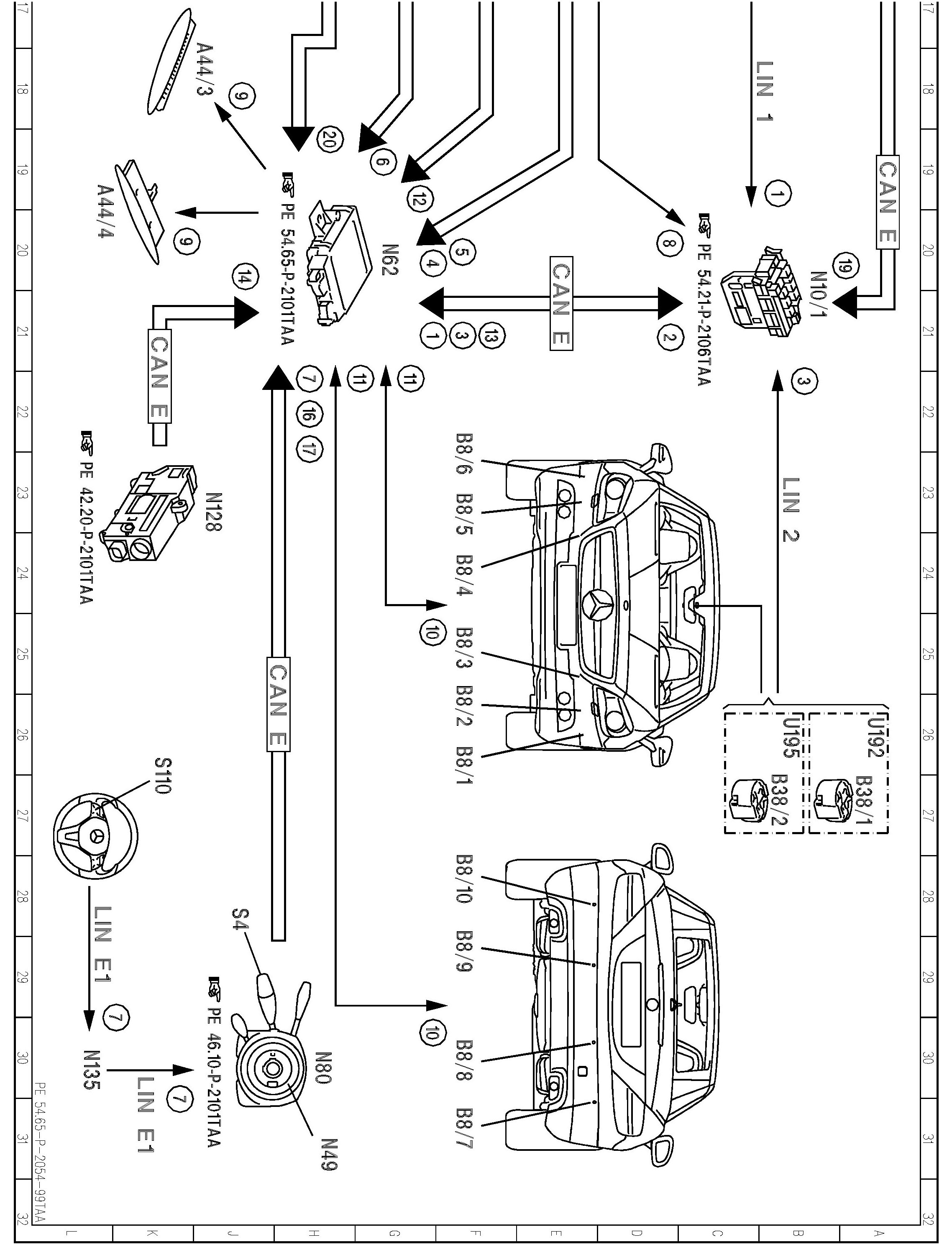

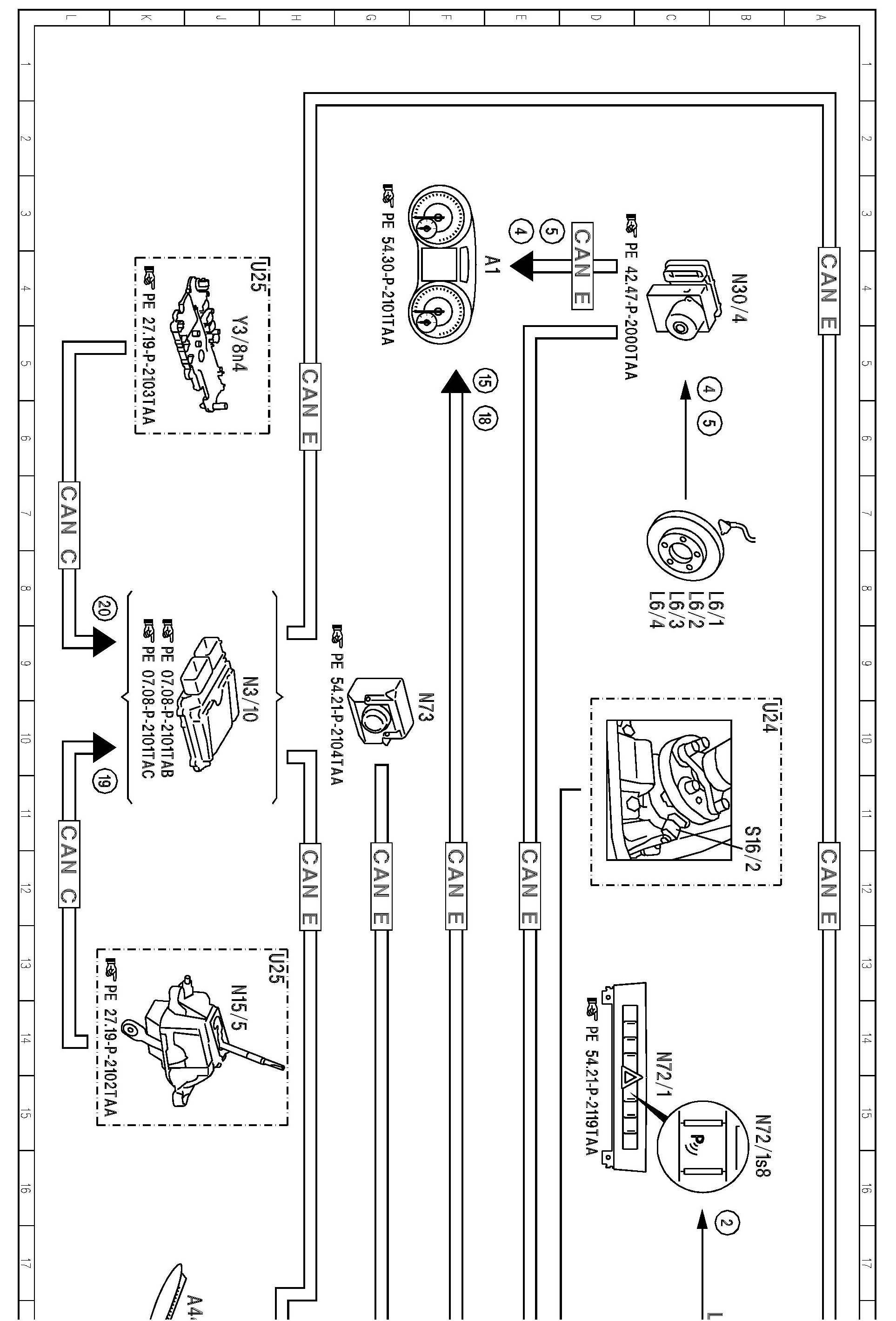

PE54.65-P-2054TAA Electrical Function Schematic of Parking System

PE54.65-P-2054TAA Electrical Function Schematic of Parking System

MODEL 172.4
- with CODE (230) Advanced Parking Guidance

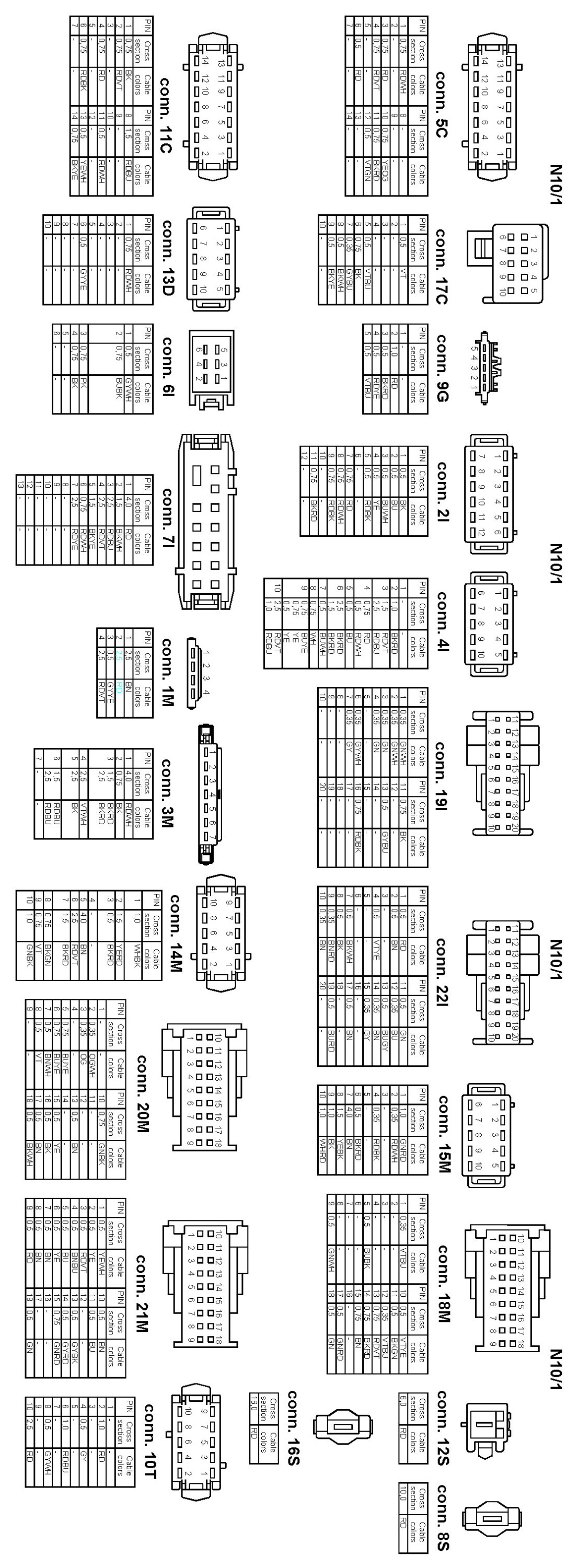

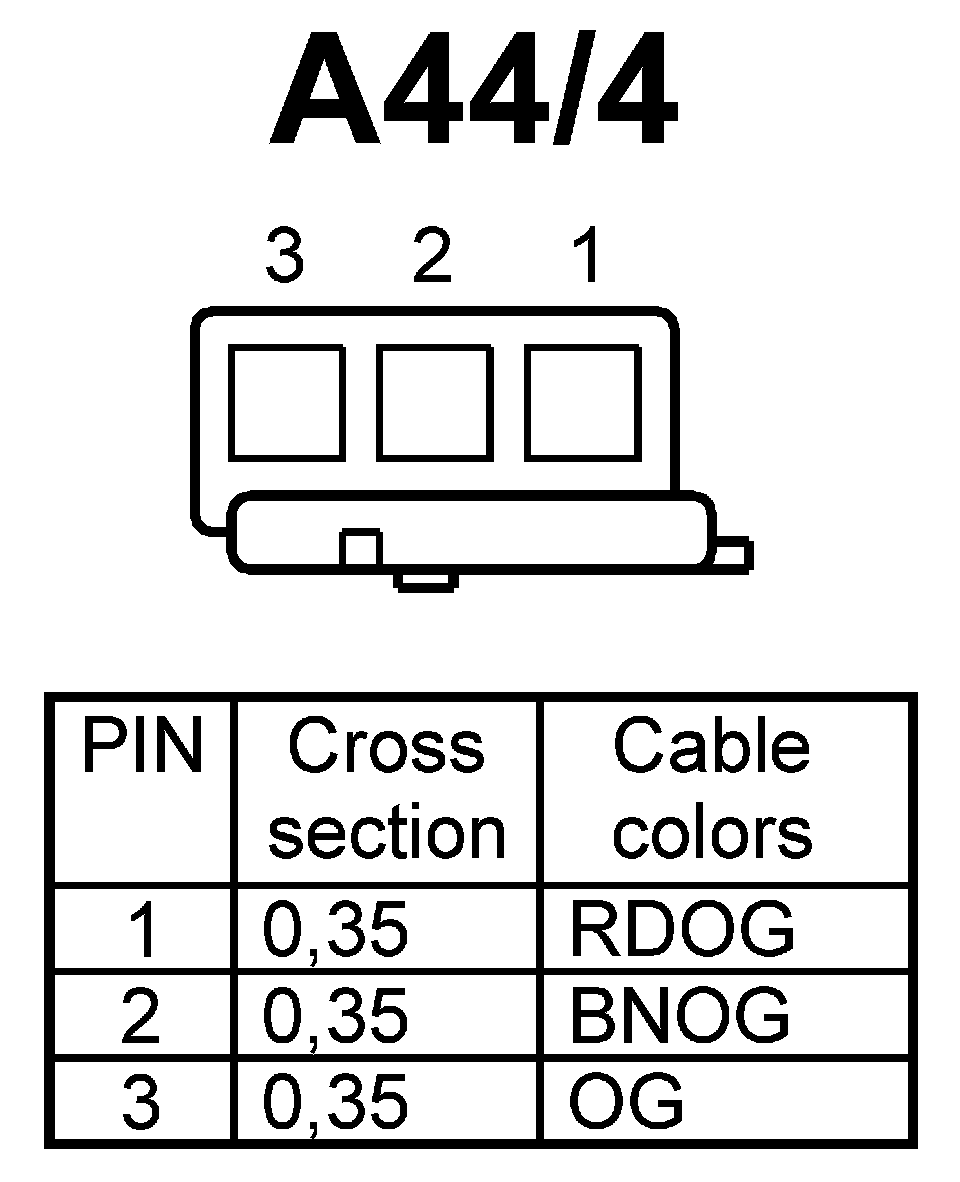

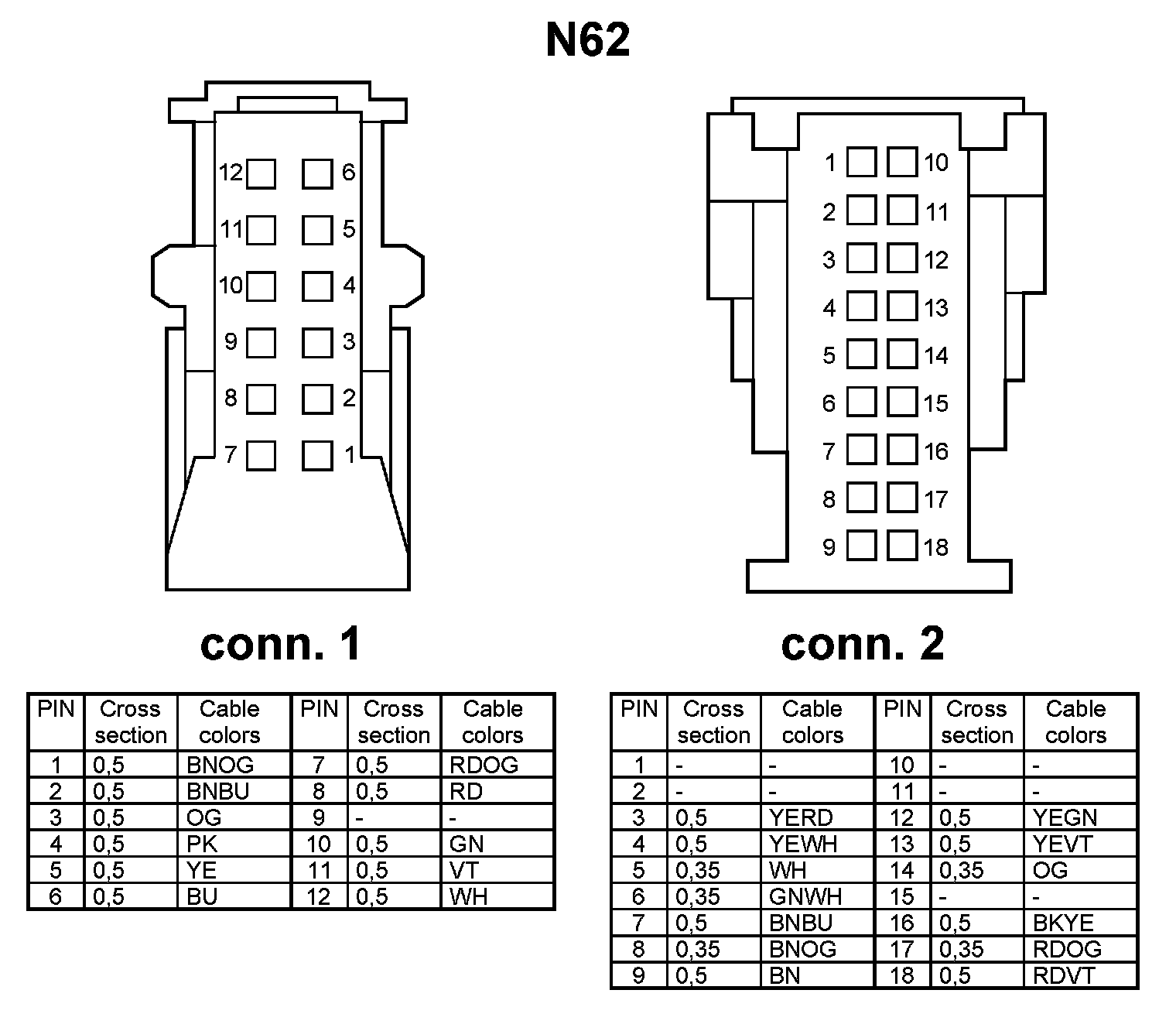

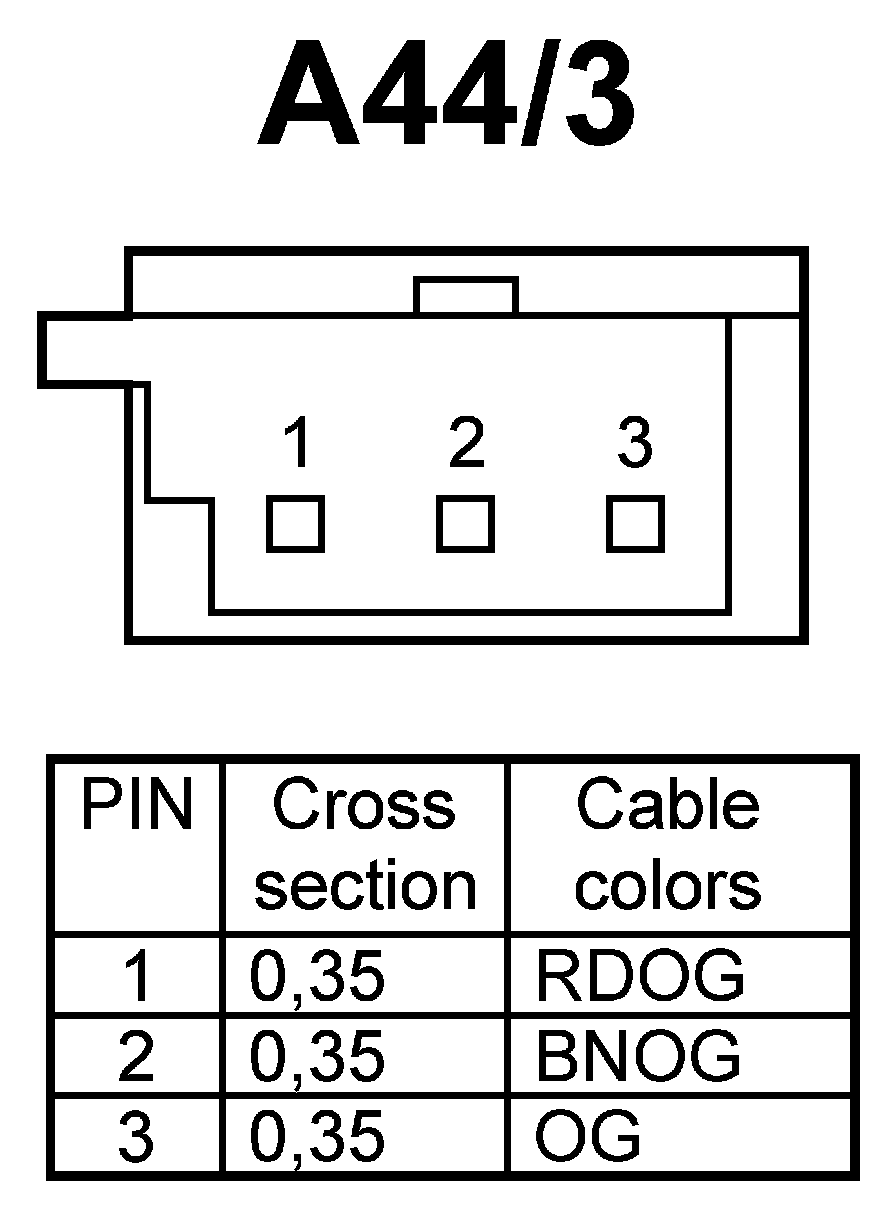

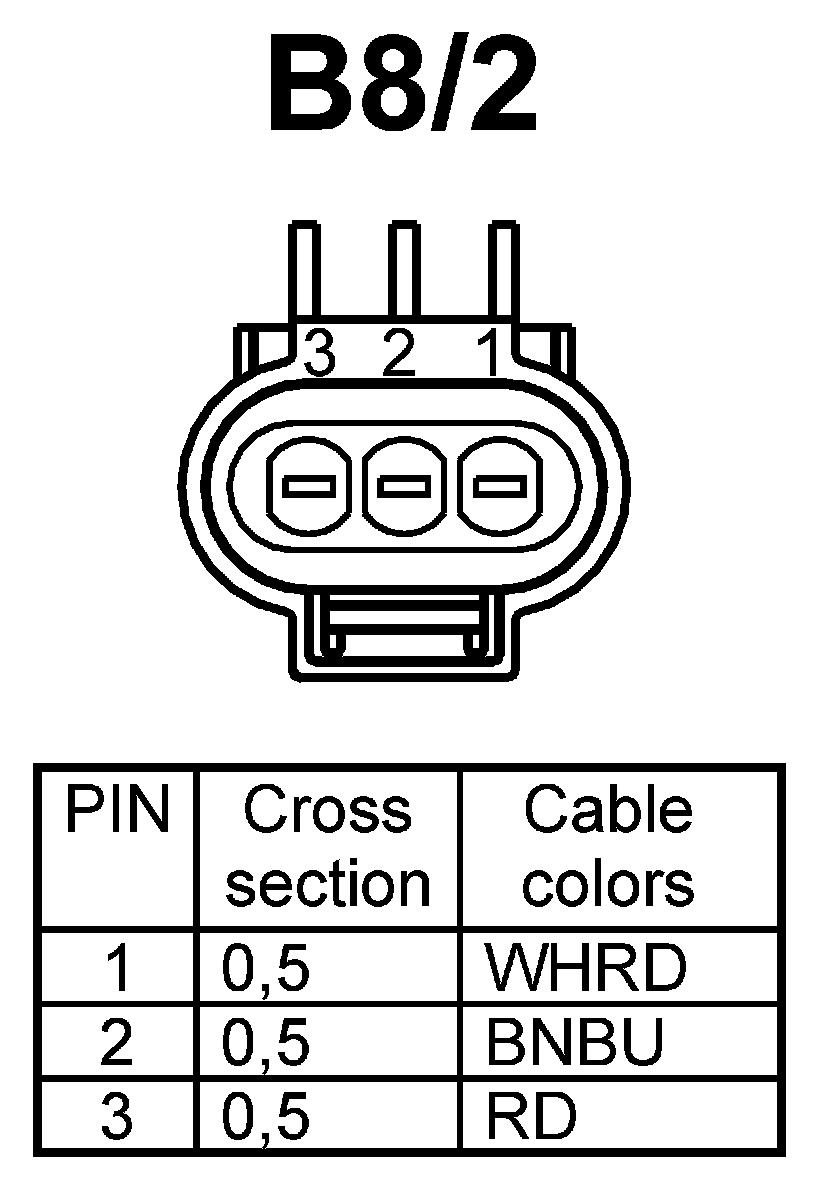

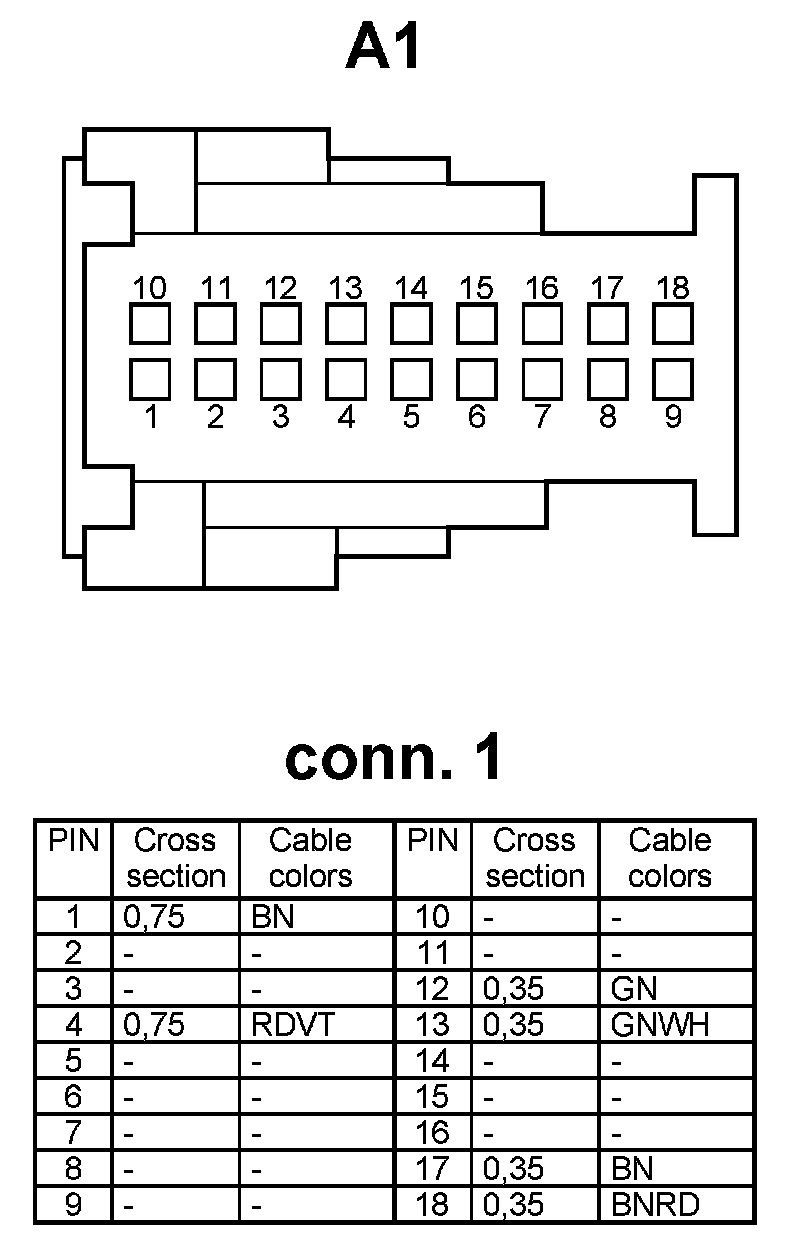

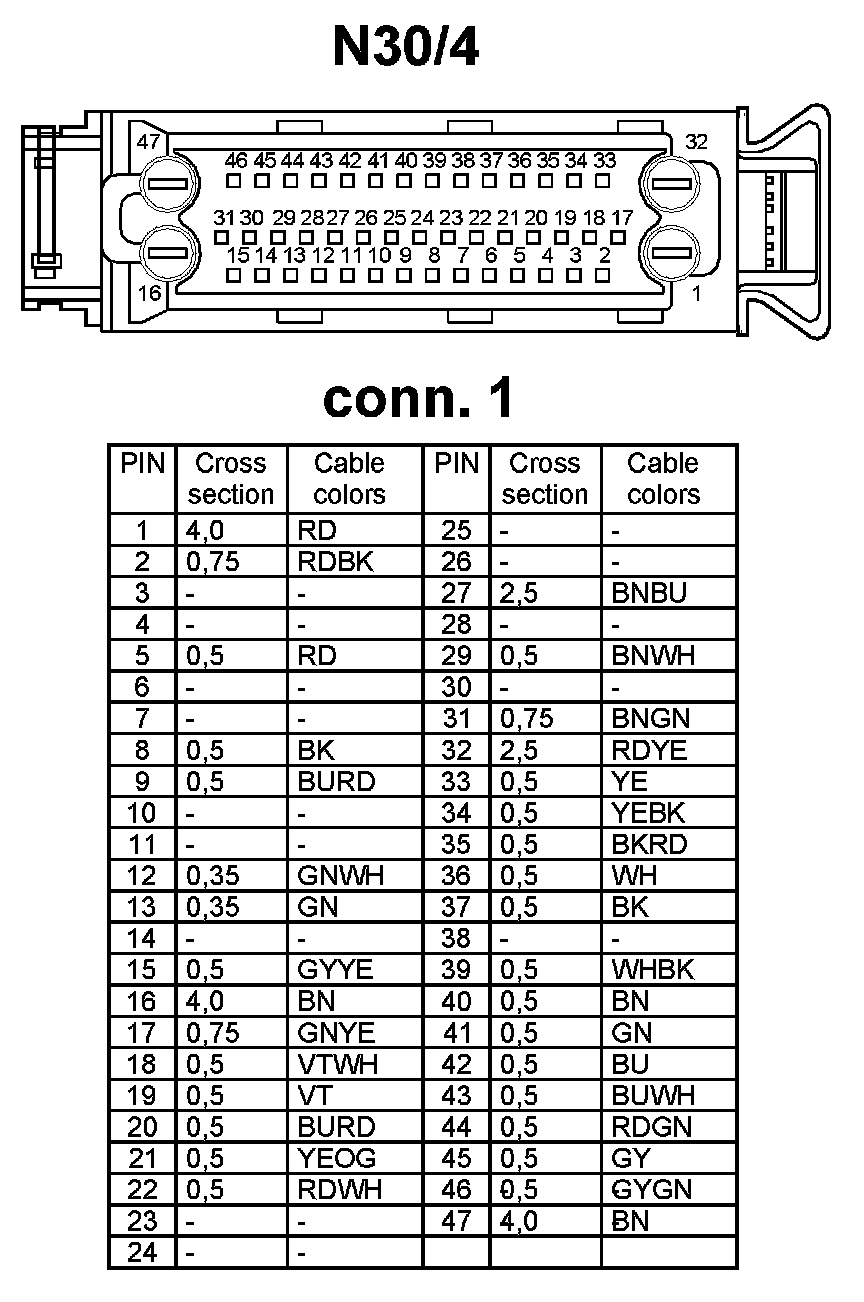

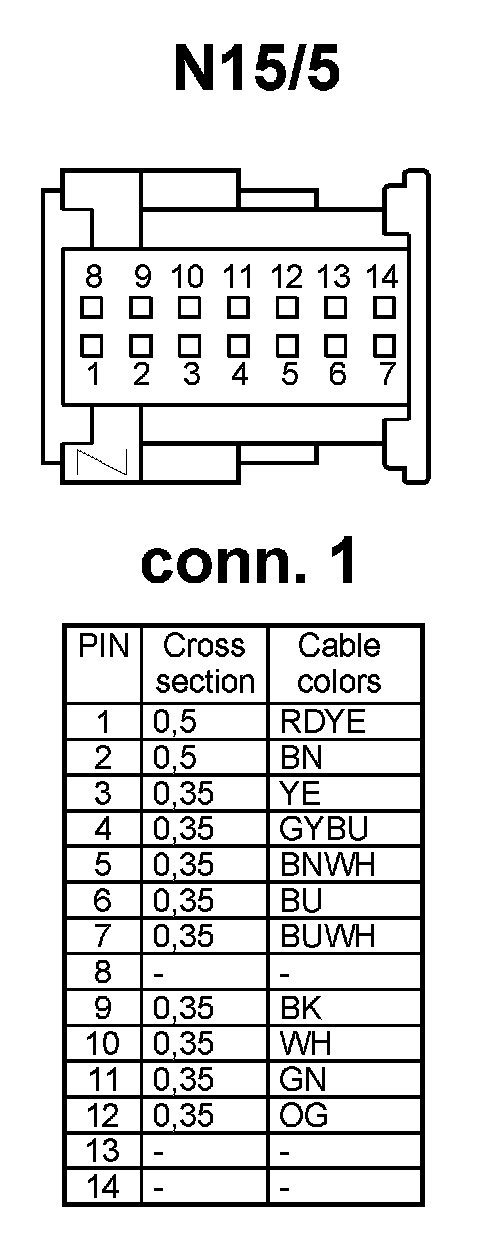

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
