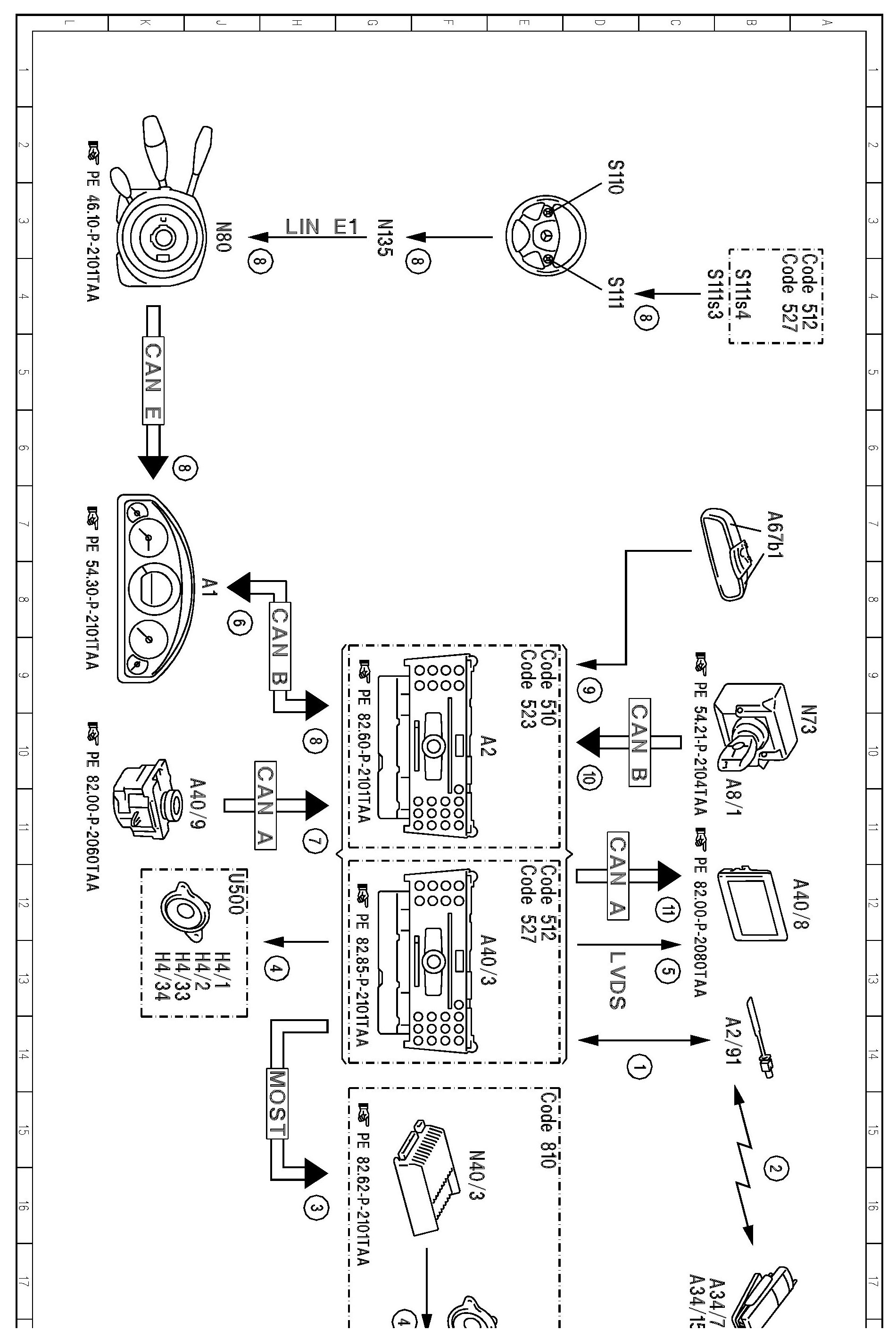

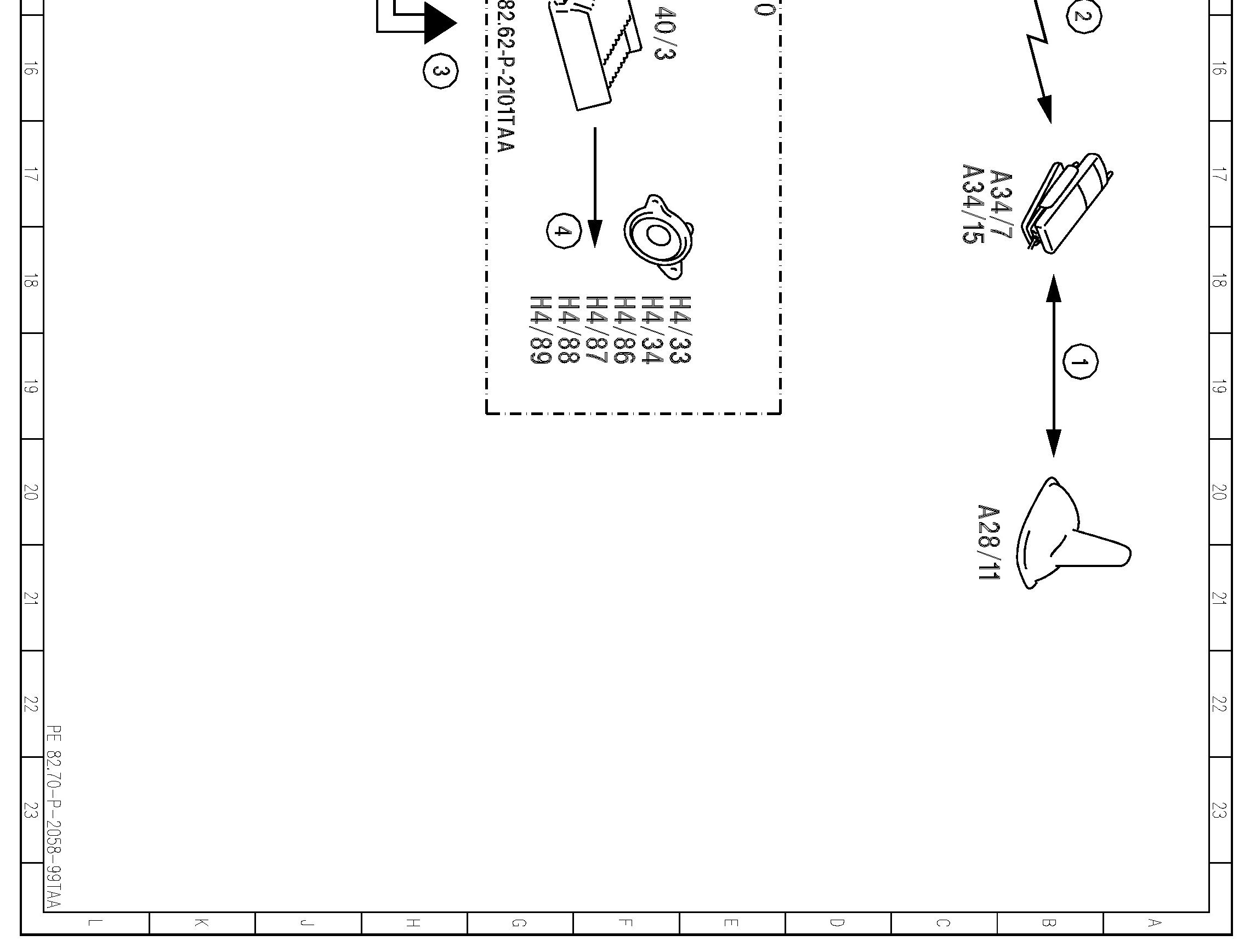

PE82.70-P-2058TAA Electrical Function Diagram For Mobile Phone Accepting Call and Rejecting Call

PE82.70-P-2058TAA Electrical Function Diagram For Mobile Phone Accepting Call and Rejecting Call

MODEL 172.4
- with CODE (386) Comfort telephony


















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
