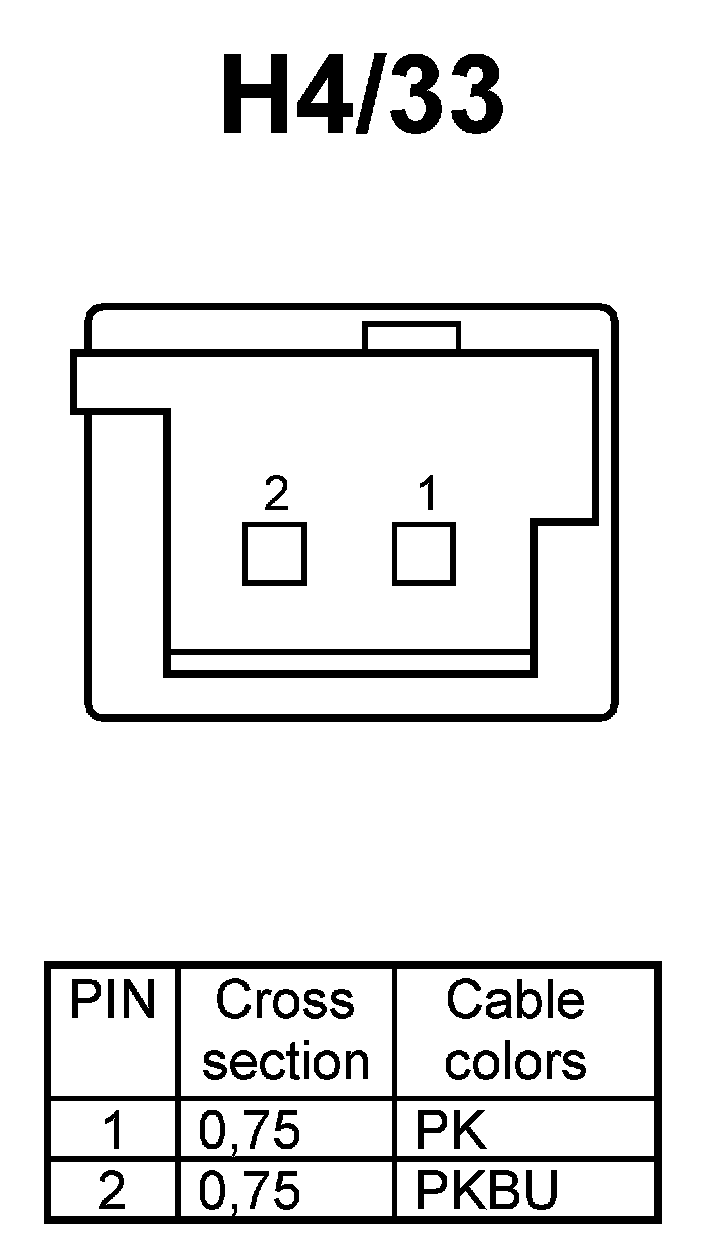

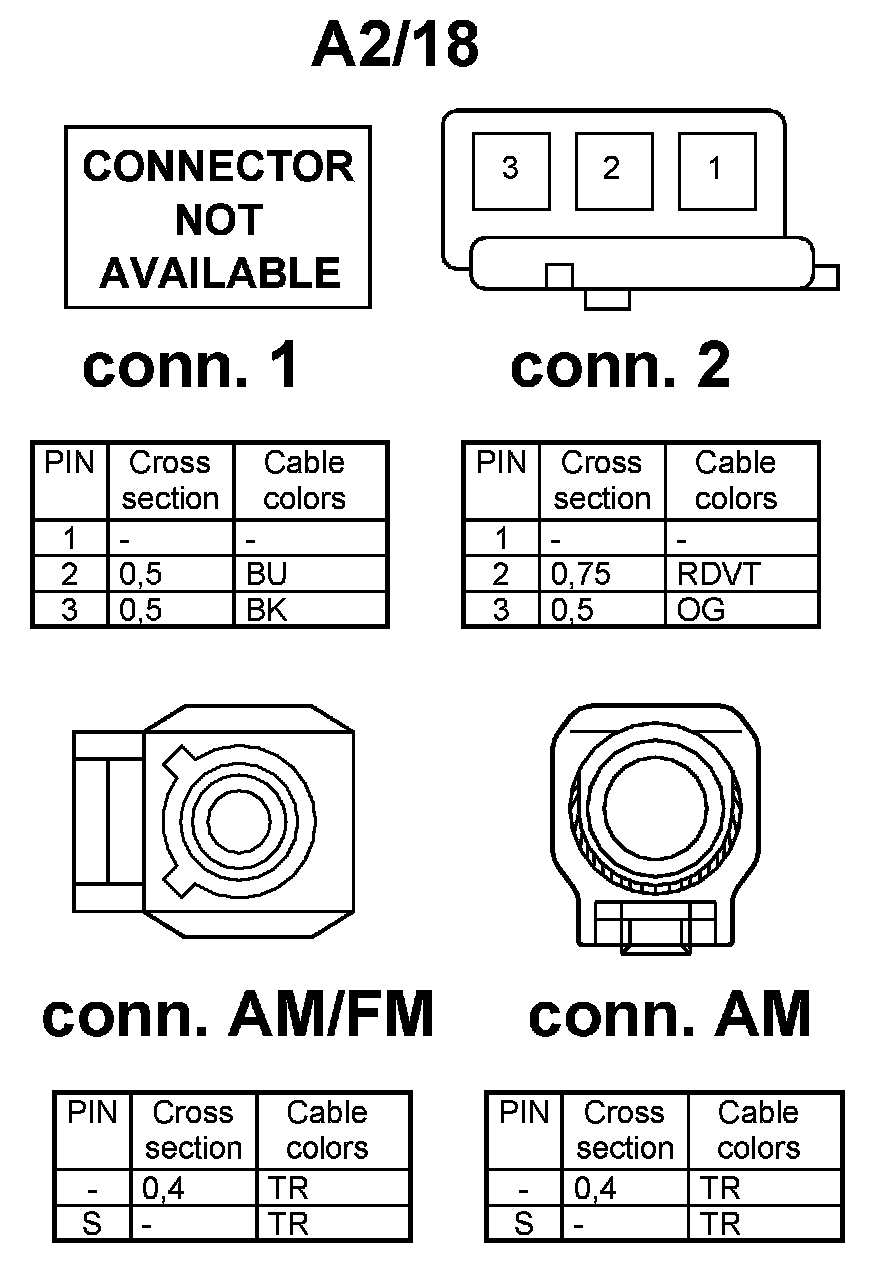

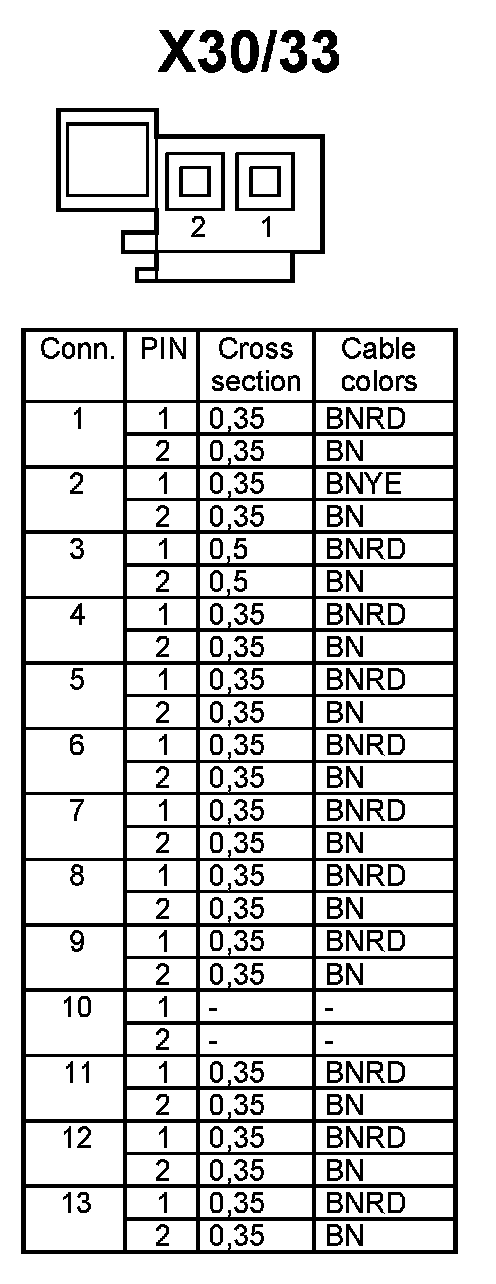

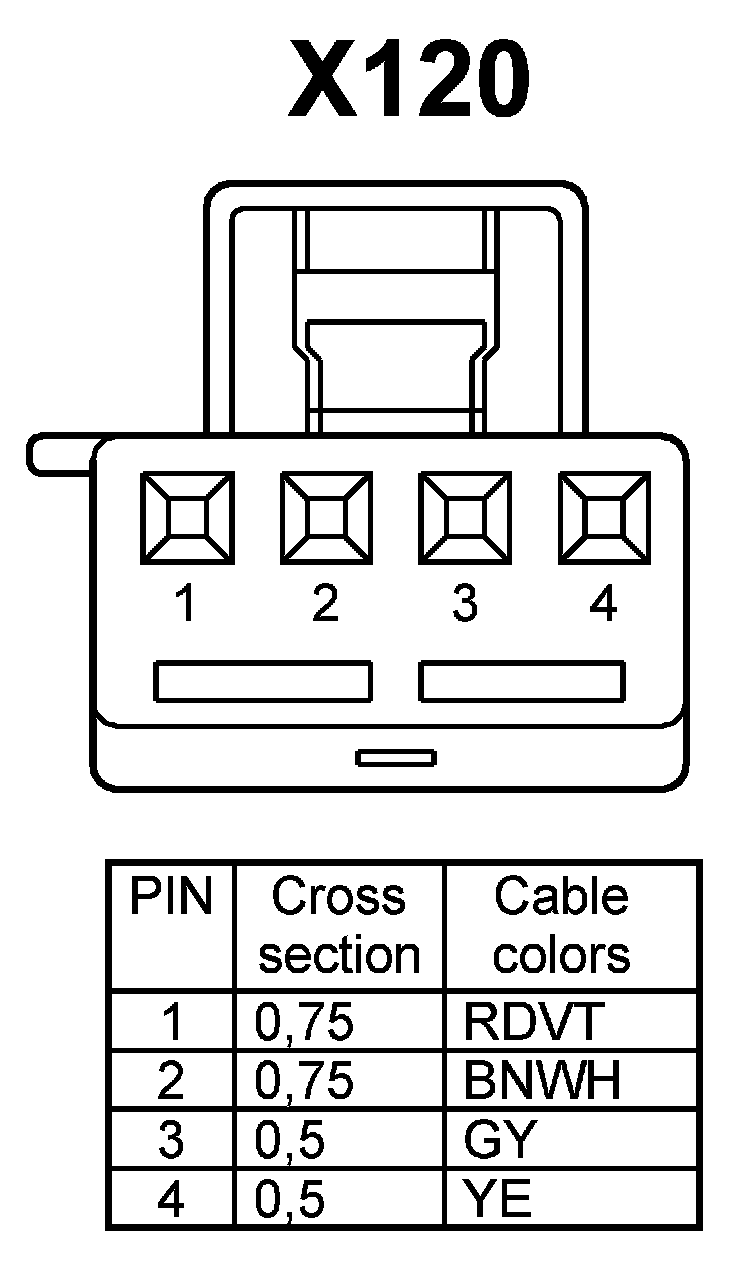

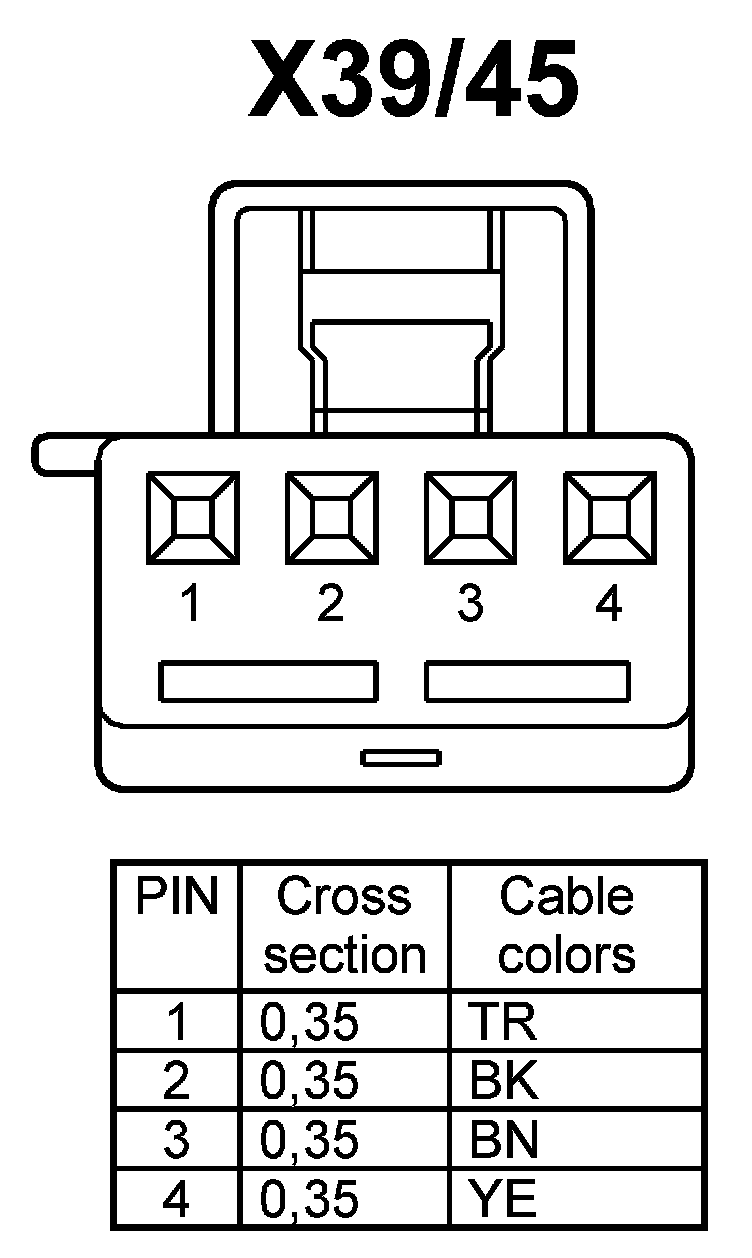

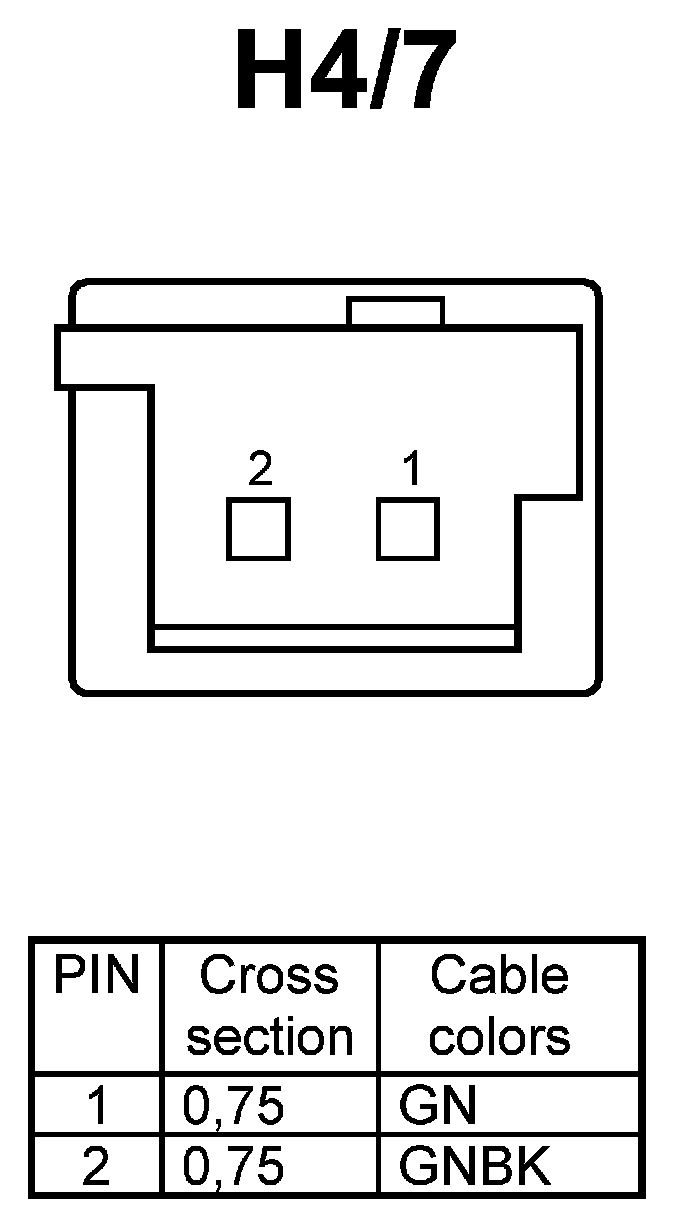

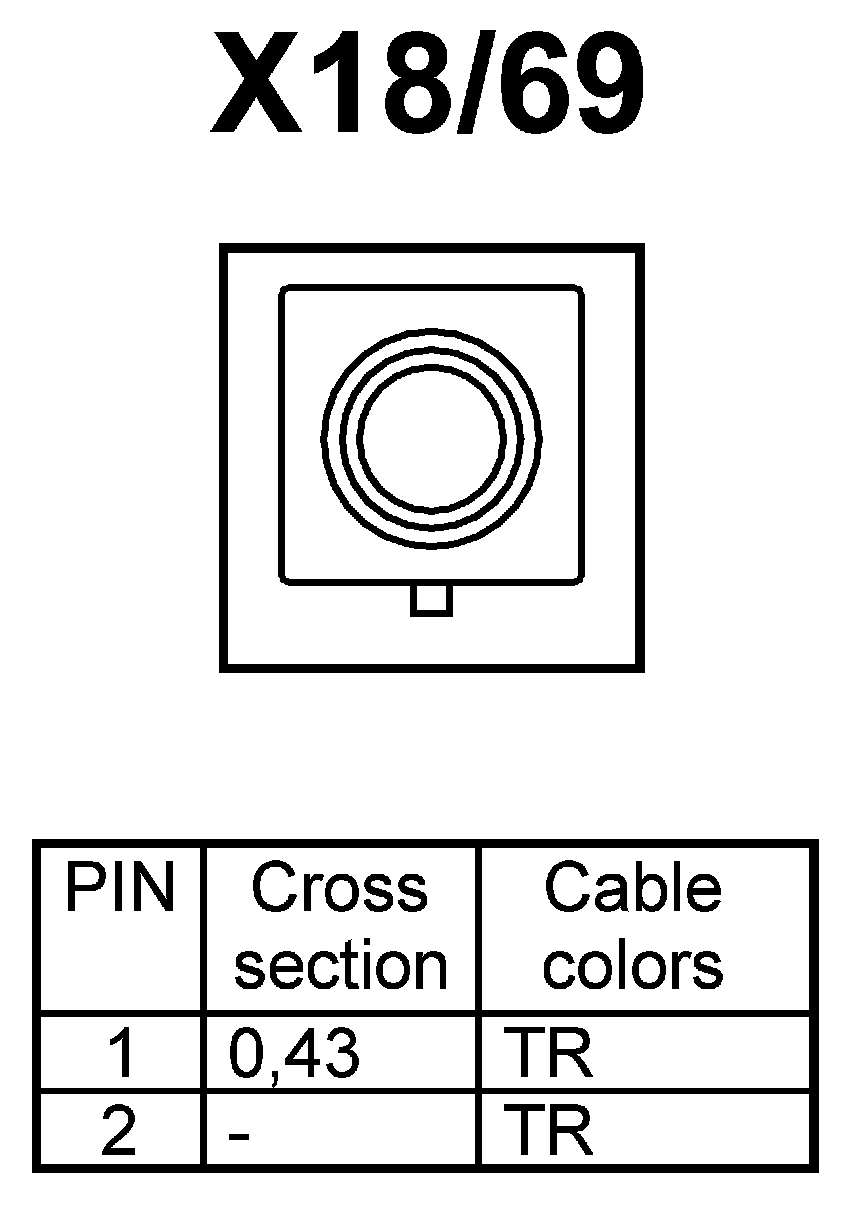

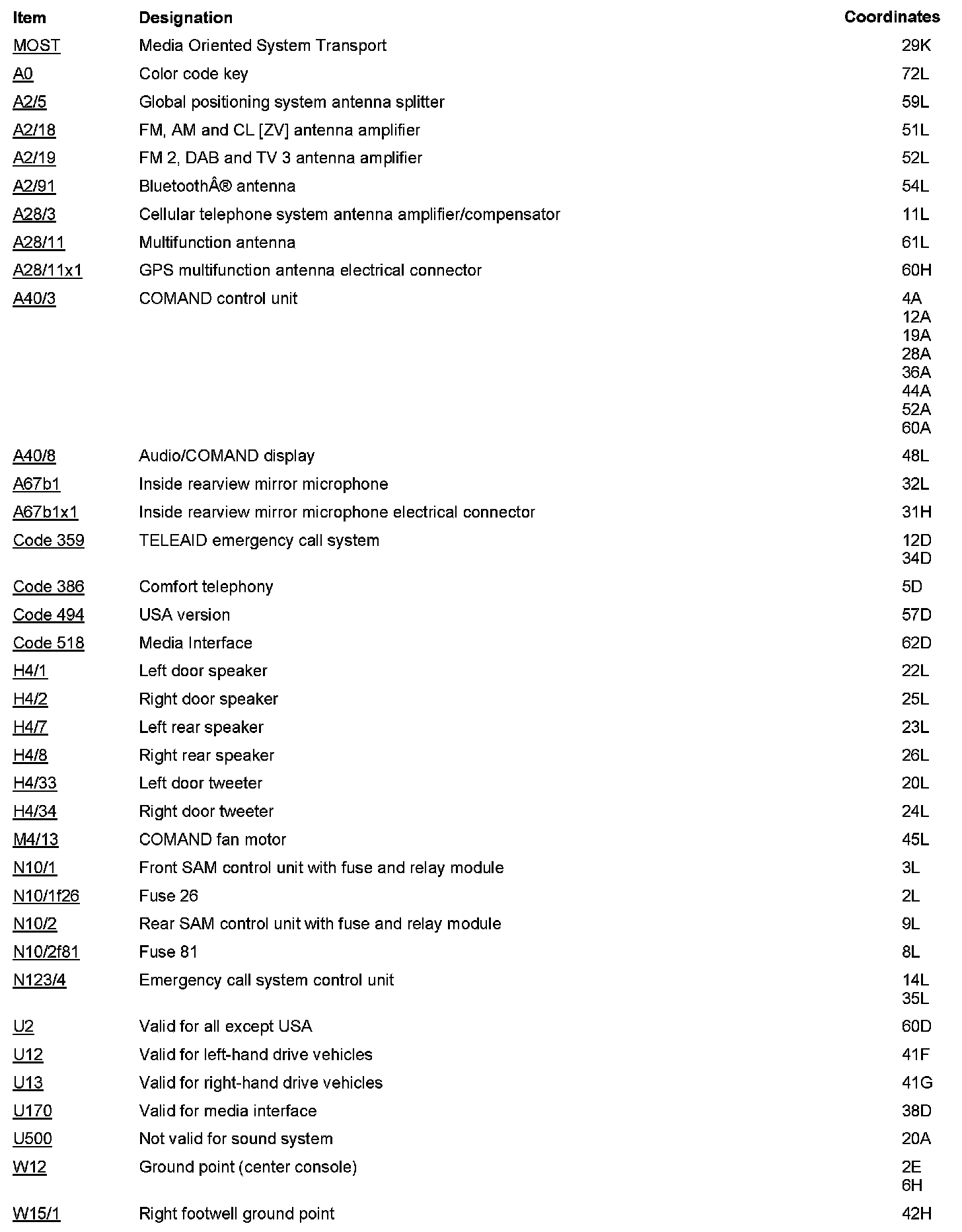

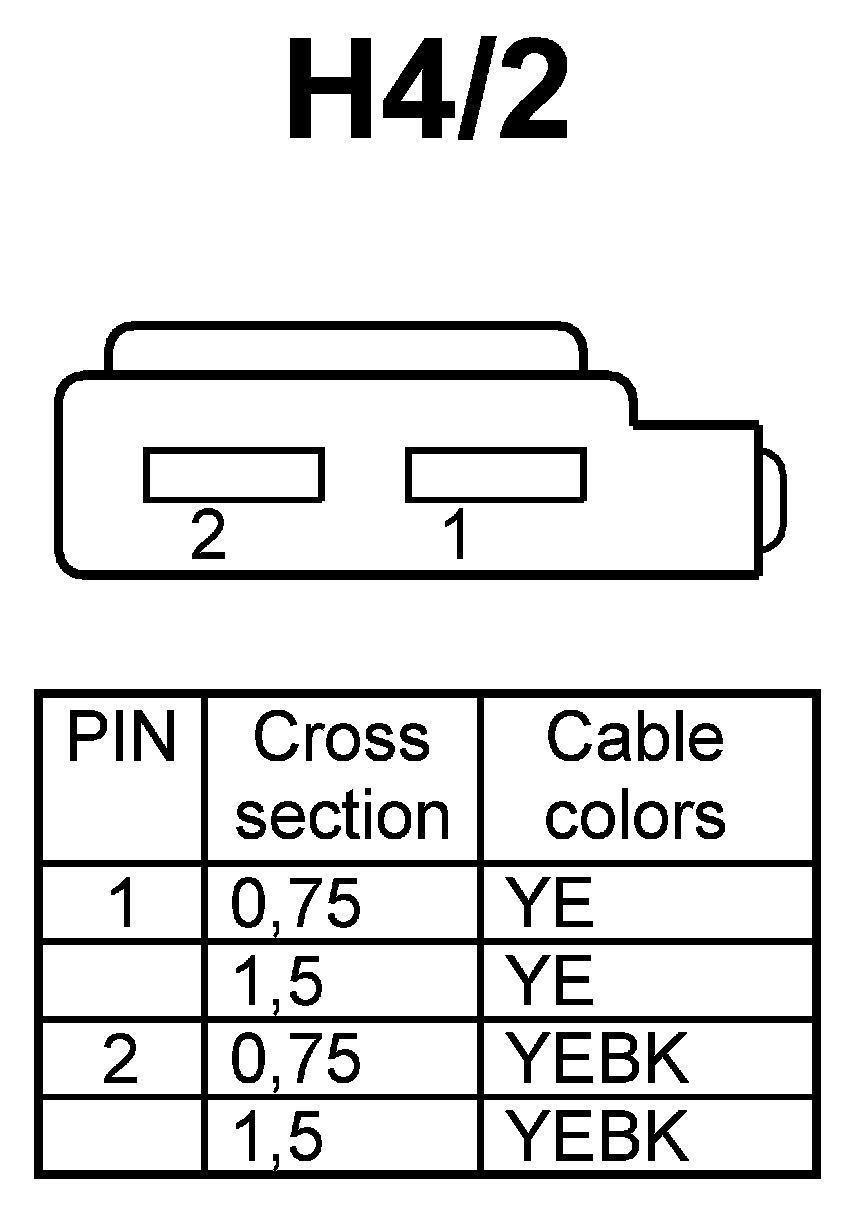

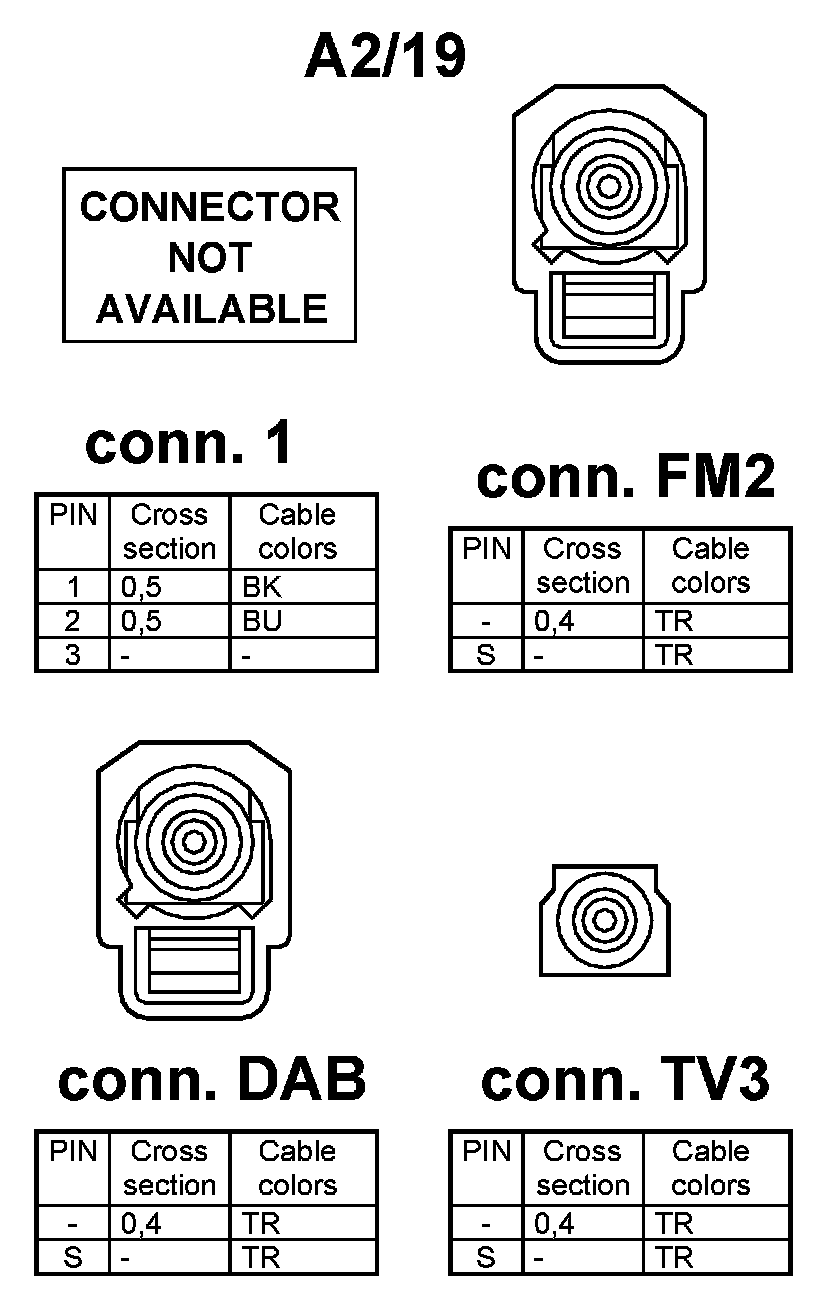

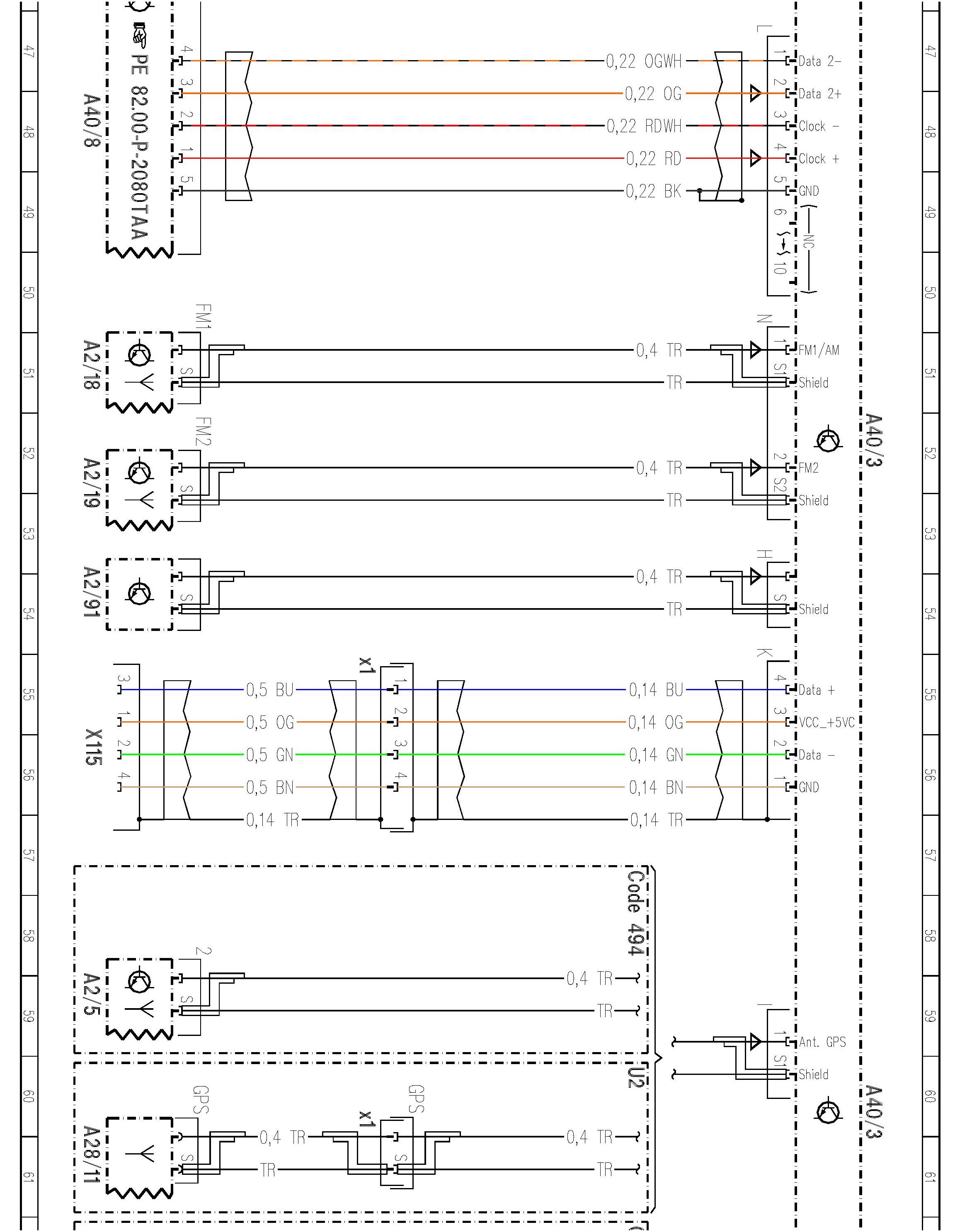

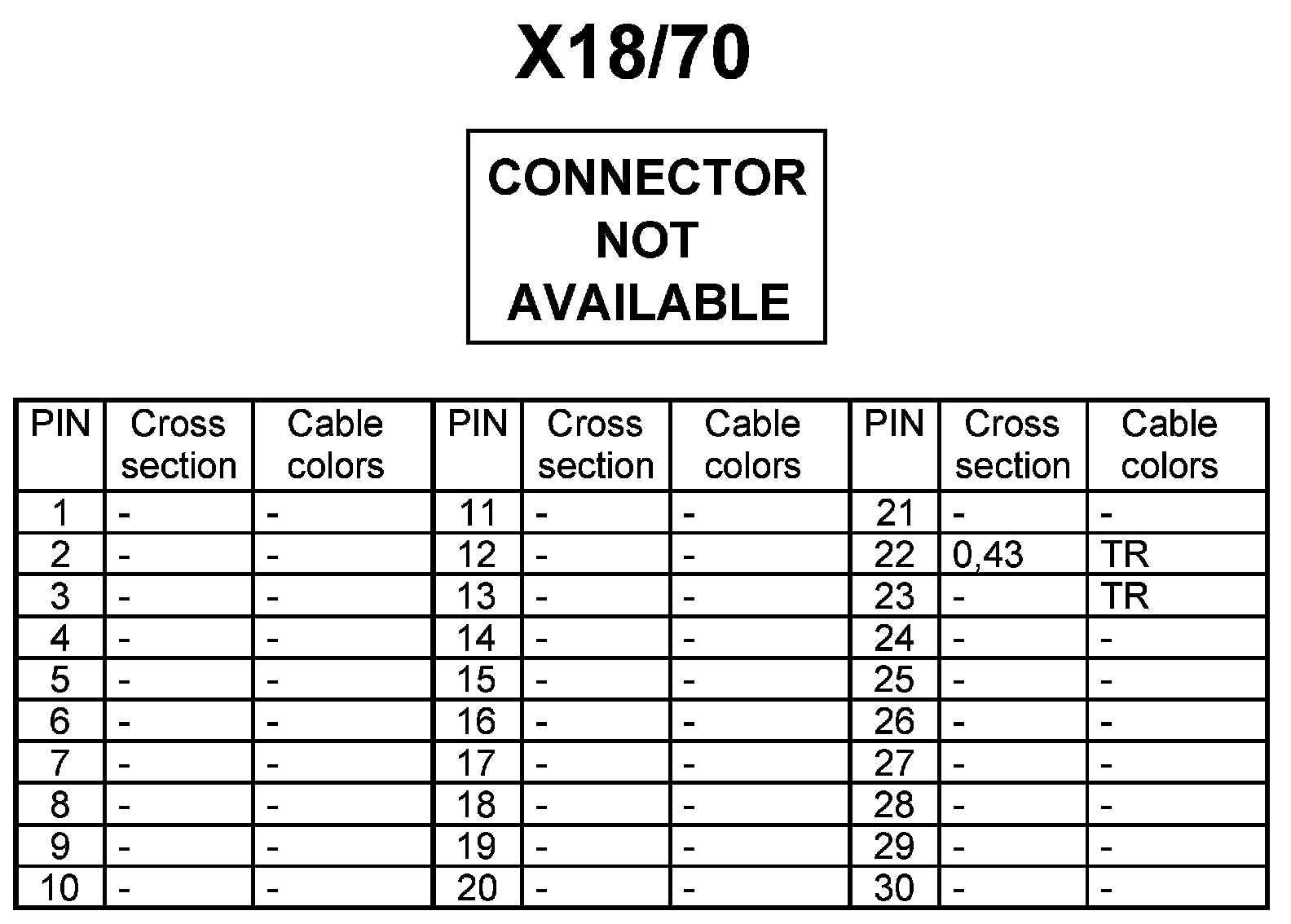

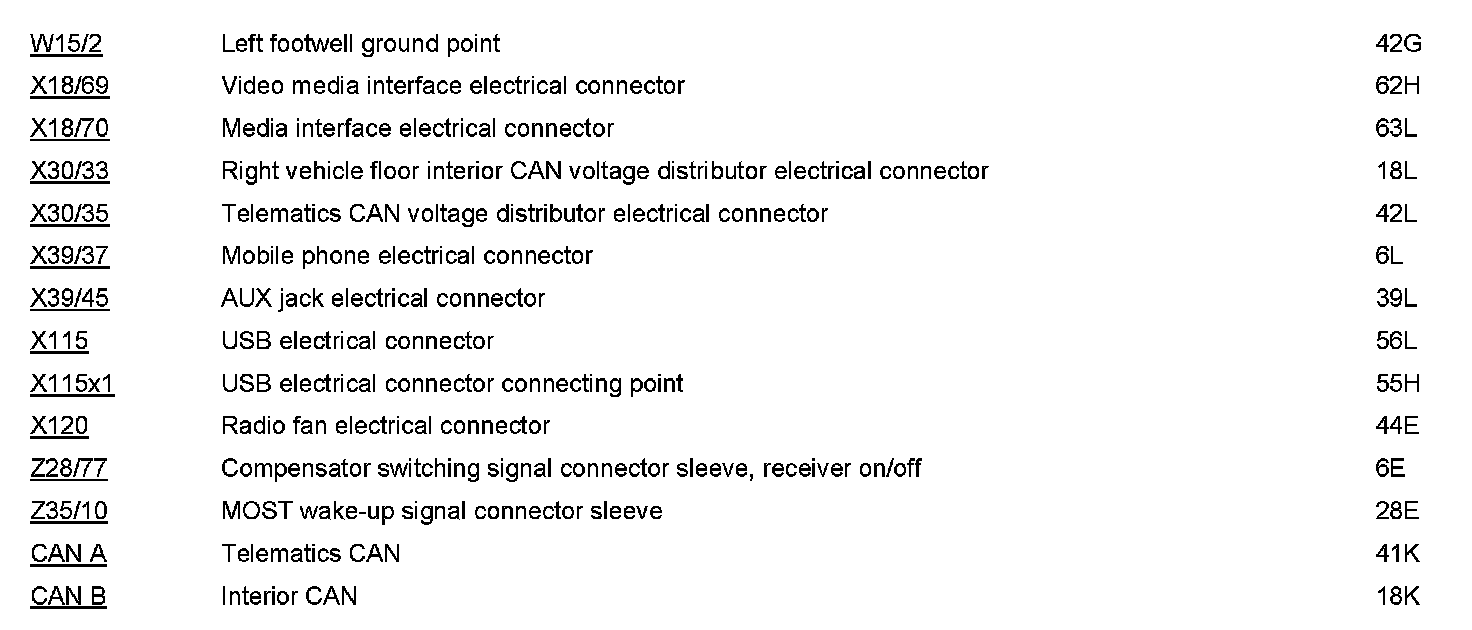

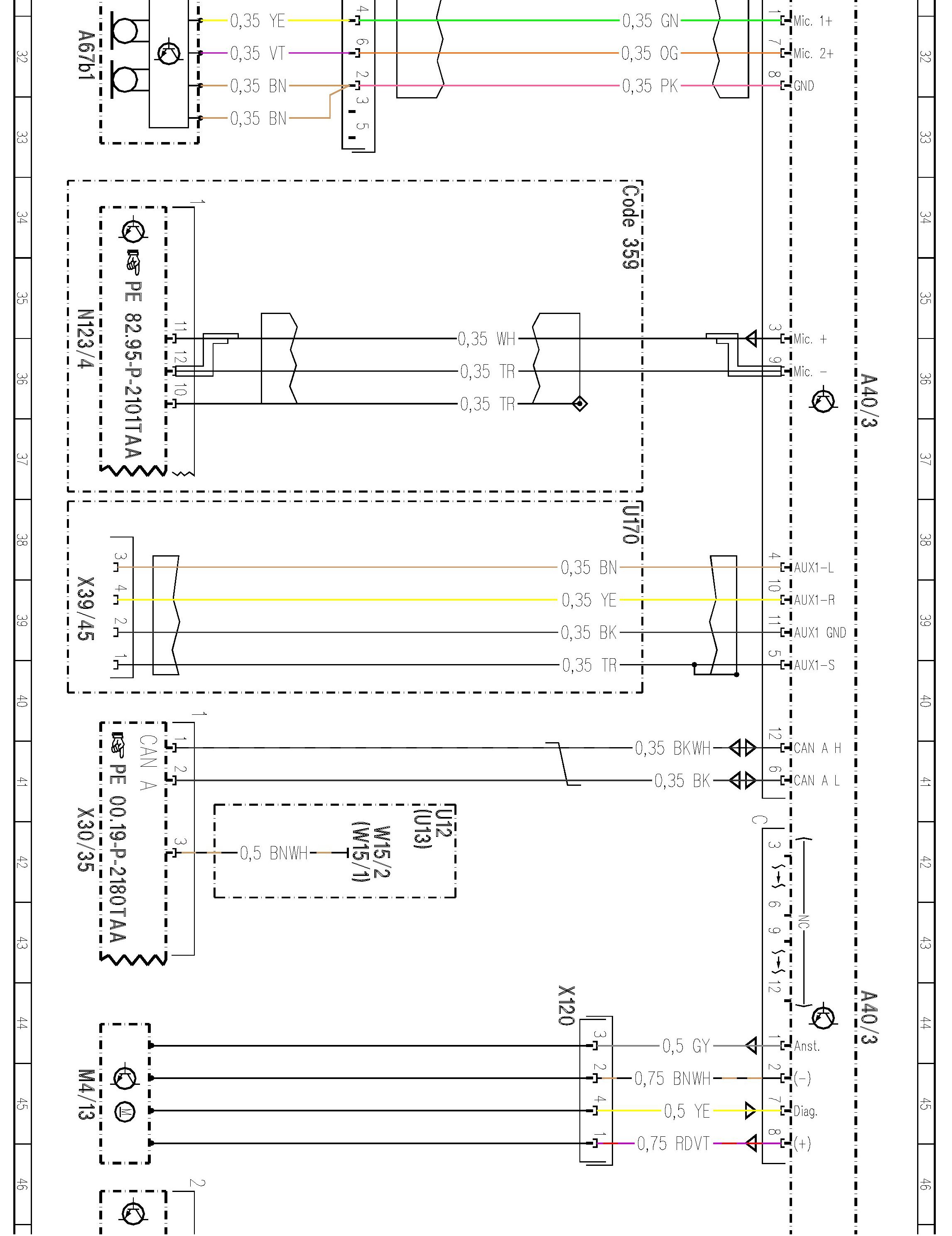

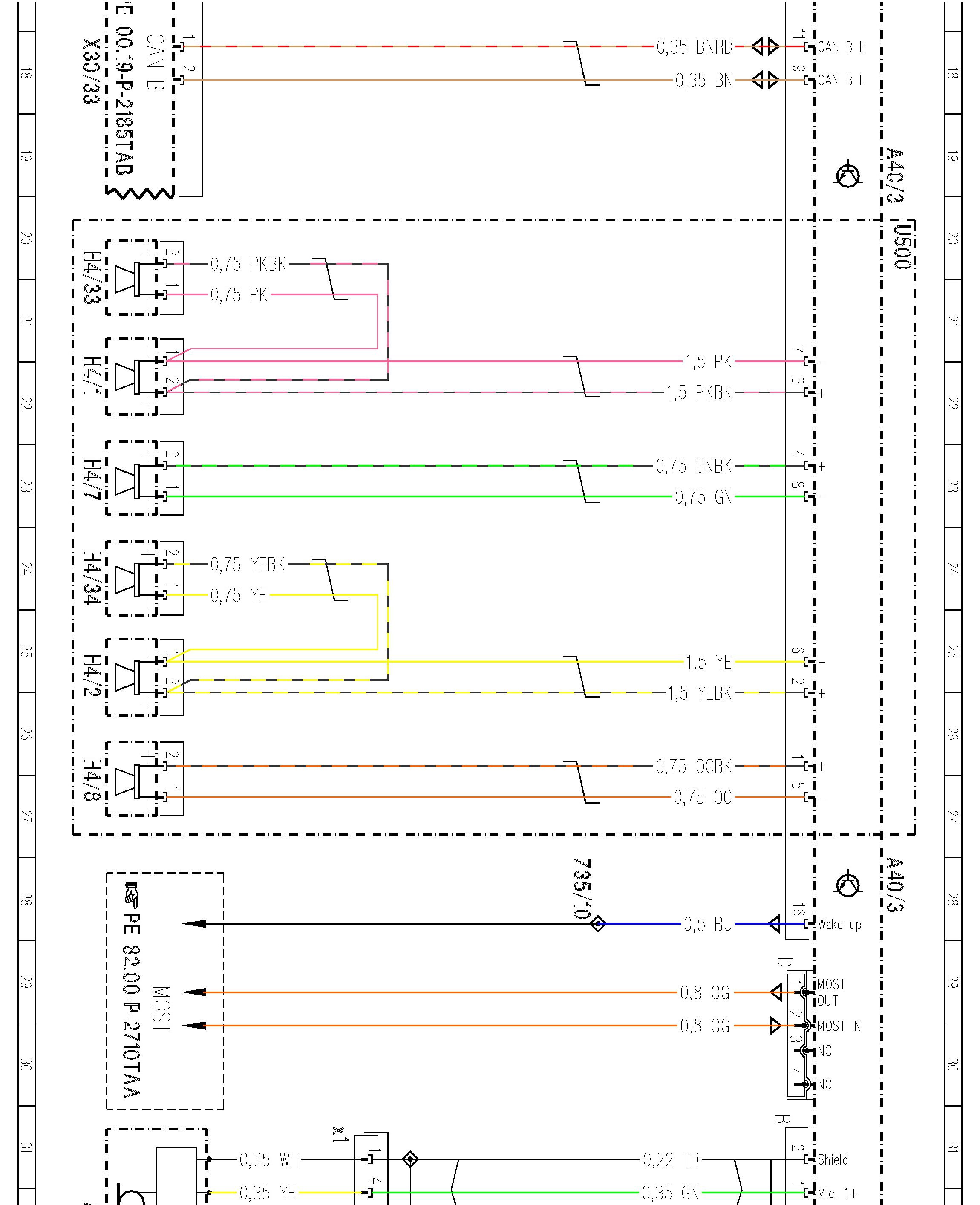

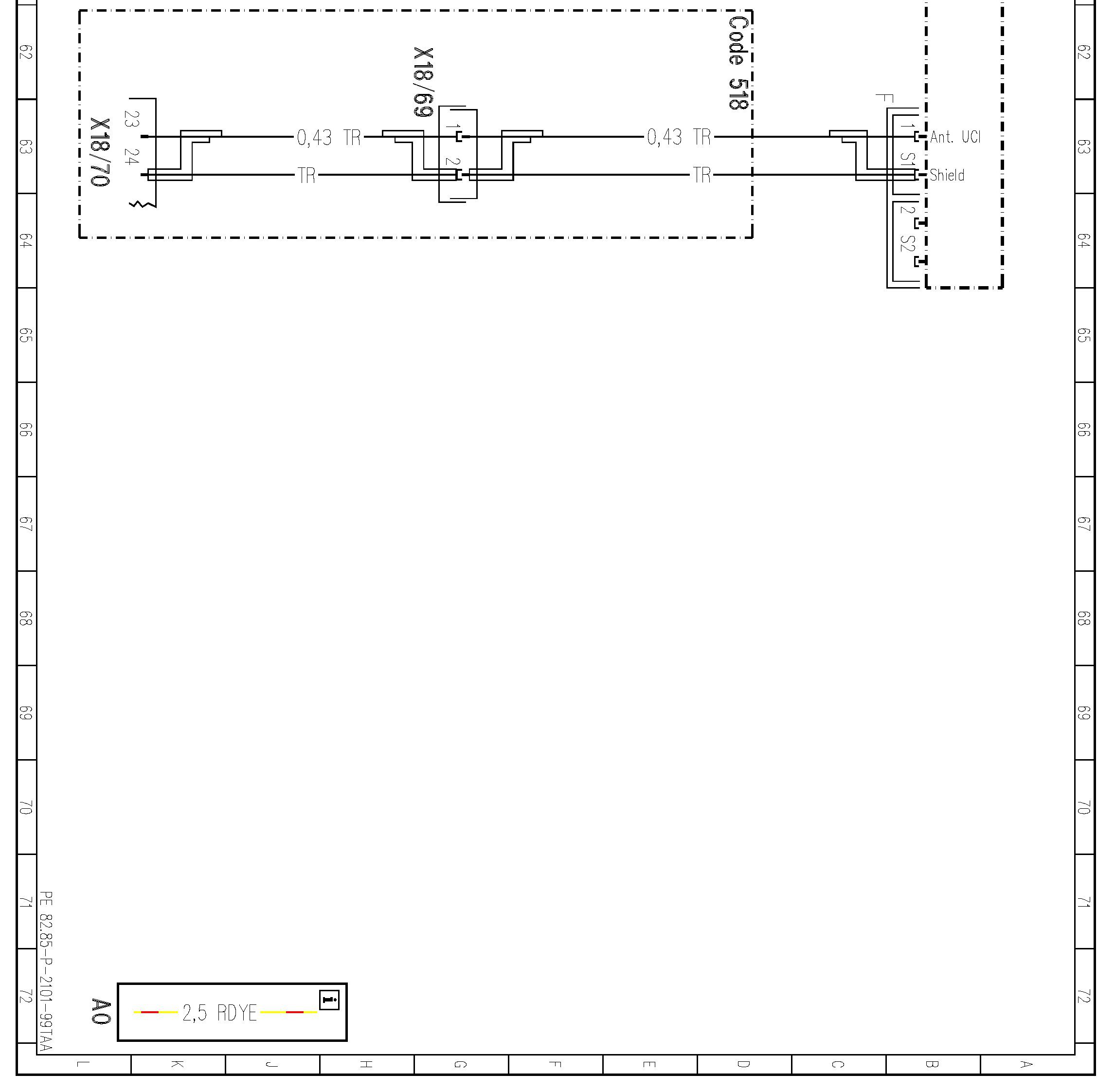

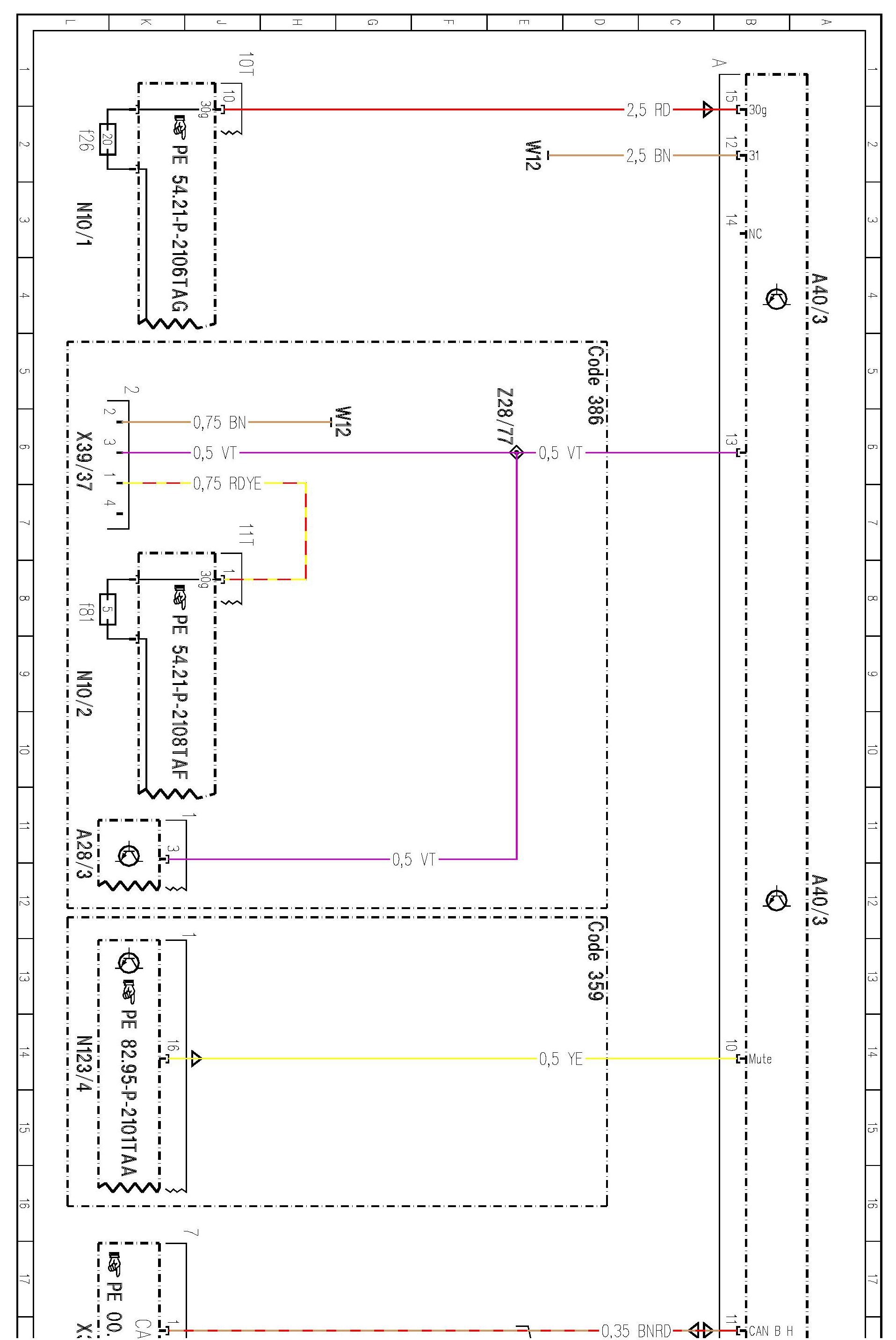

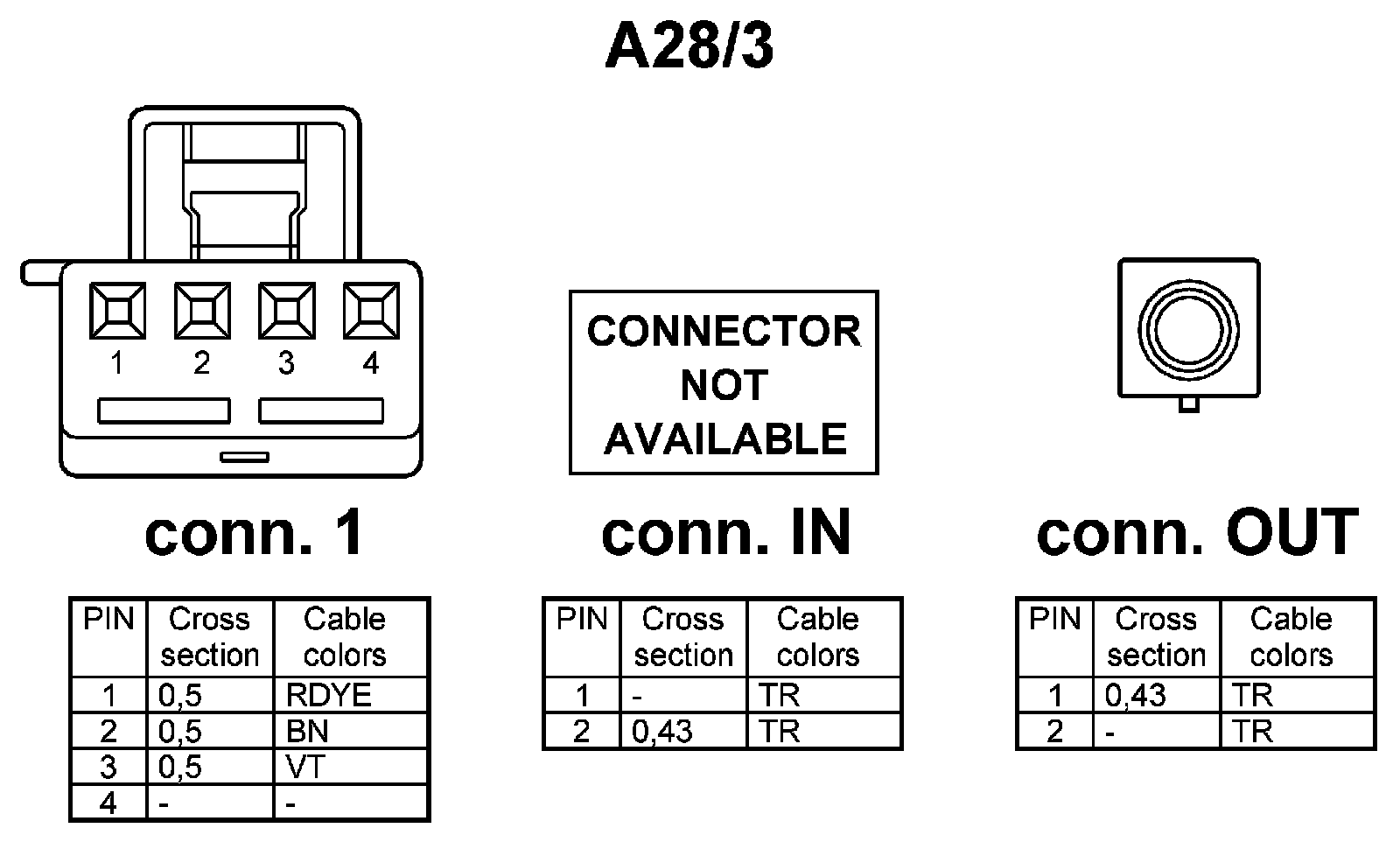

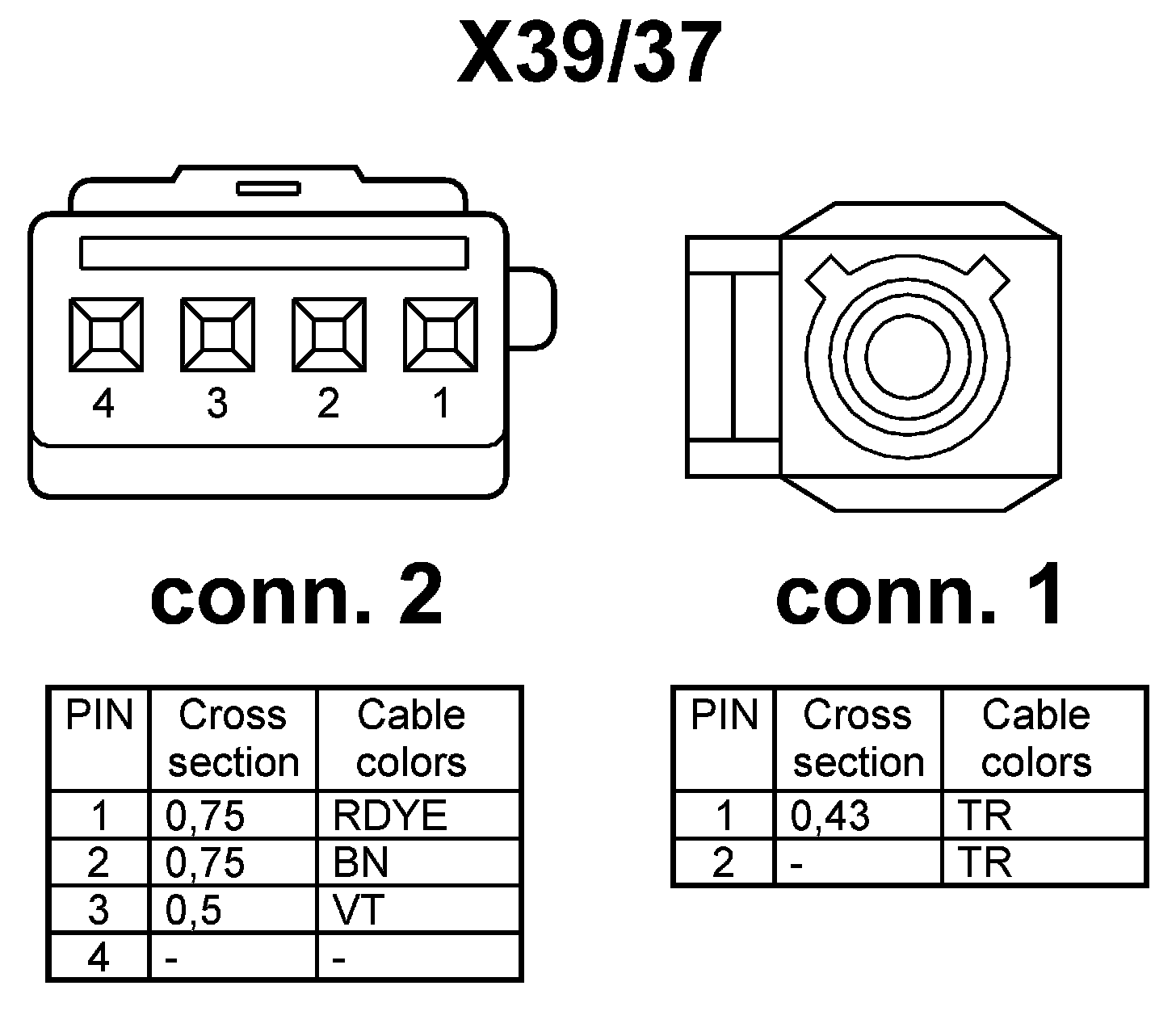

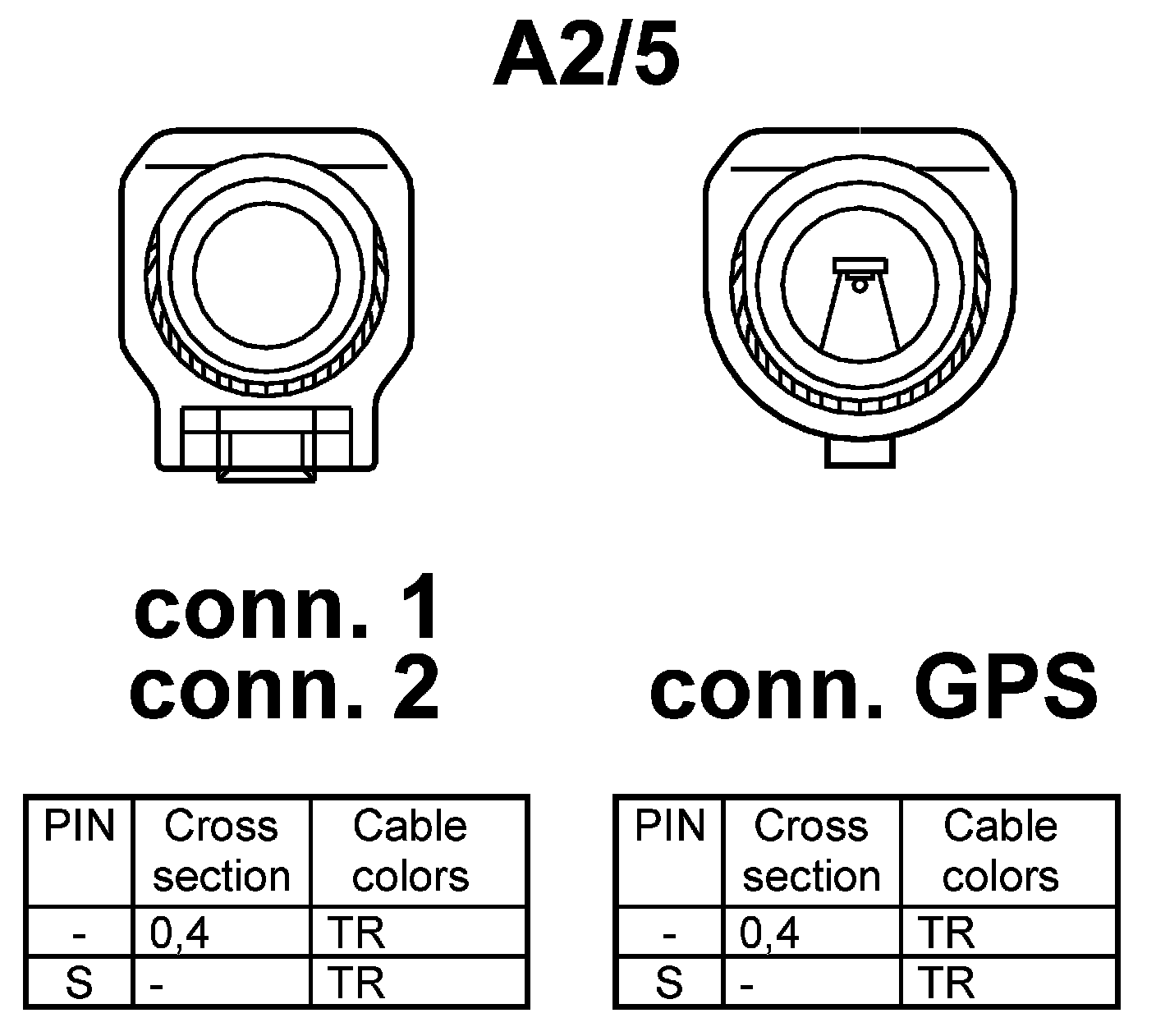

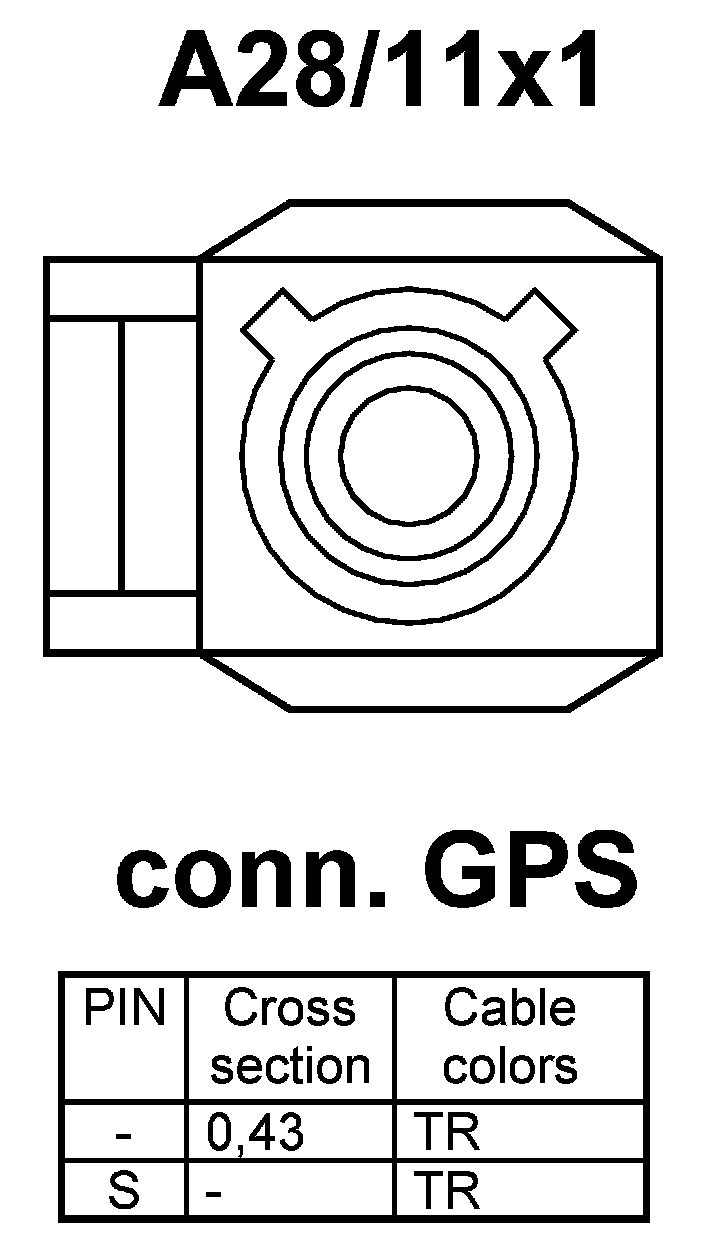

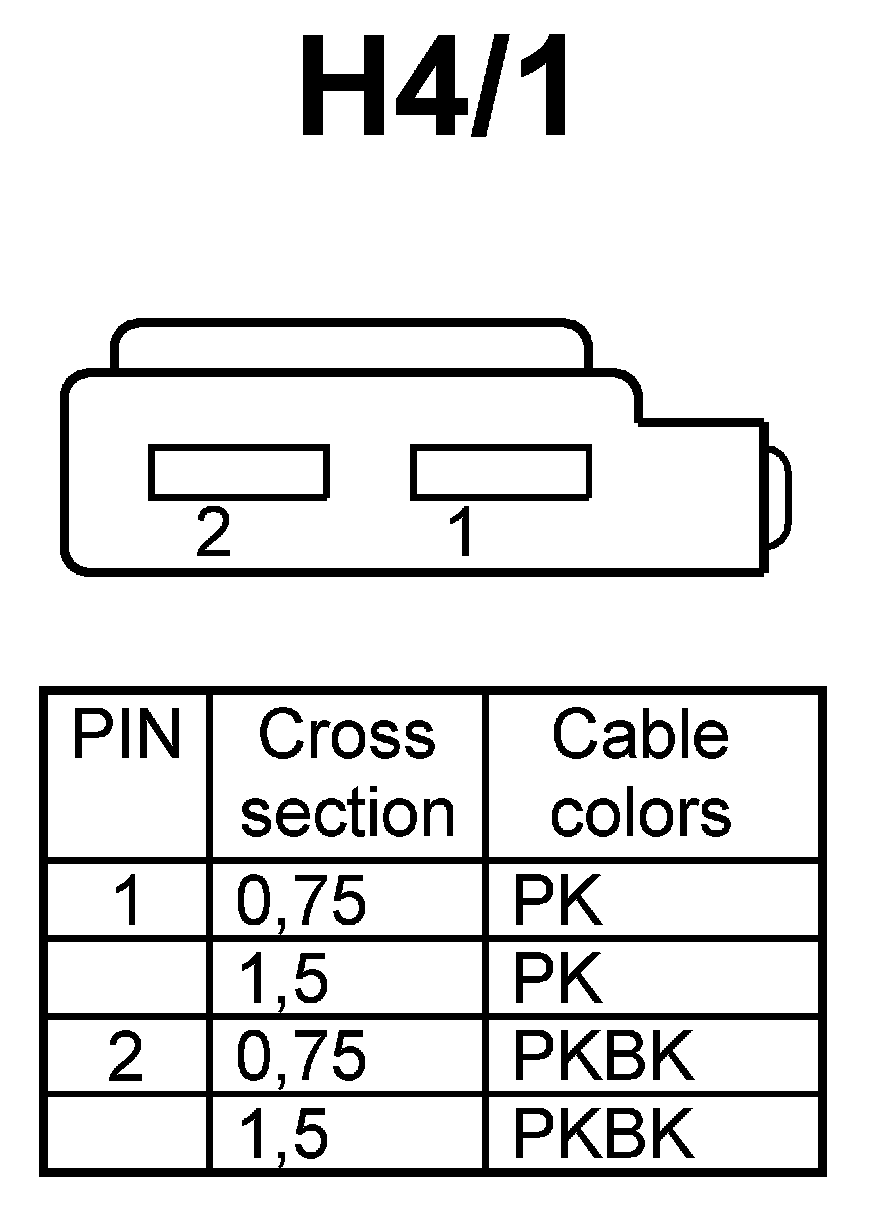

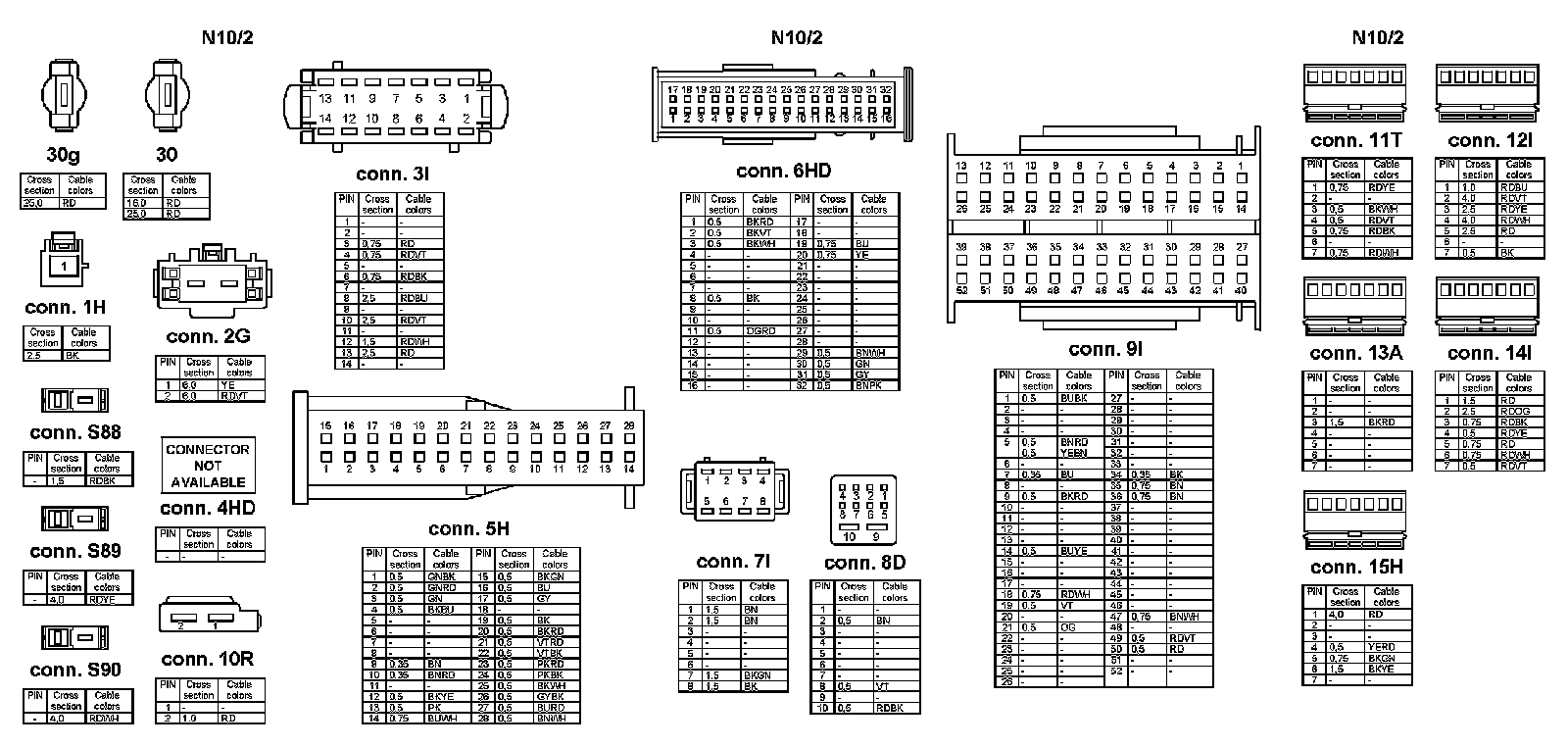

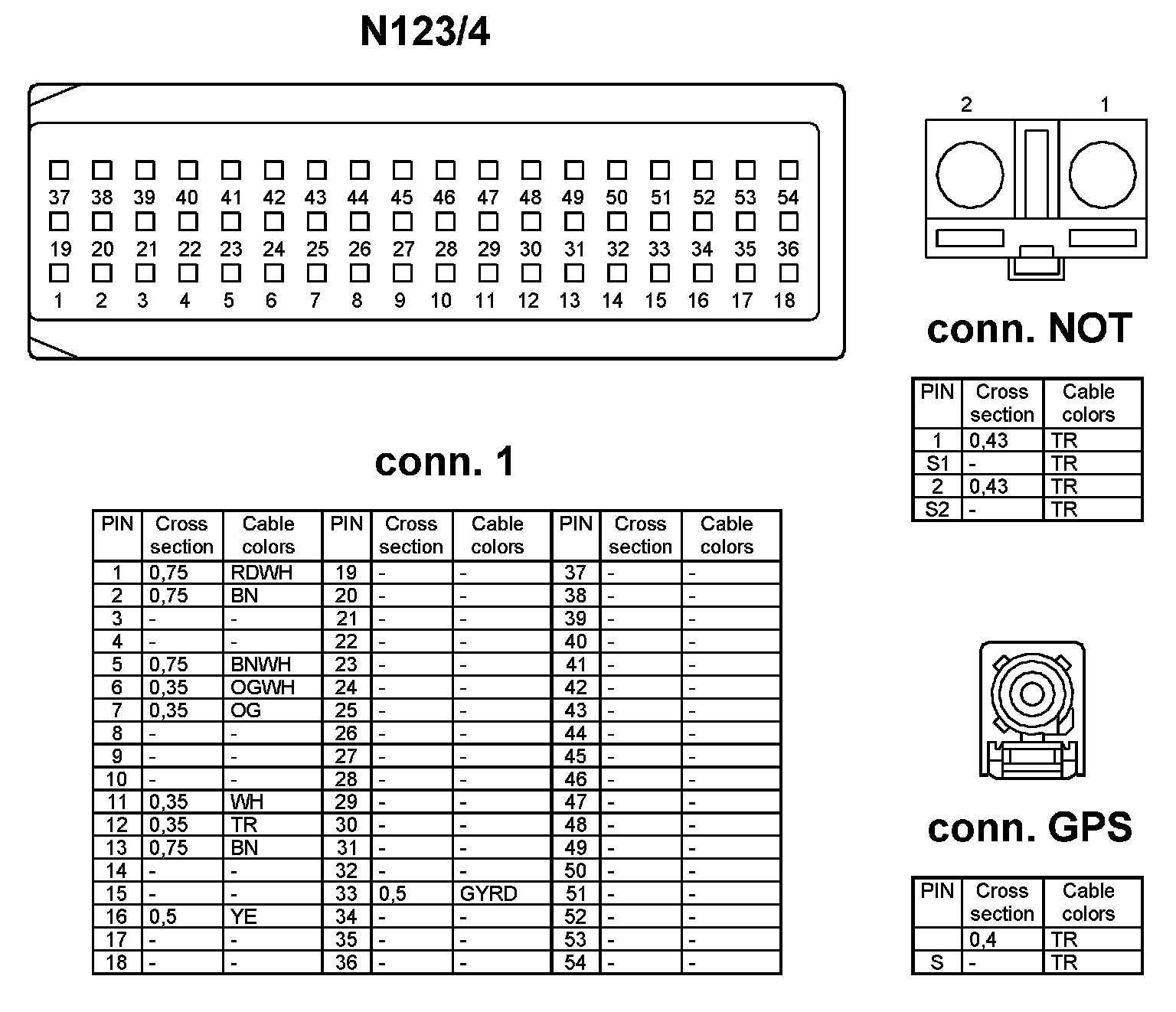

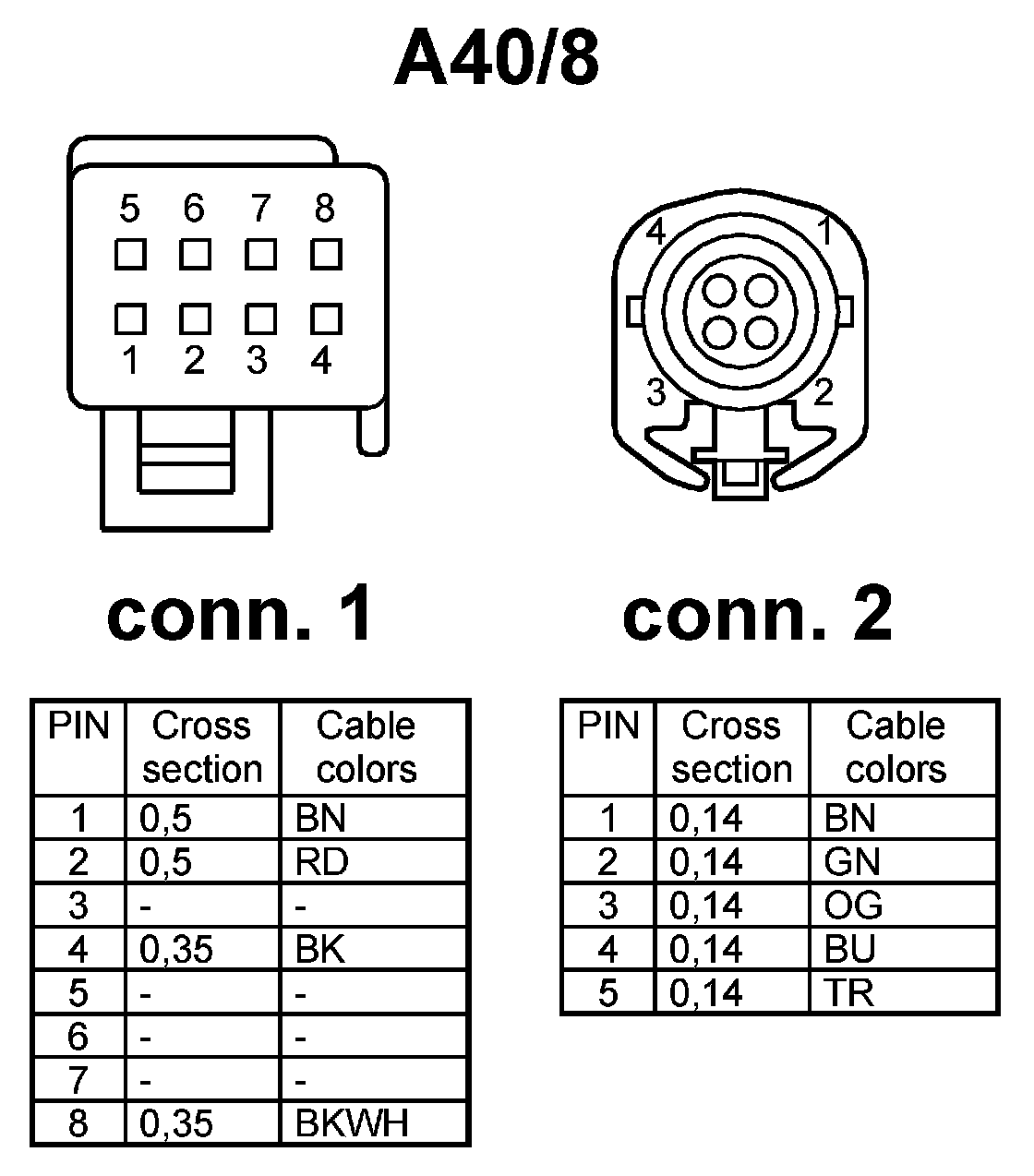

PE82.85-P-2101TAA Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

PE82.85-P-2101TAA Cockpit Management and Data System (COMAND) Control Unit Wiring Diagram

MODEL 172.4
- with CODE (512) COMAND APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- except CODE (498) Japan version

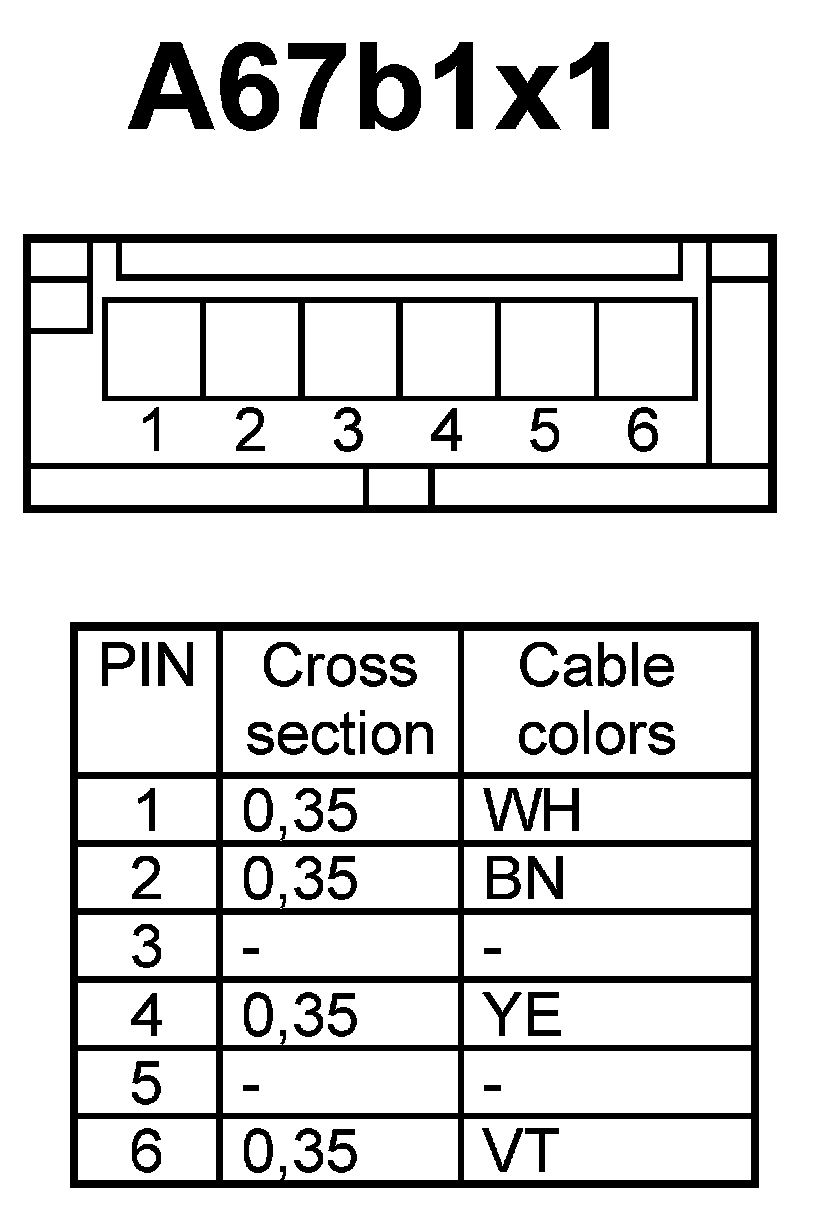

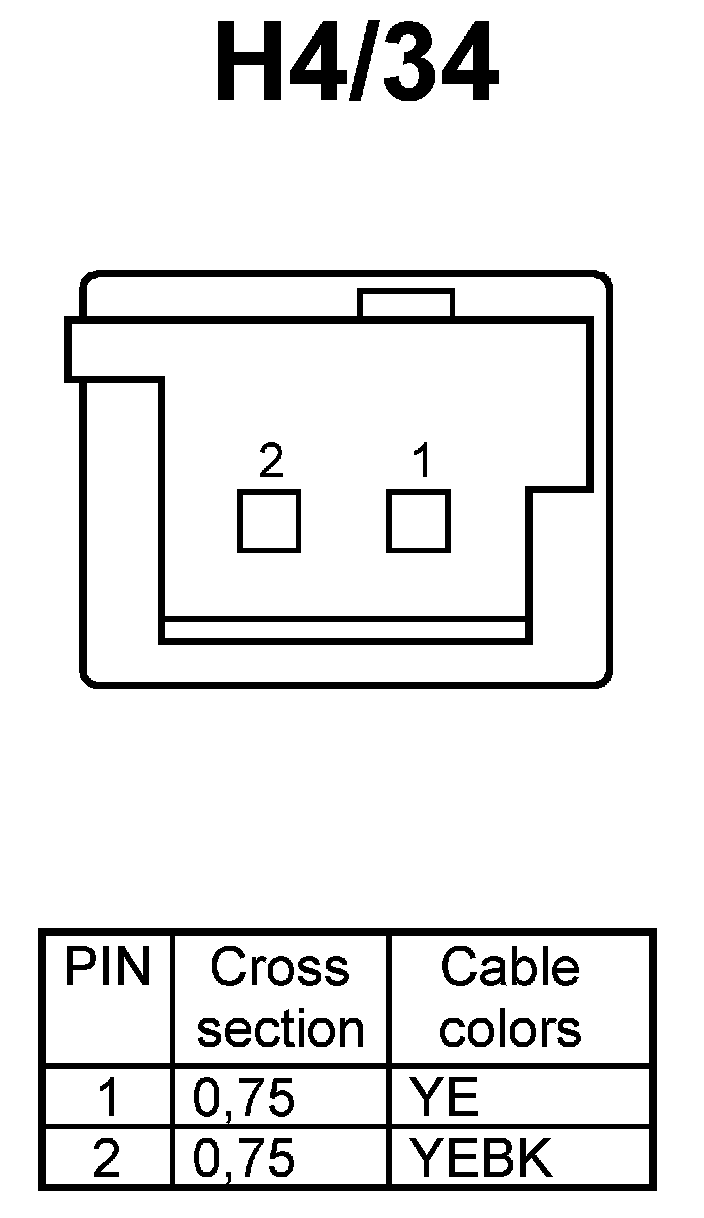

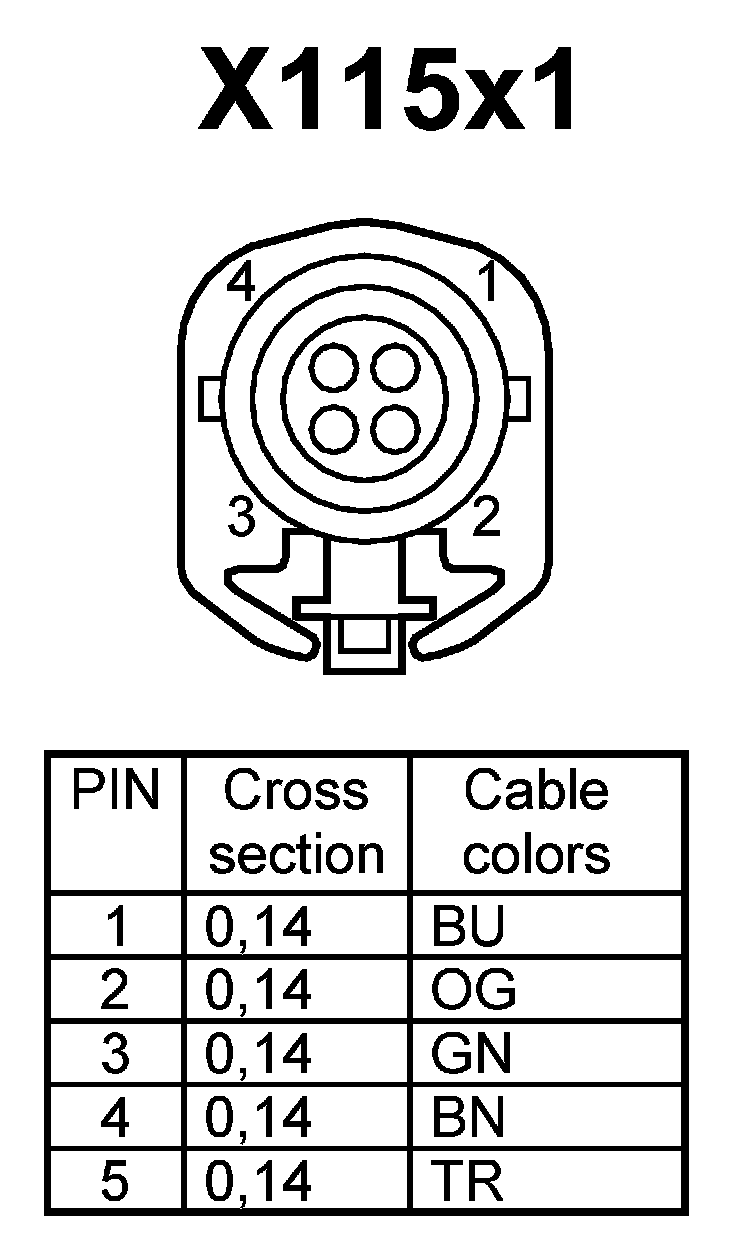

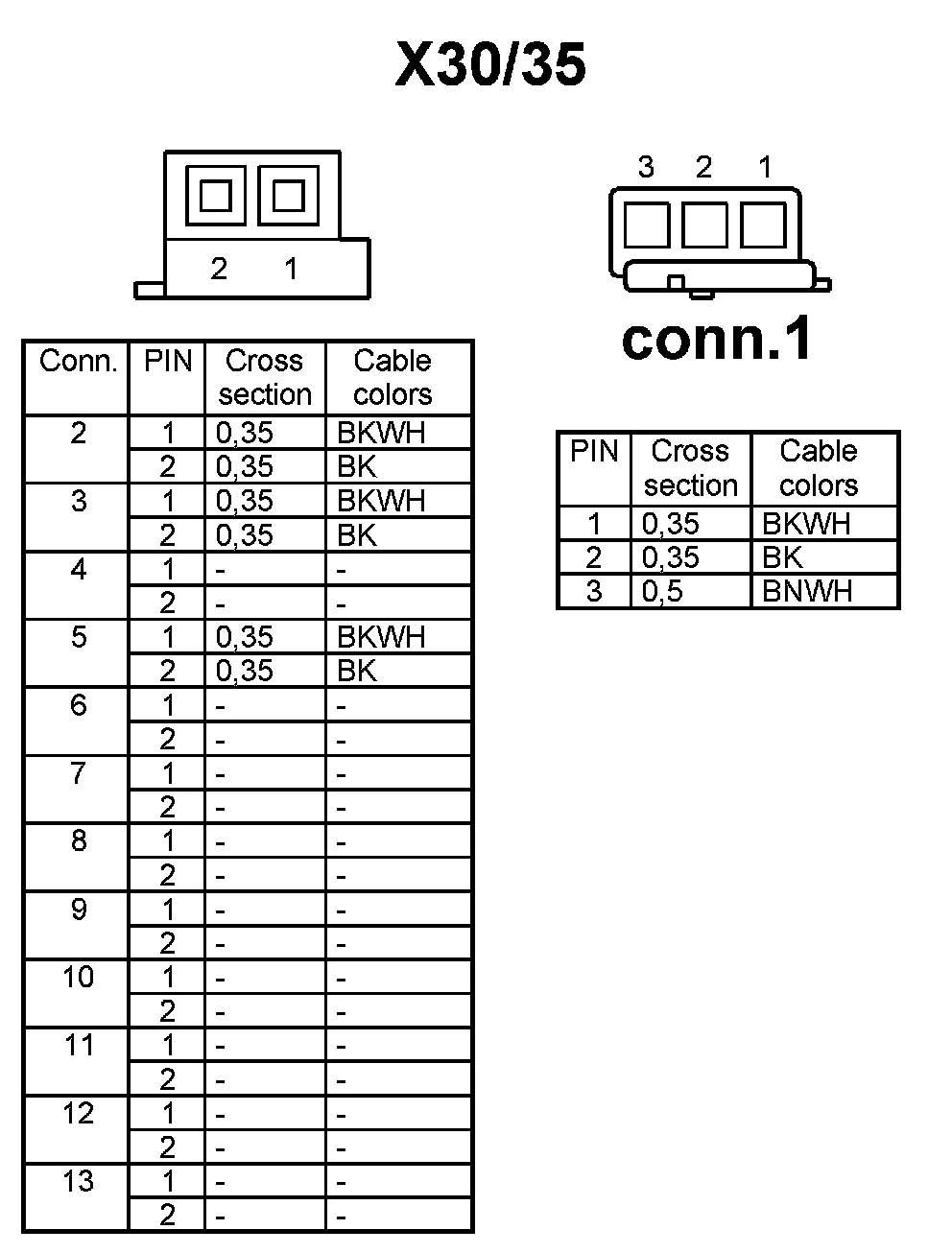

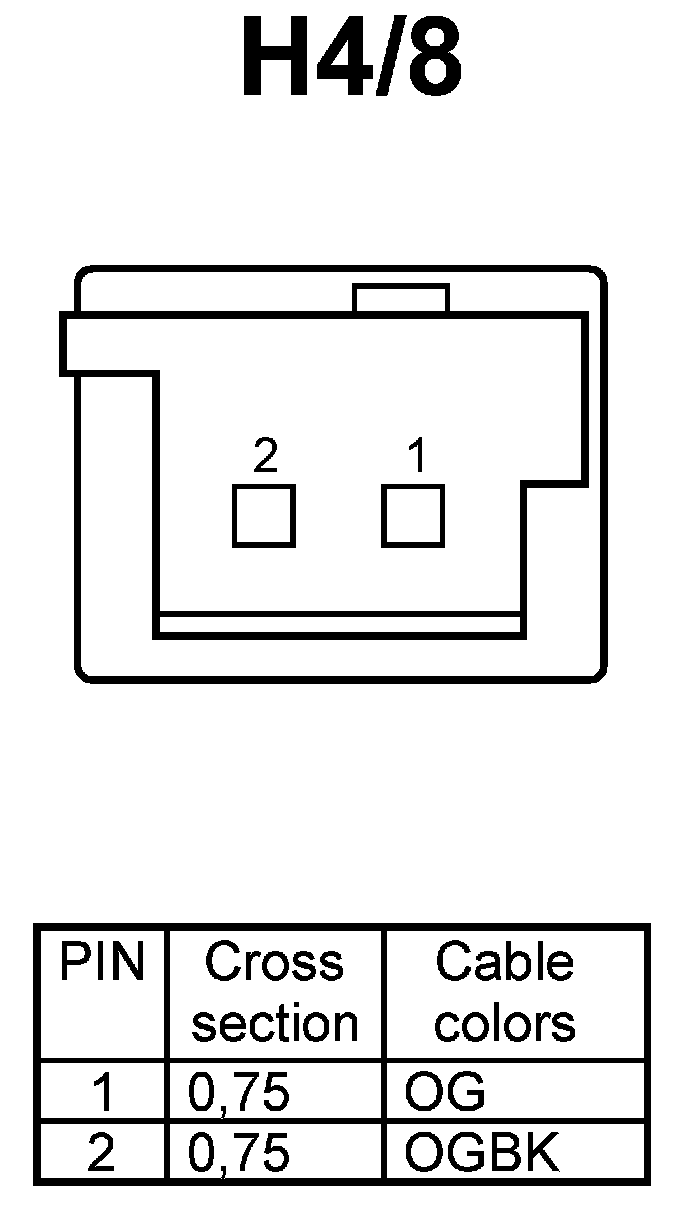

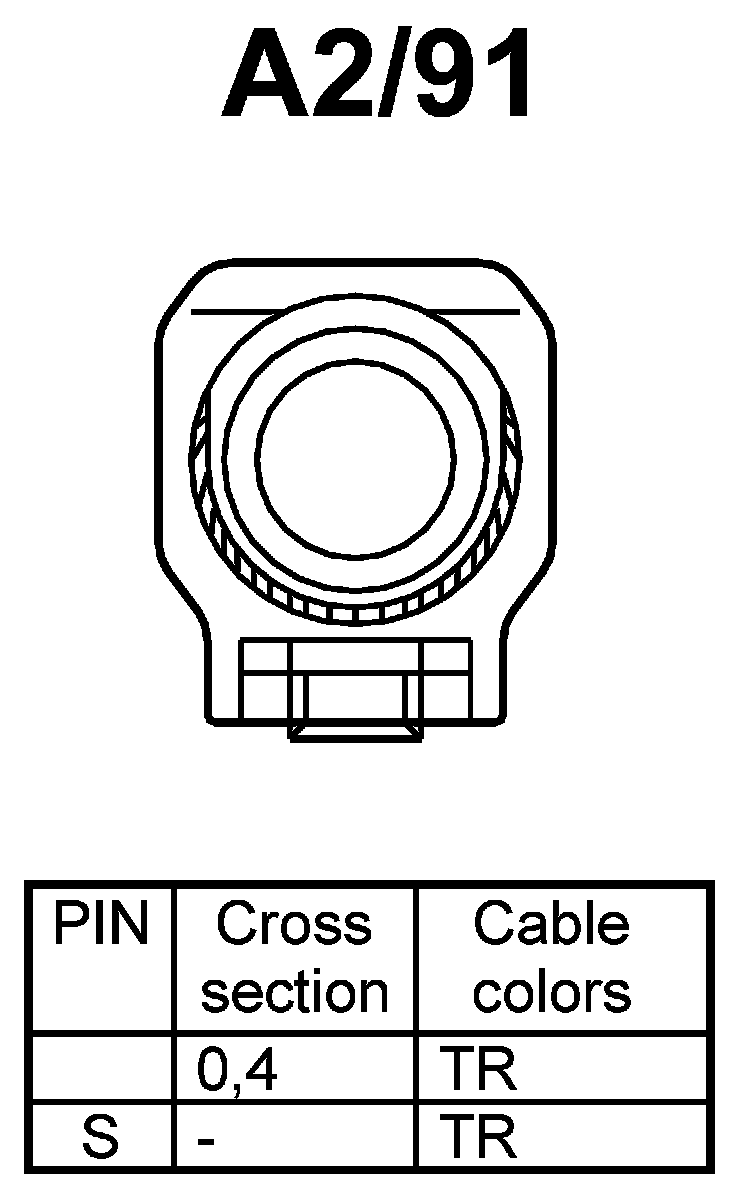

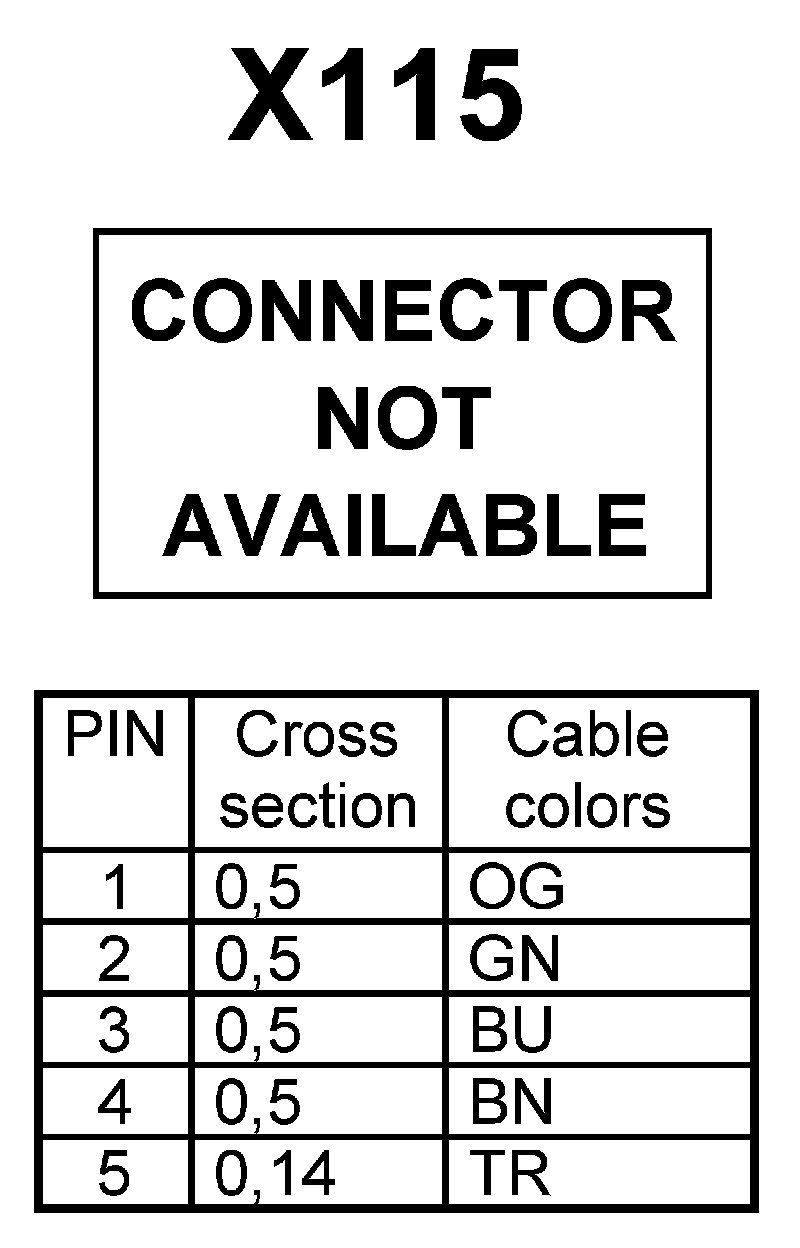

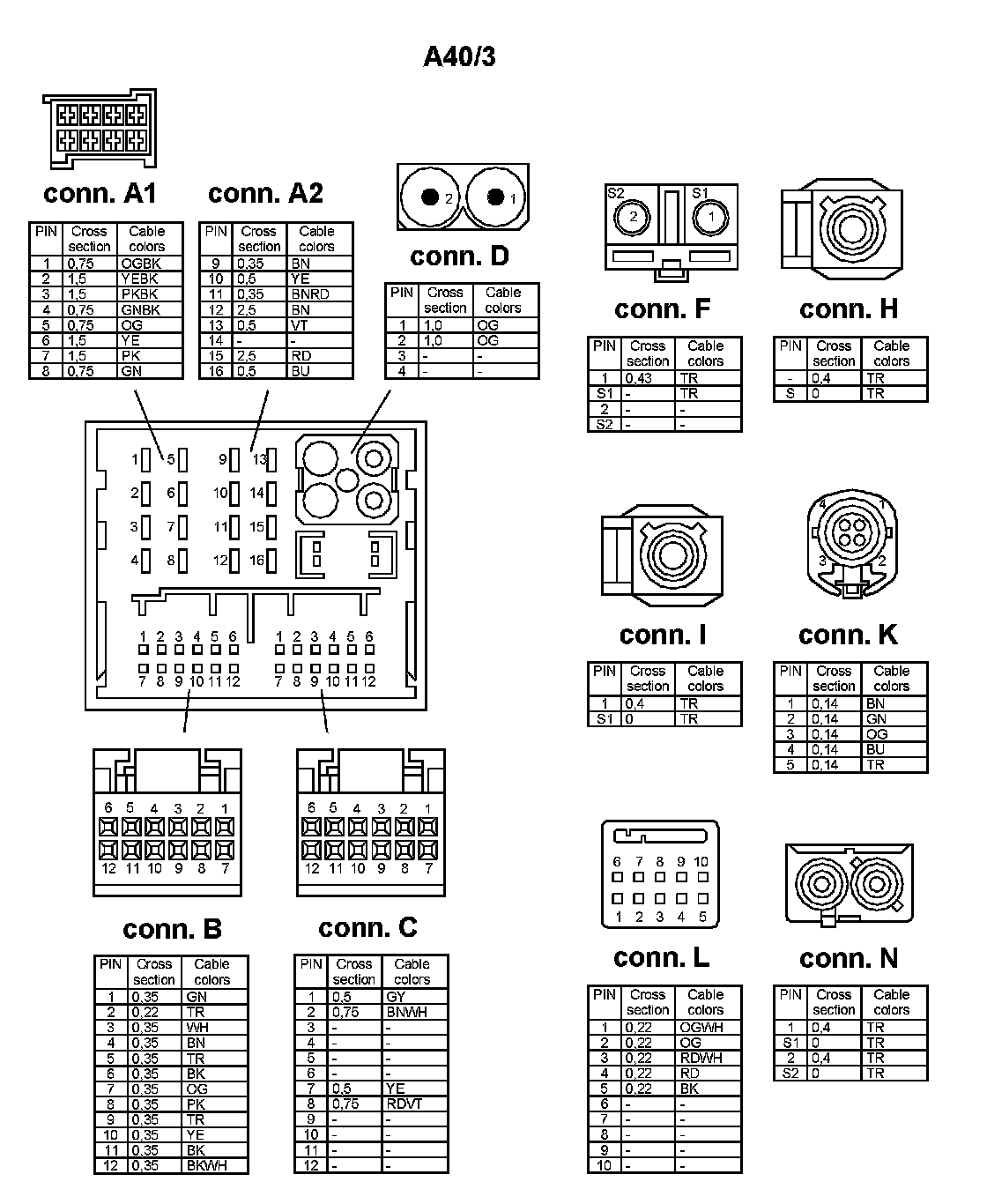

- Control unit A40/3










































































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
