GF30.30-P-3213RD Component Description For Distronic Electric Controller Unit

GF30.30-P-3213RD Component Description For DISTRONIC Electric Controller Unit
MODEL 172.4
- with CODE (233) Distronic Plus





A89 DISTRONIC electric controller unit

Location

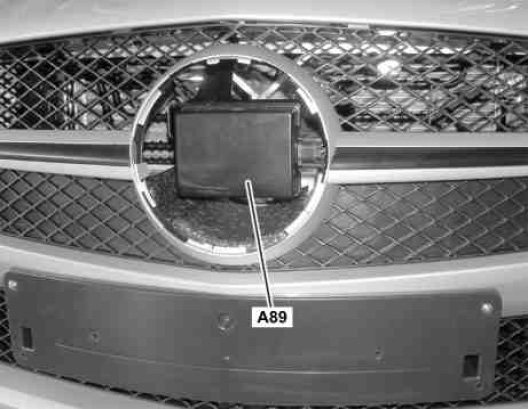

The DISTRONIC electric controller unit is located in the middle in the radiator grille behind the front brand emblem.

Task
The DISTRONIC controller unit fulfills the following tasks:
- Actuation, power supply and evaluation of target data from the integral long range radar
- Control of the target evaluation (long range radar)
- Transmitting object data for automatic distance control to the radar sensors control unit (N62/1)

The control unit integrated in the DISTRONIC controller unit actuates the long range radar and evaluates the target data
The target data from the long range radar is transferred by the DISTRONIC control unit via the vehicle dynamics CAN (CAN H) to the radar sensor control unit.

The tasks listed are realized through reception, evaluation and transmission of the following signals:
^ Receive signals
^ Transmit signals

Receive signals
The DISTRONIC controller unit receives the following signals via the vehicle dynamics CAN:
- Radar request
- Diagnosis request

Transmit signals
The DISTRONIC controller unit transmits the following signals via the vehicle dynamics CAN:
- Target data from the radar
- Diagnostic data

Design
The DISTRONIC controller unit consists of a control unit and the long range radar sensor.

Properties of the long range radar:
- Detection range of the radar sensor s = 0 to 200 m for a detection angle of measured angle = 18°
- Detection range of the radar sensor s = 0 to 60 m for a detection angle of measured angle = 60°
- 77 GHz radar sensor operating on the pulse Doppler principle for independent measurement of distance and speed

The DISTRONIC controller unit must be newly adjusted after exchange (e.g. after an accident repair) using the integrated "service adjustment mode".





View of radiator grille with integral brand emblem

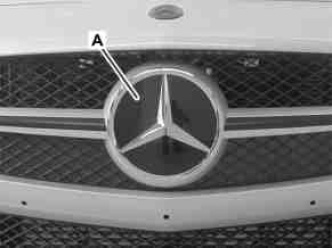

A Cover for the DISTRONIC controller unit

The cover for the DISTRONIC controller unit is designed as a radar transparent brand emblem and has the following tasks:
- Shielding against external effects (such as dirt, ice or insects)
- Ensuring optimal transmission and reception properties of the radar sensor
