AR43.10-P-0325V Check Brake Booster

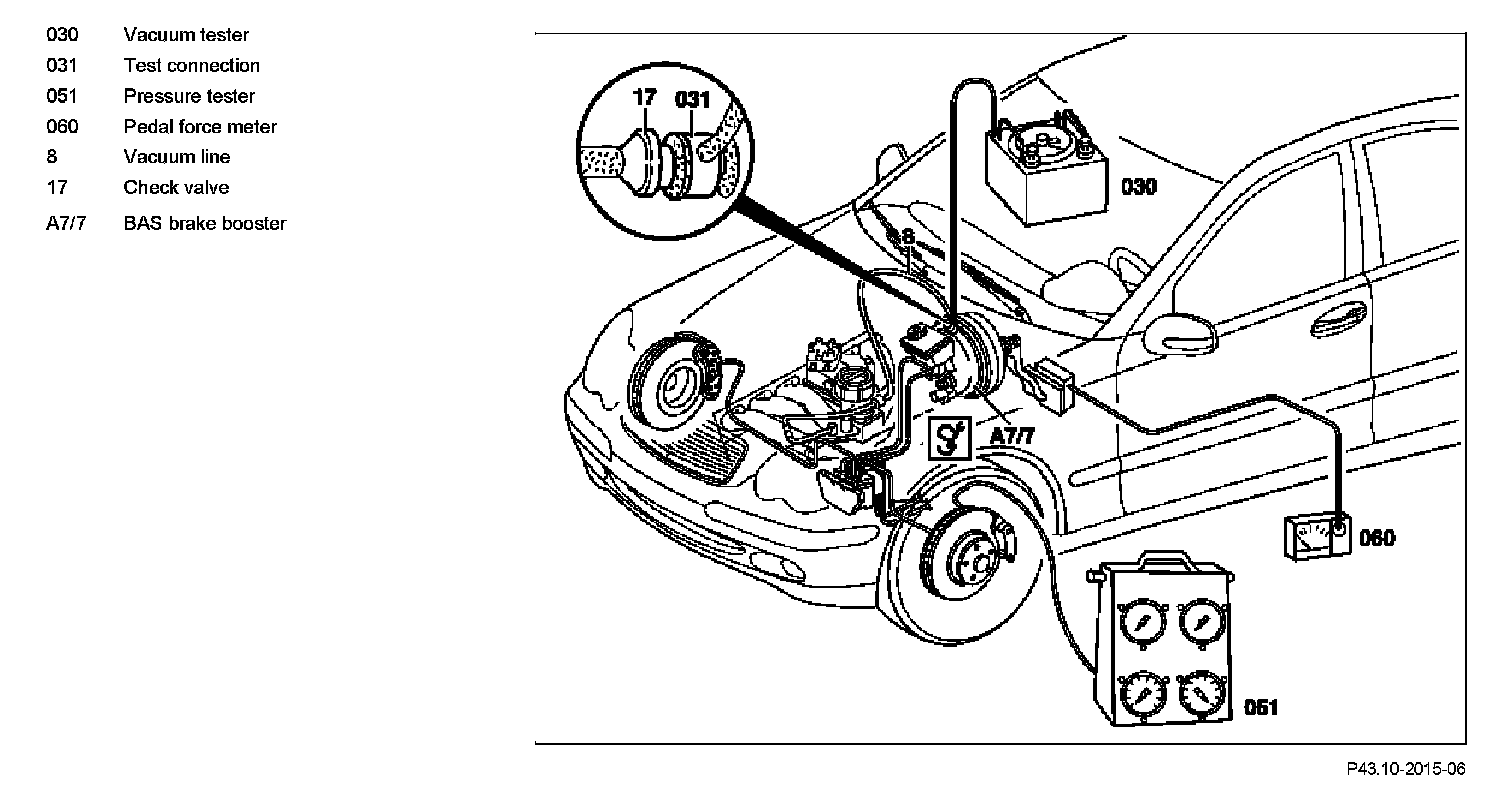

Component Identification:

Steps 1-9:

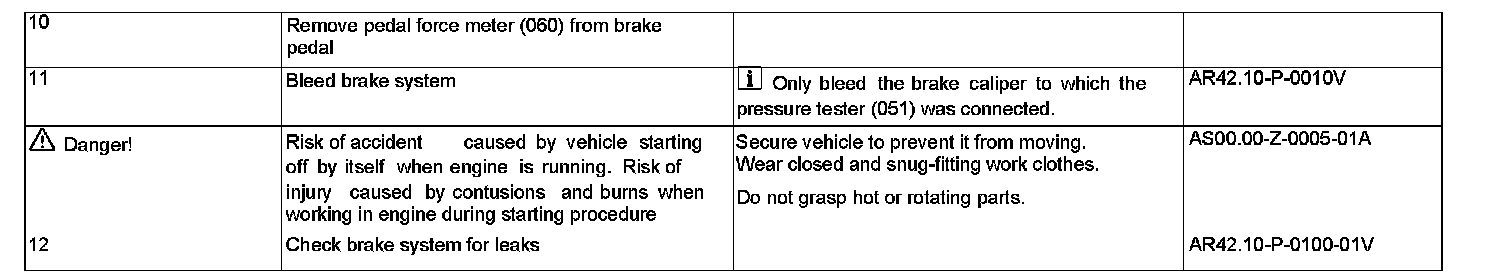

Steps 10-12:

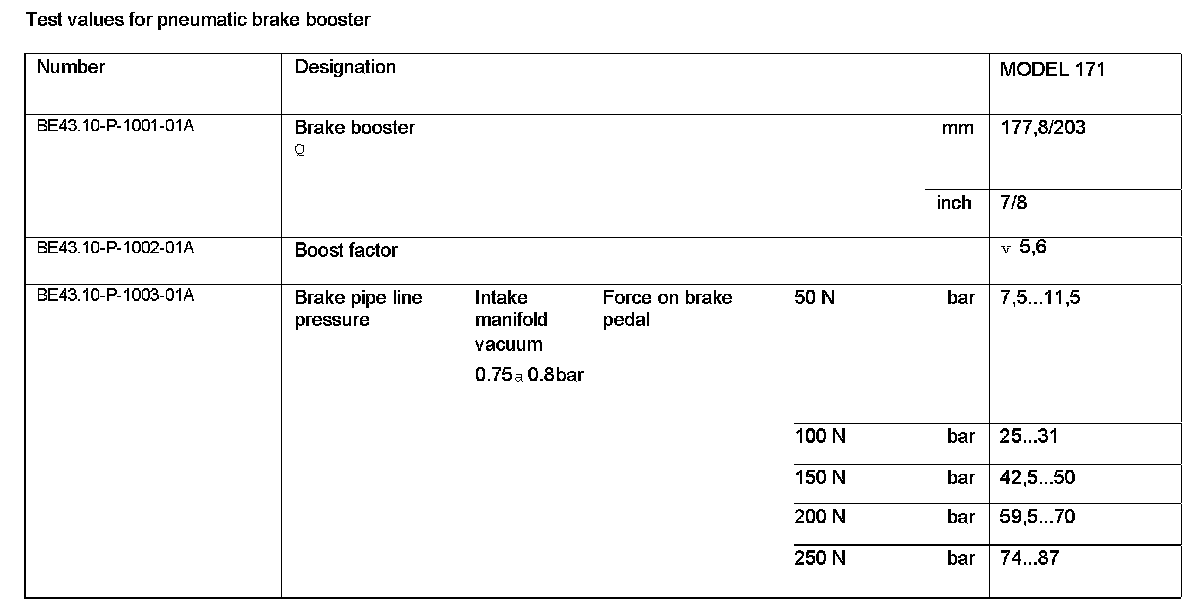

Test Values For Pneumatic Brake Booster:

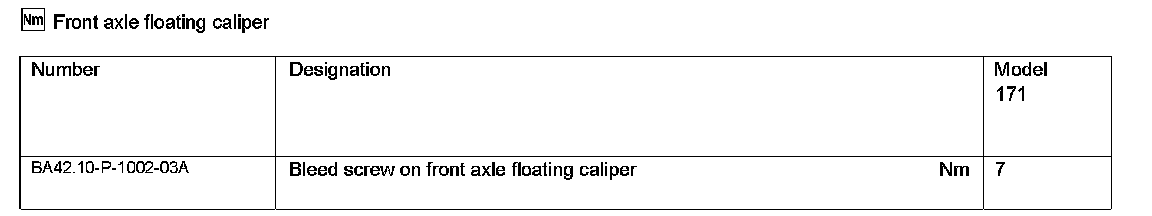

Front Axle Floating Caliper:

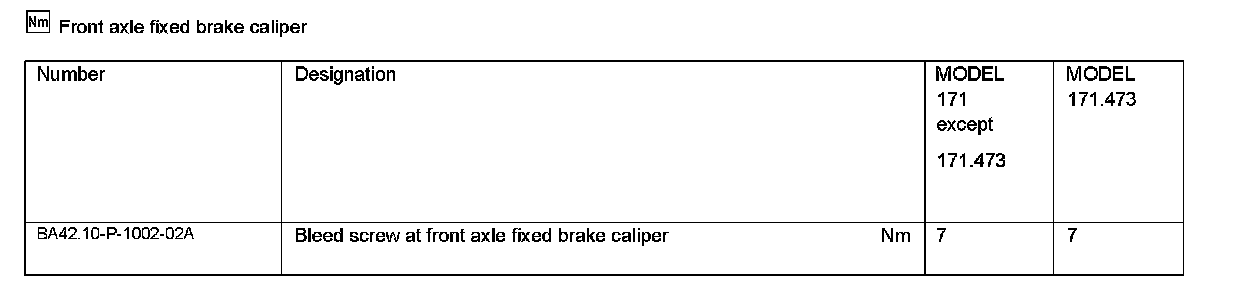

Front Axle Fixed Brake Caliper:

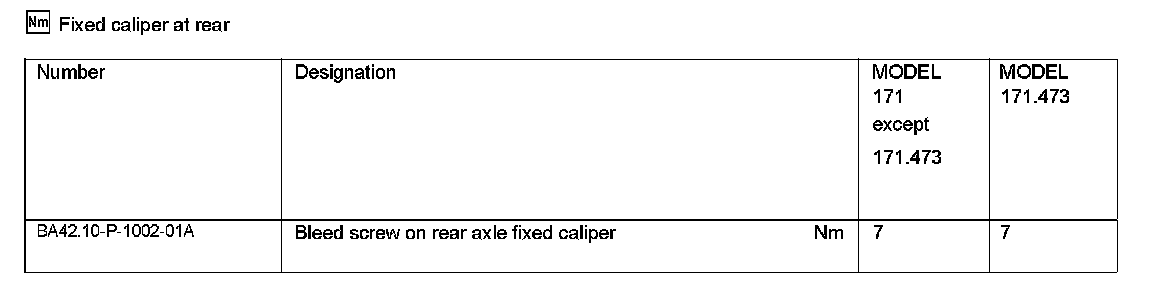

Fixed Caliper At Rear:

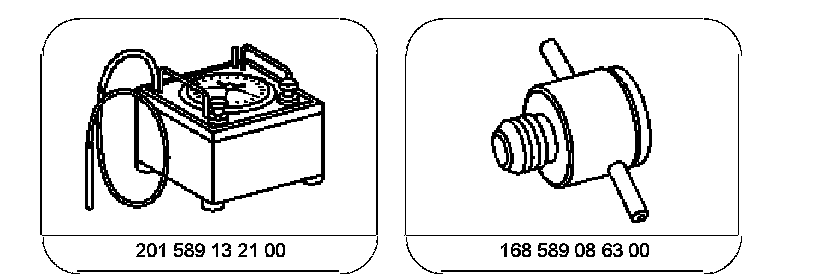

Special Tools:

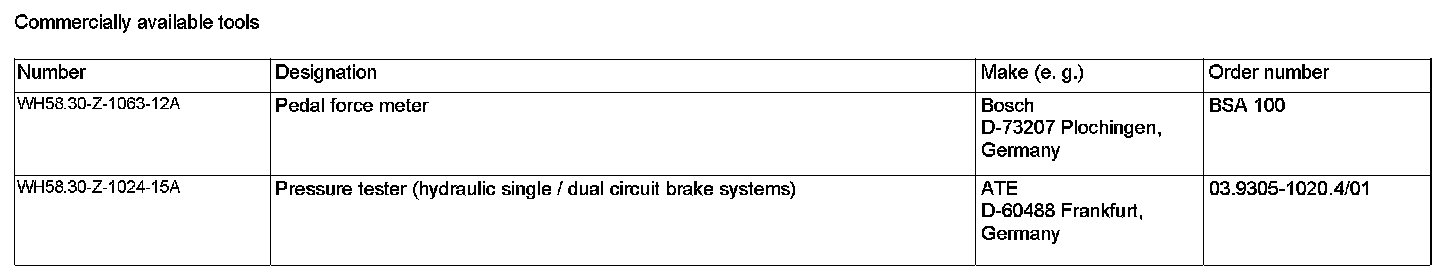

Commercially Available Tools:
