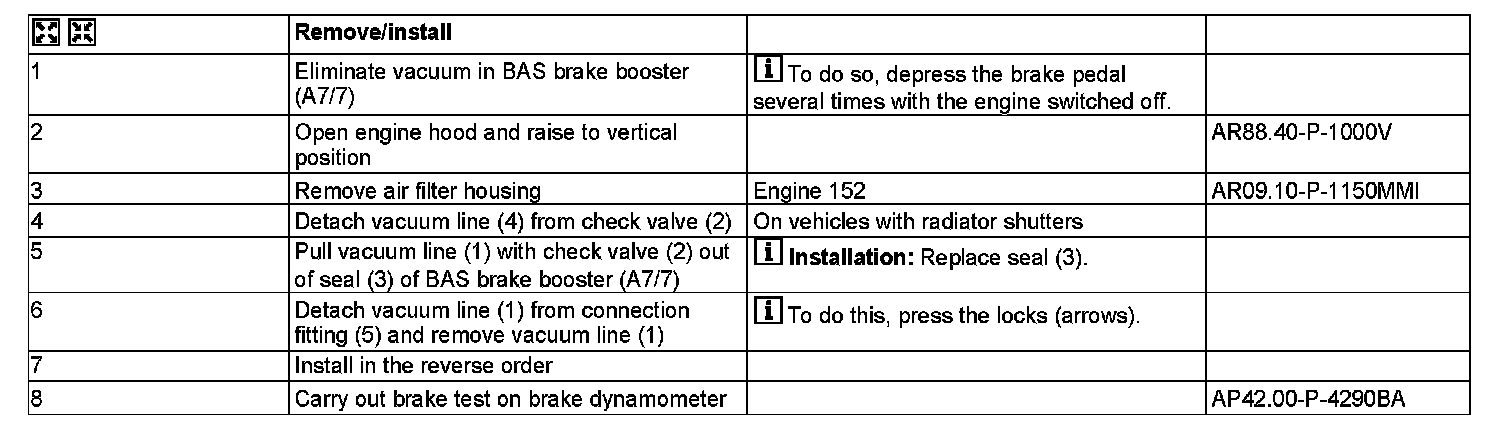

AR43.10-P-0355W Remove/Install Brake Booster Vacuum Line

AR43.10-P-0355W Remove/Install Brake Booster Vacuum Line
MODEL 172 with ENGINE 152, 271, 276

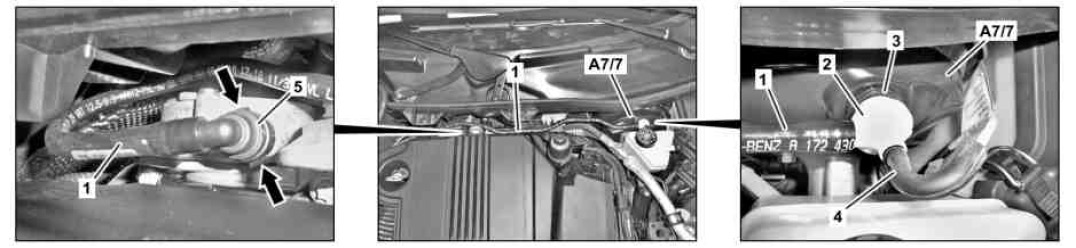

Engine 271

1 Vacuum line
2 Check valve
3 Seal
4 Vacuum line (on vehicles with radiator shutters)
5 Connection fitting

A7/7 BAS brake booster

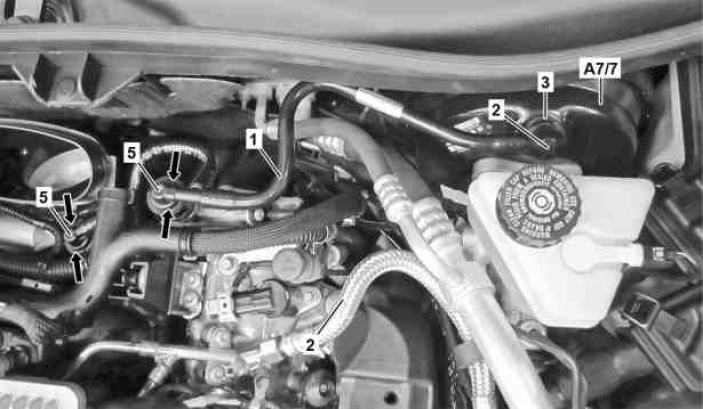

Engine 276

1 Vacuum line
2 Check valve
3 Seal
4 Vacuum line (on vehicles with radiator shutters)
5 Connection fitting

A7/7 BAS brake booster

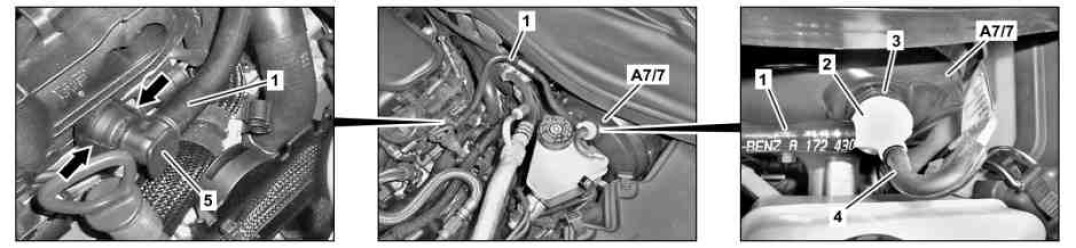

Engine 152

1 Vacuum line
2 Check valve
3 Seal
5 Connection fitting
