AR43.10-P-0350W Remove/Install Brake Booster

AR43.10-P-0350W Remove/Install Brake Booster
MODEL 172

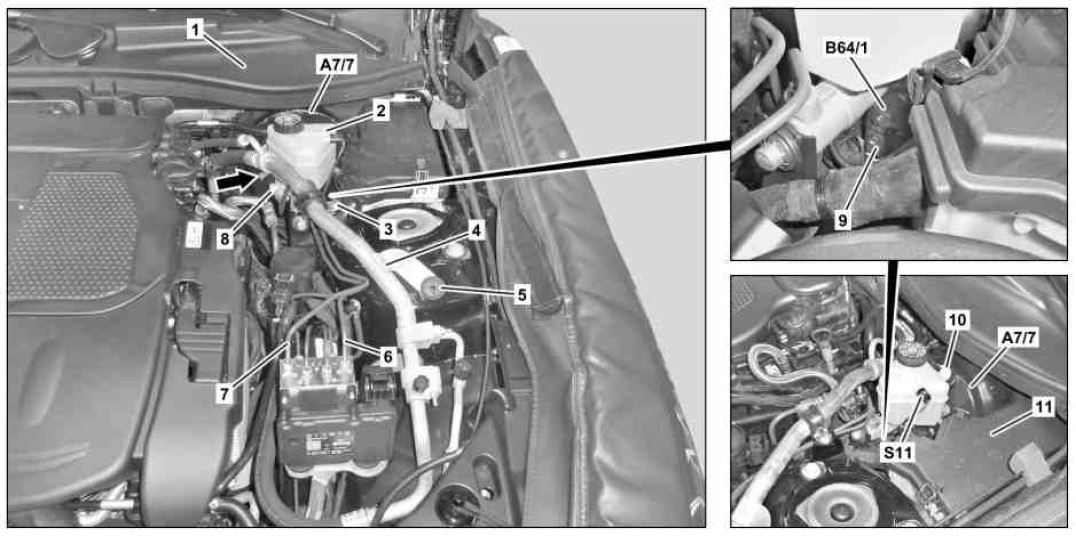

Shown on engine 276

1 Water collector
2 Brake fluid expansion reservoir
3 Nut
4 Refrigerant line
5 Clip
6 Brake line
7 Brake line
8 Master brake cylinder
9 Electrical connector
10 Check valve
11 Fuse box

A7/7 BAS brake booster
B64/1 Brake vacuum sensor
S11 Brake fluid level switch

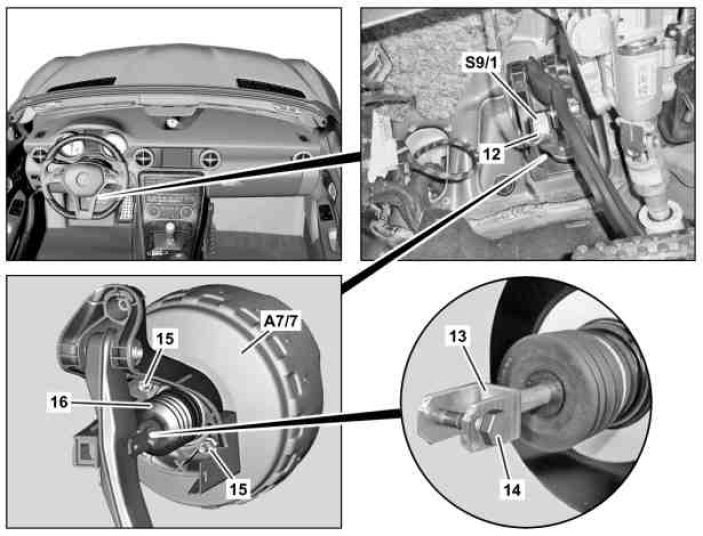

12 Electrical connector
13 Clevis
14 Safety bolt
15 Nut
16 Boot

A7/7 BAS brake booster
S9/1 Stop lamp switch














129 589 00 91 00
Set of stop plugs
