Parking Brake Control: Service and Repair

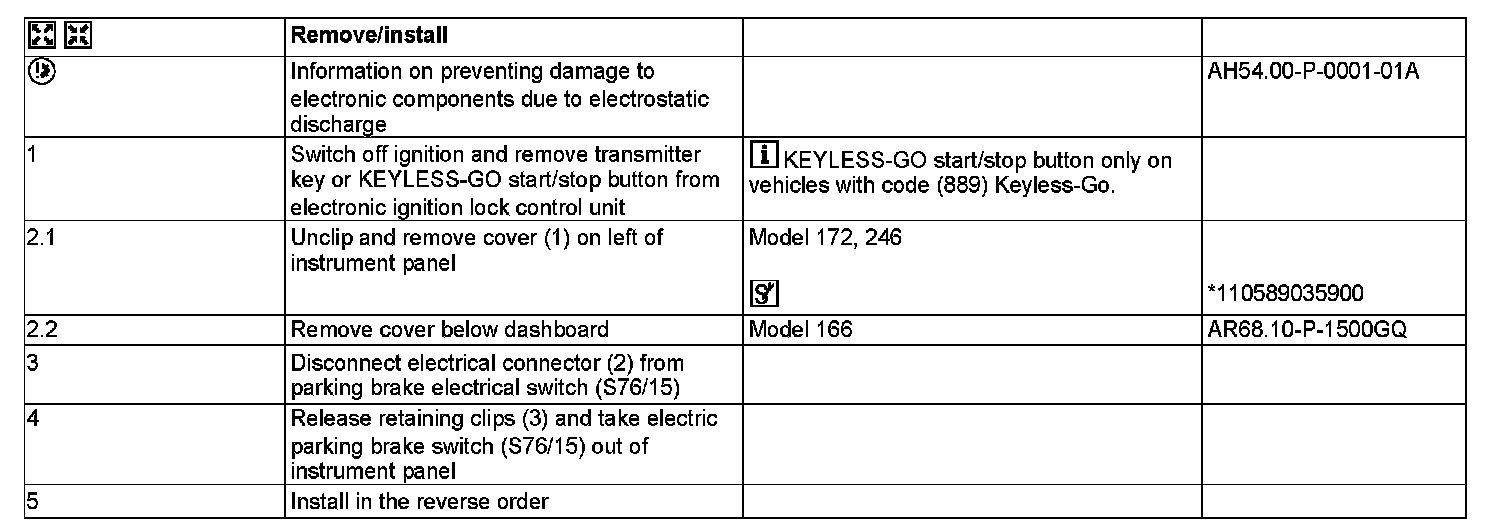

AR42.20-P-0505W Remove/Install Electric Parking Brake Switch
MODEL 166, 172, 246

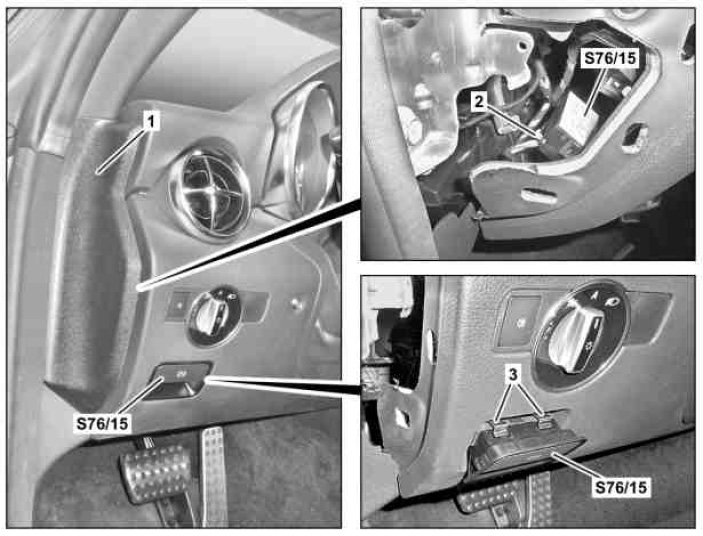

Shows model 172

1 Cover
2 Electrical connector
3 Retaining clips

S76/15 Electric parking brake switch








110 589 03 59 00
Mounting wedge
