Parking Brake Actuator: Service and Repair

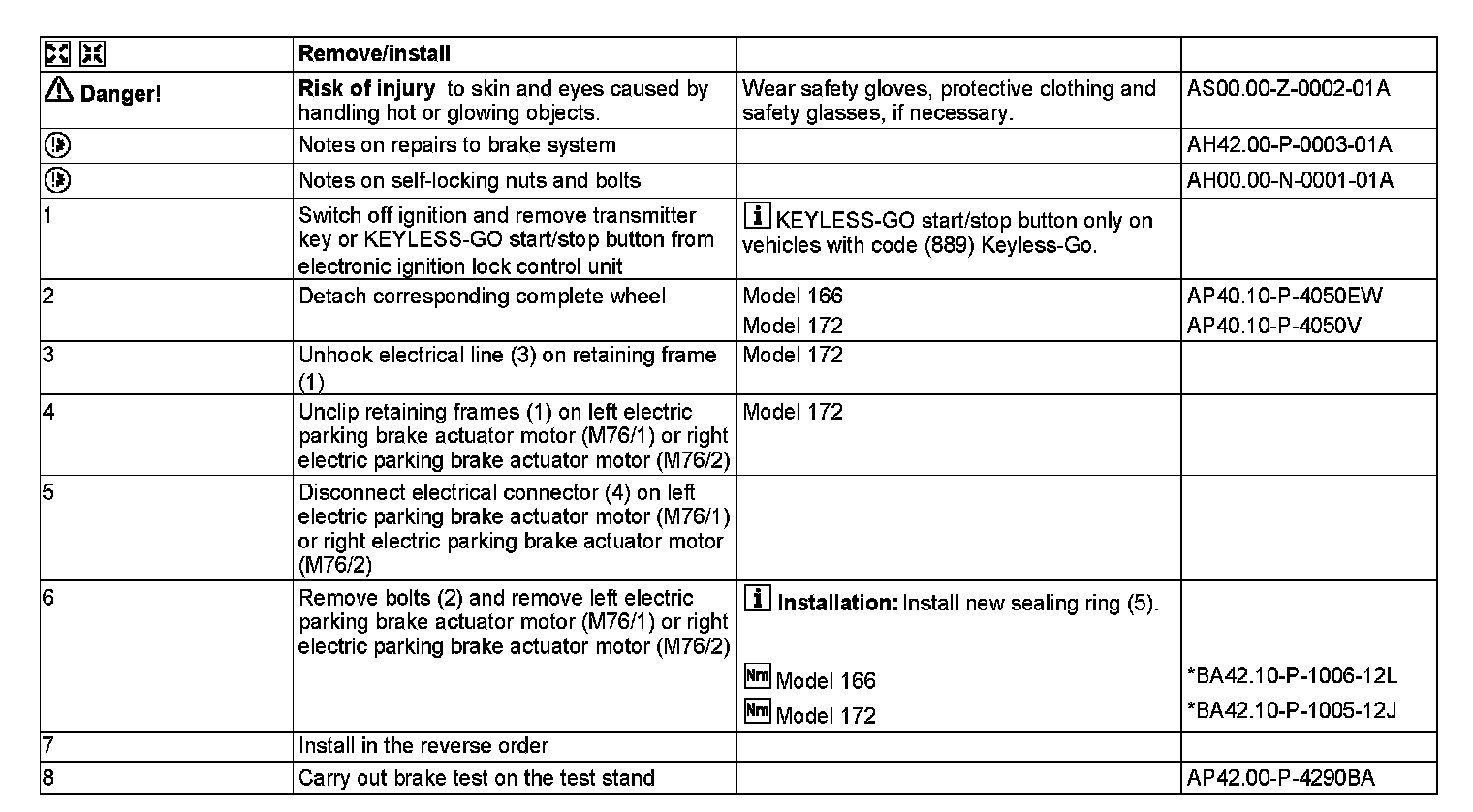

AR42.20-P-0600W Remove/Install Electric Parking Brake Actuator Motor
MODEL 166, 172

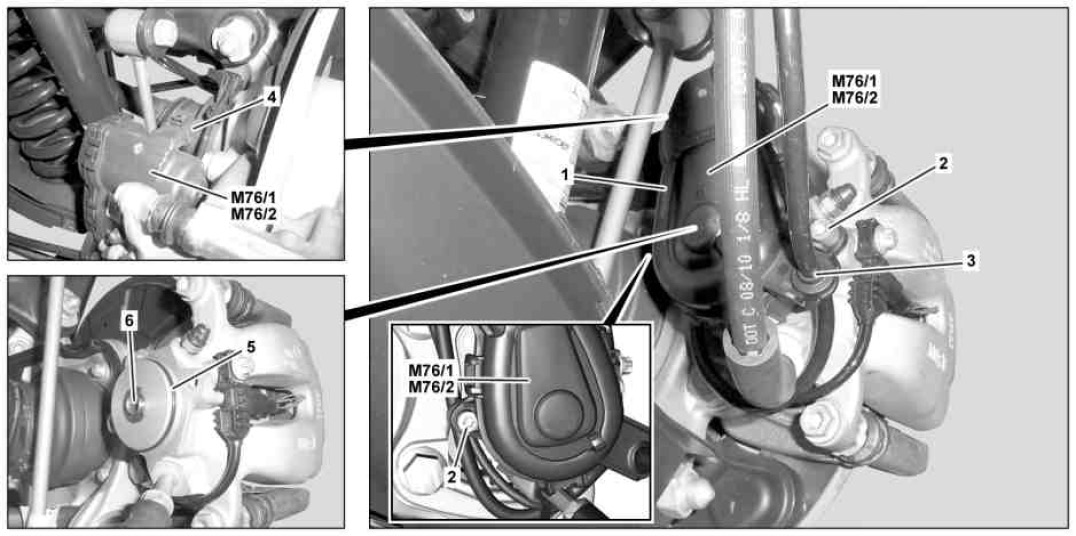

Shows model 172.457

1 Retaining frame
2 Screw
3 Electrical line
4 Electrical connector
5 Sealing ring

M76/1 Left electric parking brake actuator motor
M76/2 Right electric parking brake actuator motor
