AP42.10-P-4210V Brake System - Inspect Fluid Level
AP42.10-P-4210V Brake System - Inspect Fluid Level
AP42.10-P-4210V Brake system - inspect fluid level

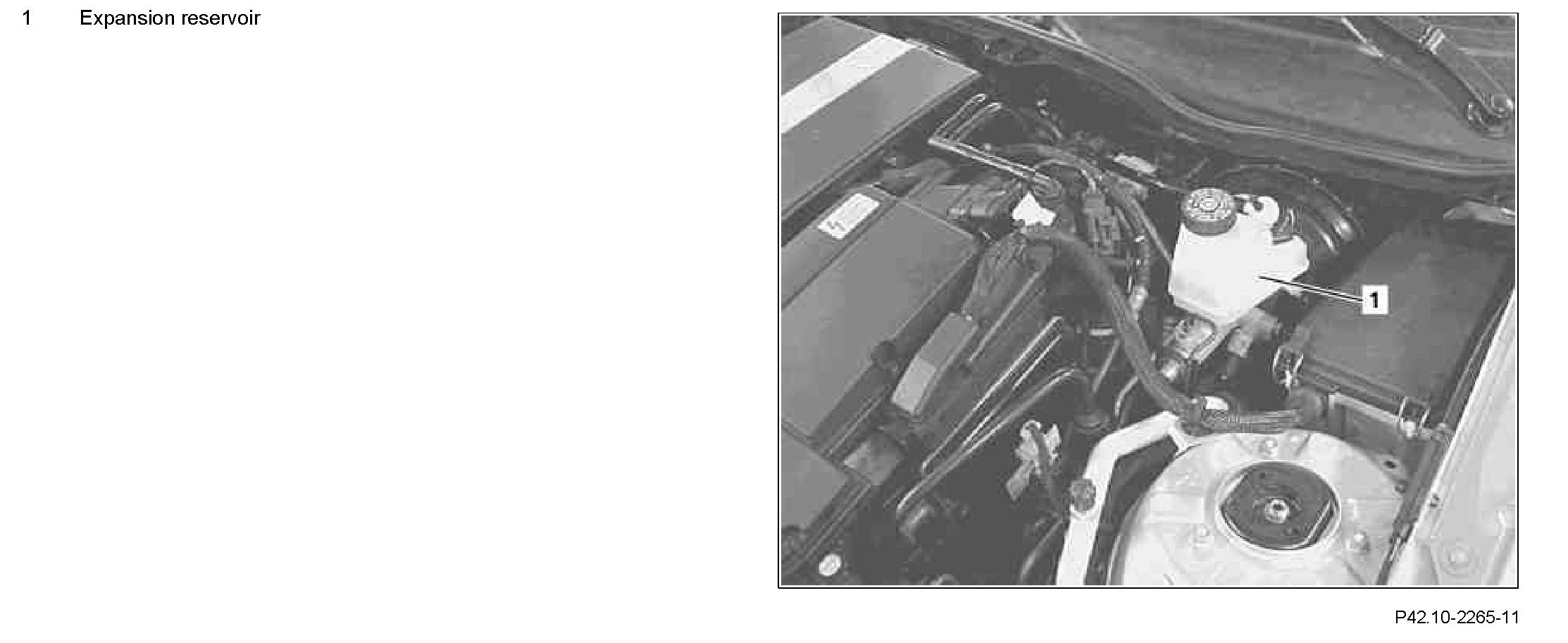

Component Identification:

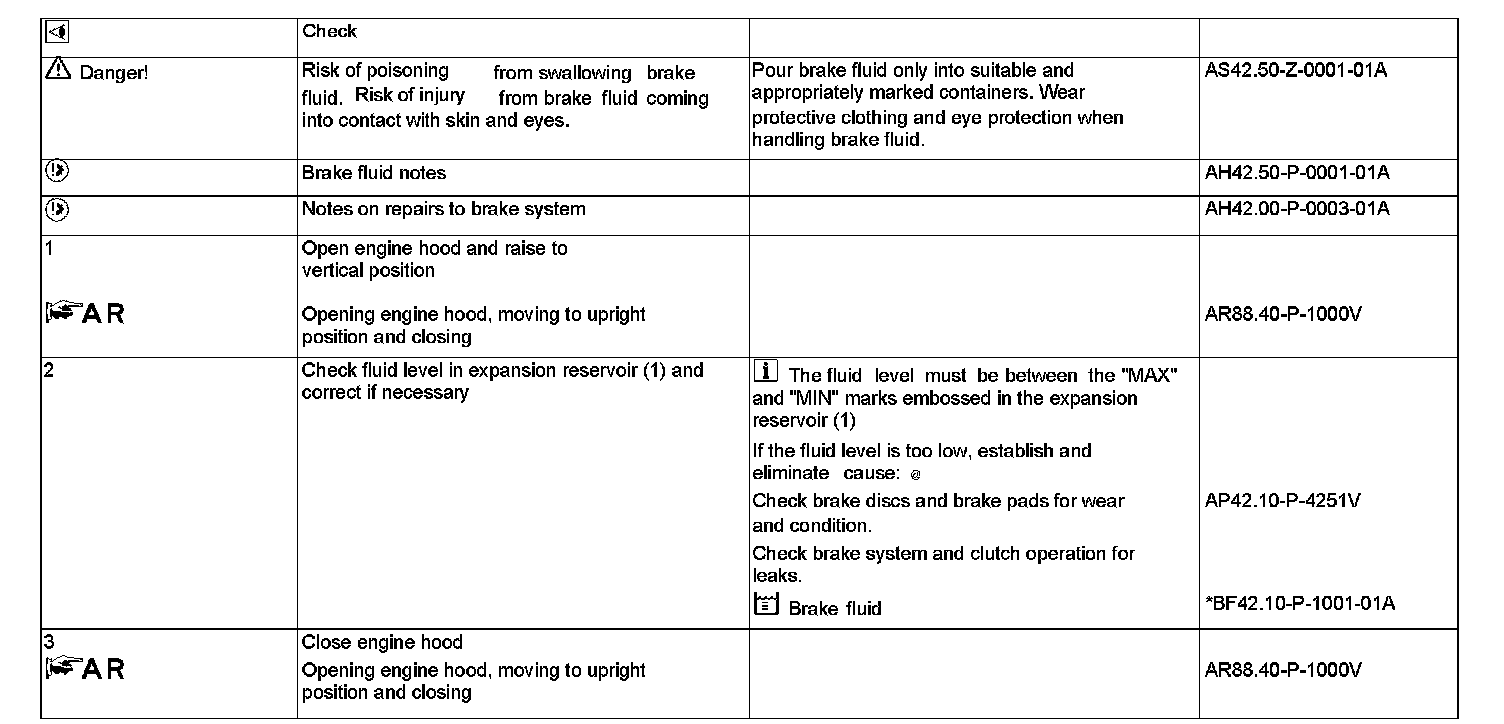

Steps 1-3:

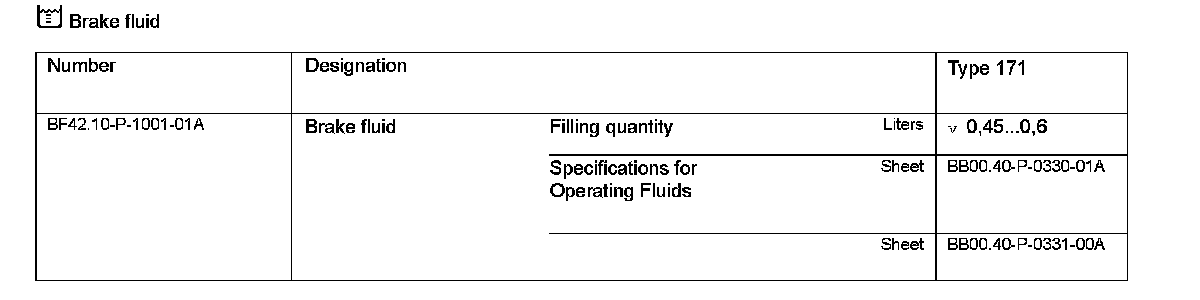

Brake Fluid:
