AR42.10-P-0300CW Remove/Install Master Brake Cylinder



AR42.10-P-0300CW Remove/install master brake cylinder

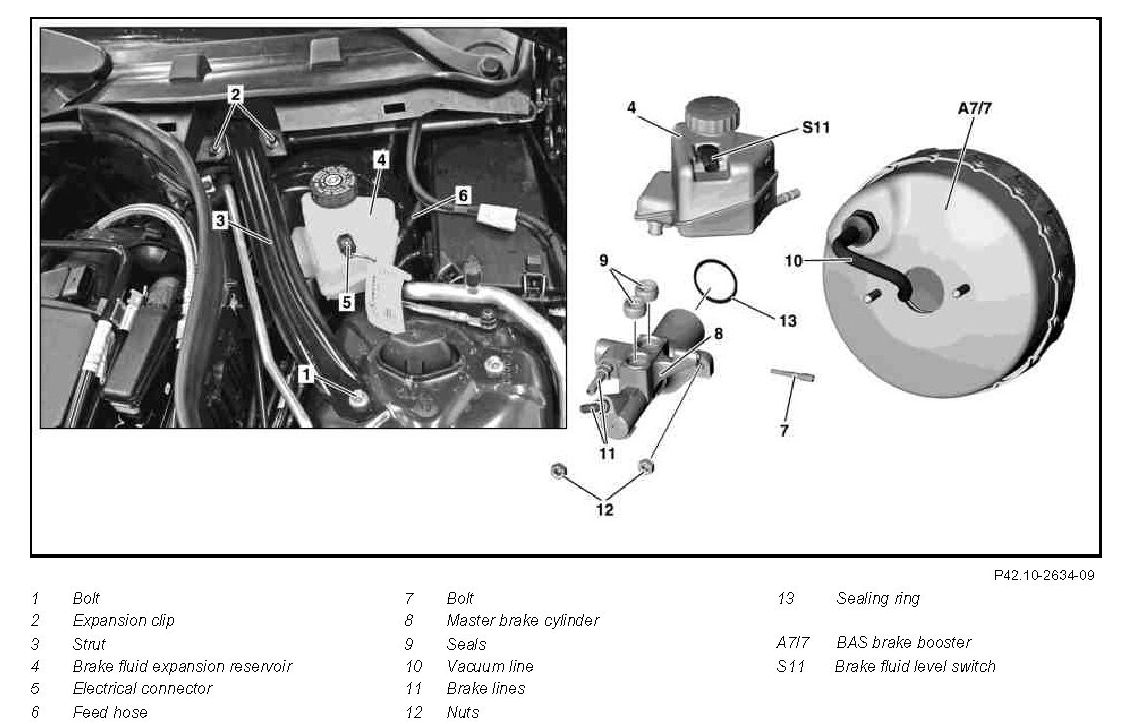

Component Identification:

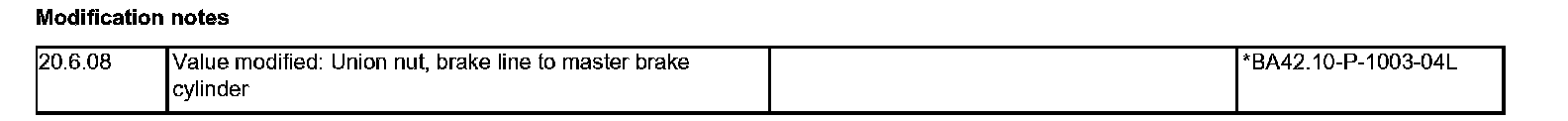

Modification notes:

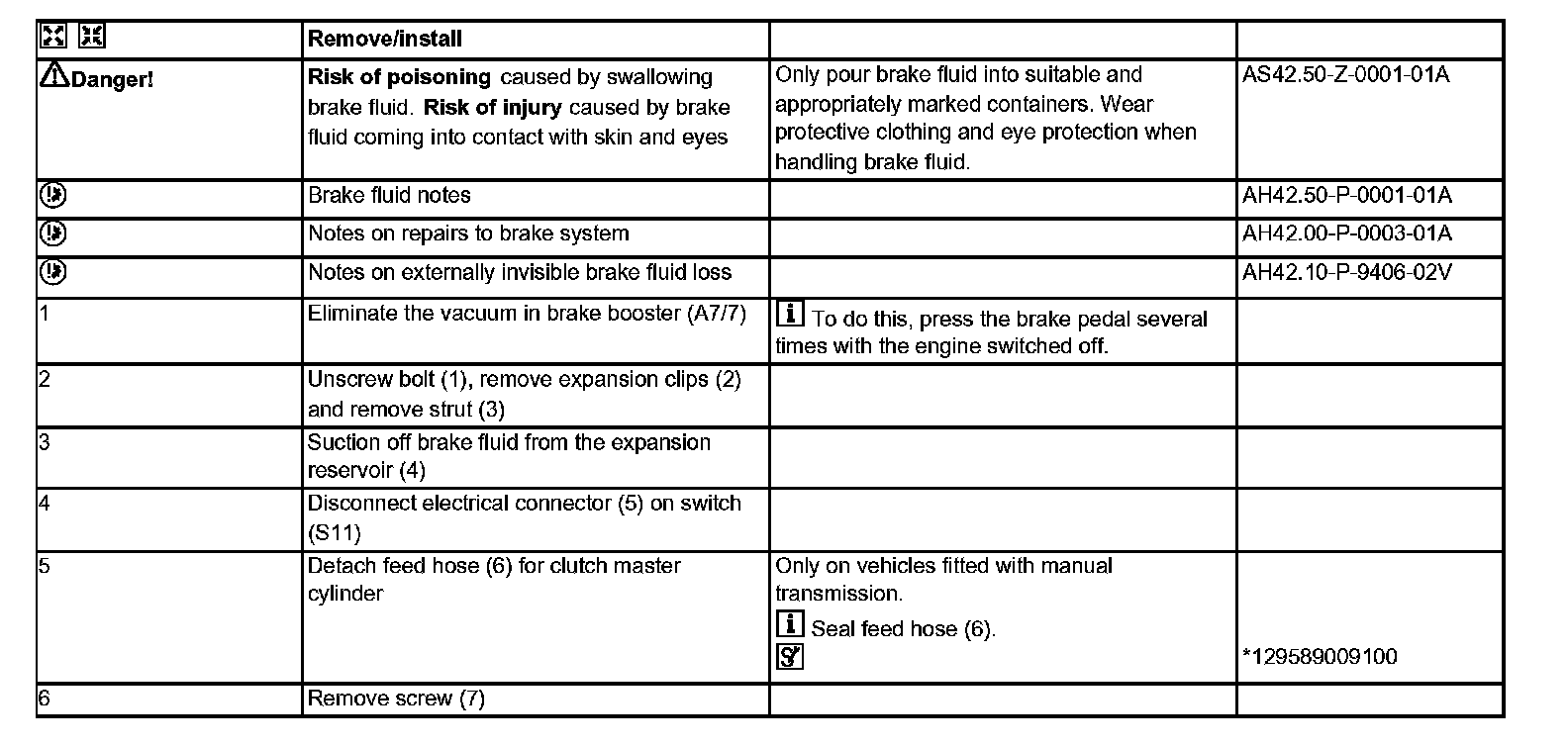

Remove/install Steps 1-6:

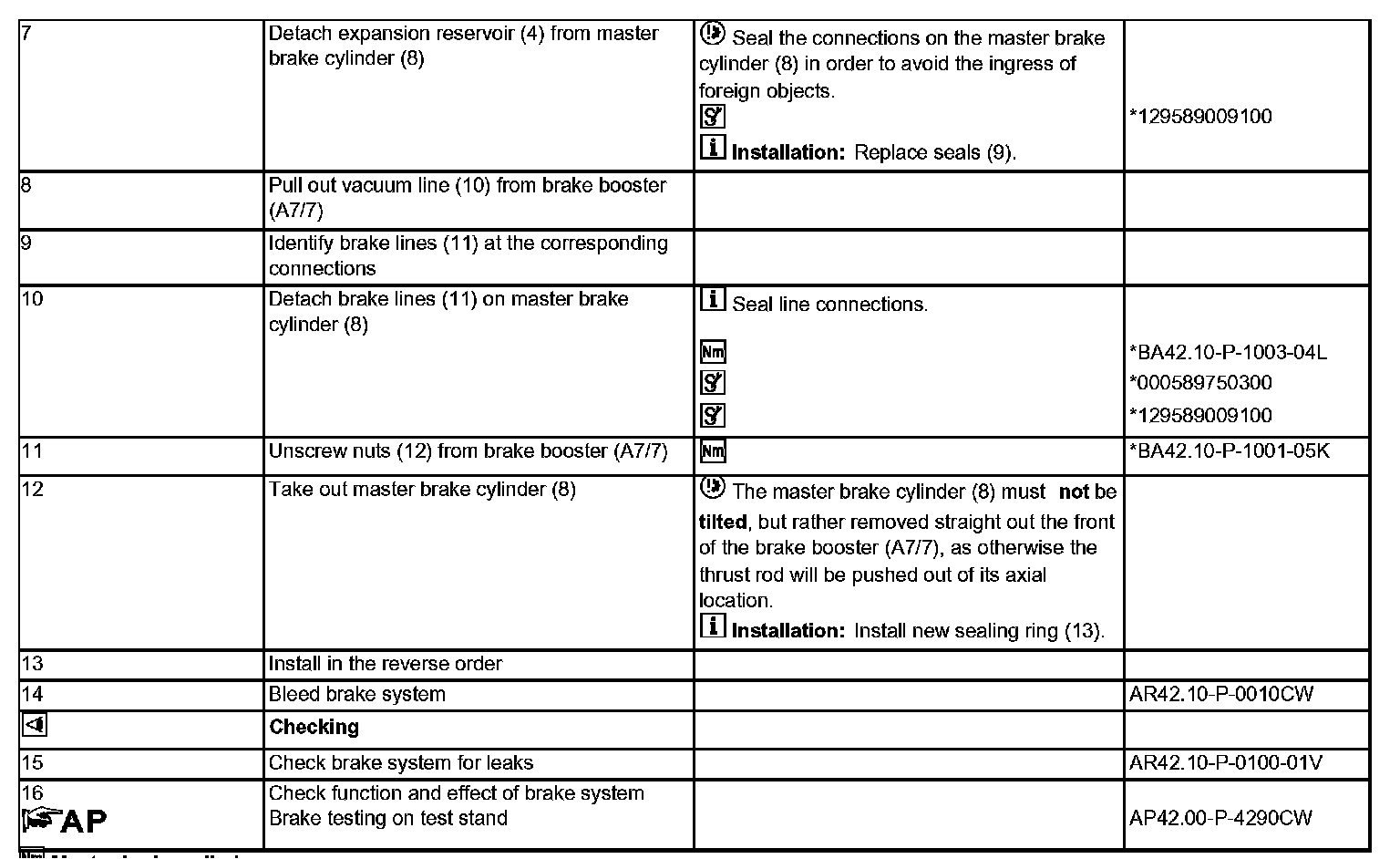

Remove/install Steps 7-16:

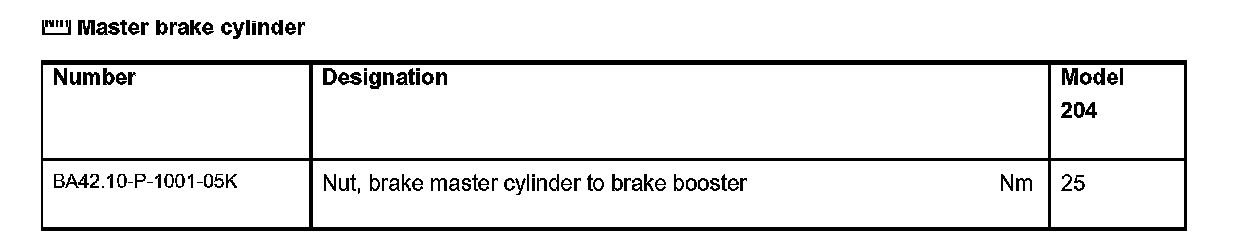

Master brake cylinder:

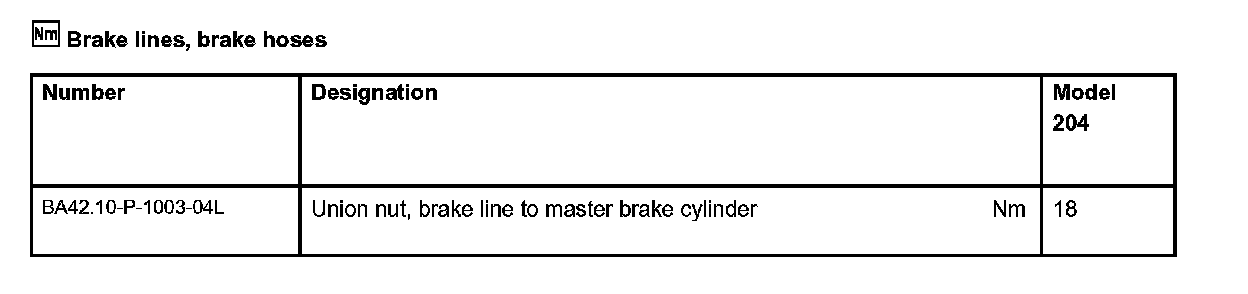

Brake lines, brake hoses:

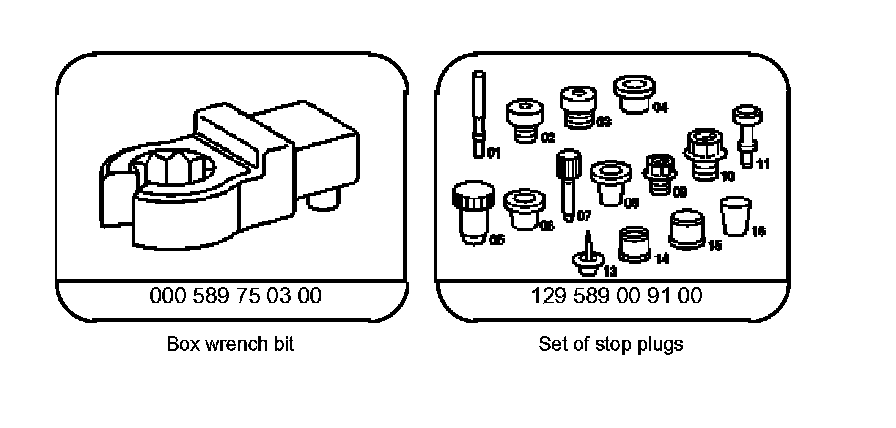

Special Tools:
