AR42.10-P-0300-02V Remove/Install Rocker Pendulum on Master Brake Cylinder

AR42.10-P-0300-02V Remove/Install Rocker Pendulum on Master Brake Cylinder





Removing

1 Remove lock nut (1) from journal of master brake cylinder (2).
2 Unscrew nut (3a) of pendulum support (3) and pull pendulum support (3) with rubber grommet (4) off master brake cylinder (2).
3 Check grommet (4) for damage, replace if necessary.

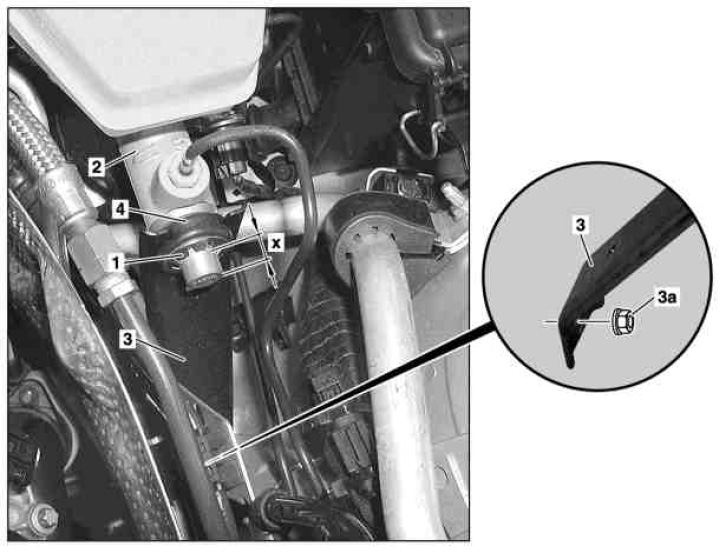

Illustrated on model 171

X Dimension approx. 5 mm

Install

4 Mount new spring nut (1).

Push the lock nut (1) approx. 5 mm (x) onto the journal of the master brake cylinder (2). This prevents the pendulum support (3) from slipping off the journal of the master brake cylinder (2).
