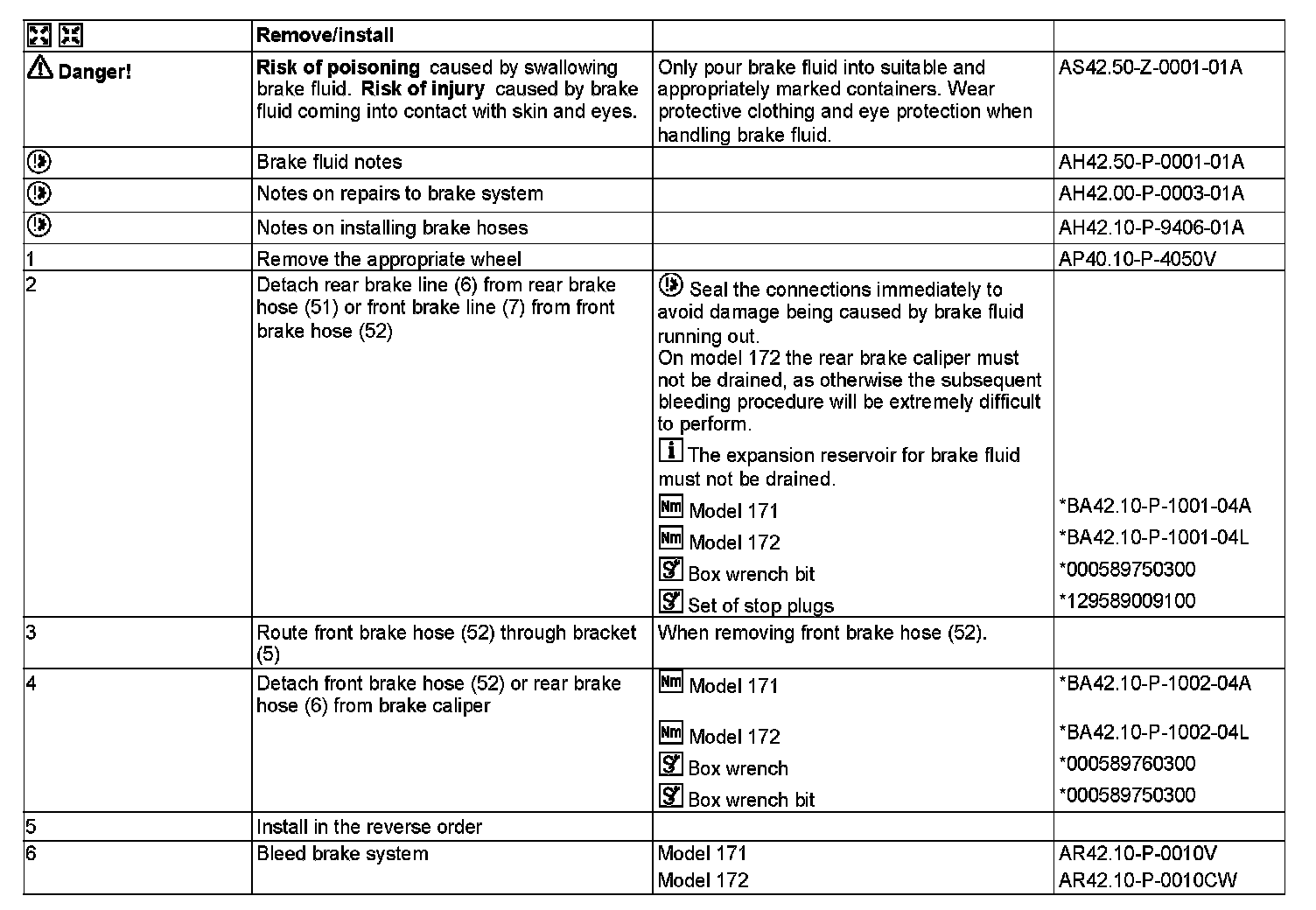

AR42.10-P-0013V Replace Brake Hoses

AR42.10-P-0013V Replace Brake Hoses
MODEL 171, 172

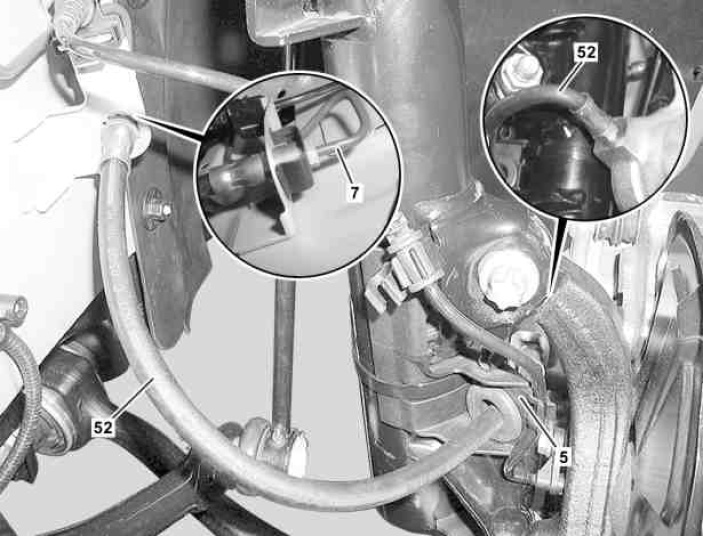

Shown on model 171

5 Bracket
7 Front brake line
52 Front brake hose

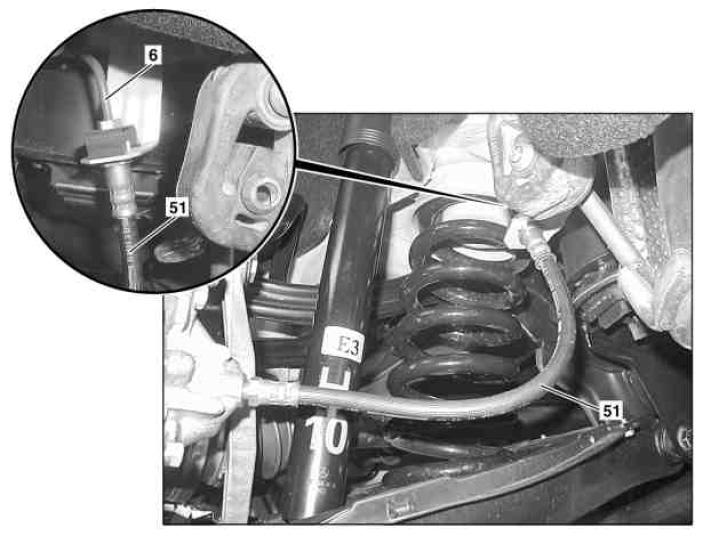

Illustrated on model 171

6 Rear brake line
51 Rear brake hose

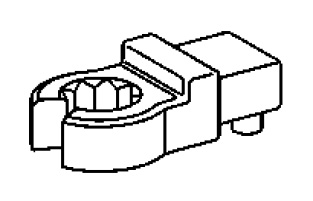

000 589 75 03 00
Box wrench bit





000 589 76 03 00
Ring wrench





129 589 00 91 00
Set of stop plugs
