Brake Rotor/Disc: Service and Repair

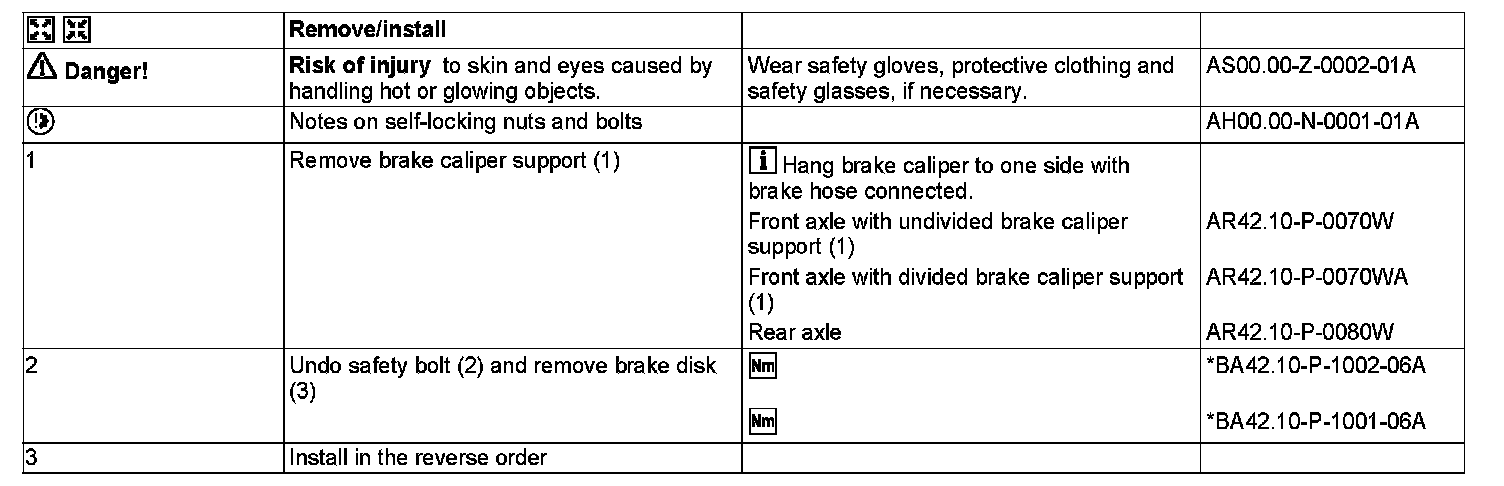

AR42.10-P-0220W Remove/Install Brake Disc
MODEL 172 (except 172.475)

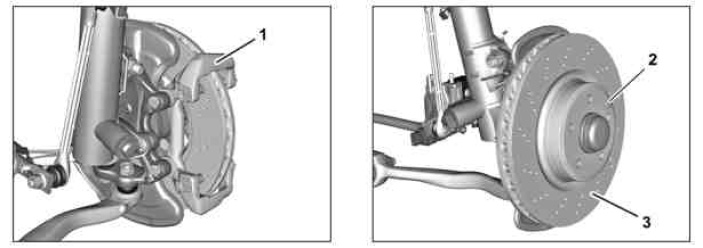

Shown on front axle with divided brake caliper support

1 Caliper support

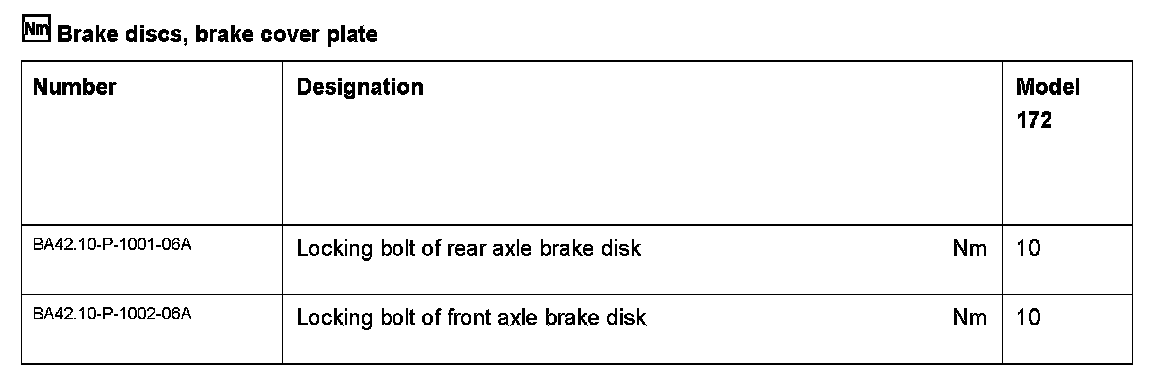

2 Locking bolt
3 Brake disk
